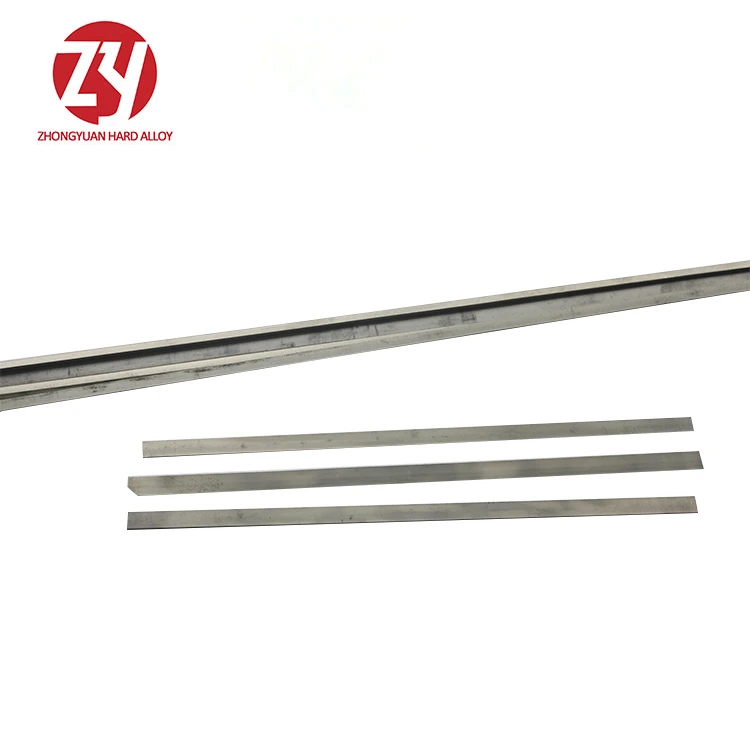

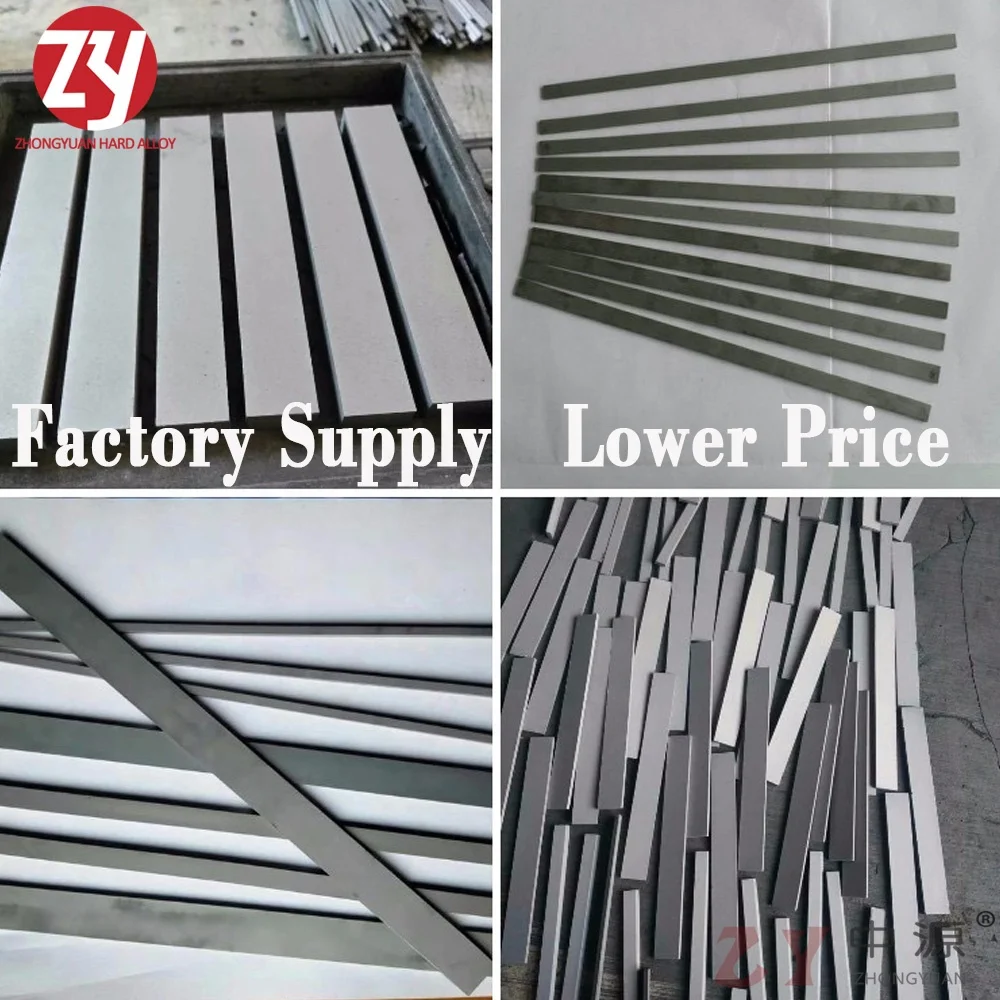

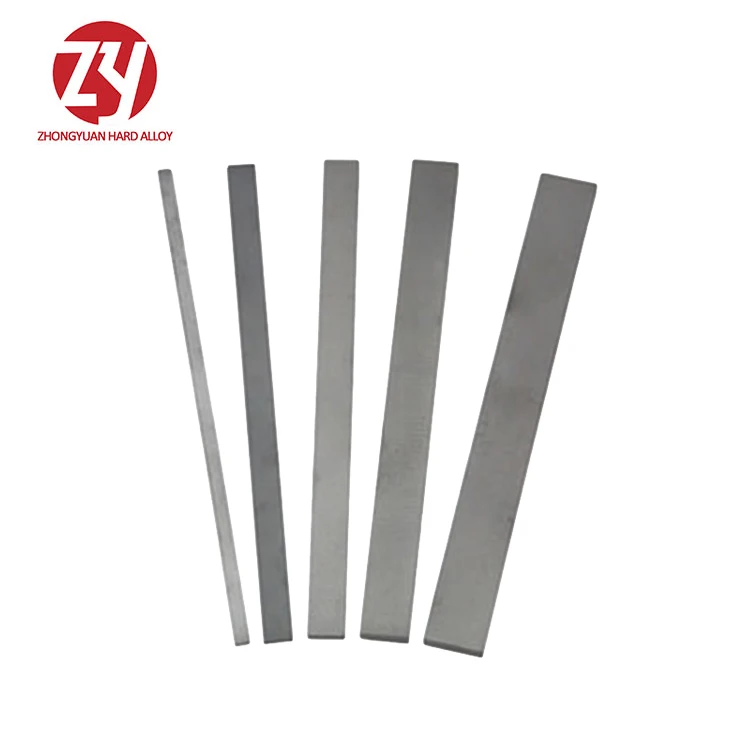

Solid cast tungsten carbide powder Carbide Flat YG10X 10% cobalt
- Category: >>>
- Supplier: Yueqing Zhongyuan Hard Alloy Co. Ltd.
Share on (60036468573):
Product Overview
Description
| Grade | Chemical Composition (%) | Hardness HRA ± 0.3 | Density g/cm³ ± 0.1 | TRS n/mm³ | Grain Size μm | Applications recommended
|
| Co | ||||||
| YG3X | 3 | 93.8 | 15.20 | 1800 | 0.8 | Semi-finishing and finishing of cast irons,non-ferrous metal & alloys and non metallic materials at medium cutting speed. |
| YG6 | 6 | 91.5 | 14.92 | 2200 | 1.2~2.0 | |
| YG6X | 6 | 92.5 | 14.90 | 2400 | 0.8 | Machining of chilled alloy cast irons and refractory alloy steel of finishing of ordinary cast irons. |
| YG6.2A | 5.5 | 93.5 | 14.60 | 3200 | 0.6 | |
| ZF10A | 6 | 93.2 | 14.85 | 3500 | 0.7 | Suitable for fine finishing and semi finishing for various cast irons and non-ferrous metal ,also suitable for whole cutting tool making. |
| YG8 | 8 | 90.5 | 14.70 | 2500 | 1.2~2.0 | Roughing of cast iron ,non-ferrous metals & alloys as well as non metallic materials at low cutting speed. |
| YG8H | 8.5 | 91.0 | 14.50 | 2000 | 1.2~2.4 | |
| YW2 | 8 | 92.0 | 13.20 | 2800 | 0.8 | Roughing and medium machining of ordinary steel ,high manganese steel,stainless steel and advanced alloy steel. |
| Basic dimension (mm) | |||||

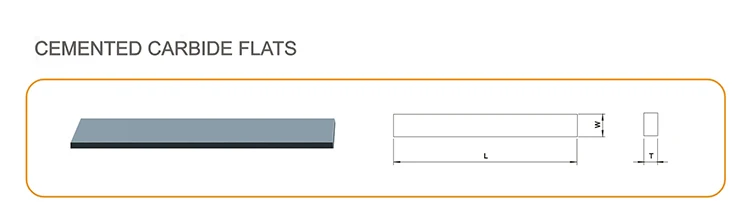

T (mm) | Tolerance of T (mm) | W(mm) | Tolerance of W (mm) | L(mm) | Tolerance of L (mm) |
| 0.9—32 | +0.2/+0.5 | 0.9—32 | +0.2/+0.5 | ≤1800 | +0/+3.0 |

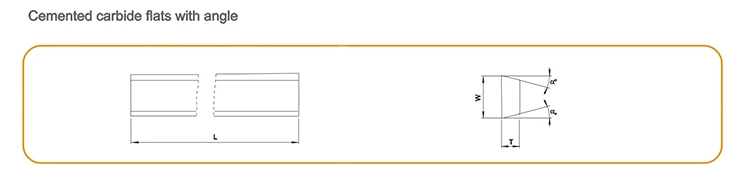

| Basic dimension (mm) | ||||||

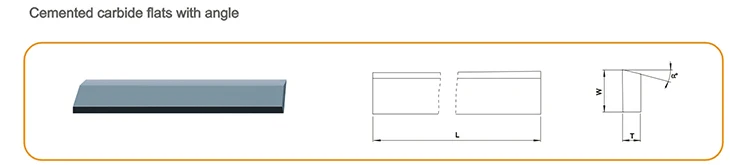

T (mm) | Tolerance of T (mm) | W (mm) | Tolerance of W (mm) | L (mm) | Tolerance of L (mm) | α° ± 1.0° |
| 2.5—20 | +0.2/+0.5 | 2.5—20 | +0.2/+0.5 | ≤1800 | +0/+3.0 | 8—12 |
| Basic dimension (mm) | ||||||
T (mm) | Tolerance of T (mm) | W(mm) | Tolerance of W (mm) | L(mm) | Tolerance of L (mm) | α° ± 1.0° |
| 2.0—22 | +0.2/+0.5 | 2.0—22 | +0.2/+0.5 | ≤1800 | +0/+3.0 | 8—12 |
Q:What's the payment term?
A:We accept TT, 30% deposit and 70% balance against copy of BL
Q:How's the delivery time ?
A:Usually it will take about 25-30 days for production.
But for new molds, the delivery date may 10days more, as we need about 10days to develop . and test new molds.
Q:Tell me the standard of package?
A:For the small capacity, it use carton, but for big capacity, we should use strong wooden case metal drum for protection.
Q:Made by customized drawing or not?
A:We have mold design department. So we could produce goods with our own molds and with your drawing.
Q:Could you offer Form A or C/O ?
A:It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q:Do you make OEM?Would you accept to use our logo?
A:If you have good quantity, it absolute no problem to do OEM.We have laser machine, can . . laser your logo and sizes on the body of products , also can print labels.
Q:We want to know month capacity.
A:Monthly, we could supply 10–40 tons per month.
Q:Where is your market?
A:Our products are popular in Germany, America, Brazil, India, Russia, Indonesia, Philippines, . . Italy, Pakistan South Africa, Egypt and etc.
For more informations of tungsten carbide tools, do contact with us. No matter by Email,trade-manager, enquiry is ok.
