Industrial Portable X Ray Radiography NDT Flaw Detector
- Category: >>>
- Supplier: Dandong Zhong Yi NDT Co. Ltd.
Share on (60036476730):
Product Overview
Description

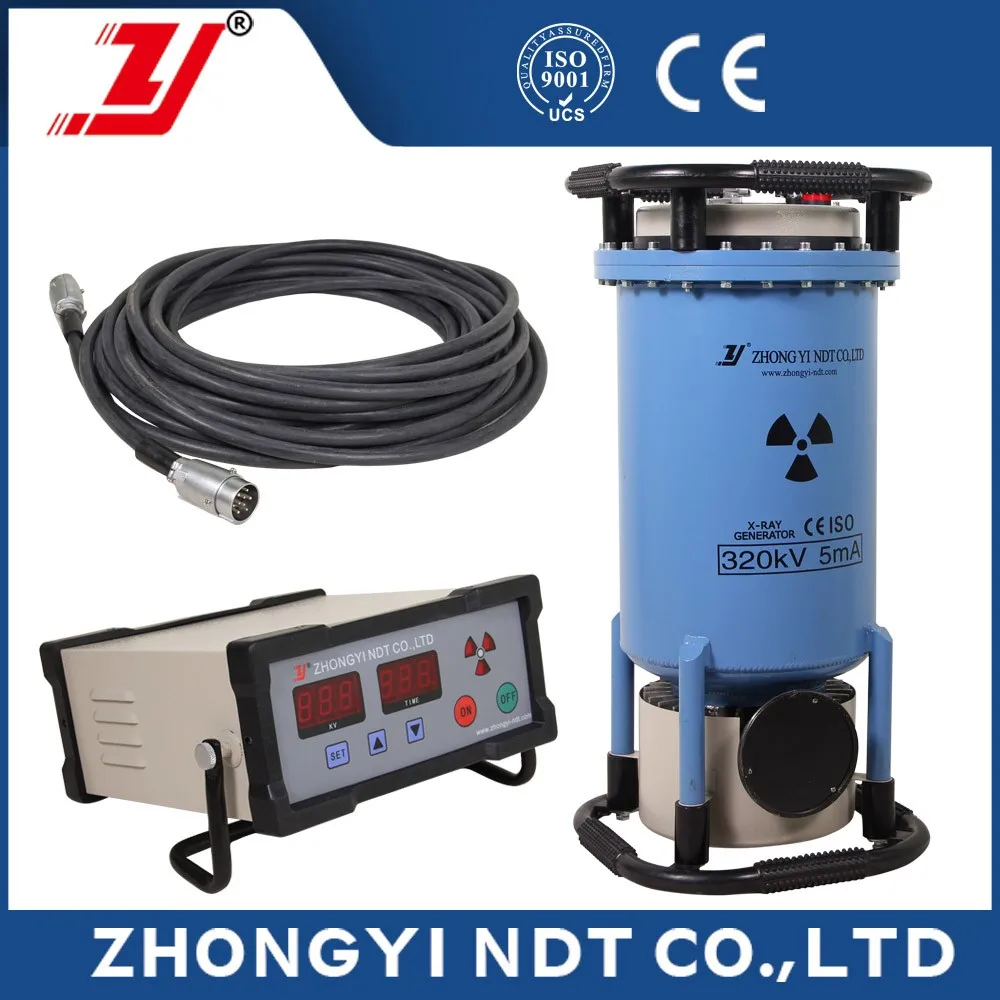

Industrial Portable X Ray Radiography NDT Flaw Detector
Industrial Portable X Ray Radiography NDT Flaw Detector
Product Description
Industrial Portable X Ray Radiography NDT Flaw Detector used for inspect the inner fault of the material. It adopts radiography theory to make the image on the film, in order to evaluate the work piece.
Features of X Ray Generator:
1.Adopt high temperature installation technology and high pure degree aluminum radiator to improve 30% heat radiation.
2.Portable design, light weight and easy operation.
3.SF6 gas insulator, grounded-anode design to keep the operator safety.
4.Strictly follow 1:1 work and rest radio, eliminating the disoperation.
5.HV coil made by imported enamel wire in the generator to improve power.
Features of the Controller:
1.Continual work and avoid the interference by voltage changing.
2.High power electronic capacitance and module has greatly improved the quality.
3.Low voltage and high voltage isolation technology to ensure the stable working.
4.Time-delayed function to reserve enough time for operators moving to safety distance.
5.Fault shooting automatically, pressure indication to make easy operating for the operator.

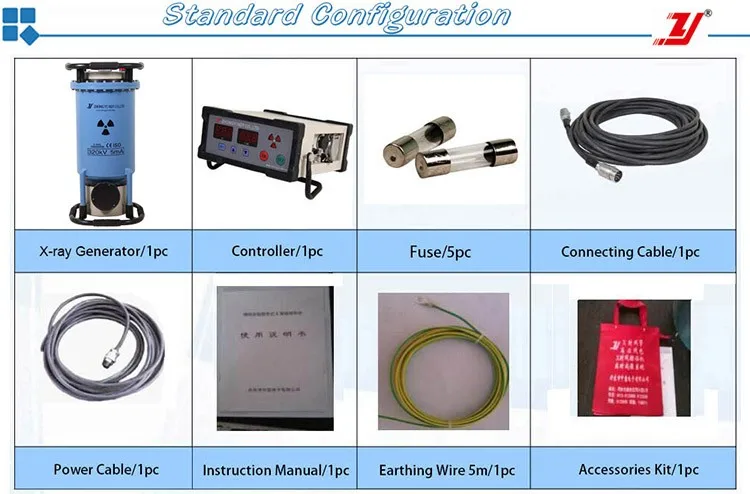

Industrial Portable X Ray Radiography NDT Flaw Detector List
No. |
Industrial Portable X Ray Radiography NDT Flaw Detector |
NOTE |
QTY |
1 |
X RAY GENERATOR |
|
1 SET |
2 |
CONTROL UNIT |
|
1 SET |
3 |
CONNECTING CABLE | 25M |
1 PC |
4 |
POWER CABLE |
10M |
1 PC |
5 |
EARTHING WIRE AND EARTHED POLE |
5M |
1 PC |
6 |
FUSE (3A ) |
|
5 PCS |
7 |
ACCESSORY BAG |
|
1 PC |
8 |
OPERATION MANUAL |
|
1 PC |
NDT Flaw Detector
Specification | |||
Model | XXG-3505 (10min) | ||
Tube Classify | Directional ceramic tube | ||
Working Voltage | 180-350 KV | ||
Focus Size | 2.5*2.5 mm | ||
X Ray Exposure Angle | 40° | ||
X Ray Generator | Dimension | 340*340*680 mm | |
Weight | 25kg | ||
Max. Penetration A3 Steel | 37 mm | ||
Power Supply | AC 190V-260V 50HZ | ||
Power | > 3.5 KW | ||
Control Unit | ZY-4000 | ||
Control Unit | Dimension | 310*310*145 mm | |
Weight | 9 KG | ||
Max. Exposure time | 10 min | ||
Work Ratio | Work time: rest time = 1:1 | ||
Cooling System | Air Fan | ||
Operating Temperature | -25℃-40℃ | ||
Max. Penetration Test Conditions | 1. Focus to Film: 600mm 2. Exposure time: 10 min 3. Film: KODAK, double lead foil intensified 4. Treatment in the darkroom: Temp. 20 ±2ºC ,5 min. D ≥ 1.5 | ||
Safe Working Pressure of Gas | 0.35 ~ 0.50 Mpa (Operation prohibited in case less than 0.35 Mpa) | ||
Industrial Portable X Ray Radiography NDT Flaw Detector
FAQ:
Q 1:Is your Company the Manufacturer or a Trading Company?
A 1 : We are a manufacturer of NDT x ray equipment in China with experience engineer working over 20 years.
Q 2 : What are the payment options?
A 2 : We accept the following payment methods: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance .
Q 3 : Do you have any products that approved by ISO or CE?
A 3 : Yes, all of our products were strictly approved by ISO and CE, and our Zhongyi products can be imported to the overseas market.
