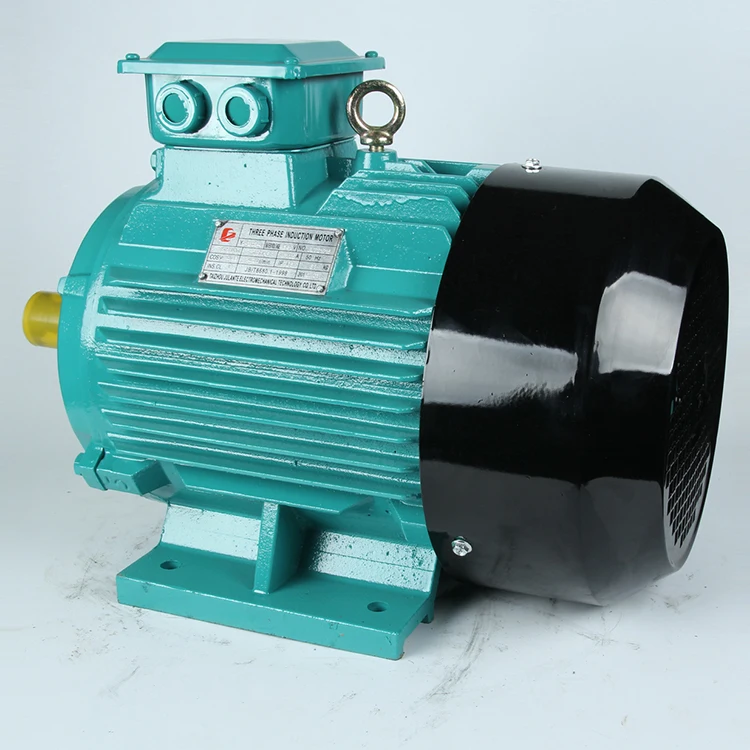

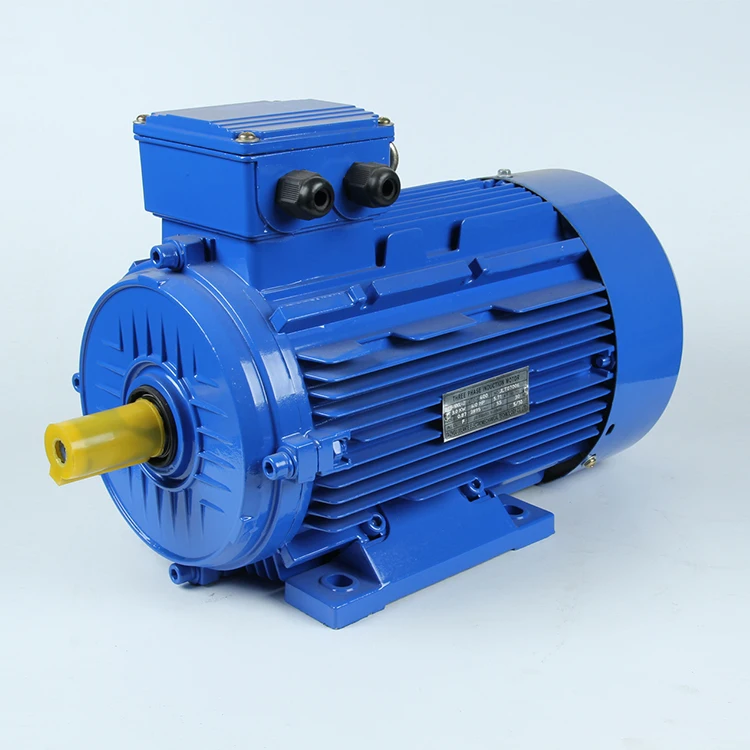

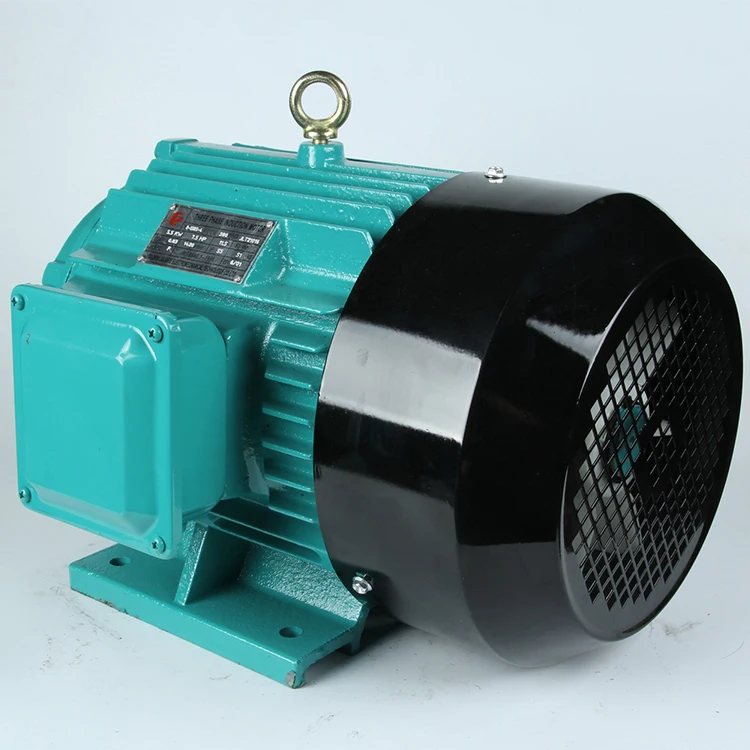

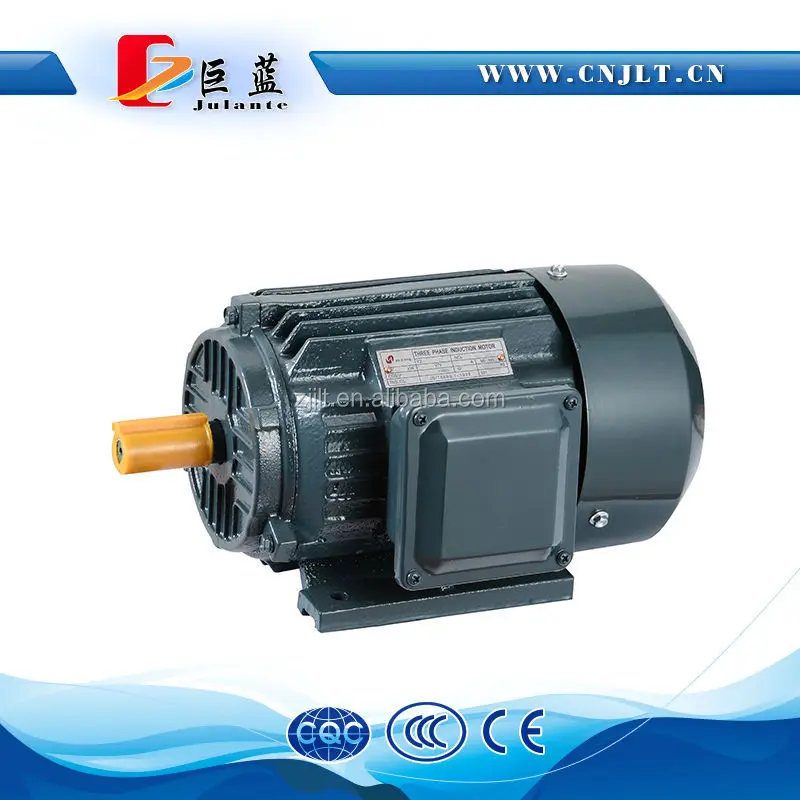

Y80m1 4 type 380v ac electric motor
- Category: >>>
- Supplier: Taizhou Julante Electromechanical Technology Co. Ltd.
Share on (60036566293):
Product Overview
Description
Product Overview

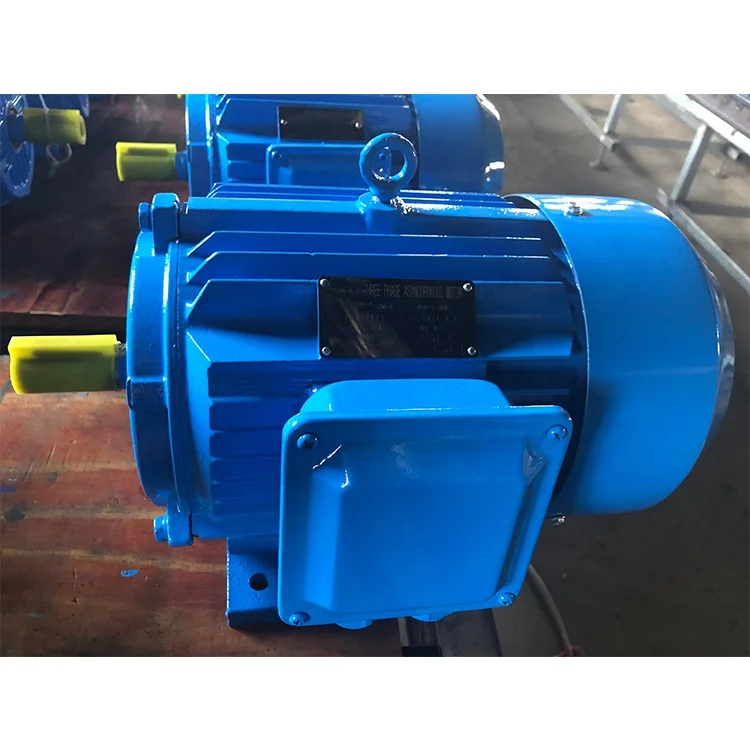

Three Phase Motor
3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on
surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which
makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing
intensity,F class insulation makes the motor with higher heat stability and longer life.
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on
surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which
makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing
intensity,F class insulation makes the motor with higher heat stability and longer life.
FEATURES AT A GLANCE
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including
bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size
from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during
running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion
protection coating.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including
bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size
from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during
running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion
protection coating.
Right elevation
Left elevation

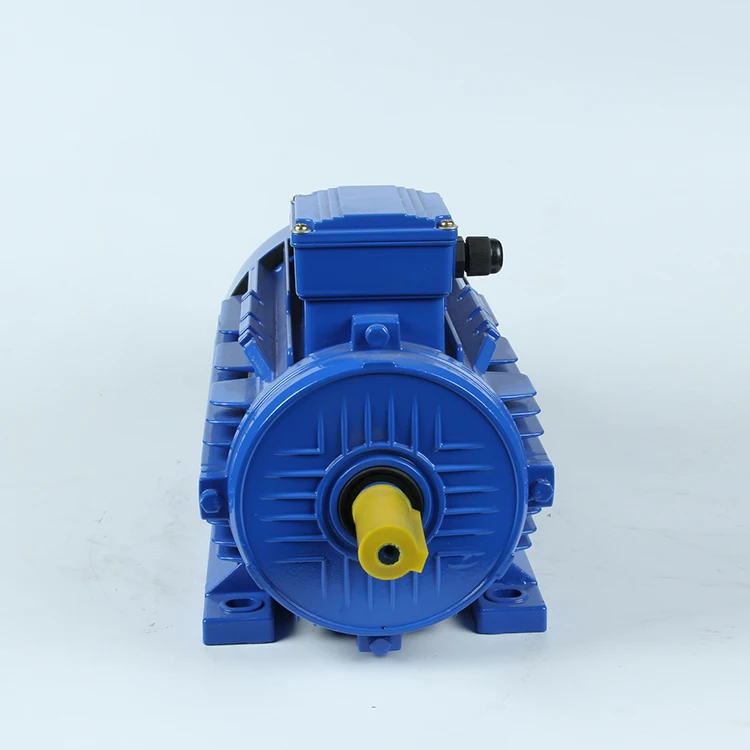

Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Brand Name | Julante |
2 | Power | 0.18KW-560KW |
3 | Voltage | 220/380/440/660V |
4 | Speed | 750-3000R/MIN |
5 | Wire | 100% Copper wire |
6 | Frequency | 50/60HZ |
7 | Protection Class | IP44/54/55 B/F/H |
8 | Warranty | 1Year |
9 | -Ambient Temperature | -15℃≤0≤40℃ |
10 | Phase | Three Phase |
11 | Application | General Machinery |
12 | Mounting Type | B3/B5/B35 |
13 | Duty | S1 Continuous |
14 | Place of origin | Zhejiang,China |
15 | Protect Feature | Toally Enclosed |
16 | Model Number | Y/Y2/YE3/YR/YZ |
17 | Efficiency | IE2 IE3 |
18 | Certification | CE CCC ISO9001 |
19 | Altitude | Not exceed 1000m |
20 | Standard | Confirm to IEC international standard |
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Exhibition

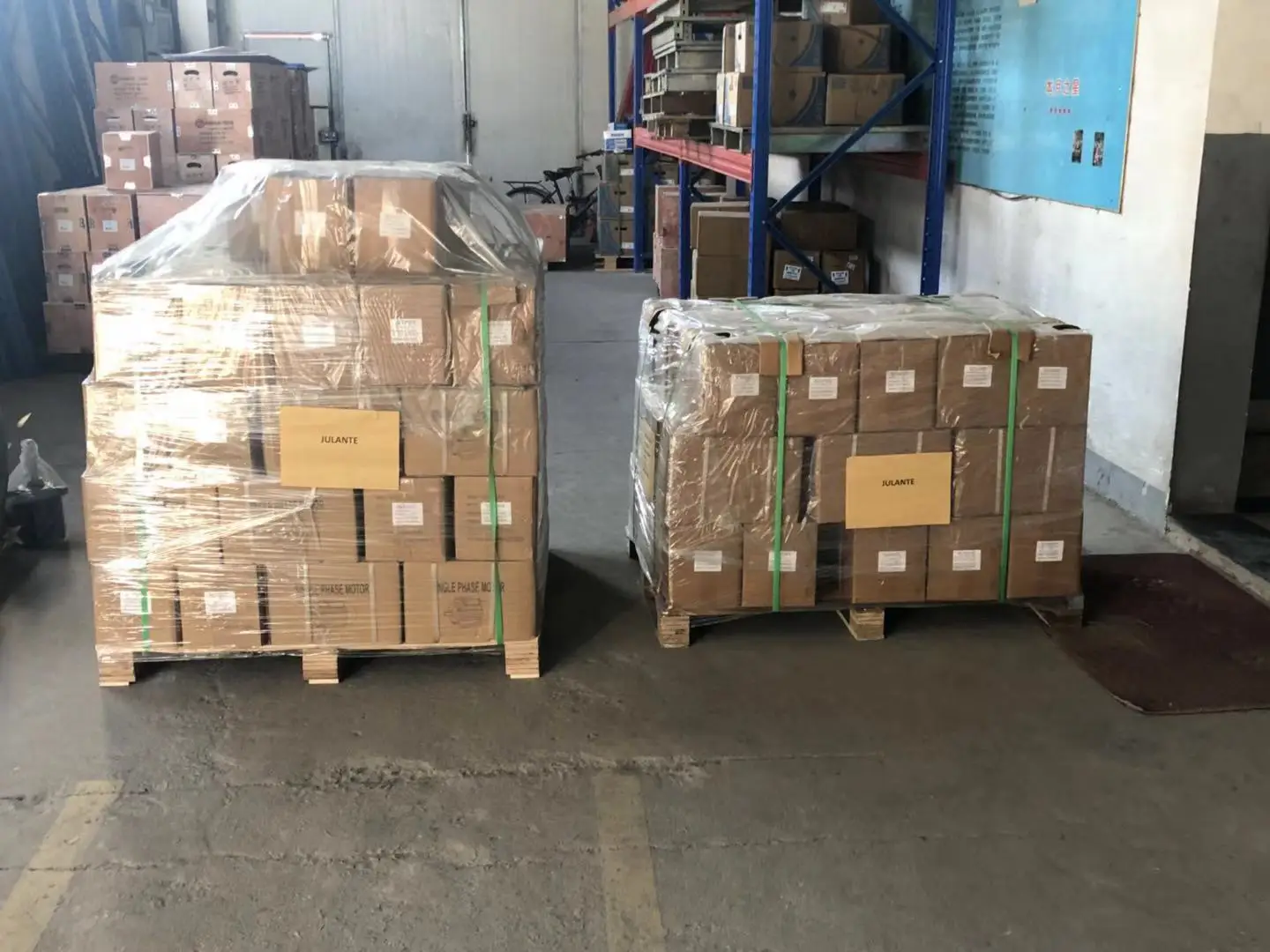

Transport
FAQ
Q: Do you offer OEM service?
A: Yes, we can customize it as your request.
Q: What is your payment term?
A: TT. LC, ALIPAY, AND WESTER UNION
Q: What is your lead time?
A: About 30 days after receiving deposit. Q: What certificates do you have? A: We have CE,CCC,
ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria, SASO for Saudi Arabia, etc
Q:What about the warranty?
A: We offer 12month warranty period as the quality guarantee.
Q:What service do you offer?
A: Pre-sales service, in-sales service, after-sales service. If you become our local distributor, we can introduce end-customers to purchase
from you.
from you.
Q:What’s your motor winding?
A: 100% copper winding
Q:Which port is near to you?
A: Ningbo port. And we can arrange to deliver Guangzhou, Shanghai, Urumqi, or other Chinese cities, too.
Q:Could you offer Origin Certification.
A: we can do as your request.
Contact Us
