RFNC5 poloso Universal External Laptop Battery Charger for DELL HP IBM ACER ASUS LENOVO most brands

Product Overview

Description

RFNC5 External Laptop battery charger with USB port charging for USB peripherals suit for over 95% brand laptops.



Functions:

1. This product is a portable charger for high capacity batteries of laptops.

2. Charge your laptop battery directly, without having to fix the battery to your laptop first.

3. Suitable for over 95% of laptops in market with the separate connecting wire.

4. with four LED lights to indicate the charge status.

5. Charge your USB peripherals with the USB port.

6. Charge voltage and current can be regulated automatically.

7. Simplify charging process, save your time and preserve your laptop, especially when you own two batteries or more.

8. with the repair zero-voltage-battery function

9. Can realize lithium battery pack with the different combination

10. Easy to carry and put it in your journey bag, computer bag or car.



Specification:

Model	RFNC5
Dimensions	61 X 70 X 24 mm
Color	black
Weight	85g
Input Voltage	AC 100~240V 5A 50/60HZ
Output voltage	DC 20V 2A
Maximum output power	2A MAX
USB Output	5V±4%:≤500M
Standby power consumption	<1W
Length of charging time	8 hours MAX
Operation Temperature	0°C~40°C/20%~90% RH
Storage Temperature	-20°C~65°C/10%~95% RH
Accessories	1*Adaptor, 1*Connecting Wire

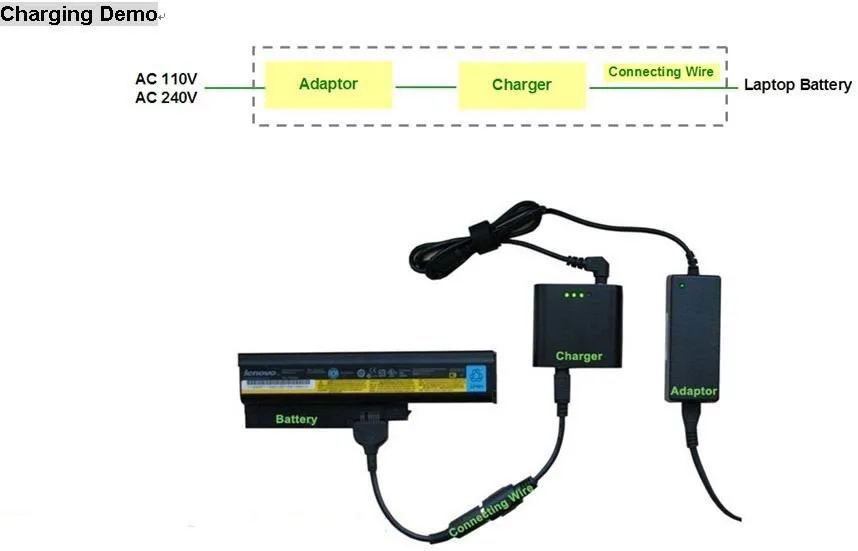

Charging Instruction:



Normal Working Condition:

Four LED lights go on after switching on. The charger gains the battery information from the battery protective plate, and then starts charging.

LED Status Capacity Percentage

All the four LEDS blink circularly <25%

LED1 is on. The other three LEDS blink circularly <50%

Both LED1 and LED2 are on. Both LED3 and LED4 blink circularly <75%

LED4 blinks. The other three LEDS are on <100%

All the four LEDS are on =100%

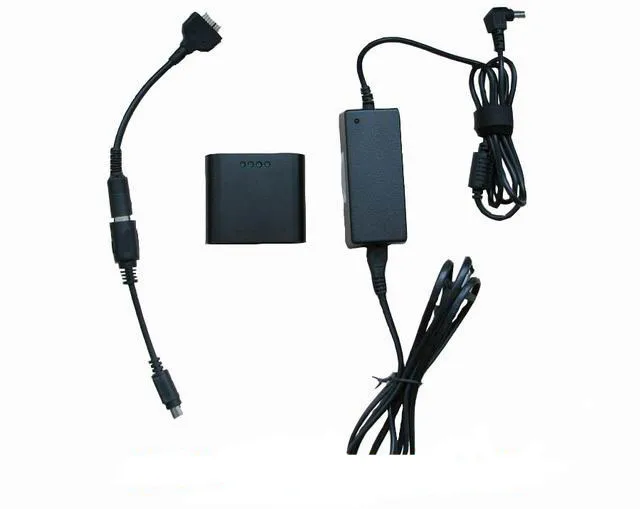

Acessories:

1* RFNC5 ,1* power cord ,1* Battery cable



The Fixed cable for HP DELL ASUS LENOVO ACER IBM SONY GATEWAY

2.0mm and2.5mm Universal cable for most brands laptop ,just adjust the pin definition according to different batteries
