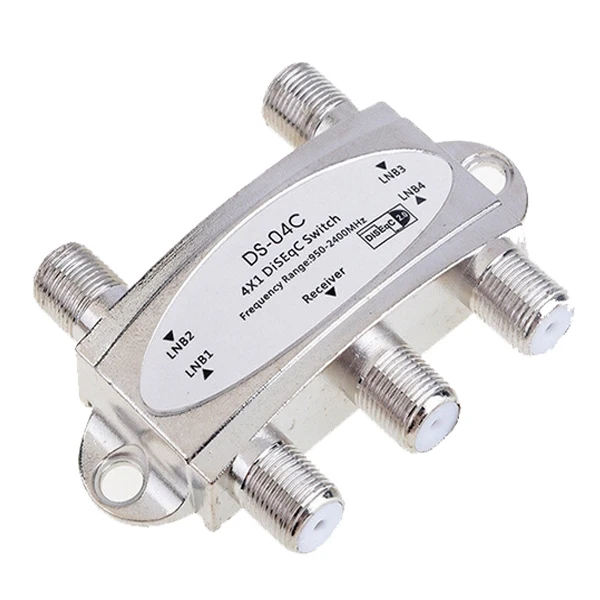

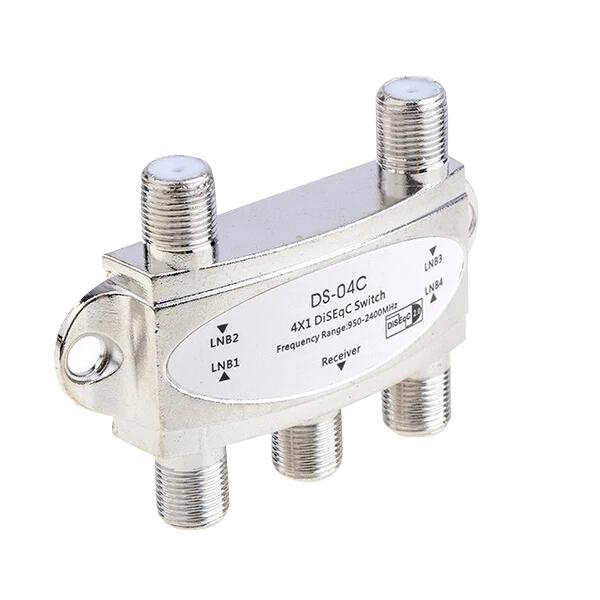

4 x 1 Satellite DiSEqC Switch  for satellite receiver

• Zinc die-cast housing, nickel-plated


•


• Excellent quality component , professional circuit design and low loss


•


• Excellent quality chip , professional program design and compatible with more types of satellite receiver


•


• Can work normally outdoors under unsheltered circumstance, exquisite plastic case shell attached


•


• DiSEqC 2.0 , support bi-directional DiSEqC full control functions


•


• Select one of two satellite signals through DiSEqC commands supplied from satellite receiver


•


• Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously


•


• Support DiSEqC standby commands








































  Item	Specification	Item	Specification
  Frequency Range	950-2400(MHz)	Normal Working Voltage	12-20(V)
  Insertion Loss	3(dB)	DC Power Consumption	10(mA)
  Isolation	20(dB)	DC Max Power Passing	500(mA)
  Return Loss	8(dB)	Impedance(all ports)	75(ohm)
