Product Overview

Description

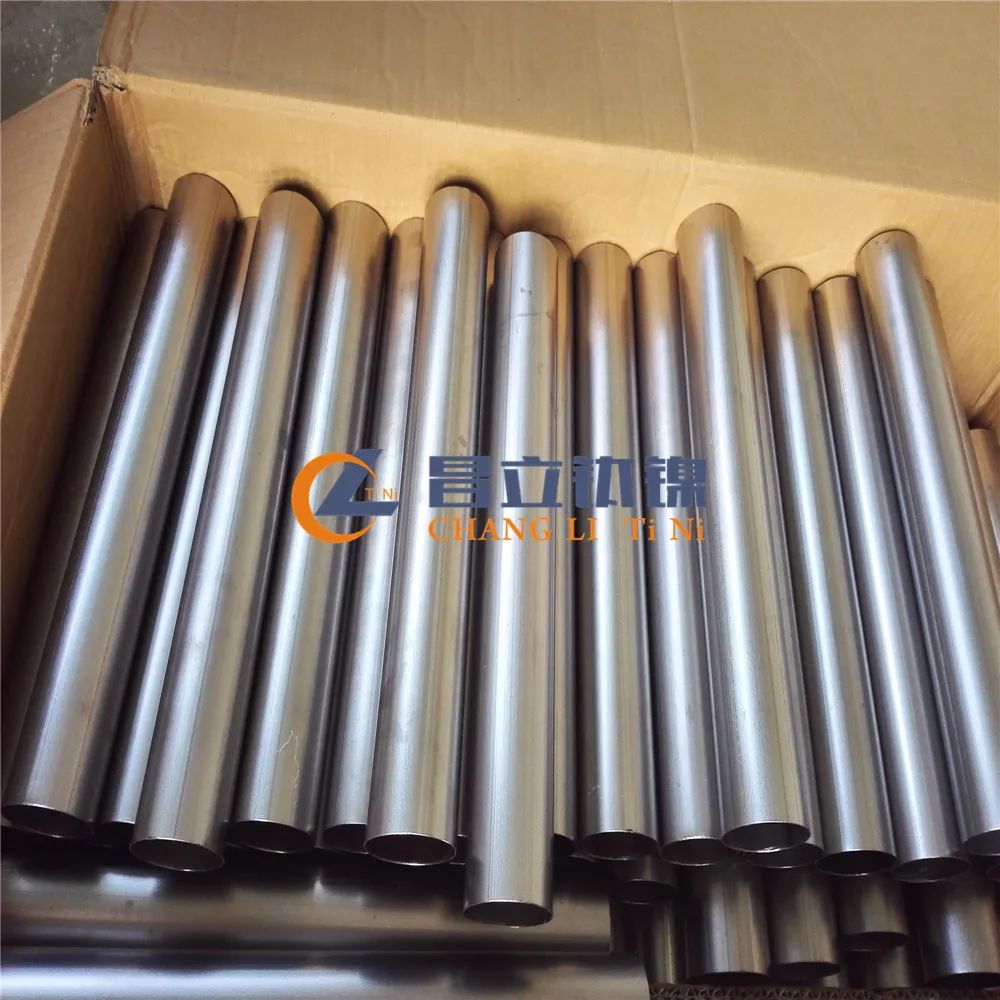

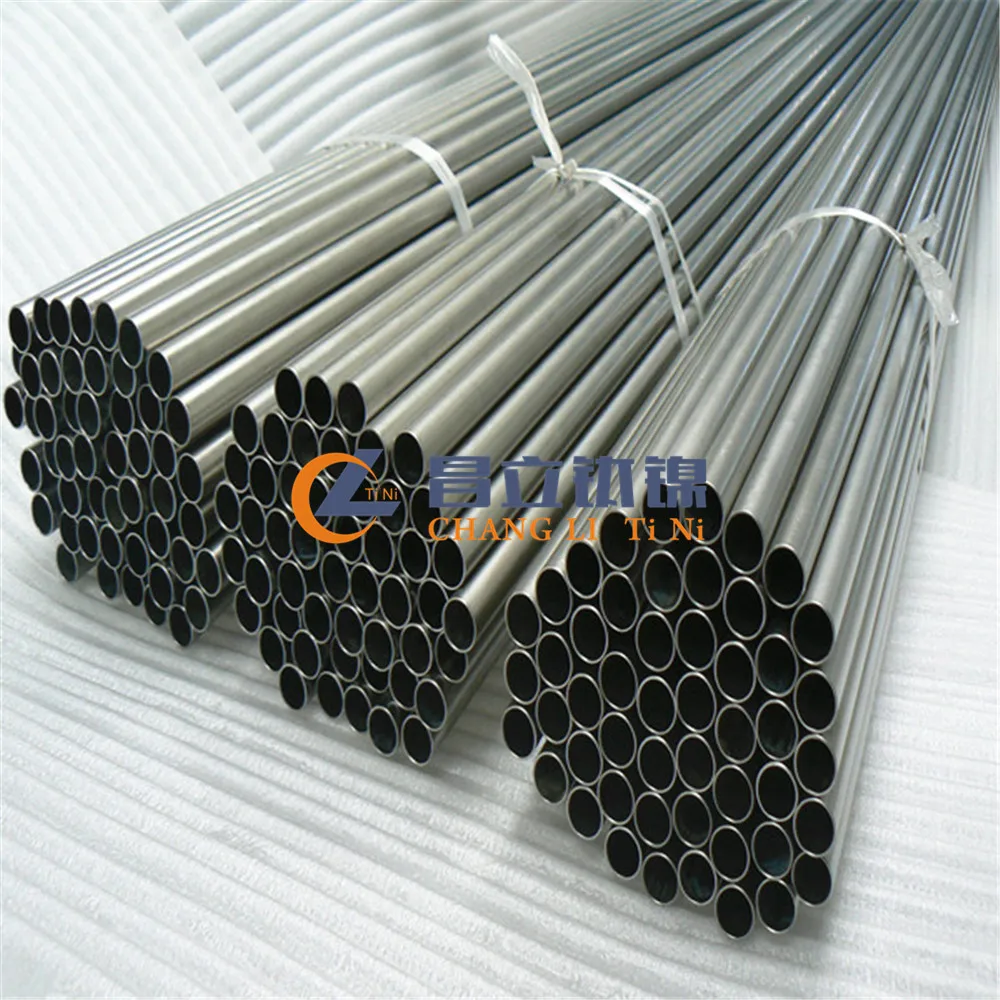

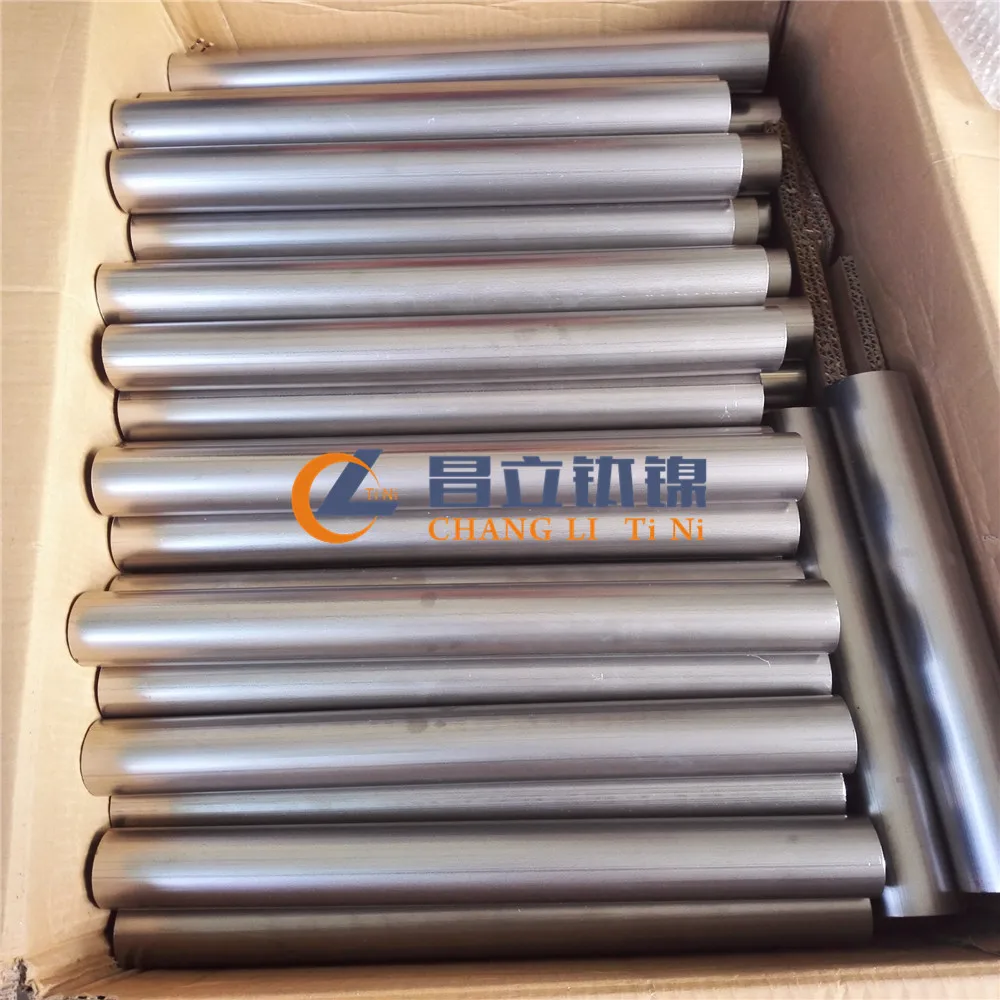

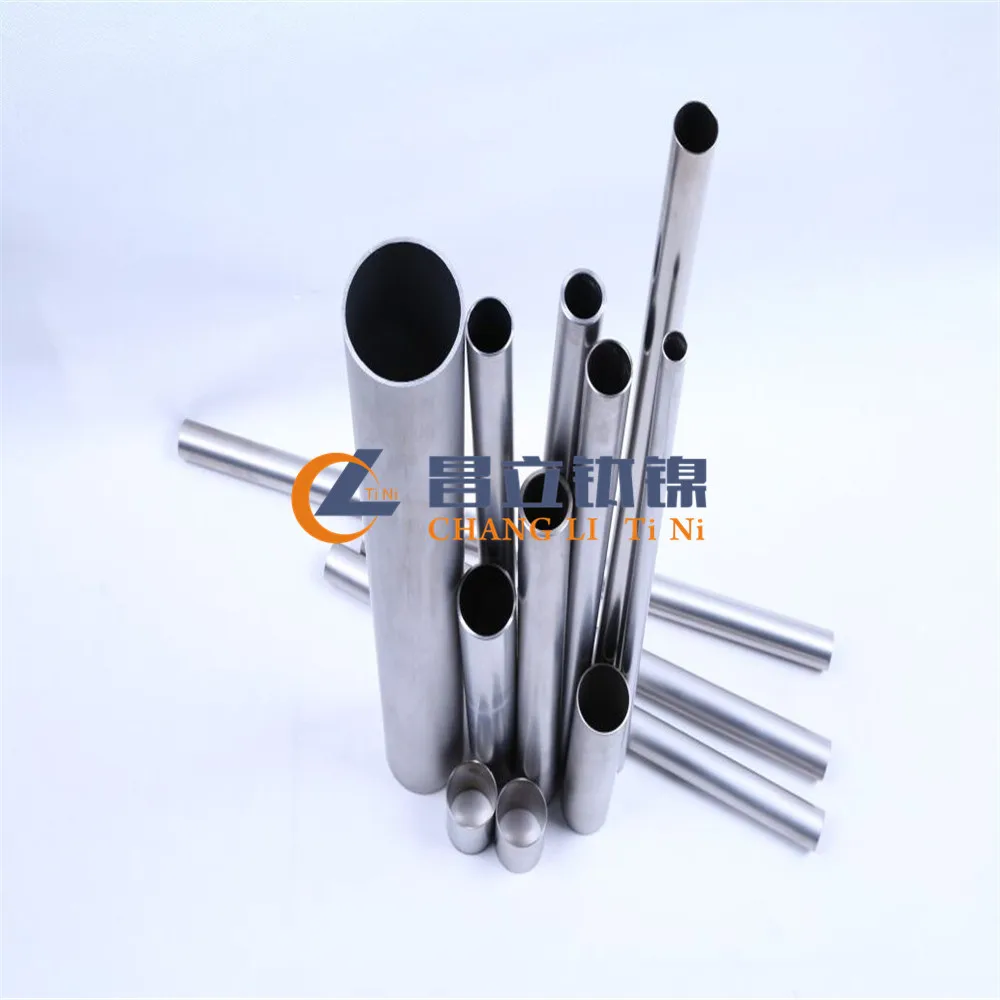

asme sb 337 titanium tube

Product Introduction

NAME	asme sb 337 titanium tube
GRADE	Gr1  Gr2
STANDARD	ASTM B337, ASTM B338, ASTM B861, ASTM B862
DIMENSION (MM)	OD10~168*WT0.5~10.0×L1000~15000mm (Cold Roll & Seamless tube)

1. Chemical requirements

Grade	N	C	H	Fe	O	Ti
Gr1	0.03	0.08	0.015	0.20	0.18	bal
Gr2	0.03	0.05	0.015	0.30	0.25	bal

2. Mechanical Properties

Grade	Tensile strength (δ5MPa)	Residual elongation stress (δ0.2MPa)	Elongation δ (%)
Gr1	≥240	140~310	≥24
Gr2	≥400	275~450	≥20

Applications

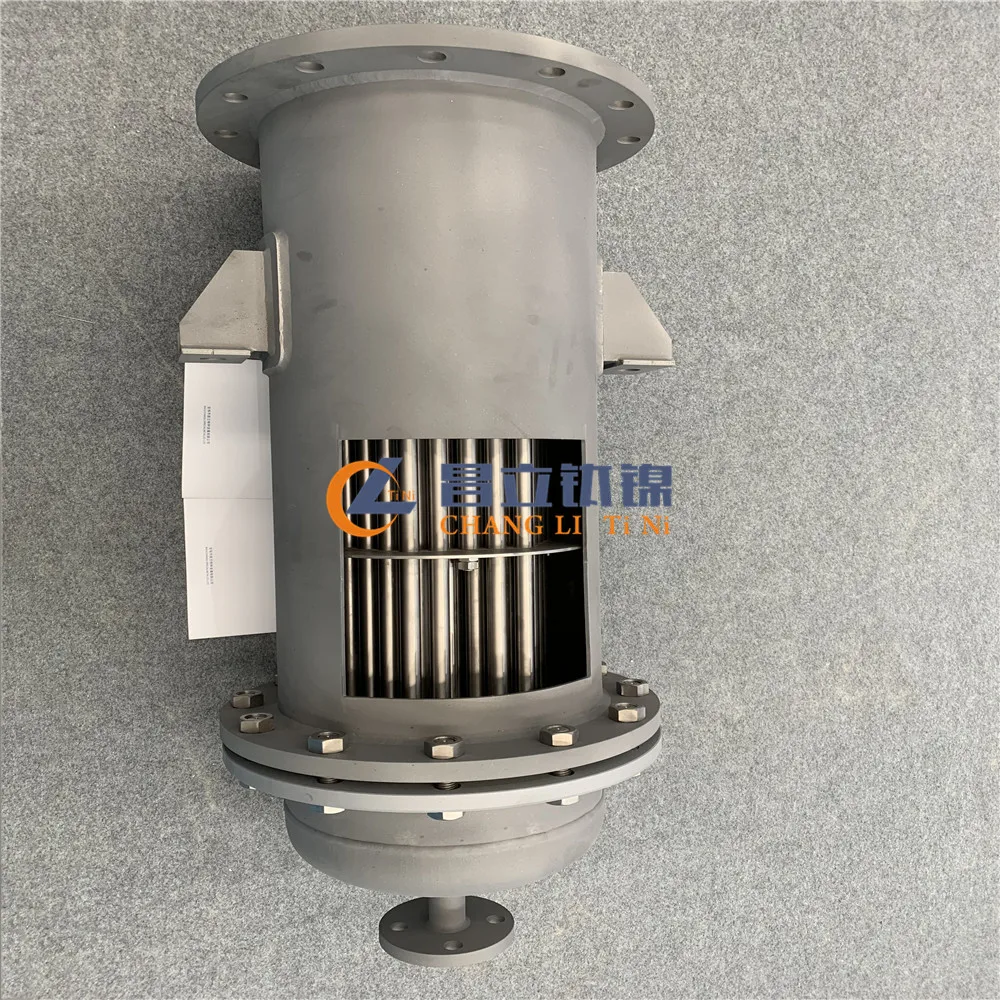

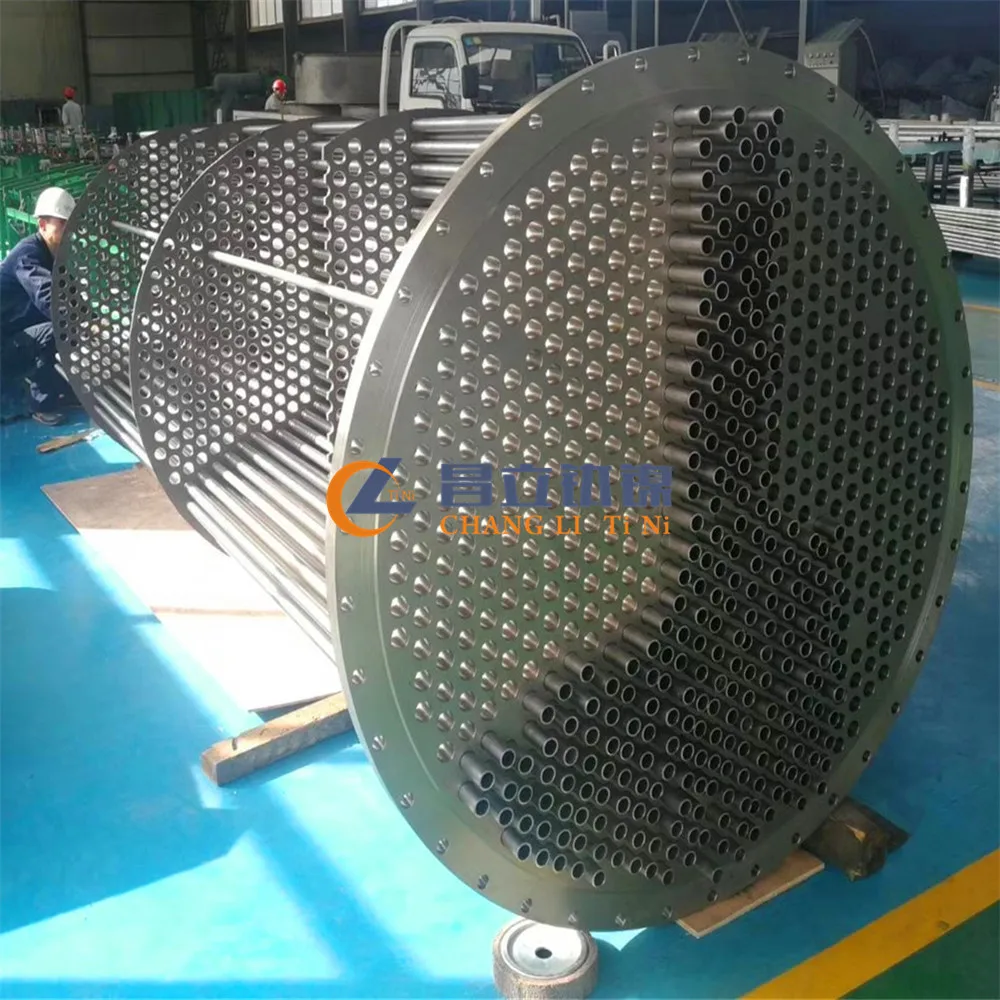

     Heat exchanger; Condenser;



     Coiling pipe; petroleum pipeline;



     Sea farming; electroplating equipment;



     Fluid Transportation Piping



Products Details

Qualificates

FAQ

We need below information to quote for you:



1. What is the dimension of the titanium pipe? Out diameter? Wall thickness? Total length?
2. Material Grade? Gr1 or Gr2?  Or some other Grade?

3. Produce Standard?

4. Application?

5. Quantity?

6. Other requirements?



If you have any interests, please don't hesitate to inquiry.

We welcome the sample orders.
