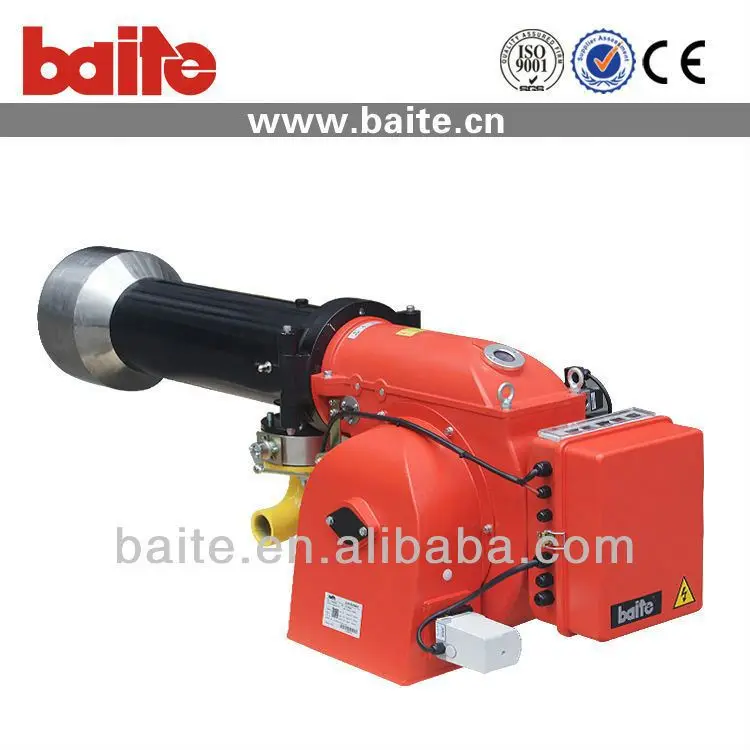

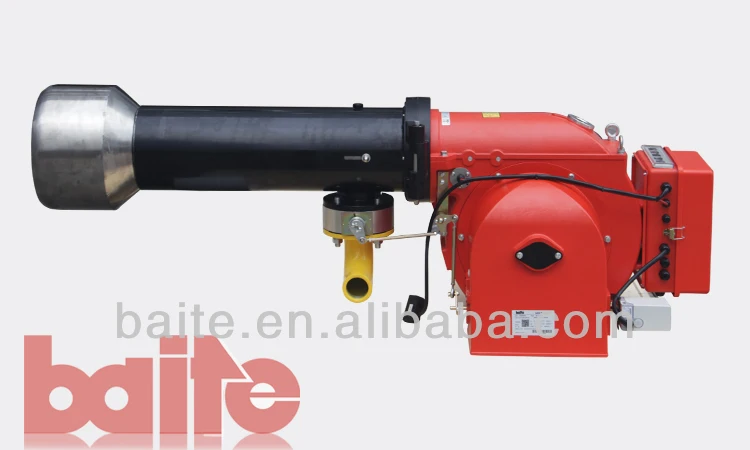

BT200GRF burners gas fired natural gas LPG burner

Product Overview

Description

Baite BT200GRF ceramic infrared gas burners/stove



 Technological performance & structural descriptions



1.Gas-fired burner.

2.Two-stage operation (high/low flame).

3.Air-gas mixing at blast-pipe.

4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.

5.Malntenance facilitated by the fact that the atomisation unit can be removed without having to remove the burner from the boiler.

6.Minimum and maximum air flow regulation for first and second stage by means of electric servomotor with pause closure of gate to prevent any heat dispersion to flue.

7.One flange and one insulating seal for boiler fastening.

8.Combustion air intake with air flow adjustment device.

9.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.

10.Three-phase electric motor to run fan.

11.Flame presence check by ionisation electrode.

12.Electrical plant protection rating IP40



 Specification



Model	Output max.	Output min.	Power supply	Motor	Packing size	weight
	KW Kal/hX104	KW Kal/hX104	V	KW	LxPxHmm	Kg
BT200GRF	2000   123	590    35.7	380V/50HZ	3.0	1280X1070X740	170
