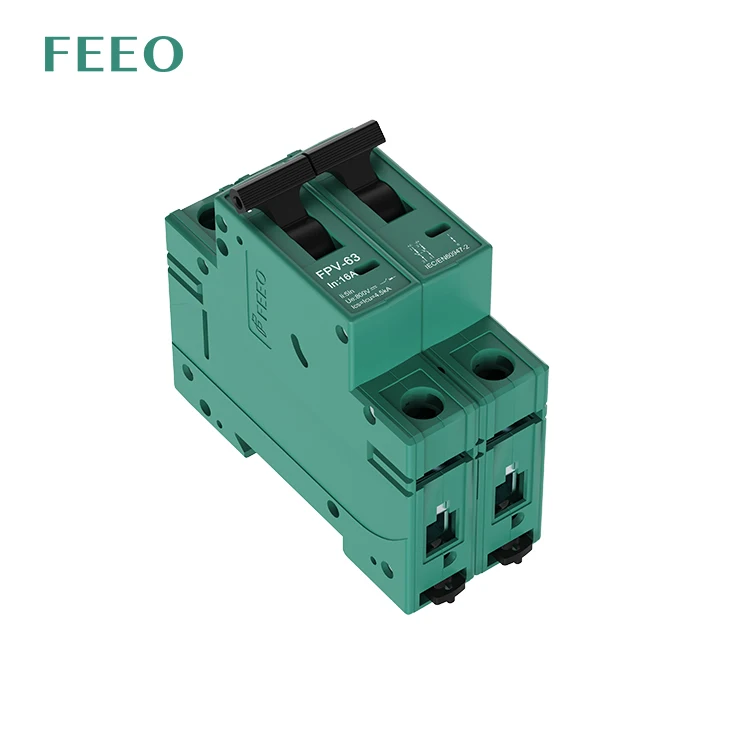

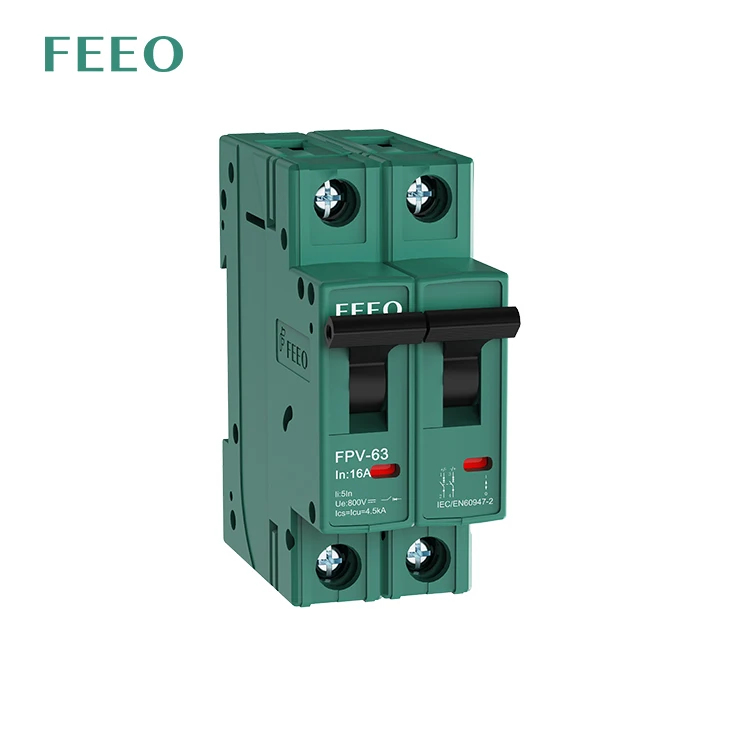

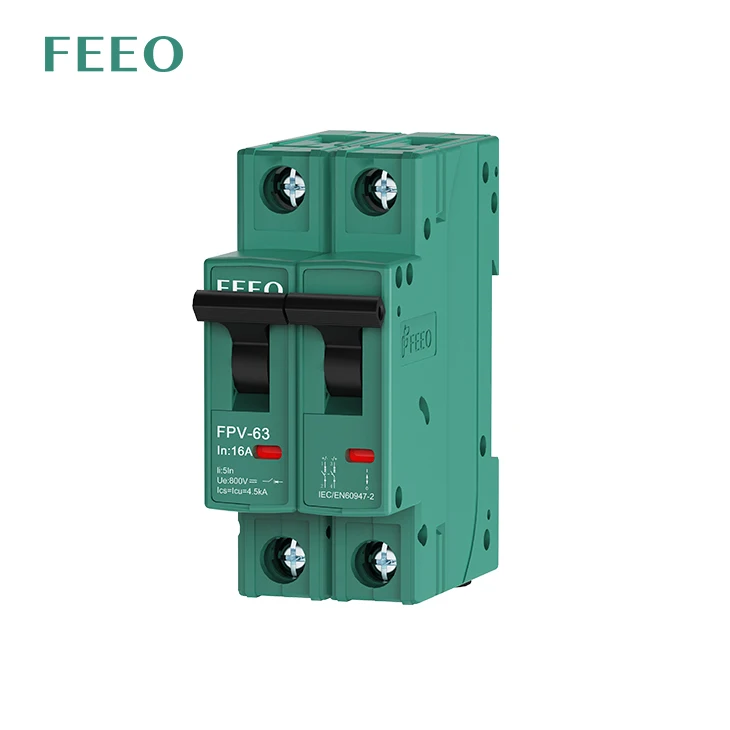

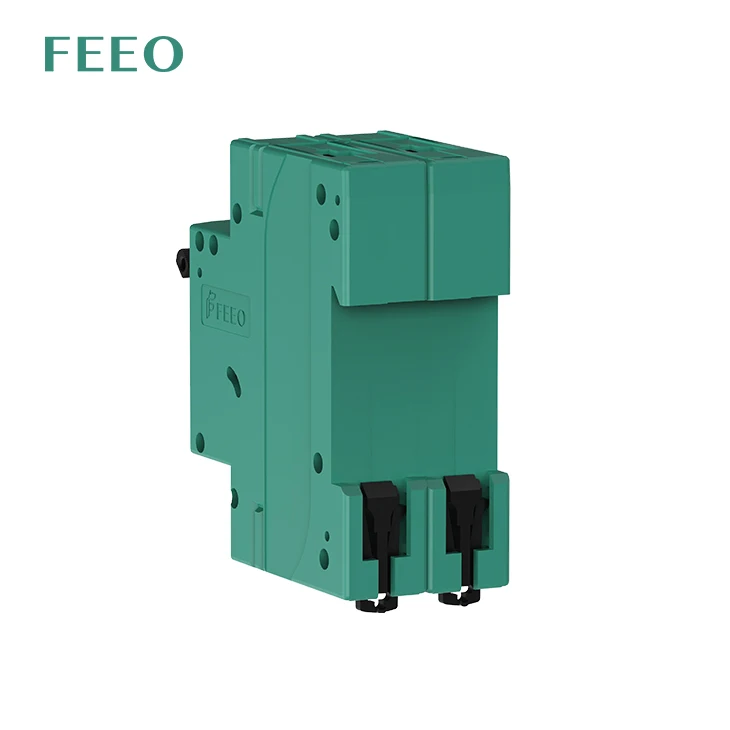

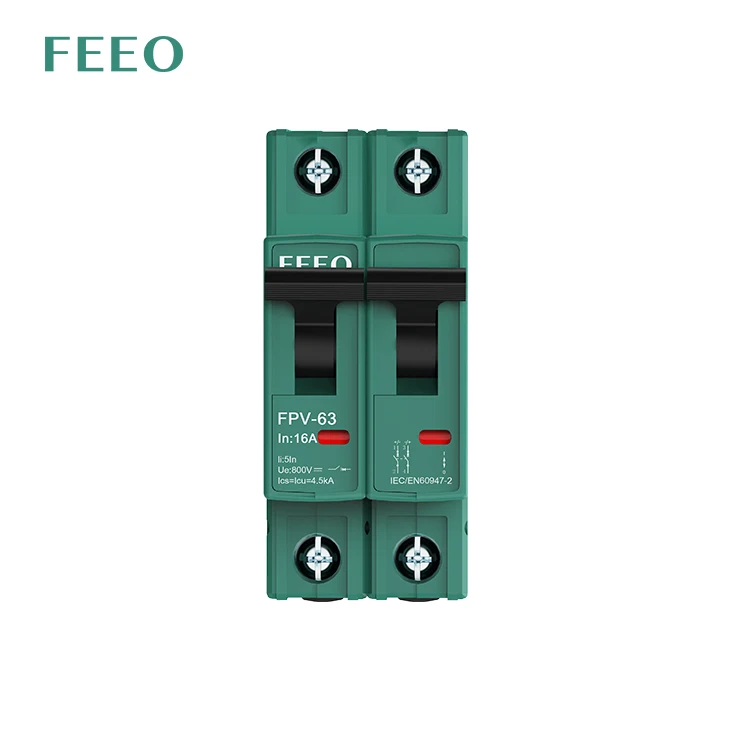

PV System DC Changeover Switch 2P 550VDC Mini Circuit Breaker Sun Power MCB
- Category: >>>
- Supplier: Yueqing Feeo Electric Co. Ltd.
Share on (60037573066):
Product Overview
Description
Related Products
dc circuit breaker Application:
FPV-63 Solar system DC MCB , apply to rating current 63A or less, It is mainly used for the overloading and short circuit protection in DC distribution system equipment and electric equipment. It can be widely used in electric, post, traffic, mining enterprise and different kinds of fields.

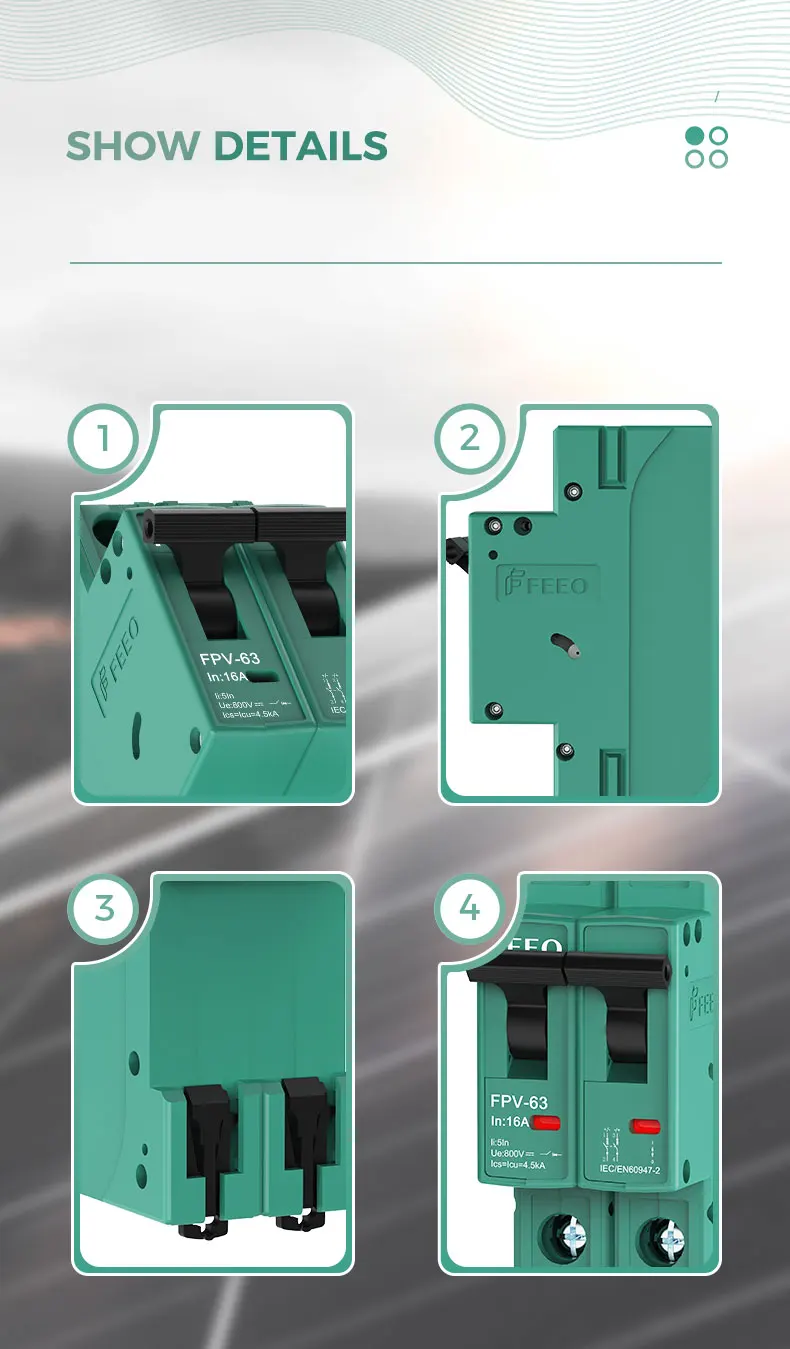

dc circuit breaker Features:
1. Thermoplastic shell, full inlet, impact resistant, recyclable, self extinguishing
2. Super safety: classic U tunnel terminal, to ensure that the line connection is solid and reliable
3. The original air flow, can effectively reduce the temperature between adjacent circuit breaker
4. Safety handle, classic original design, ergonomic

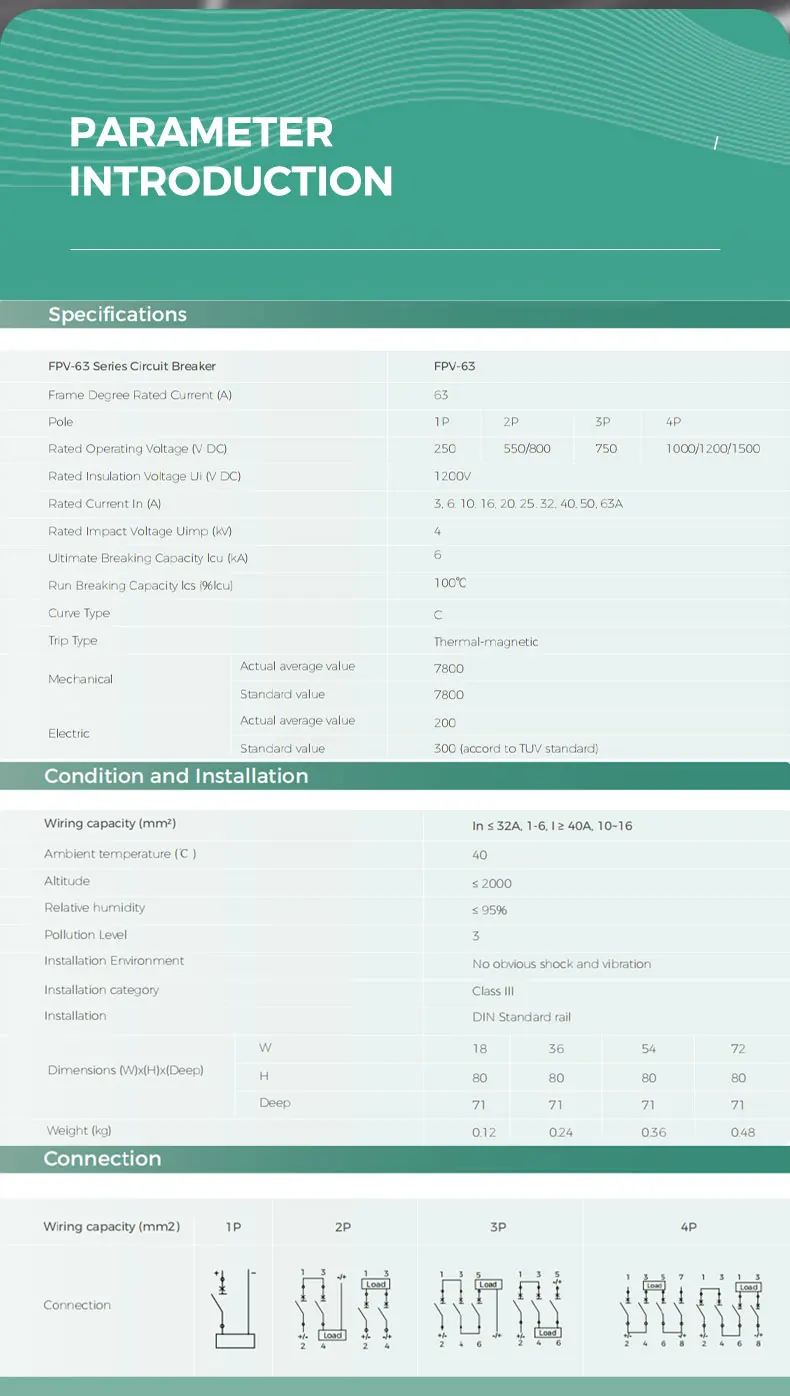

dc circuit breaker Parameters:
| Item | dc circuit breaker |
| Code | FPV-63 |

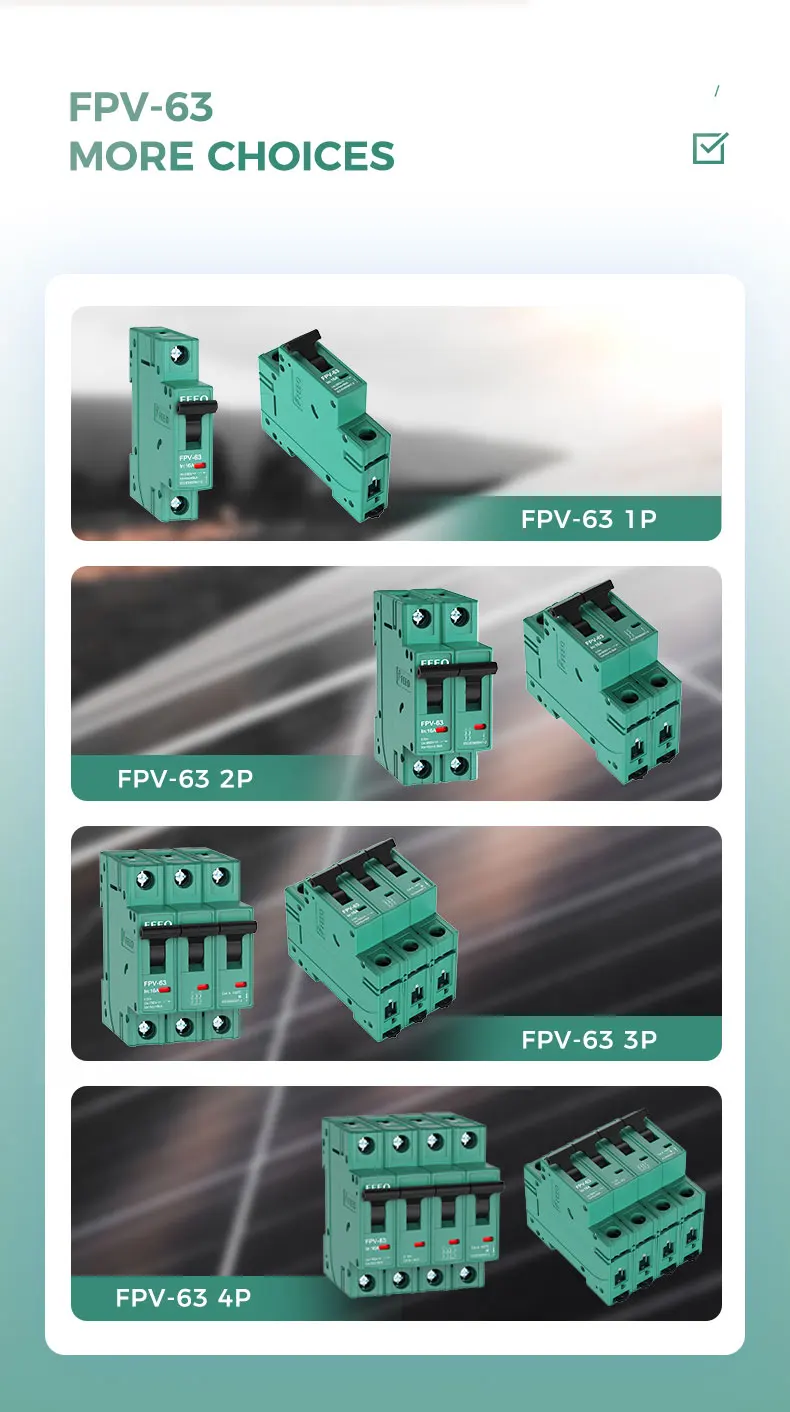

| Pole | 1P,2P,3P,4P |
| Rated Current(In) | 1A,3A,6A,10A,16A,20A,32A,40,50A,63A |
| Rated Operating Voltage | DC12V-DC1200V |
| Standard | IEC/EN60947 |
| Breaking Capacity | 10KA |
| Characteristic Curve | B,C,D |
| Working Temperature | '-5' to +40 |
| Protection Degree | IP20 |
| Installation | 35MM DIN RAIL |
