External battery charger RFNC6 for Dell D620 D630 JD634 PC764
- Category: >>>
- Supplier: Shenzhen Runfeng Elec. Tech. Co. Ltd.
Share on (60037615386):
Product Overview
Description
POLOSO Brand RFNC6 External Laptop Battery Charger for Lenovo Dell HP IBM SAMSUNG ACER ASUS most brands

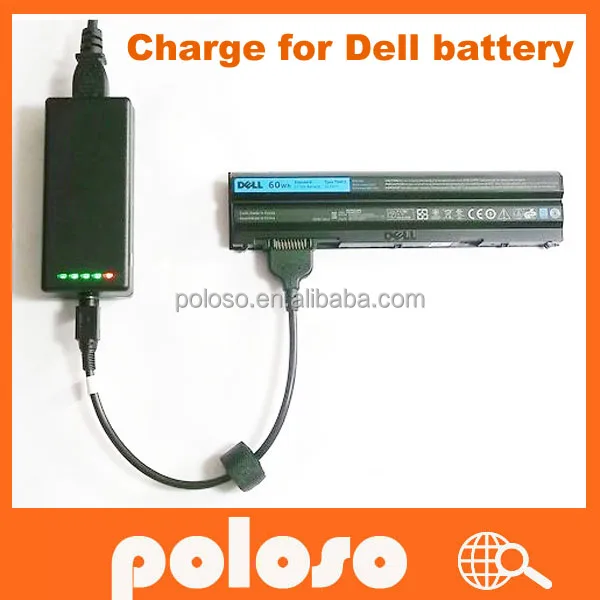

Charge for laptop battery directly without connecting the computer.
Functions:
1. Charge your laptop battery directly ,without connecting the computer
2. Suitable for over 95% of laptop batteries with different connecting wires
3. Read battery information from the battery protective plate and then regulate the output voltage and current
4. With five LEDS, four for charging status and one for power indicating
5. Intelligent protection against over-current, over-voltage, over-charge, over-heat and short circuit
6. Simplify charging process, save your time and keep your laptop in good condition, especially if you own two batteries or more
Specification:
| Model | RFNC6 |
| Dimensions | 128*51.5*33 mm |
| Color | black |
| Weight | 200g |
| Input Voltage | AC 100~240V 3A 50/60HZ |
| Output voltage | DC 7.2~14.8V 2A |
| Maximum output power | 40W |
| Standby power consumption | <1W |
| Maximum output current | 2.5A |
| Warranty | one year |
| Length of charging time | 8 hours MAX |
| Operation Temperature | 0°C~40°C/20%~90% RH |
| Storage Temperature | -20°C~65°C/10%~95% RH |
| Safety Standard | CE standard |
Charging Instruction:
1. Normal Working Condition:
Four LED lights go on after switching on. The charger gains the battery information from the battery protective plate, and then starts charging.
LED Status | Capacity Percentage |
All the four LEDS blink circularly | 25% |
LED1 is on. The other three LEDS blink circularly | 50% |
Both LED1 and LED2 are on. Both LED3 and LED4 blink circularly | 75% |
LED4 blinks. The other three LEDS are on | 100% |
All the four LEDS are on | 100% |
2. Activate Charging Condition:
The four LEDS blink synchronously after switching on. It might be the charger is not connected well with the battery. Users should check and confirm the device is connected correctly.
One minute later, if the charger enters into normal working condition, it means the battery has been activated.
One minute later, if the four LEDS still blink synchronously, it means the battery has been damaged andcan not be repaired.

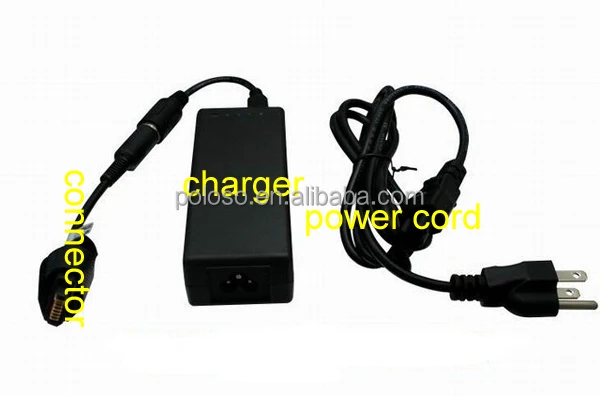

Package: 1*charger 1*power cord 1*connecting wire/set

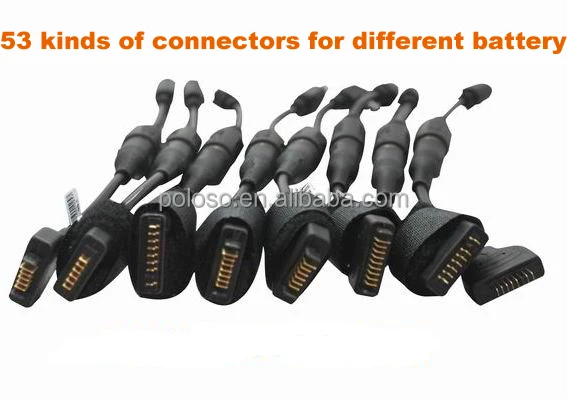

Fixed battery connector for HP DELL GATEWAY SONY LENOVO ACER ASUS ,each kind of battery with different connector.

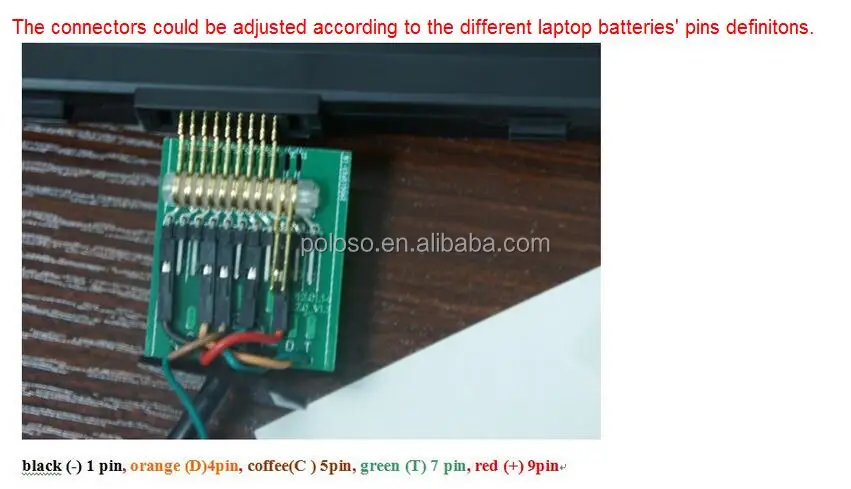

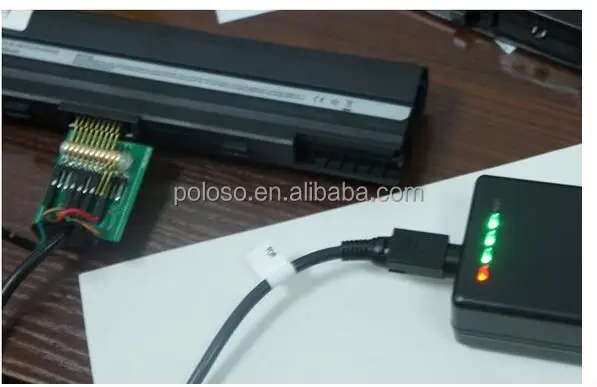

2.0mm and2.5mm Universal cable for most brands laptop ,just adjust the pin definition according to different batteries
For Dell Laptop number:
1000/2200 nec e6000
1000/2200 nec e6000
B120/130 1300
B120/130 1300
Dell Vostro 1200
CPI
C640
MINI10
C400
C400
D400 D500
D400
D600
D600
D800
D800H
D410
D420
"D620, D630, JD634, PC764 series
Dell Latitude D630"
D620H
D810 M70
D810 M70
"D820, D531, M65
DELL Latitude D820 "
C1295
D820H
Dell inspiron 6000/9200/9300/9400
DE-9300H
Dell Inspiron 6400
"Dell Inspiron 1501/E1505,
Latitude 131L, Vostro 1000"
M1210
M1210
M1420
M1420
1520
1520H
Dell Inspiron 1525/1526/1545
500/1525/1526
M1530
Dell XPS M1330
DELL Studio XPS 13 series
630M 640M
630M 640M
DE-WU946
1100 5100
1100 5100
DE-W953G
DE-910H
A840 A860
1535
GW240
XT
dell x200 Samsung Q10,Q20, Q25
dell x300
dell x300
dell x300 (Large capacity)
X1
X1L
2650,Lenovo BATACY13L8
8500 series (8500/8510/8520/8530/8550/8560/8580) Lenovo 8300 series (8350/8355/8360/8365/8370/8380) DELL 5000
700M.
700M Large capacity
dell 200n acer 1400 fujitsud6800
dell 200n acer 1400 fujitsud6800
CS CSX
GK479 DELL
RM791
TK330
J590M
127UC
CFF2H
DF192
E6320,E6430
For DELL Battery number:
DE-2200NI
DE-2200
DE-1300
DE-1300-4S
DE-V1200
DE-CPI
DE-C640
MINI10
DE-C400
DE-C400-4S
DE-D400
DE-D400-4S
DE-D600
DE-D600-4S
DE-D800
DE-D800H
DE-D410
DE-D420
DE-D620
DE-D620H
DE-D810H
DE-D810
DE-D820
C1295
DE-D820H
DE-9300
DE-9300H
DE-6400
DE-6400H
DE-M1210H
DE-M1210
DE-1420H
DE-1420
DE-1520
DE-1520H
DE-1525H
DE-500
DE-M1530
DE-M1330
DE-M1340
DE-630MH
DE-630M
DE-WU946
DE-1100
DE-1100H
DE-W953G
DE-910H
A840 A860, 1410 1014 1015 1088 PP38L
1535
GW240
XT
DE-X200
DE-300M
DE-X300
DE-X300H
DE-X1
DE-X1L
DE-2600
DE-5000
DE-700M
DE-700MH
AC-44A3
AC-44A3H
DE-CS
GK479 DELL
RM791
TK330
J590M
127UC
CFF2H
DF192
E6320
