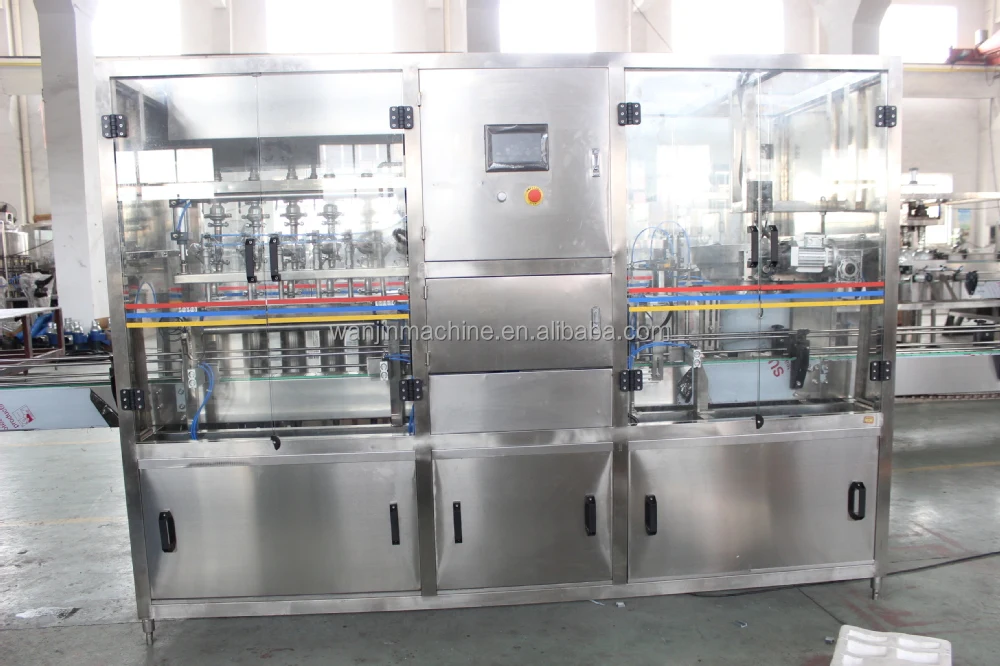

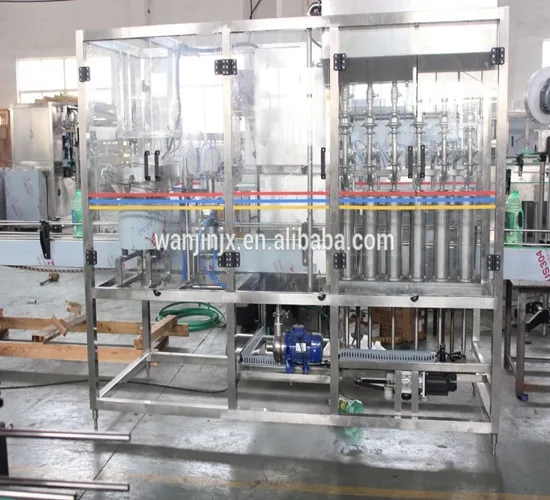

Automatic small coconut oil filling machine

Product Overview

Description

automatic small coconut oil filling machine







equipment features:

1. The engine oil  filling machine can be used for food and beverages (mineral water, pure water,fruit juice, tea, milk and the others), wine,salad oil, shampoo liquid ,and others .

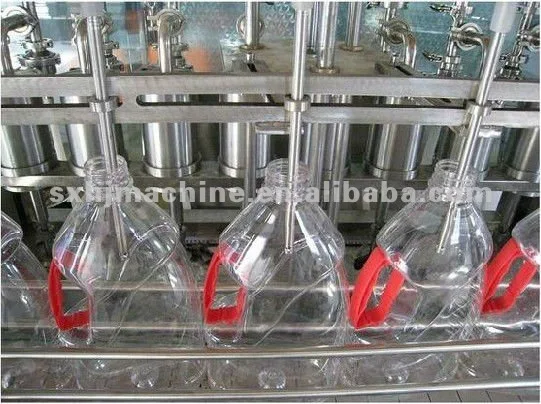

2.all types of liquid filling for PET bottles, glass bottles and anomalistic bottles to filling.

3. The engine oil  filling machine business is an ideal choice for drink producer.

Multifunctional liquid filling machine has auto liquid filling system to realize constant level. The bottle orientation system adopts fixed distance, no accumulated tolerence error, to insure reliable bottle filling.

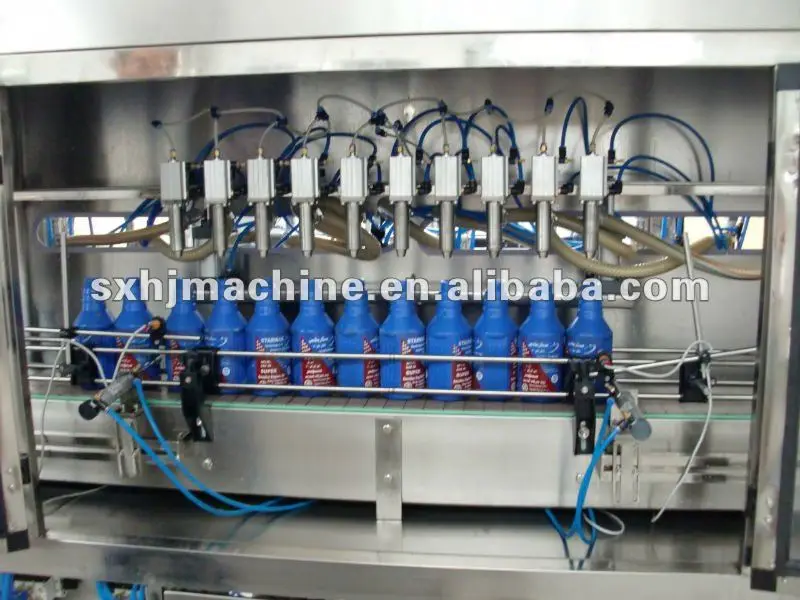

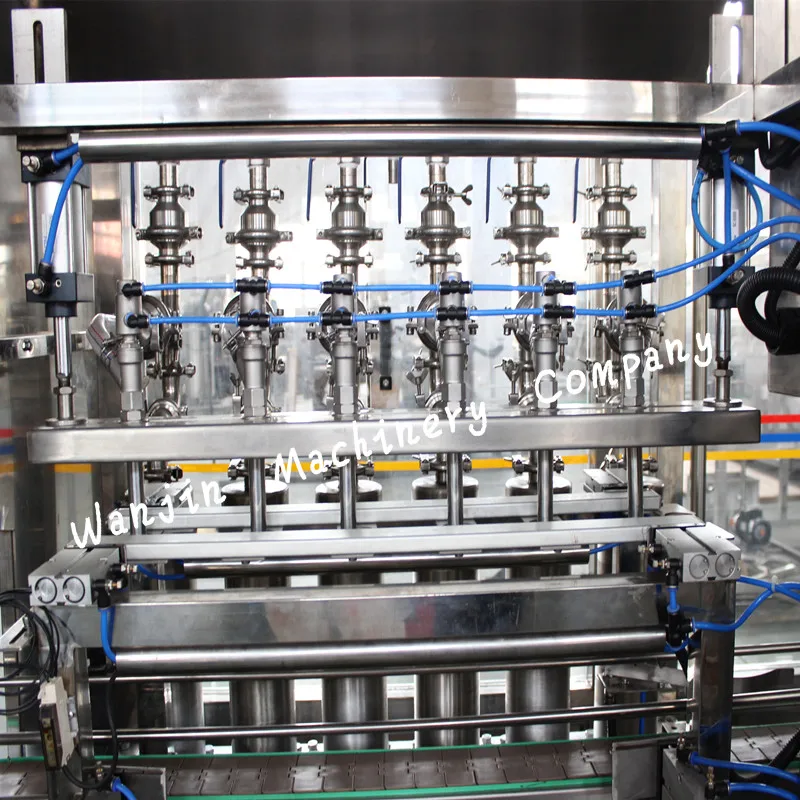

4.The filling system adopts clamp valve and the filling liquid doesn’t touch the valve directly, no leaking, very sanitary and trustable. The machine adopts Japan Mitsubishi PLC, to insure high precision requirement. The micro adjustment is fast and convenient, and you just have to change some parameters. The whole structure is simple and easy maintain, which is suitable to many varieties of abnormity bottles. To change botte types, just need to change filling valve’s height and distance.

5.The contact part is 304 stainless steel.















Technological Parameters

Parameter	Unit	MODEL SNCY SERIES
Number of heads	PCS	12	10	8	6	4
Filling volume	ML	200-6000
Productivity	BPH	1600-4000	1400-3200	1200-2600	1000-1900	720-1300
Filling tolerance	%	<0.5%
Power consumption	KW	1.5	1.5	1.5	1.2	1
Gas pressure	MPA	0.55-0.8mpa
Gas consumption	M3/MIN	1.6	1.4	1.2	1	0.8
Dimensions	MM	2000*1300*2800	2000*1300*2800	2000*1300*2500	2000*1200*2500	2000*1200*2400







Spare parts list for oil filling machine:

Name of parts Producing area Programmed controller OMRON On-off device Taiwan Low-pressure breaker Siemens Fuse  Japan AC electromagnetic contractor Siemens contractor Siemens Heat-break device Siemens Multi-continuous electrical device Siemens Middle-continuous electrical device Japan Alarm Hang Zhou Speed adjusting device USA
