high efficient with cheap price CNC rebar bender SGW12D 1
- Category: >>>
- Supplier: Chengdu Gute Machinery Works Co. Ltd.
Share on (60038420049):
Product Overview
Description
high efficient with cheap price CNC rebar bender SGW12D-1
PRODUCT DESCRIPTION
• Automatic wire feeding system ( CNC );
• Split, multi-blade design (patented) to reduce consumption costs;
• Large storage capacity can save 400 processing geometric graphics, high degree automation;
• High power feeding motor to ensure bending bar accuracy;
• High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs;
TECHNICAL DATA
TENSILE STRENGTH | Kg/mm2 45 | Kg/mm2 65 |
SINGLE WIRE BENDING | 6-12 mm | 6-12 mm |
DOUBLE WIRE BENDING | 6-10 mm | 6-8 mm |
OPERATION | Automatci wire feeding system(CNC) | Automatci wire feeding system(CNC) |
MAX. BENDING ANGLE | 180° | |
MAX. LENGTH OF STIRRUP SIDE | 1000 mm | |
MIN. LENGTH OF STIRRUP SIDE | 90 mm | |
MAX. BENDING SPEED | 1050°/sec | |
MAX. TRACTION SPEED | 75-100 m/min | |
BENDING DIRECTION | Bi-direction | |
TRACTION SERVICE MOTOR POWER | 17KW | |
BENDING SERVICE MOTOR POWER | 7KW | |
L×W×H | 3300×1000×2200 mm |
|

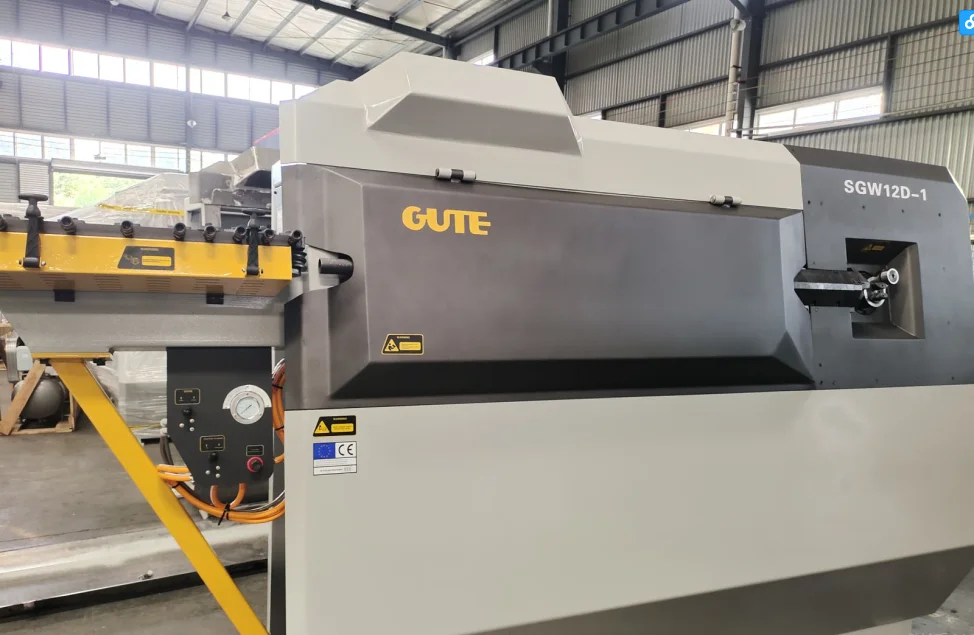

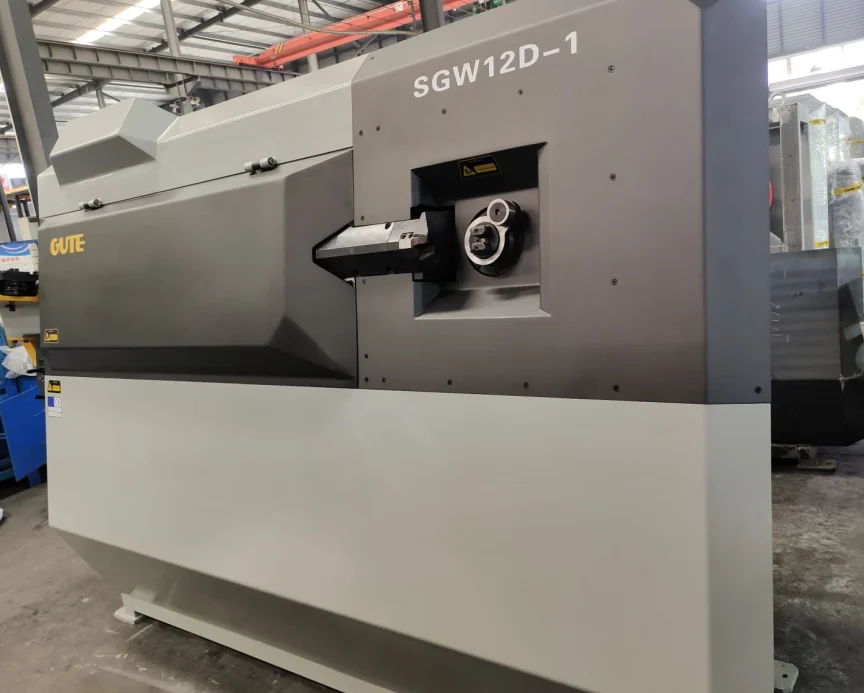

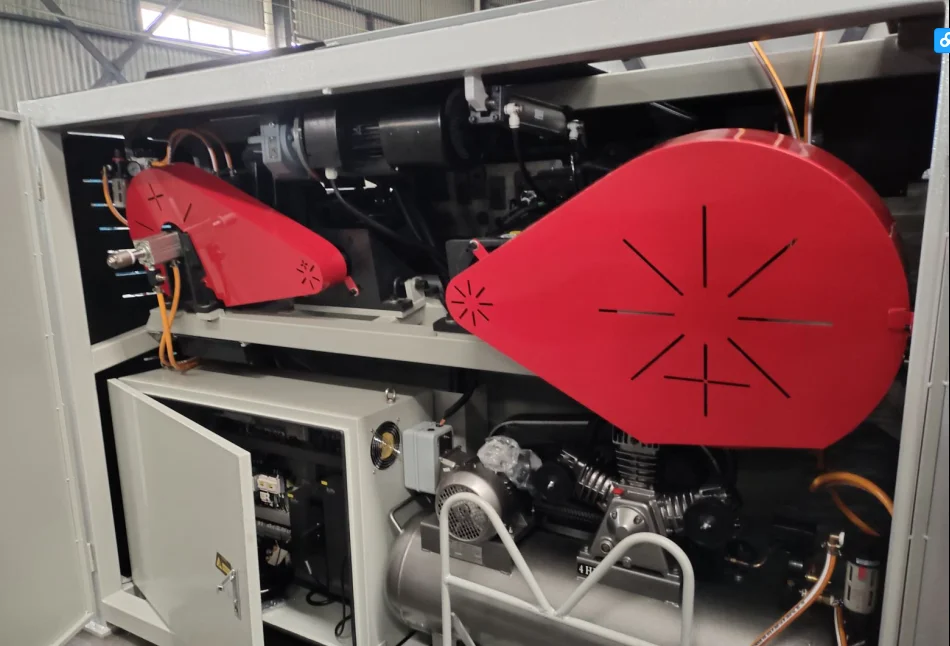

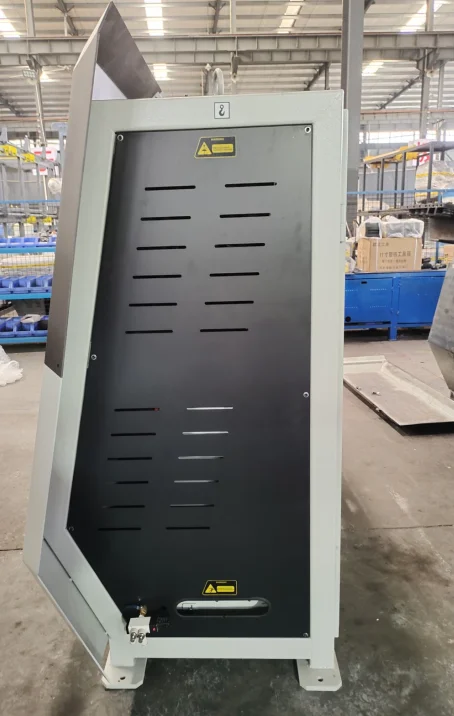

DETAIL LOOK
PRODUCTION LINE
TRANSPORTATION
CONSTRUCTION SITE
CERTIFICATION
WORLDWIDE PARTNER
OUR SHOP
CONTACT
| Contacts: | George/Nancy/Tiger/Arron |
| Mobile(What's APP): | +86 13488903180/+86 13881910250/+86 18782927342/+86 15114038508 |
| Skype: | George-pengtao/Nancy.liya/gute.amy/live:sales2_1196 |
| Tel: | +86-28-66292767 |
