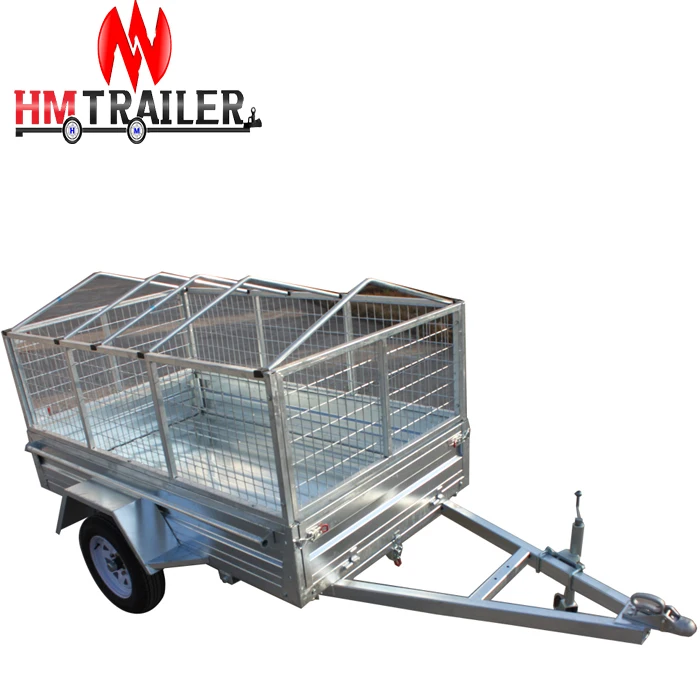

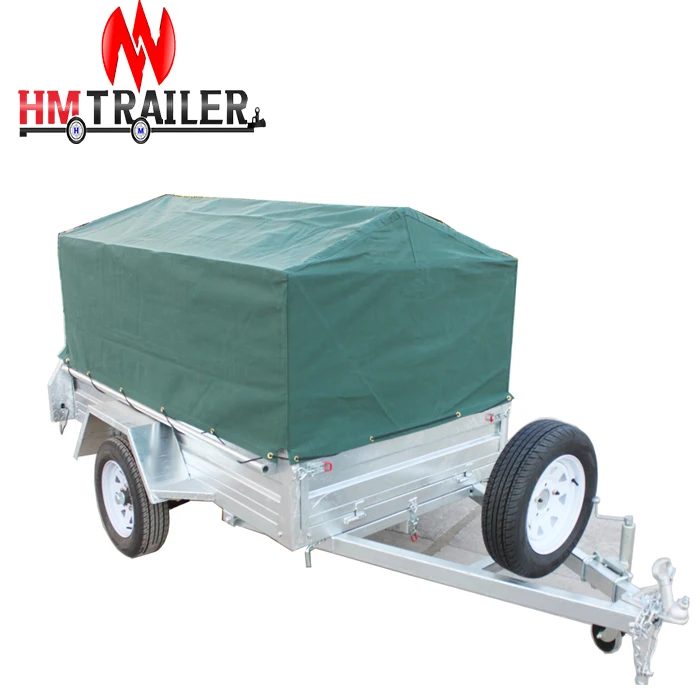

Welding Trailer

Product Overview

Description

                    15 Years of Professional Trustworthy --------Trailers



    Optional Trailer as follows,



Welded Trailer ( Single Axle)  Series
Model No.:	Size	Chassis Size	Inner box Size	Wheel	Leafspring	Finishing	G.V.W
HM-W6401	6X4ft	1880x1230mm	1800x1230mm	165/70R13	4	Hot Dip Galvanized	750kg
HM-W7402	7X4ft	2180x1230mm	2100x1230mm	165/70R13	4	Hot Dip Galvanized	750kg
HM-W7503	7x5ft	2180x1535mm	2100x1530mm	165/70R13	4	Hot Dip Galvanized	750kg
HM-W8404	8x4ft	2480x1535mm	2400x1230mm	165/70R13	4	Hot Dip Galvanized	750kg
HM-W8505	8x5ft	2480x1535mm	2400x1530mm	185/70R14	4	Hot Dip Galvanized	750kg
HM-W9506	9x5ft	2780x1535mm	2700x1530mm	185/70R14	5	Hot Dip Galvanized	750kg
Tendem Welded Trailer ( Double Axle)  Series
Model No.:	Size	Chassis Size	Inner box Size	Wheel	Leafspring Rock Roller	Finishing	G.V.W
HM-T8501	8x5ft	2480x1535mm	2400x1530mm	185/70R14	5	Hot Dip Galvanized	1999kg
HM-T9502	9x5ft	2780x1535mm	2700x1530mm	185/70R14	7	Hot Dip Galvanized	1999kg
HM-T10503	10X5ft	3080x1535mm	3000x1530mm	185/70R14	7	Hot Dip Galvanized	1999kg
HM-T12604	12x6ft	3680x1835mm	3600x1830mm	185/70R14	7	Hot Dip Galvanized	1999kg
Tendem Welded Tipper Trailer ( Double Axle)  Series
Model No.:	Size	Chassis Size	Inner box Size	Wheel	Leafspring Rock Roller	Finishing	G.V.W
HM-Y8501	8x5ft	2480x1535mm	2400x1530mm	185/70R14	5	Hot Dip Galvanized	1999kg
HM-Y9502	9x5ft	2780x1535mm	2700x1530mm	185/70R14	7	Hot Dip Galvanized	1999kg
HM-Y10503	10X5ft	3080x1535mm	3000x1530mm	185/70R14	7	Hot Dip Galvanized	1999kg
HM-Y12603	12x6ft	3680x1835mm	3600x1830mm	185/70R14	7	Hot Dip Galvanized	1999kg



 Practice make trailer perfect





10 year Rust Guarantee from Hot Dip Galvanized

From Practice to theory and then theory to Practice
