Printing machine for PP material , two colour flexo printing machine
- Category: >>>
- Supplier: Ruian Xinye Packaging Machine Co. Ltd
Share on (60038734586):
Product Overview
Description
Two-colour Flexible Printing Machine
The two color flexible press is suitable for printing such packing materials as polyethylene,polypropylene plastic bag,cellophane and roll paper,etc.And it is a kind of ideal printing equipment for producing paper packing bag for food ,supermarket carry bag ,vest bag and clothes bag,etc.
1.Easy operation,flexible starting,accurate colour register.
2.The meter counter can set printing quantity according to the requirements Stop the machine automatically at the given quantity or when the material cuts off.
3.Lift and lower the printing plate cylinder manually,it will automatically stir the printing ink after lifting.
4. The printing ink is spread by the knurled cylinder with ink colour.
5.Reliable drying system coordinated with high-speed rotation,it will automatically break circut\\it when the machine stops.
6.360 continuous and adjustable register device.
7.The imported fuequency control of motor speed adapts to different printing speeds. 8.There are Inching/Stopping buttons on the plate roller base and material rolling rack soas to make it easy operate the machine when the plate is installed.
*.Main Technical Variables:
Model of Machine | YT-2600 | YT-2800 | YT-21000 |
| Max.Width of Printing Mmaterial | 600mm | 800mm | 1000mm |
| Max.Printing Width | 560mm | 760mm | 960mm |
| Length Range of Printed Prkduct | 191-914mm | 191-914mm | 191-914mm |
| Max. Diameter of Roll Material | 450mm | 450mm | 450mm |
| Printing Speed | 5~50m/min | 5~50m/min | 5~50m/min |
| Thickness of plate(Including Two-sided Glue Paper) | 2.38mm | 2.38mm | 2.38mm |
| Total Power | 8kw | 10kw | 12kw |
| Weightof machine | 1800kg | 2000kg | 2200kg |
| Overall Dimensions(L*W*H) | 2300mmX1860mmX2145mm | 2300mmX2060mmX2145mm | 2300mmX2260mmX2145mm
|

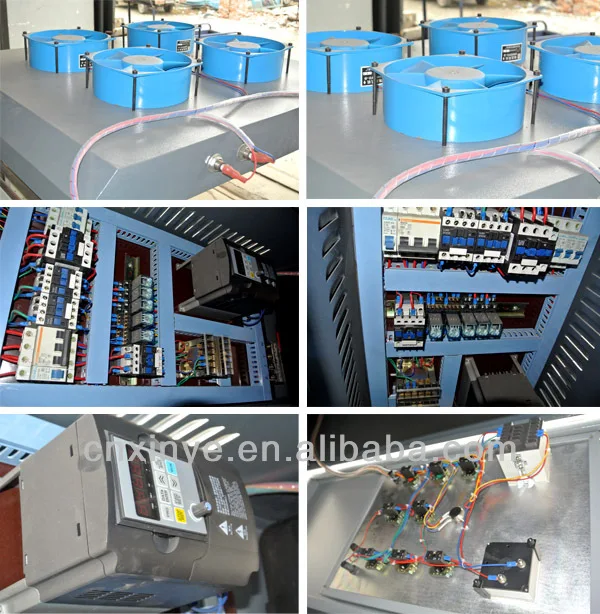

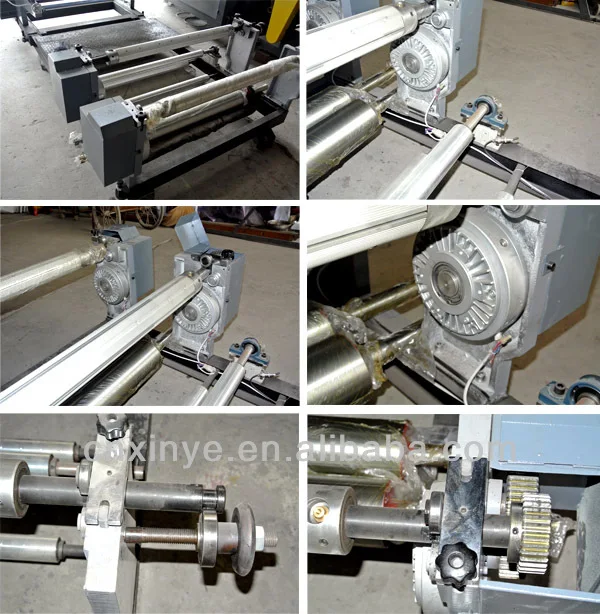

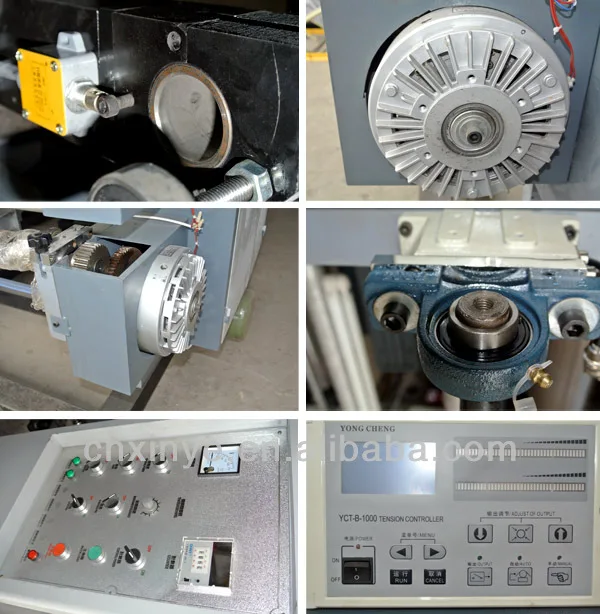

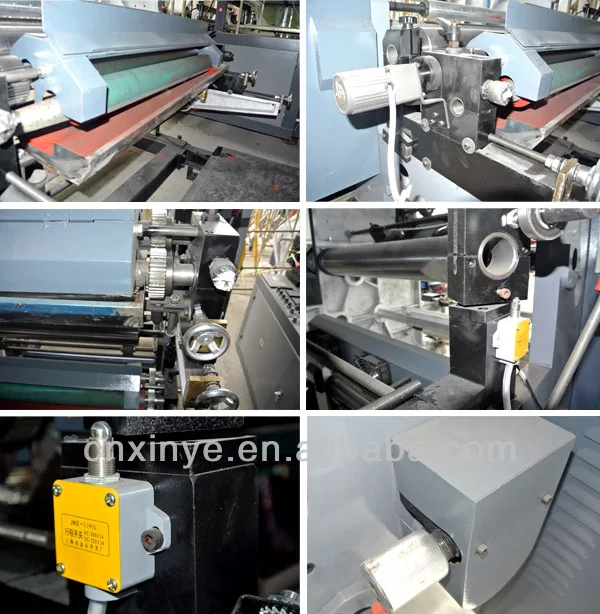

Details:

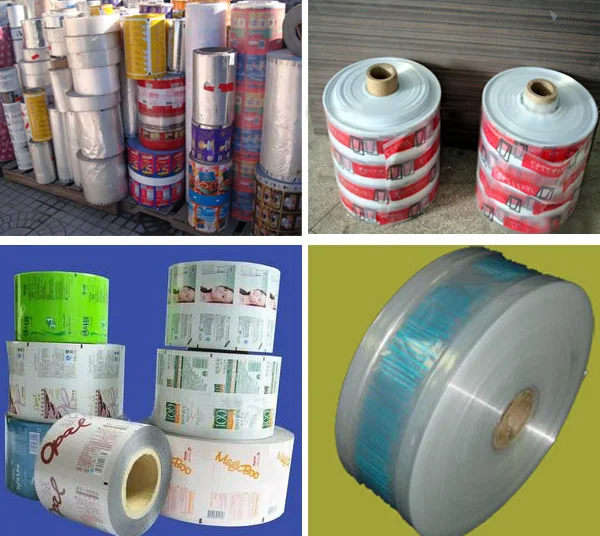

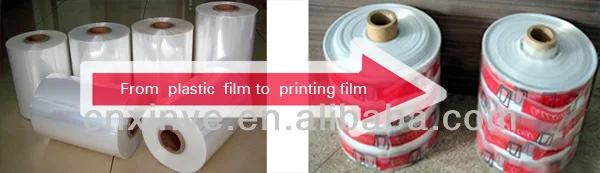

Samples:

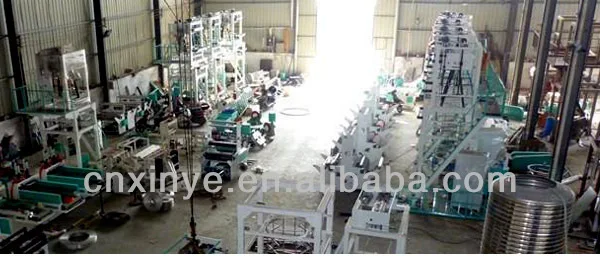

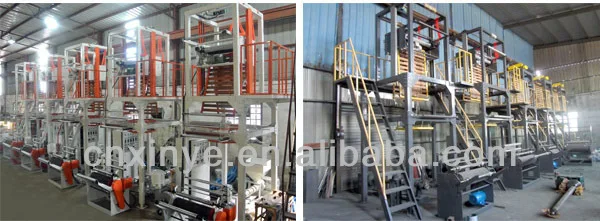

Our workshop:

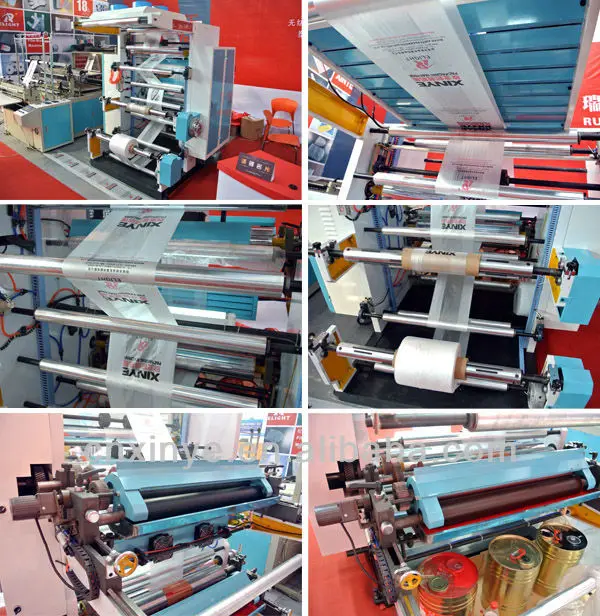

Exhibitions:
Packaging & Shipping
Wooden case, wooden block, or nude packing(packing with foam film and pp film).The finished goods would be sent from our factory to Ningbo by Van,then shipping from Ningbo to customers' country.Any thing could be discussed as your requirement.
Our Services
.After Sales Service
We offer the Preventative Maintenance and After Sales Service. For we strongly feels that importance of supporting our customers and the product solutions we provide. Consequently we offer comprehensive maintenance options to prevent equipment issues before they become problems. Also we offer one year guarantee period.
.Installation Services
Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
Company Information:
Ruian Xinye Packaging Machine Co.,Ltd. with a long history is located in Ruian economically developed city on the seashore of the East China sea of Zhejiang. It is specialized in producing Series of plastics-packaging equipment.We are engaged in producing bag-making machine,Printing Machine,Film Blowing Machine, etc.
1) Bag-making Machine:Multifunction bag-making Machine; Arc-shaped bag-making Machine;Autosoft handle bag-making Machine ; high speed heat sealing and slitting bag-making Machine;Microcomputer control bag-making Machine;Computerized vest bag-making Machine; Bubble film bag-making Machine ;High speed continous-rolled vest bag-making Machine;
2) Printing Machine: Flexography Press; Rotogravure Printing Press;
3) Film Blowing Machine: HDPE-LDPE Dual-purpose Film Blowing Machine,High Speed Film Blowing Machine Unit;
4) Others:Auto Slitting and Rewinding Machine, Hem Folding Machine, Material Cutting and Punch Machine.Since its establishment, with the purpose of " Gain the customer’s confidence base on good quality."and "Improve continuously, meet customer’s needs",we have won the support and trust from most national and International customers,from the Southeast Asia,the Middle East, Russia,America, Europe and Africa, etc.
