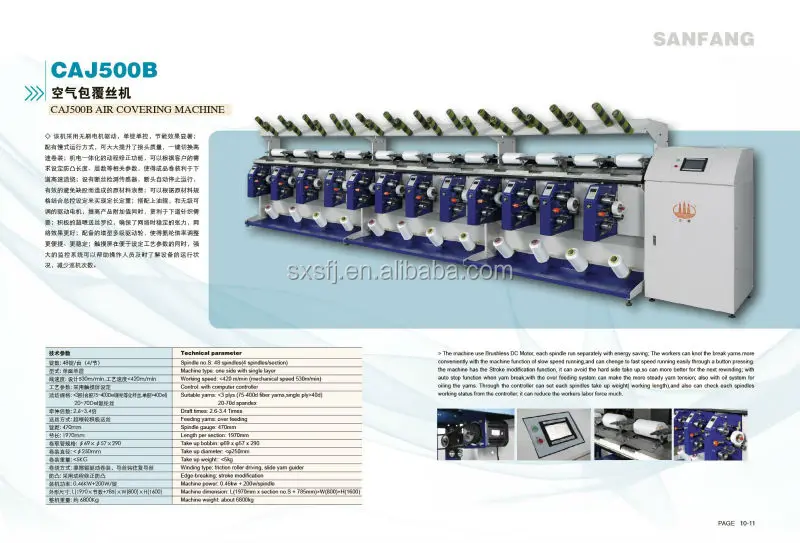

CAJ500B Одношпиндельный типа воздушно оплеточная машина

Product Overview

Description

CAJ500B Single spindle type Spandex Air Covering Machine, The machine use Brushless DC Motor, each spindle run separately with energy saving; The workers can knot the break yarns more conveniently with the machine function of slow speed running,and can chenge to fast speed running easily through a button pressing. the machine has the Stroke modification function, it can avoid the hard side take up,so can more better for the next rewinding; with auto stop function when yarn break;with the over feeding system can make the more steady yarn tension; also with oil system for oiling the yarns. Through the controller can set each spindles take up weight( working length),and also can check each spindles working status from the controller, it can reduce the workers labor force much.



Main technology parameters:

Spindle No.s:	48 spindles(4 spindles/section)
Machine Type:	one side with single layer
working speed:	<420 M/min (Mechanical speed 530M/min)
Control:	with Computer controller
Suitable yarns:	<3 plys (75-400D Fiber yarns,single ply>40D) 20-70D spandex
Draft times:	2.6-3.4 times
feeding yarns:	Over feeding Roller
spindle Gauge:	470mm
Length per section:	1970mm
take up bobbin :	Φ69 x Φ57 x 290mm
take up Diameter:	<Φ250mm
take up weight:	<5kg
Winding Type:	Friction roller driving, Slide yarn guider
Edge-breaking:	by Stroke modification
Machine Power:	0.4KW/AC380V+ 200W/DC48V/Spindle
Machine dimension:	L(1970mm x Section No.s + 785mm) x W800 x H 1600 MM
Machine Weight:	about 6800kg
