welcome to visit our website,the specification data of VMC-850 hard rail 5-axis machining center cnc milling machine is as followed,if you need other information of our machine,please contact me freely or visit our factory by feild trip.
5-axis
5-axis machining center
5-axis machining center cnc milling machine
Machine Descritption
Model
VMC-850
unit
Work table
Table size
1050X500
mm
Table load
650
Kg
Working range X/Y/Z
X axis travel
800
mm
Y axis travel
500
mm
Z axis travel
600
mm
Distance from spindle end face to table surface
150-750
mm
spindle
Mode/installation diameter
BT40/φ150
Spindle speed
60-8000
rpm
Power of spindle motor
11/15
KW
Feed
Max cutting feed speed
7000
mm/min
Rapid move of X axis
16000
mm/min
Rapid move of Y axis
16000
mm/min
Rapid move of Z axis
16000
mm/min
system
Controller system
Siemens
precision
precision
0.008
mm
Resetting precision
0.005
mm
Overall size of machine tool
2700X2300X2600
mm
Machine weight
5200
kg
Quotation(FOB shanghai not including packing fee)
USD34782.00
Machine Introduction

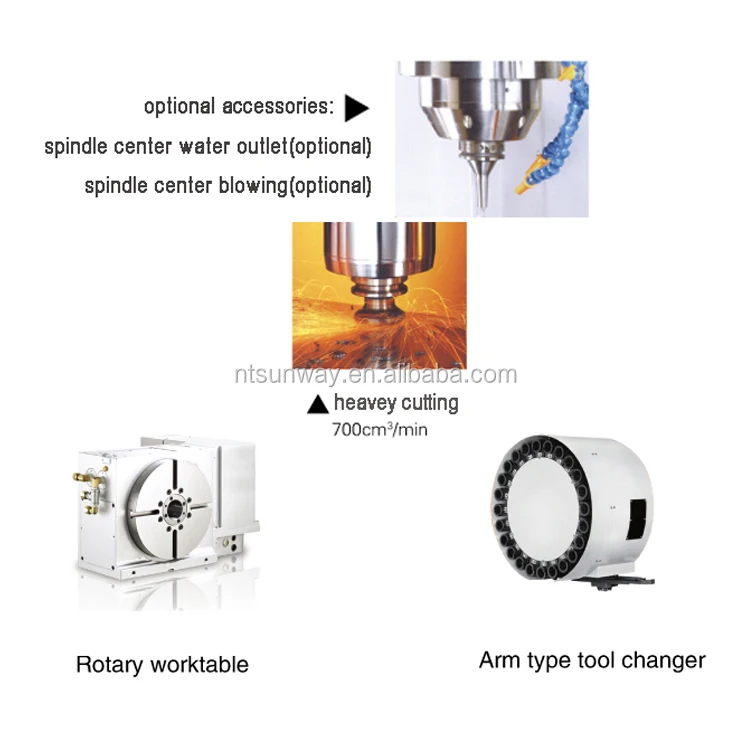

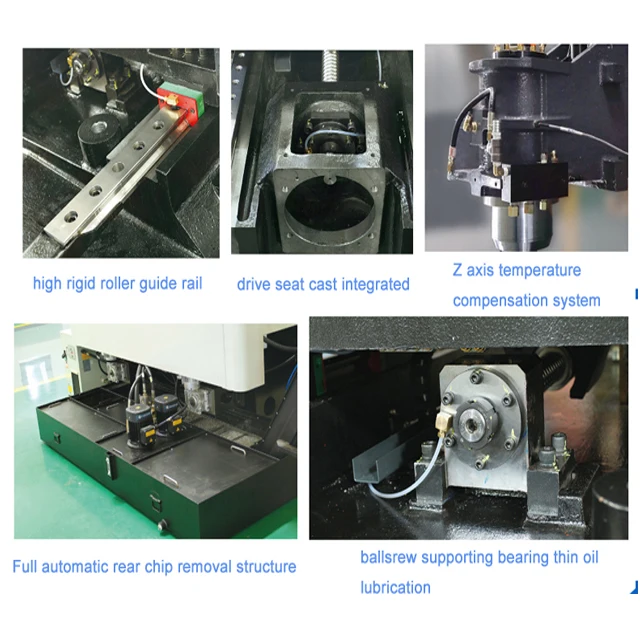

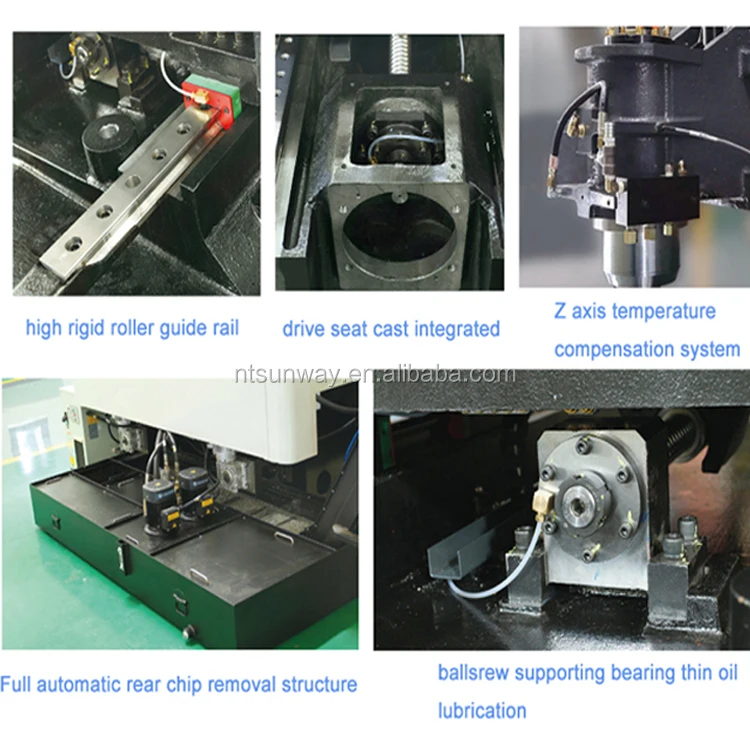

1. For hard rail type vertical machining center,the guide rails of machine tool are double-deck. machine base is box type design, coordinate with large span stand column, it is more wider 40% than other same type machine tool, the design is conform to mechanics principle. 2. Use C3 grade high precision ball screw and pre-pull treatment bearing to ensured the rigidity and precision. 3. The casting of machine tool which exported to DMG is high-grade, high quality gray casting iron with aging treatment, the TURCITE is from USA RULON, with hand scraping, the line rail is from Taiwan famous brand, ensure the precision and lengthen the working life of machine tool. * Use Japan Mitsubishi,Fanuc or other international brand control system * Use Taiwan Royal or Puson Spindle * Use Taiwan Hiwin or PMI guide rail and ballscrew, Japan NSK or NARCH bearing to ensure the precision of machine tool * Use Taiwan Deta 24 arm type tool changer The forth axis and Chip conveyor, Renishaw tool guage are optional
