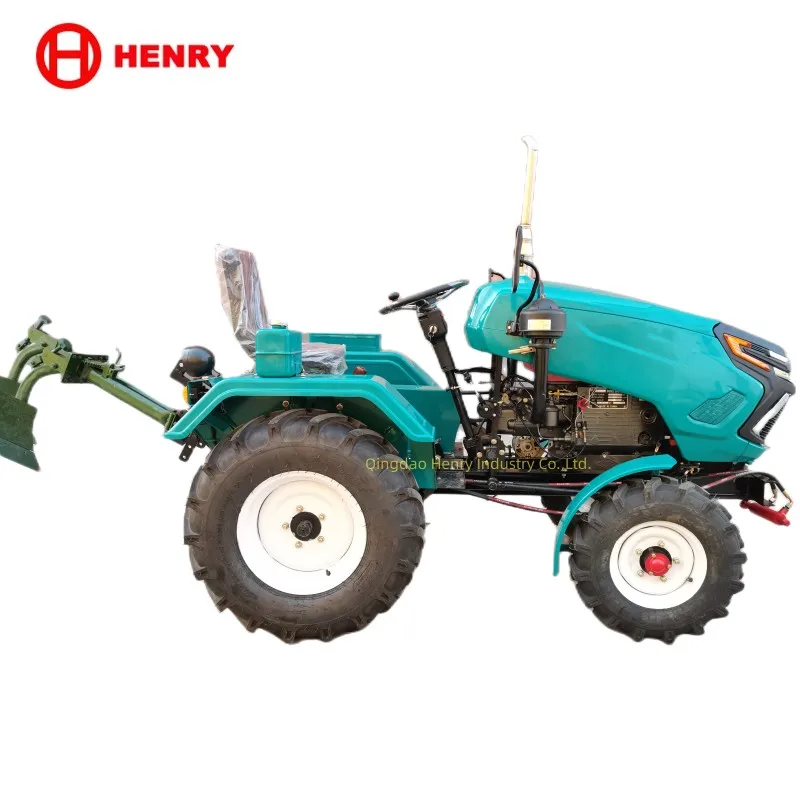

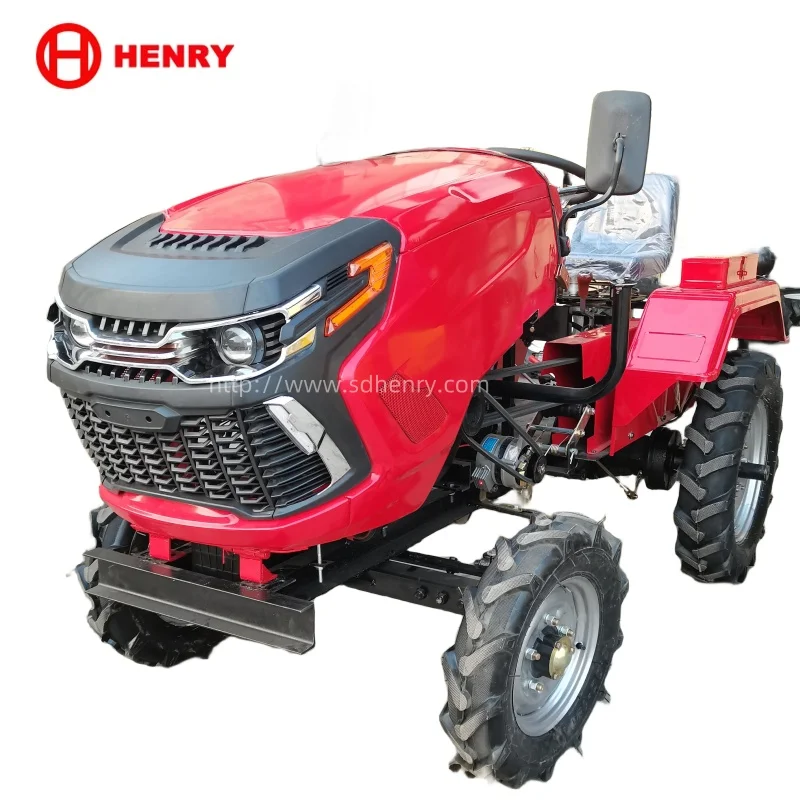

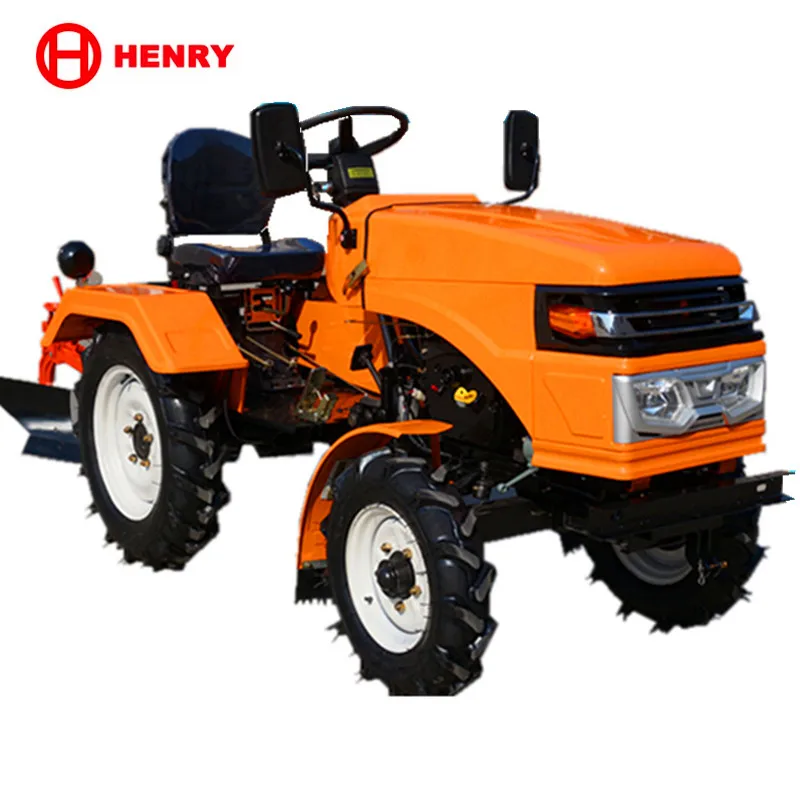

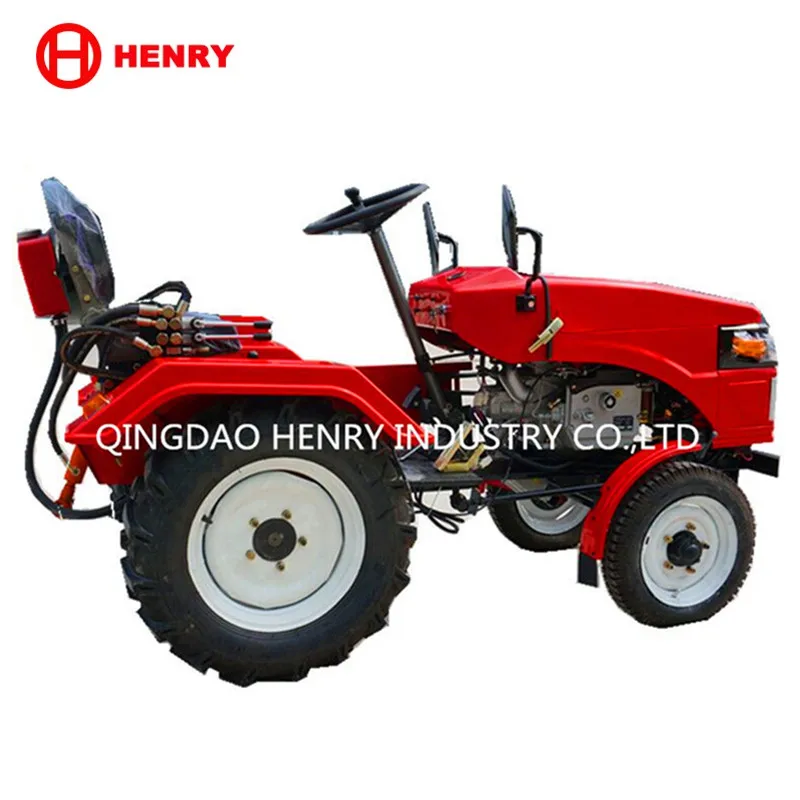

electric start mini tractor with hydraulic rotavator
HR model small tractor 12/15/18/20/22HP 2wd,4 wheel mini tractor,
Single cylinder diesel engine, cheap price and high reliable quality.
Product Description
1. Front and rear mudguards, 2. Double brakes, handbrakes, 3. Backlights, 4. Voltmeters, water temperature gauges, oil pressure gauges, hour meters, 5. Mirrors, combination meters, horn.

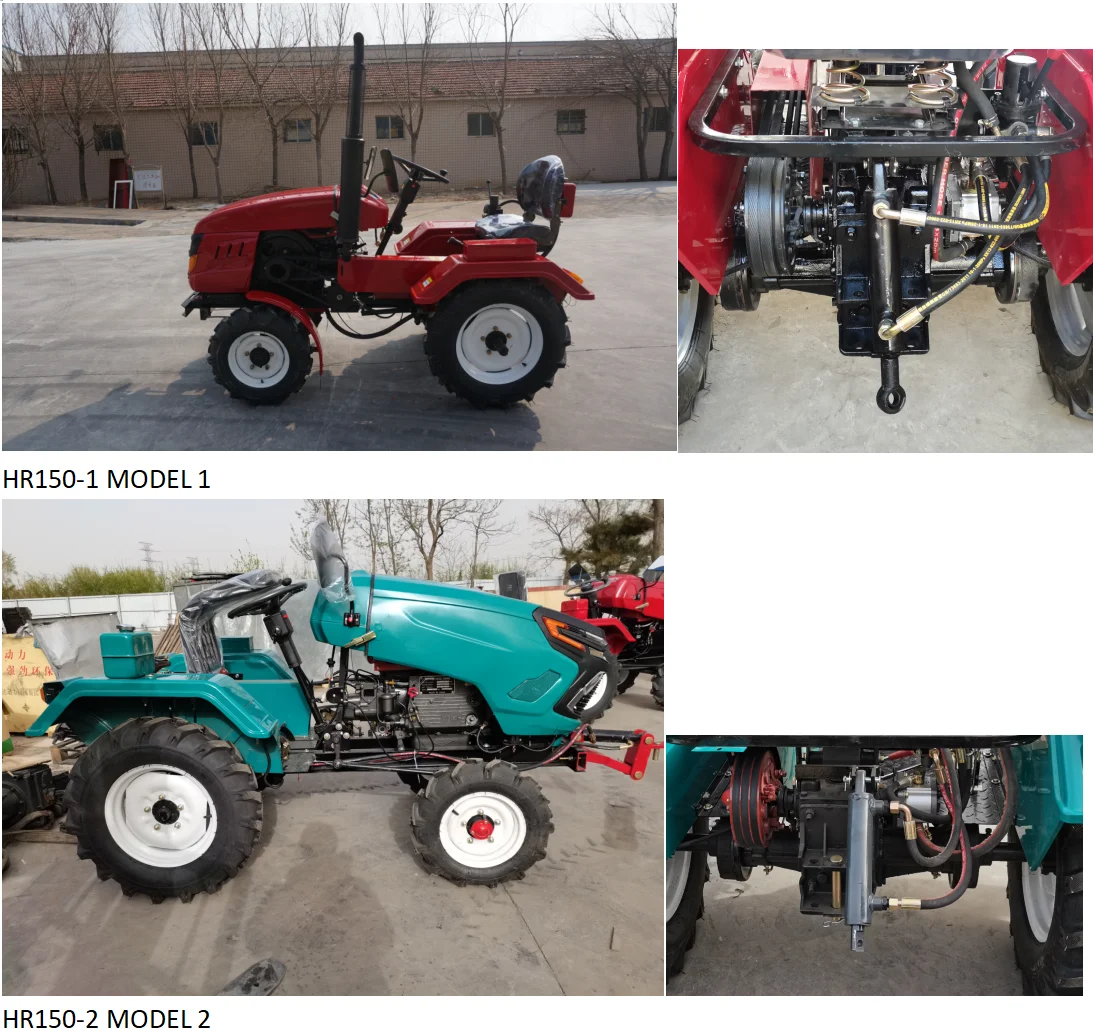

MODEL | HR200 | HR150 | |||
Disctription | 4x2wdTractor with rotary tiller and single plow with engine cover | ||||
Overall dimensions:(L×W×H) | 2140×905×1175mm Without rotary tiller | 2140×905×1175mm Without rotary tiller | |||
Overall dimensions:(L×W×H) | 2600×1000×1175mm With rotary tiller | 2600×1000×1175mm With rotary tiller | |||
Front wheel size | 500-12 | 5.00-12 | |||
Back wheel size | 6.00-16 | 6.00-16 | |||
Ground clearance | 180mm | 180mm | |||
Working weight (with rotary tiller,plough) | 615kgs | 580kgs | |||
Working weight (without anything) | 525kg | 490kgs | |||
Transmission style | Vee-belt tension | Vee-belt tension | |||
Vee-belt model | B3200 | B3200 | |||
Steering style | Steering wheel power steering system | Steering wheel power steering system | |||
Brakes | Two side wheel brake | Two side wheel brake | |||
Starter | Electric start | Electric start | |||
Seat | Adjustable | Adjustable | |||
Gear style | (3+1)*2; 6 Forward, 2 Reverse | (3+1)*2; 6 Forward, 2 Reverse | |||
Speed | Forward | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | 1.68, 2.61, 4.22, 6.79, 10.57, 17.08 | ||
| Reverse | 1.29, 5.22 | 1.29, 5.22 | ||
Engine | Model | ZS1110NDL | ZS1100,1105 | ||
| Type | 1cylinder,4-stroke,horizontal,water-cooled,diesel | 1cylinder,4-stroke,horizontal,water-cooled,diesel | ||
| Cooling mode | Condenser (Radiator) | Condenser (Radiator) | ||
| 1 hour power | 20HP | 15HP,18HP | ||
| 12 hour power | 14.70kw | 11.3kw 13.23kw | ||
| Rated speed | 2400rpm | 2200rpm | ||
| Fuel efficiency: | ≤245g/kw.hr | ≤248g/kw.hr | ||
Rotary tiller |
| 80cm work width , gear transmission, 18pcs blades | |||
Single plow |
| Single blade plow | |||
Product Details
Application
Related Product

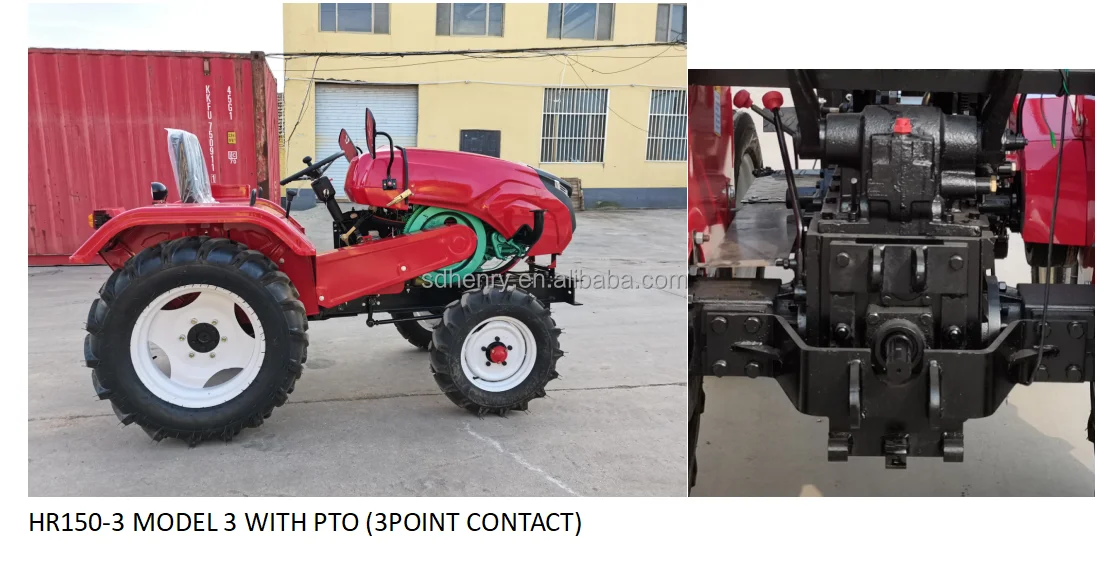

15-35HP 4X2WD AND 4X4WD SMALL FOUR WHEEL TRACTOR WITH PTO

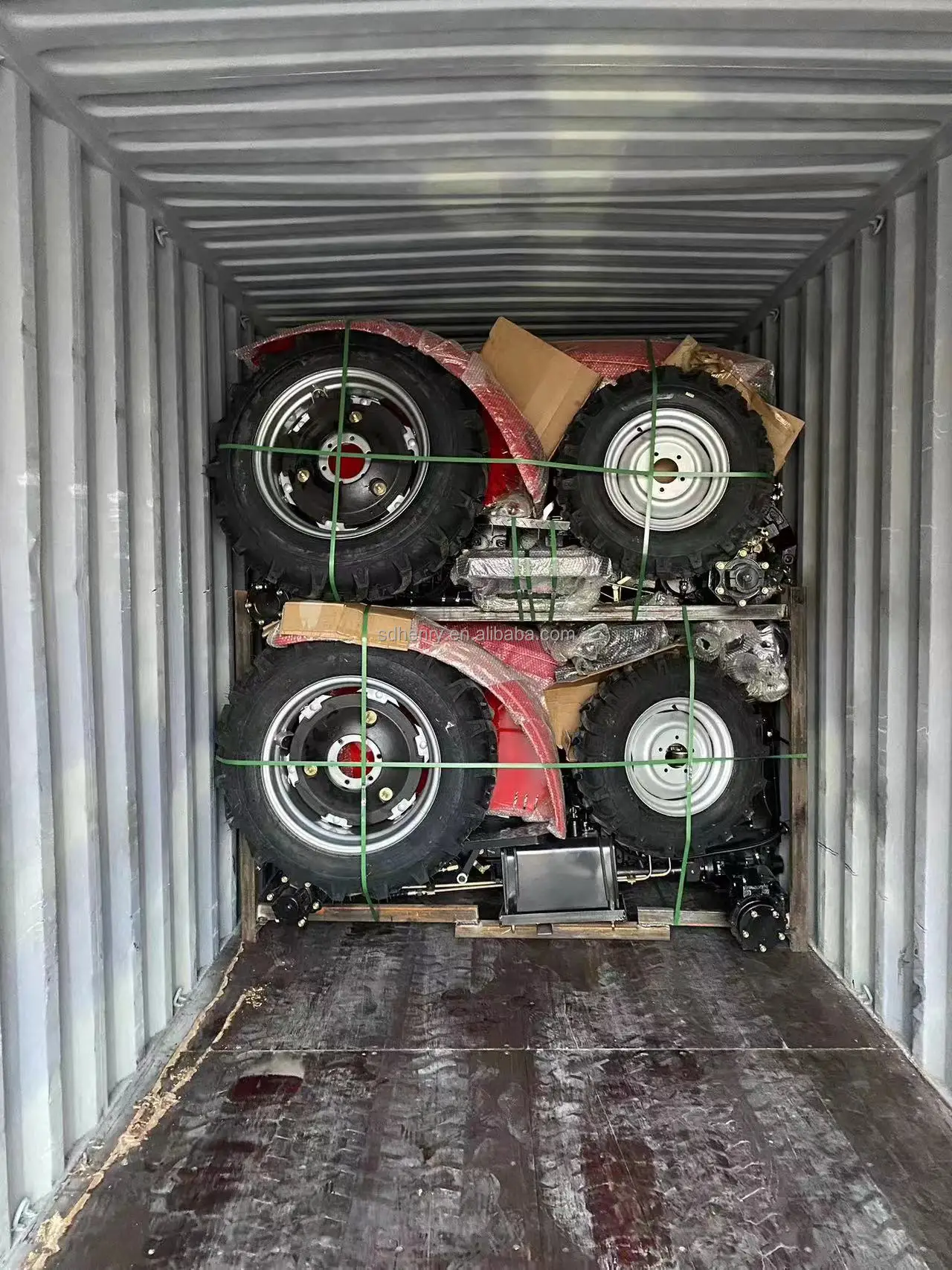

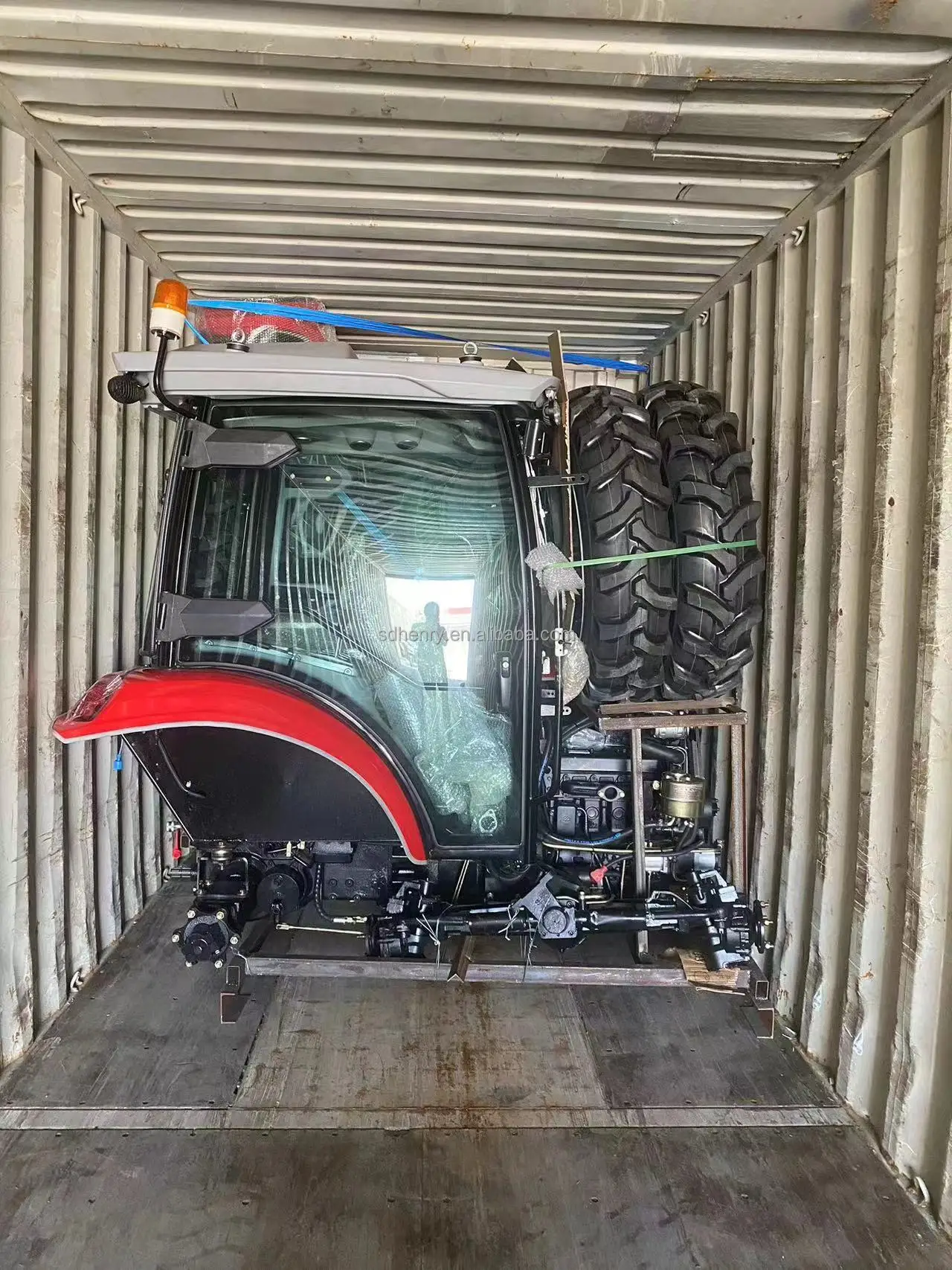

Packaging & Shipping

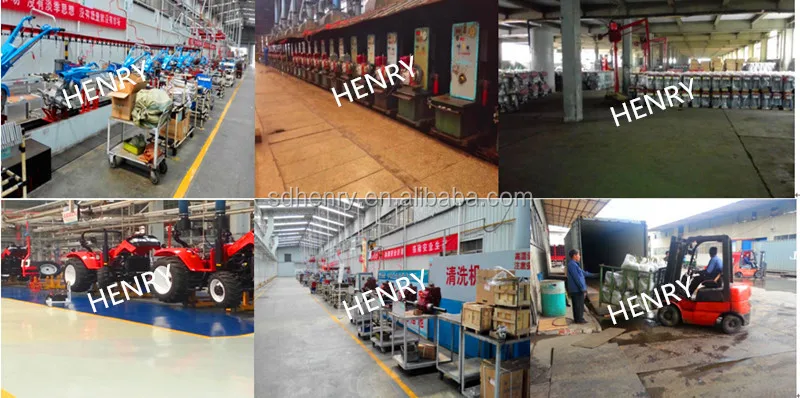

Company Information
FAQ
1.Are you tractor supplier or manufacturer?
We are tractor manufacturer. We can provide the complete tractor and spare parts with favorite price, because we are the source.

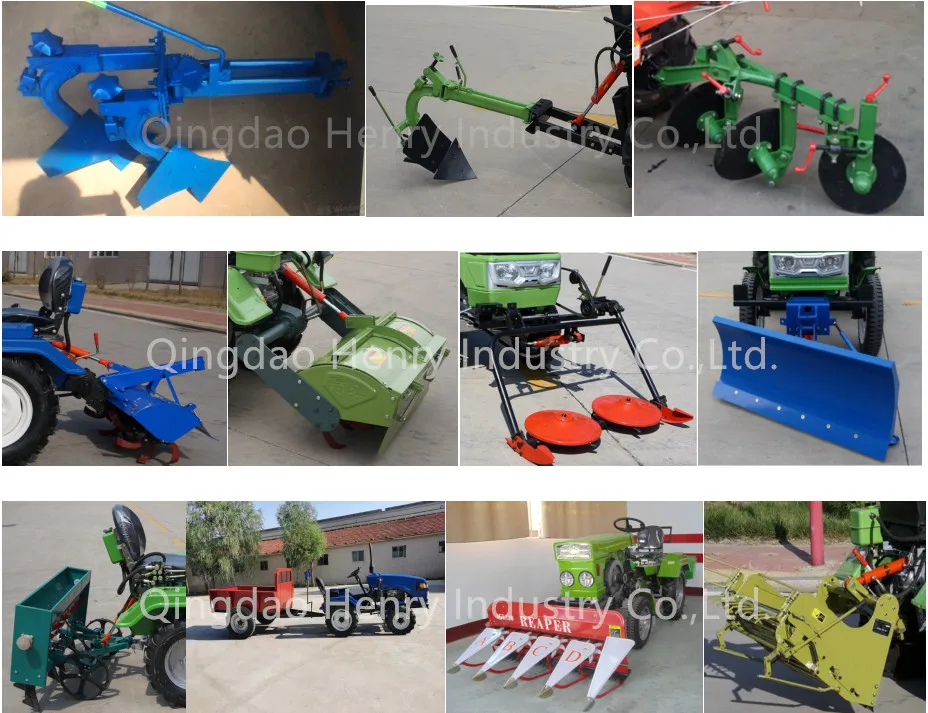

2.Can you supply tractor farm implements?
We can supply series farm implements, such as disc plough, harrow, loader, backhoe, trailer etc you want. But firstly, tell us your preferred horsepower tractor.
3.what are your products?
Our products contain walking 10-18 hp, farm 4 wheel tractor 15-220 hp ,harvest and matched agricultural implements.
4.where is your factory?
Industrial garden of Weishi County,Henan Province,China.
5.What's your payment method?
Support L/C,D/A,D/P,T/T,and other secure payment.
6.When do you ship after payment?
Within 10 to 20 working days after delivery.
7.when do contact you?
our sales person is 24*7 online for your service.
8.What are your discount items?
We will give you the biggest discount.
9.What are your advantages?
Advanced equipment,good price;professional association authentication;scientific and strict production management;superior and high quality service.
