13 способов с распределительной коробкой светодиодного индикатора

Product Overview

Description

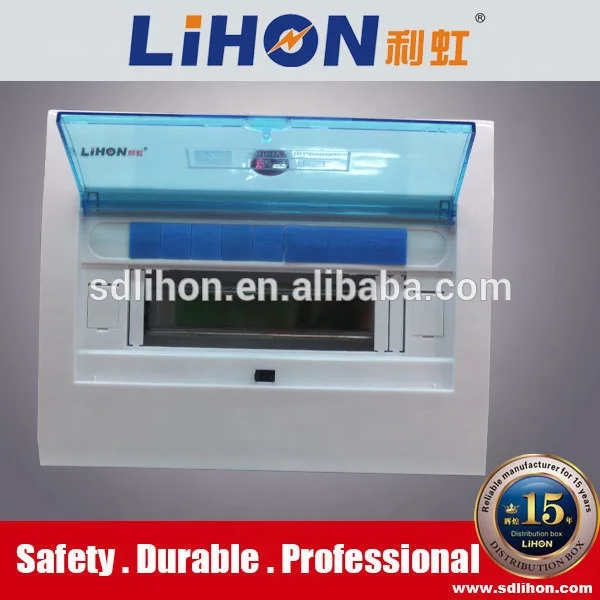

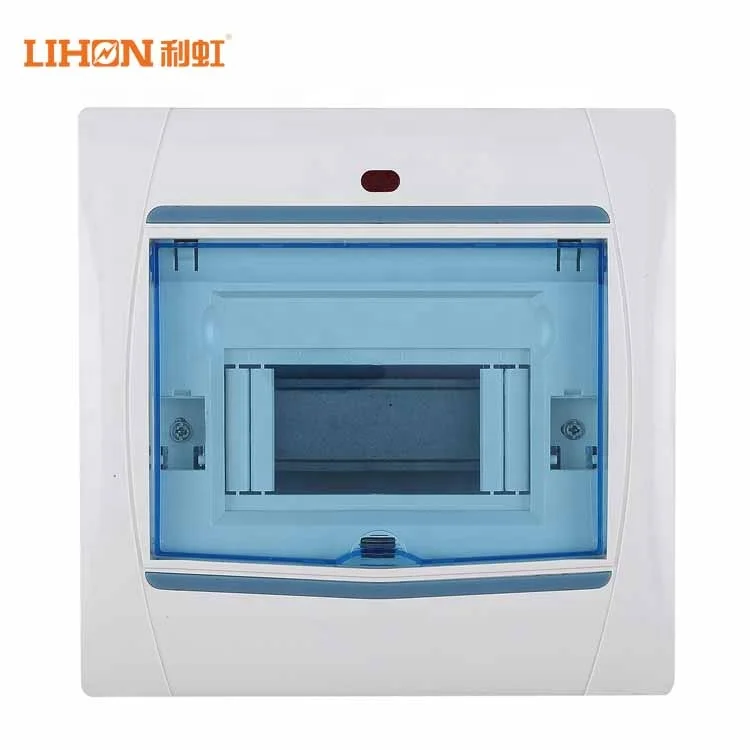

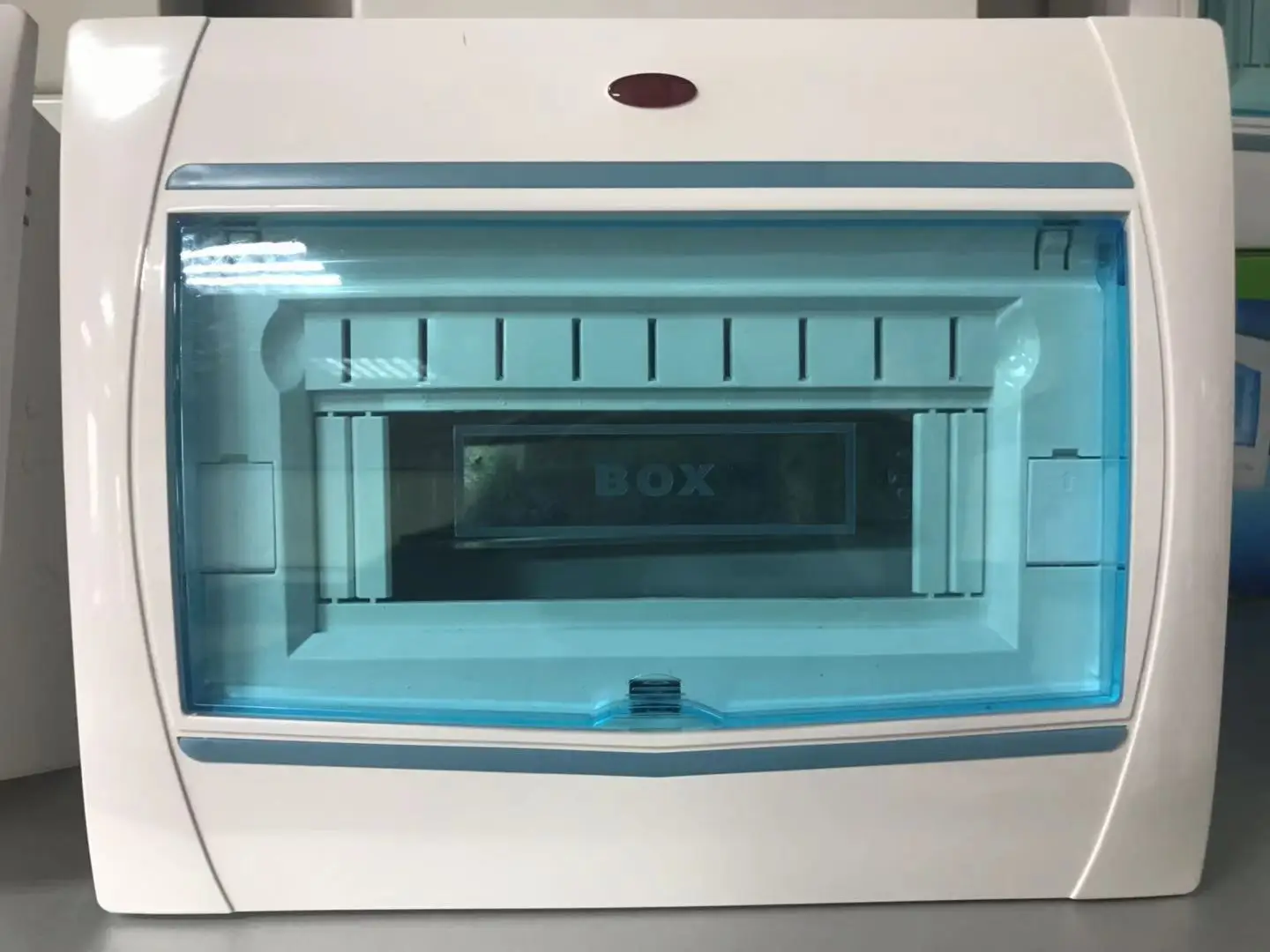

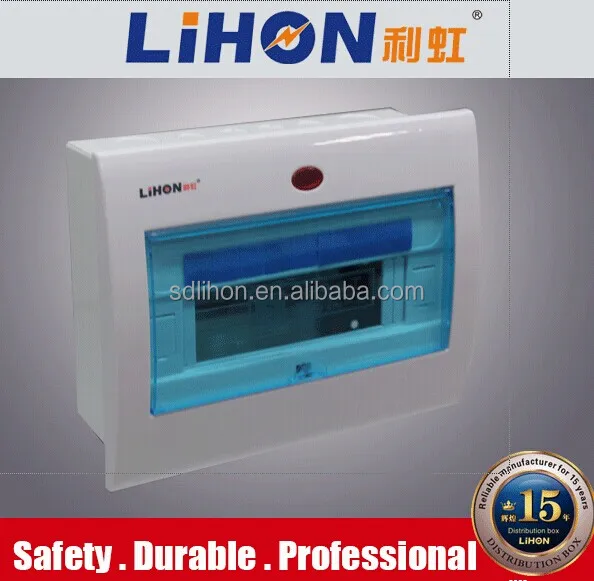

13 way luminous strip with led light mcb distribution box



 Advantage:

1.Easy identification

2.Easy opening

3.Easy wiring
4. Easy adjustment

5. Long life for using



Specification:

1.     High impact, resistance material
2.    Transparent covering
3.    Surface and flush mounting available

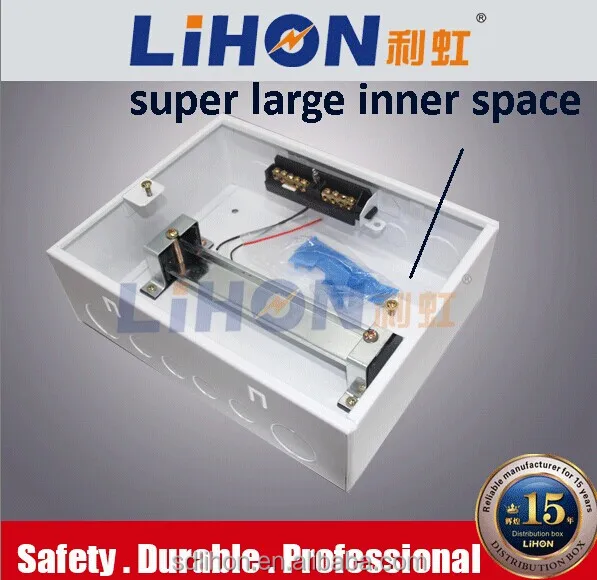

4.    Plenty of space for smooth and easy installation
5.     Range:4,6,9,13,16,19,22,26,32,44way
6.     Color : white color base box and blue transparent covering
7.      Material : 0.7mm thickness iron, ABS cover



Model (Way)	Row   of box	Surface mounted dimension (mm)	Flush mounted dimension (mm)	Base box material	Cover material	Pkgs/Ctn (PCS)	CBM /CTN	G.W/CTN(KGS)
MI-4	Single row	137*167*72	132*162*75	0.7mm iron	ABS	20	0.057	14
MI-6	Single row	208*209*72	199*200*75	0.7mm iron	ABS	12	0.060	13.5
MI-9	Single row	260*209*72	251*200*75	0.7mm iron	ABS	12	0.076	15.3
MI-13	Single row	335*209*72	326*200*75	0.7mm iron	ABS	10	0.081	18
MI-16	Single row	389*209*72	380*200*75	0.7mm iron	ABS	10	0.095	20
MI-19	Single row	445*209*72	436*200*75	0.7mm iron	ABS	10	0.104	21
MI-22	Single row	498*209*72	489*200*75	0.7mm iron	ABS	10	0.120	26
MI-26	Double rows	335*209*72	326*400*75	0.7mm iron	ABS	5	0.081	15.4
MI-32	Double rows	389*418*72	380*400*75	0.7mm iron	ABS	5	0.095	18
MI-44	Double rows	498*418*72	498*400*75	0.7mm iron	ABS	5	0.121	25







Regarding Brand/Logo:



 1. Silk-print customer's brand free of charge,first must get customer’s authorization.

 2. Make colorful package with customer's logo,MOQ is 3000pcs for each item





Parts and Accessories:

*busbar : Can be provided if needed.

1P/2P/3P for 32A/40A/63A/80A/100A,U type and Pin type

(Extra service:cutted and put inside the box )





Package:t

Inner package:Three kinds of package can be choosed depend on different quantity.

Strong outer carton.





Details:













Production Flow chat :





Business discussion:







Other kinds of distribution boxes:







(E-catalog can be provided for reference)

Our company will lauch new boxes per two months,welcome to contact us for update.
