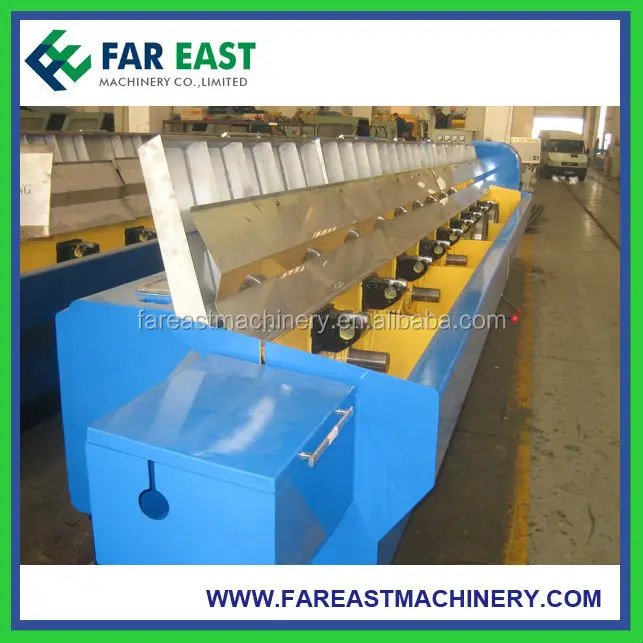

High Quality Pulley Type Copper Wire Drawing Machine/Iron Wire Pulling Machinery With Continuous Annealer
- Category: >>>
- Supplier: Shanghai Zeno Industry Co. Ltd.
Share on (60040145017):
Product Overview
Description

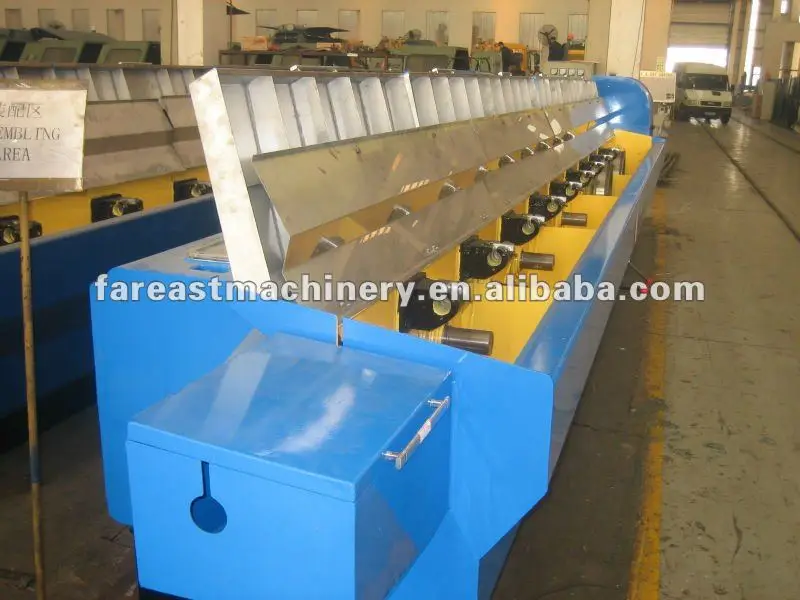

Cable Pulling Machinery With Continuous Annealer
Usage
The machine is used to pull copper rod from Ø 8 mm to Ø 1.2~4.0 mm.
Main Capability Features

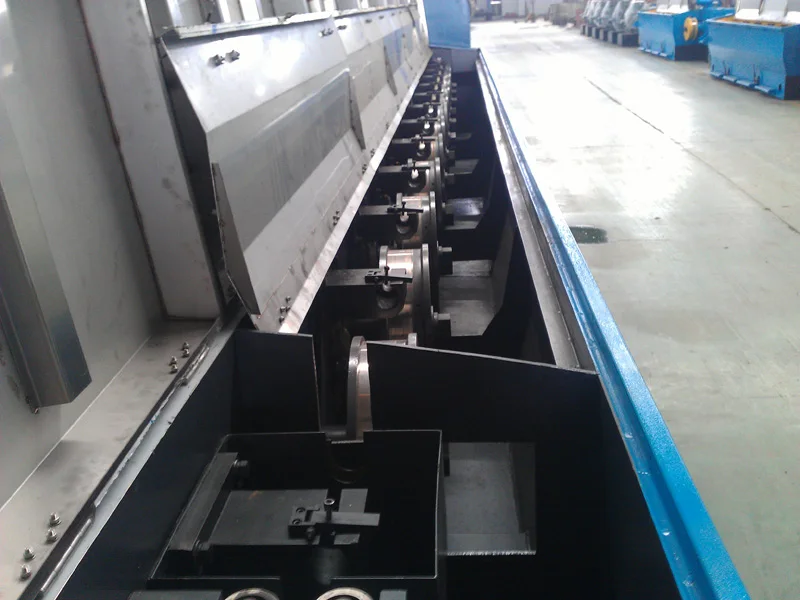

1) The drawing blocks are arranged in a horizontal single-bank tilt, and the distance between the cantilevers of all die holders are short, and in equal length, and have a strong stiffness.
2) The surface of drawing blocks is coated with tungsten carbide (powder), which is strong in hardness and abrasion resistance, and has a long life span.
3) The main drawing machine and fix capstan are driven separately, and all the dies can be changed conveniently and easily.
4) Horizontal DC annealer, with stable stretching rate of annealing and easy operation.
5) Continuous dual take up, automatic reel-change, the conductor elongation is not changed when changing the reel. The success rate of automatic reel-change is more than 99%.
6) Driven by DC motor, the imported PLC and touch Screen( Siemens of Preface) are convenient for operator to set and display the parameter on the touch screen.
Main Parameters
Sliding Heavy-Duty Copper Wire Pulling Machine
Item | F-LHD450/9 | F-LHD450/11 | F-LHD450/13 |
Inlet Wire Dia.(mm) | Ø 8 | Ø8 | Ø 8 |
Outlet Wire Dia.(mm) | Ø 2.0~4.0 | Ø 1.5~4.0 | Ø 1.2~4.0 |
Max Die No. | 9 | 11 | 13 |
Drawing Capstan Dia.(mm) | 450 | ||
Max. Line Speed(mm) | 18 | 22 | 25 |
Main Motor Power(KW) | 250 | 250 | 250 |
Total Power(KW) | 725 | 750 | 750 |
Annealer Power | 70V×5000A | ||
Drawing Capstan | Coated with tungsten carbide | ||
Dual Takeup Standard(mm) | PND500/630 | ||
Traversing Type | Motor type | ||
Lubrication Type | Immersion and spraying | ||
Sliding Heavy-Duty Aluminum Wire Pulling Machine
Item | F-LHD450/9 | F-LHD450/11 | F-LHD450/13 |
Inlet Wire Dia.(mm) | Ø 9/12.5 | Ø9/12.5 | Ø9/12.5 |
Outlet Wire Dia.(mm) | Ø 3.0~5.0 | Ø 2.3~5.0 | Ø 1.8~5.0 |
Max Die No. | 9 | 11 | 13 |
Drawing capstan Dia.(mm) | 450 | ||
Max. Line Speed(mm) | 18 | 20 | 25 |
Main Motor Power(KW) | 250 | 250 | 250 |
Total Power(KW) | 385 | 385 | 385 |
Drawing Capstan | Coated with tungsten carbide | ||
Dual Takeup Standard(mm) | PND500/630 | ||
Traversing Type | Motor type | ||
Lubrication Type | Immersion and spraying | ||
Sliding Heavy-Duty Aluminum Alloy wire Pulling machine
Item | F-LHD450/11 | F-LHD450/13 |
Inlet Wire Dia.(mm) | Ø9/12.5 | Ø9/12.5 |
Outlet Wire Dia.(mm) | Ø 2.8~4.5 | Ø 2.3~4.5 |
Max Die No. | 11 | 13 |
Drawing capstan Dia.(mm) | 450 | |
Max. Line Speed(mm) | 15 | 18 |
Main Motor Power(KW) | 315 | 315 |
Total Power(KW) | 470 | 470 |
Drawing Capstan | Coated with tungsten carbide | |
Dual Takeup Standard(mm) | PND500/630 | |
Traversing Type | Motor type | |
Lubrication Type | Immersion and spraying | |
Certifications
About us
Trade Shows
FAQ
1. Q:Are you a factory or trading company?
A: We are a factory.
2. Q:Where is your factory located? How can I visit there?
A: Our factory is located in Jiangsu, China.You can fly to Shanghai airport directly. We welcome you to visit our factory.
3. Q: Why choose your factory for service?
A: Our factory is specializing in producing cable machines for about 10 years. We can provide thoughtful pre-sale and after-sale service.
4. Q:How does your factory do regarding quality control?
A: "Quality first, customers foremost”. We always attach great importance to quality controlling from the very beginning to very end.
5. Q: What is your company mainly produce?
A: Extrusion line series, Varieties of double twist buncher, Varieties of back-twisting, pair-twisting and double-twist cabling machine, Series of coiling and packing machine,Complete plant of Lan cable, Varieties of single-twist cabling machine, Auxiliary equipment.
