High accuracy China Cnc Milling Machinery dental mini small
- Category: >>>
- Supplier: Nantong Sunway Science And Technology Development Co. Ltd.
Share on (60040530422):
Product Overview
Description
High accuracy China Cnc Milling Machinery dental mini small
1. cnc tool VMC-1265 (hard rail) VMC-1265(hard rail) Specifications:
Machine Type | Unit | VMC1265(hard rail) |
Worktable | ||
Worktable(length×width) | mm | 1400×650 |
Maximum load of table | kg | 1200 |
T-slot(number of slot × slot width × pitch) | mm | 5-18×130 |
Triaxial itinerary | ||
Travel for X/Y/Z axes | mm | 1200/650/650 |
Distance from spindle nose to table surface | mm | 120-770 |
Distance from spindle center to column guide surface | mm | 700 |
Feed system | ||
CNC system |
| Mitsubishi M70/FANUC-Oi MD |
Rapid shift of axes of X/Y/Z | m/min | 16 |
Maximum cutting feed speed | m/min | 7 |
Automatic tool transform system(CNC milling without) | ||
Standard tool quality | bundle | Bamboo hat type 20/Disc type 24 |
The largest diameter cutter knife/length | mm | Φ80/300 |
Tool exchanging manner |
| Air-operated |
Average tool exchanging time | sec | Bamboo hat type:5s/Disc type: 2.5s |
Precision | ||
Positioning accuracy | mm | 0.010 |
Accuracy of repeated positioning | Mm | 0.005 |
Spindle system | ||
Spindle speed | r.p.m | 8000 |
Spindle specifications(model/installation diameter) |
| BT40/Φ150 |
Drive manner of spindle |
| Belt drive |
Motor power of spindle | kw | 11/15 |
Air pressure | ||
Requirements for air compressing | Kg/cm² | ≥6 |
Air pressure flux | m³/min | ≥0.3 |
Machine specifications | ||
Integrated weight(kg) | kg | 9000 |
Overall dimension(weight×width×height) | mm | 3511×2700×2800 |
2. cnc tool VMC-1265 (hard rail) Chief Configurations:

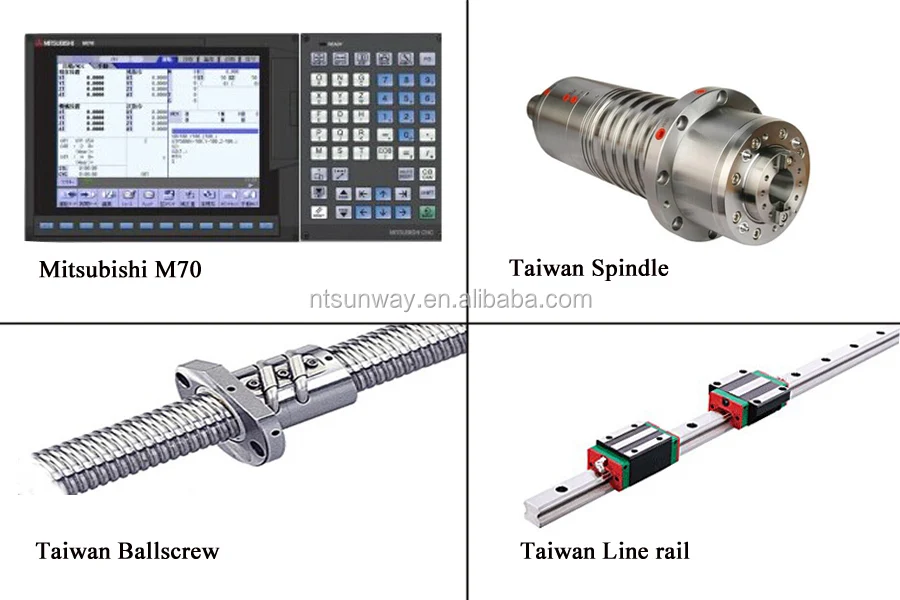

1). cnc tool vmc VMC-1265(hard rail) Electric:
Travel No. | Name | Brand Habitat | Remark |
1 | CNC System | MITSUBISHI/FANUC(Japan) | M70 |
2 | Drive motor | MITSUBISHI/FANUC(Japan) |
|
3 | Spindle motor | MITSUBISHI/FANUC(Japan) |
|
4 | Relay | OMRON(Germany) |
|
5 | Contactor | SCHNEIDER(France) |
|
6 | Breaker | SIEMENS(Germany) |
|
7 | Transformer | JUCHE(China) |
|
8 | Switch power supply | MEAN WELL(Taiwan) |
|
9 | Electron hand wheel | Japan |
|
10 | Water tank motor | China |
|

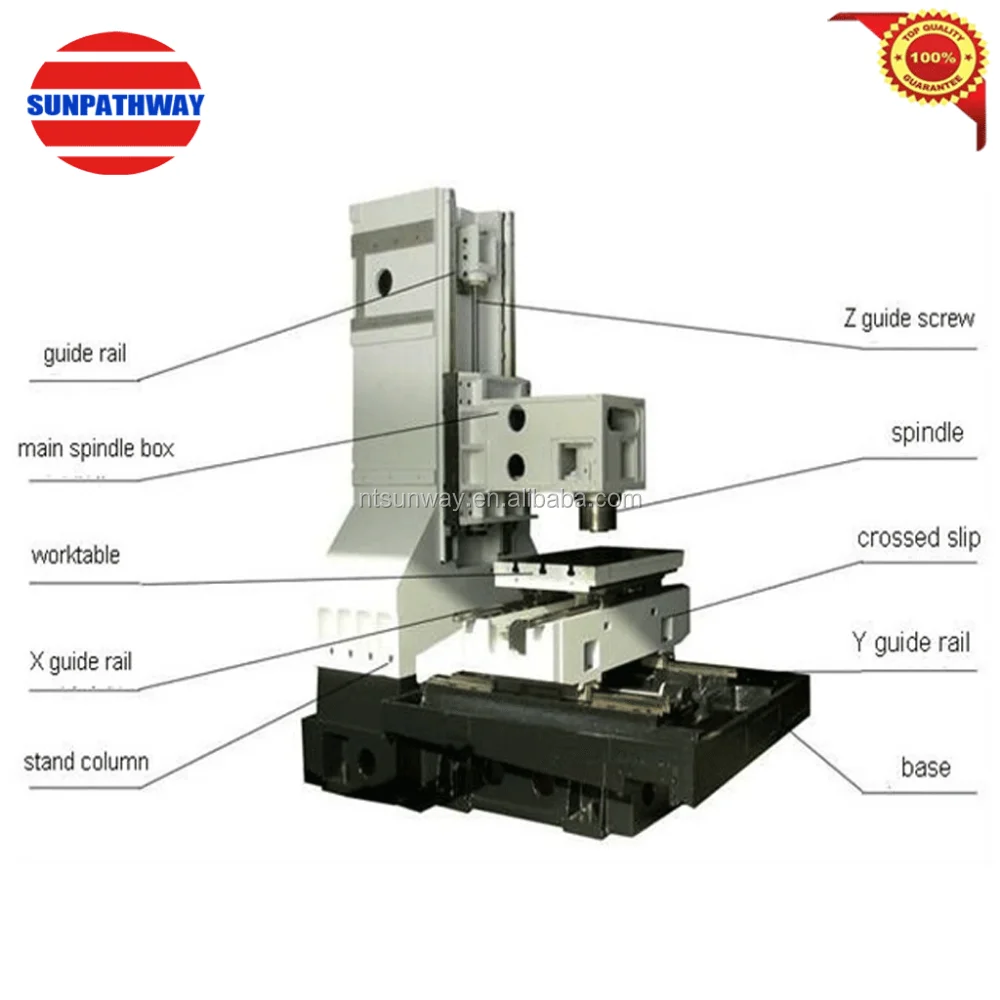

2. cnc tool VMC-1265(hard rail) Machinery:
Travel No. | Name | Brand Habitat | Remarks |
1 | Spindle | PUSON(Taiwan ) | 8000r/ min |
2 | Coupling shaft | Germany R+W |
|
3 | Pressurizes vat | HAOCHENG or SHENGYU(Taiwan ) |
|
4 | Lead screw of three axles | HIWIN C3(Taiwan) |
|
5 | Lubricant oil road | NIKKA YUKI(Japan ) |
|
6 | Axletree | NSK (Japan ) | (P level of high accurate avoid matching axletrees) |
7 | 20 bamboo hat style or 24 manipulator tool store |
|
|
8 | Accurate round nut | Taiwan |
|
9 | Whole machine bolts | Taiwan | (High intensity 12.9 grade) |
