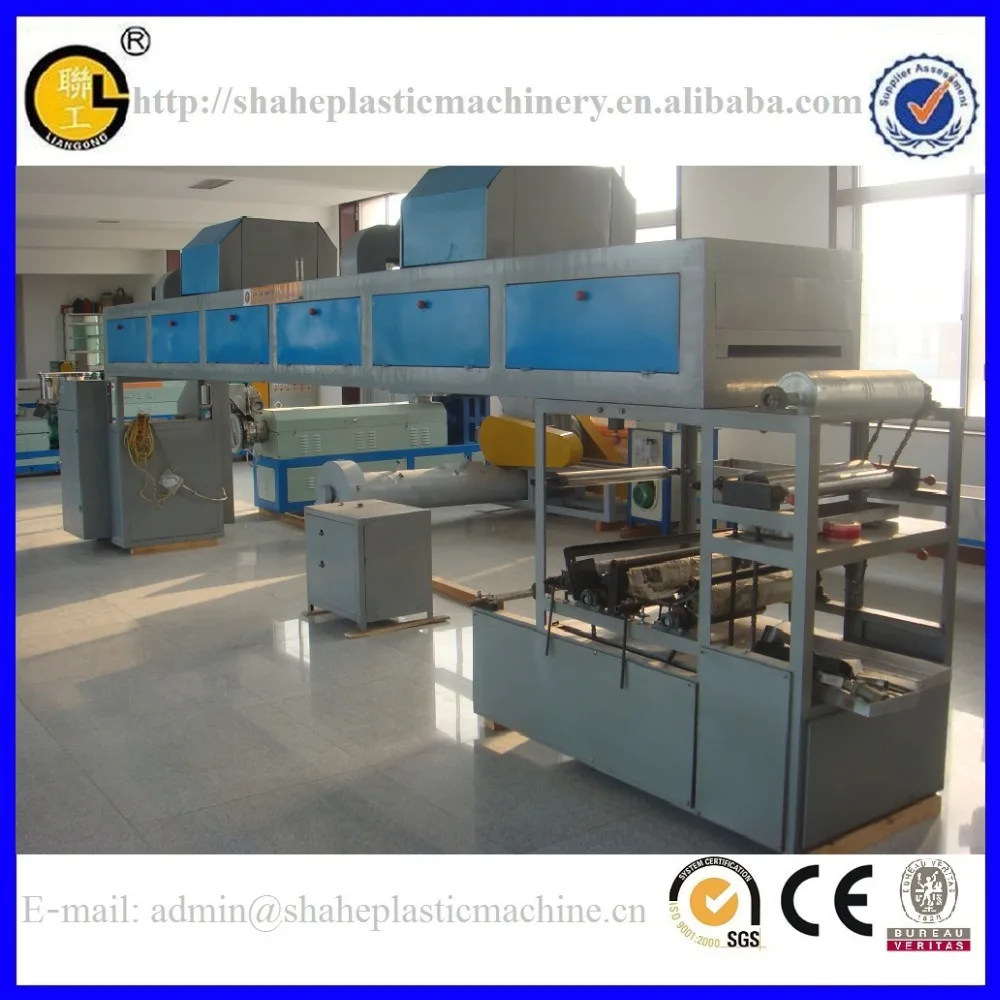

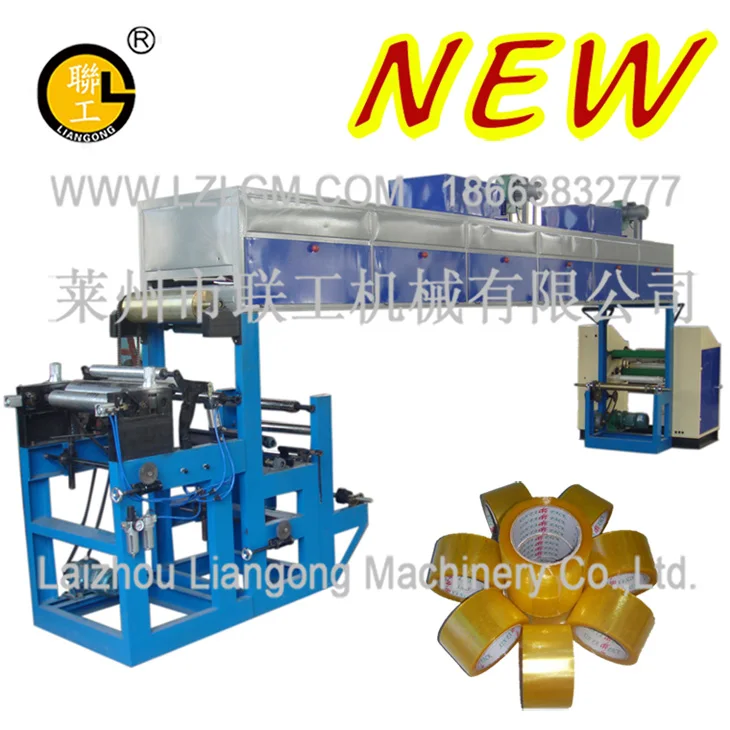

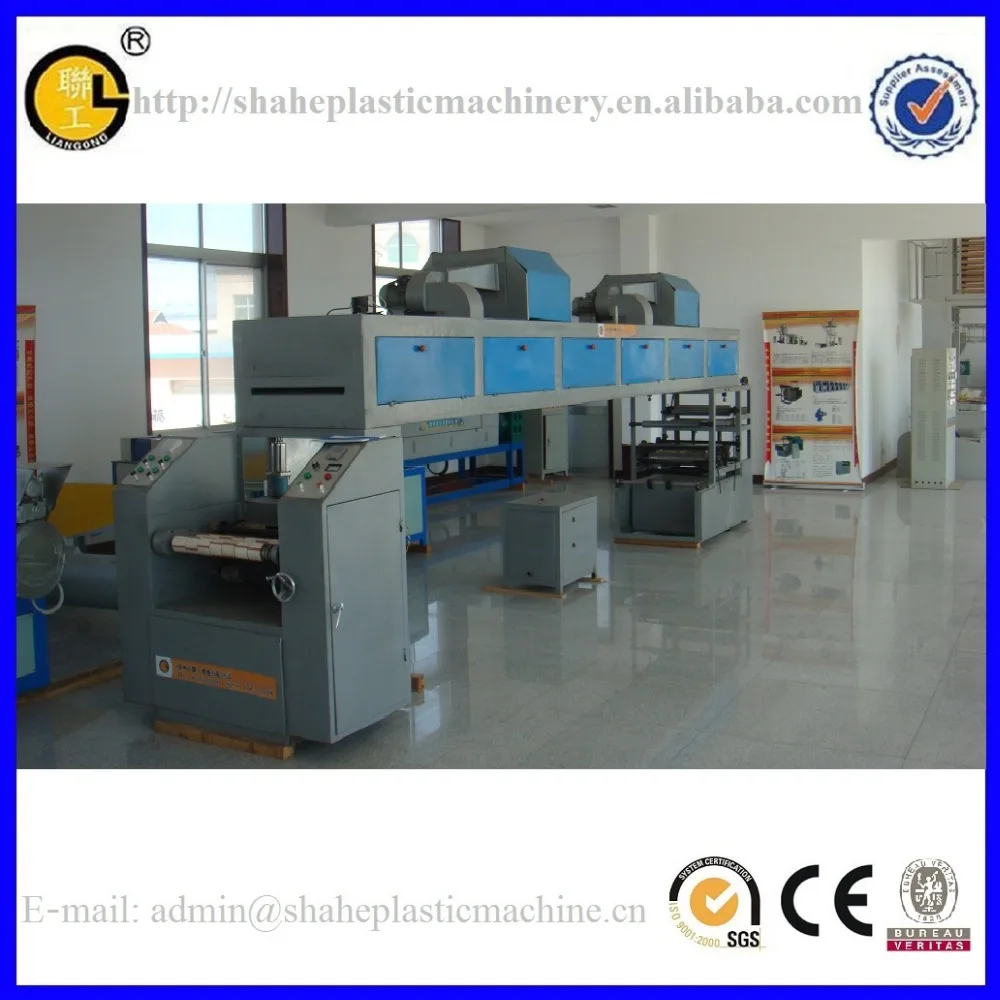

LGJD 500 6000 Adhesive Tape Making Machine
- Category: >>>
- Supplier: Laizhou Liangong Machinery Co. Ltd.
Share on (60041034357):
Product Overview
Description
Product Description
Main Features

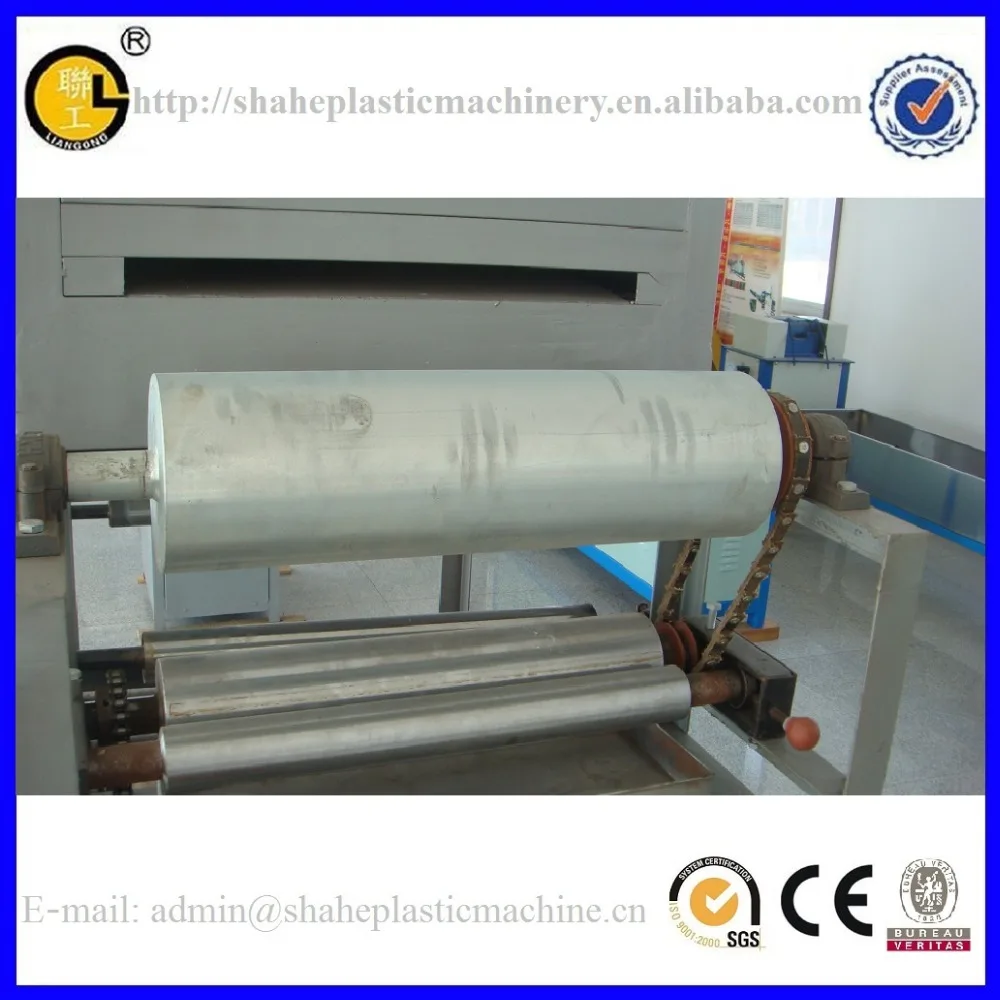

1.Two Rewinding Roller (Two Shaft) System
It is more convenient to change roller without stopping the machine.
2.It is also easy for Slitting & Rewinding finished products of
small adhesive tapes
3.Two colours printing supported and company logo brand
printing
4.All functions in one machine including printing,coating and
slitting rewinding automatically.
Technical Parameters & Price
Model | LGJD-500-6000 |
Width of Coating (mm) | 500 mm(Effective Rewinding Roller width is 500mm) |
Mechanical Speed (M/Min) | 15-25 Meter/Min (Output is 7.5~10 Square Meter/Min) |
Length of Drying Tunnel | 6 M |
Total power(KW) | 15 KW for gas heating 25 KW for electricity heating |
Motor Power (Kw) | 2.2 KW |
Voltage | 220/380 V |
Heating Methods | Electrcity /Gas (Choose one) |
Function | A Printing system (Two colours) |
A Slitting system:(Minimum size of slitting is 24mm,Maximum size is 500mm,the maximum outside diameter is 300~500 mm) | |
Terms of payment | 30% deposit pay by T/T pay in advance , 70% amount paid by L/C |
Expire time( Price ) | 4 Weeks |
Package(Export Standard) | Plywood cases packaged, Loaded by 1 x 40’ Container |
|
Packaging & Shipping
Generally, they will be packed up in some wooden boxes, or according to the client's request.
Our Services
Warranty: 12 months
Engineers are avalible to service machinery overseas
