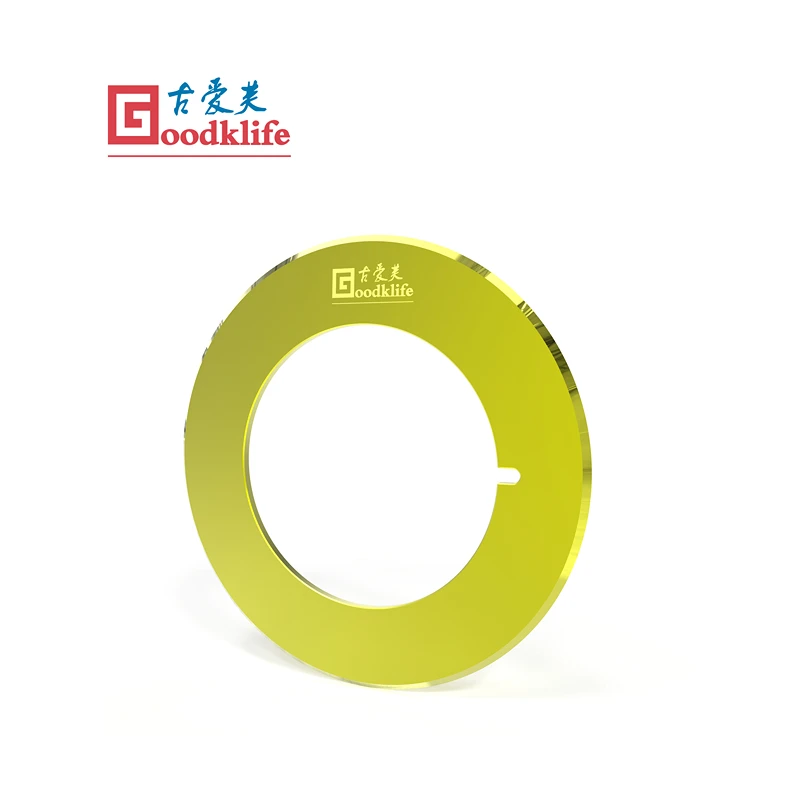

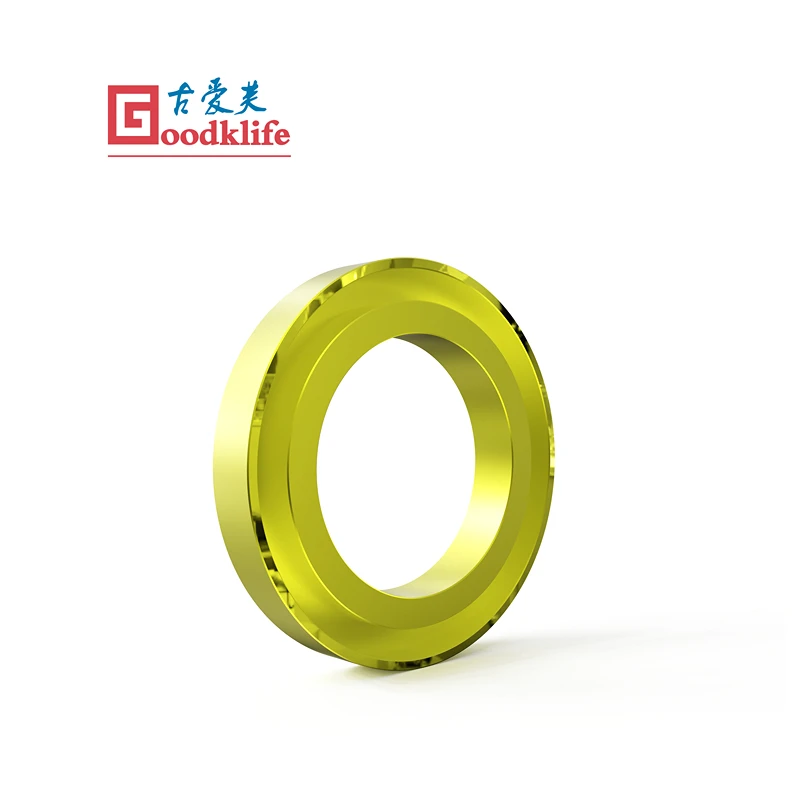

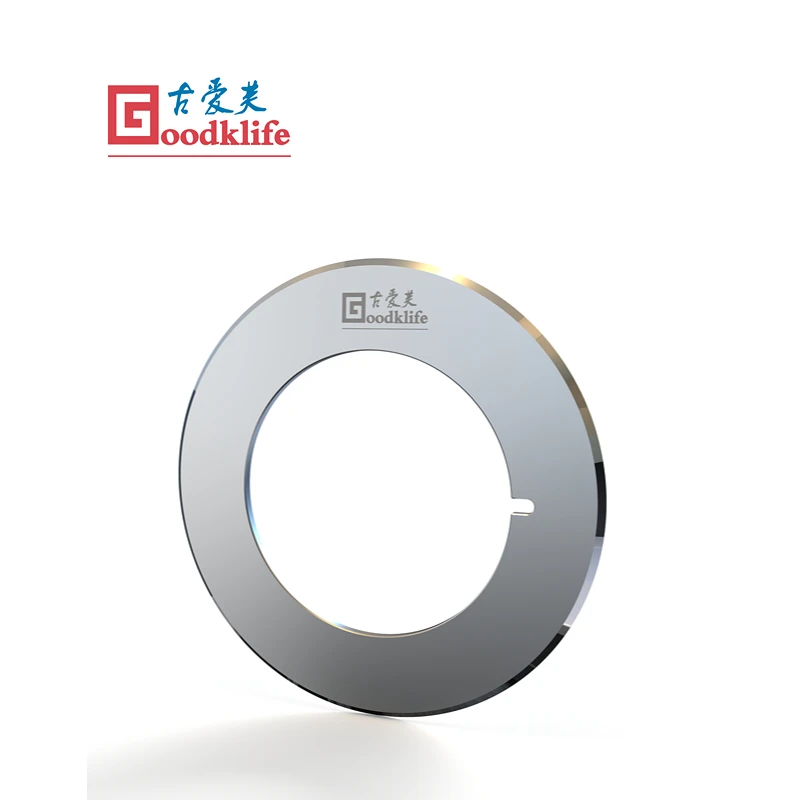

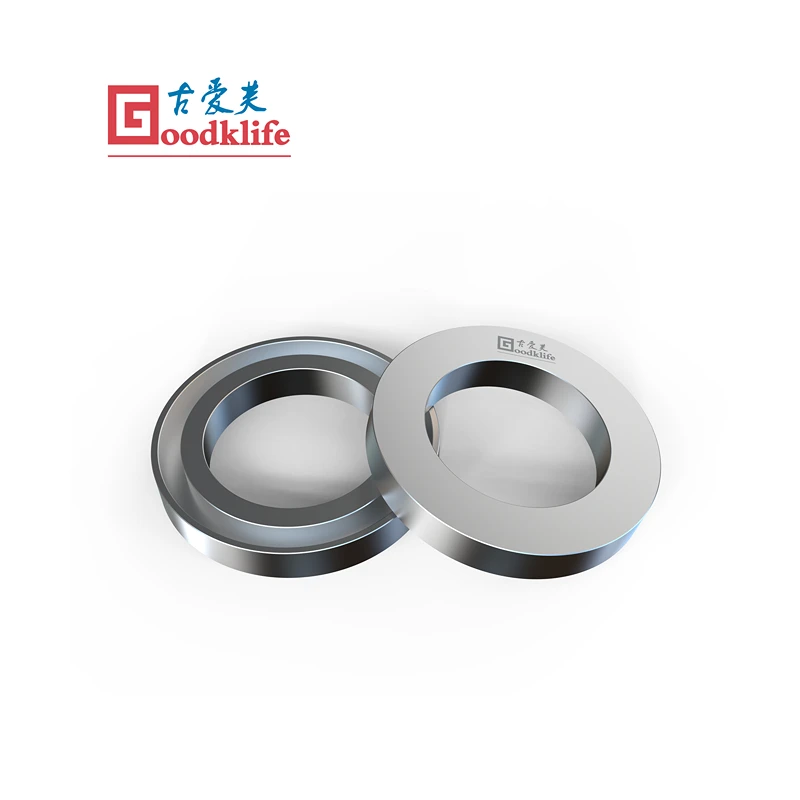

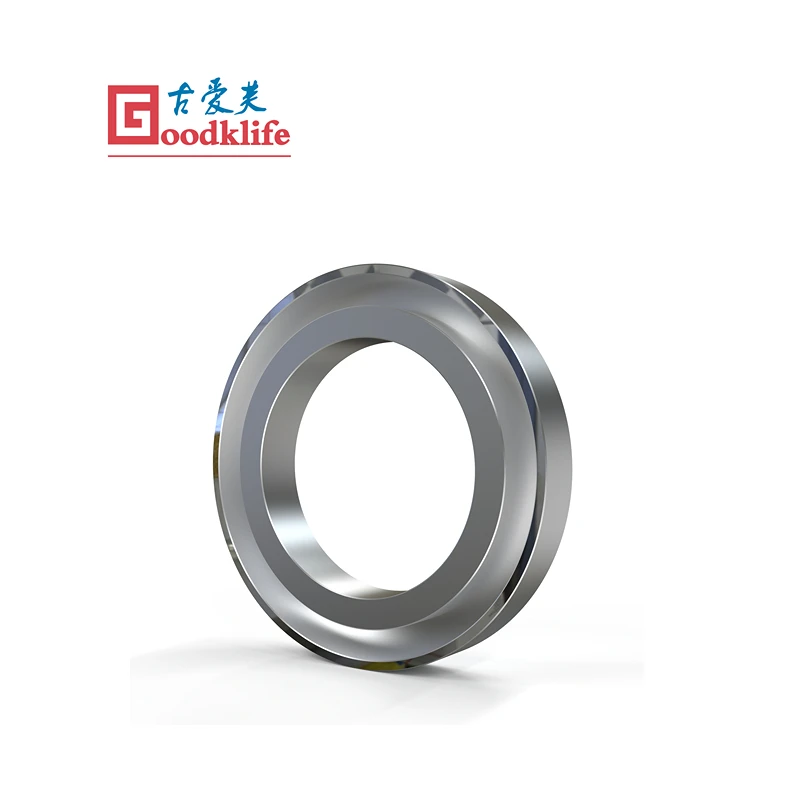

Rotary tissue perforating knife
Rotary tissue perforating knife
Rotary tissue perforating knife
Rotary tissue perforating knife
Rotary tissue perforating knife
Rotary tissue perforating knife
Rotary tissue perforating knife

Rotary tissue perforating knife

Share on (60041254239):


Price:$1.00

Quantity:


Product Overview

Description



PRODUCTS DESCRIPTION






Logo customized
Goodklife provide OEM service

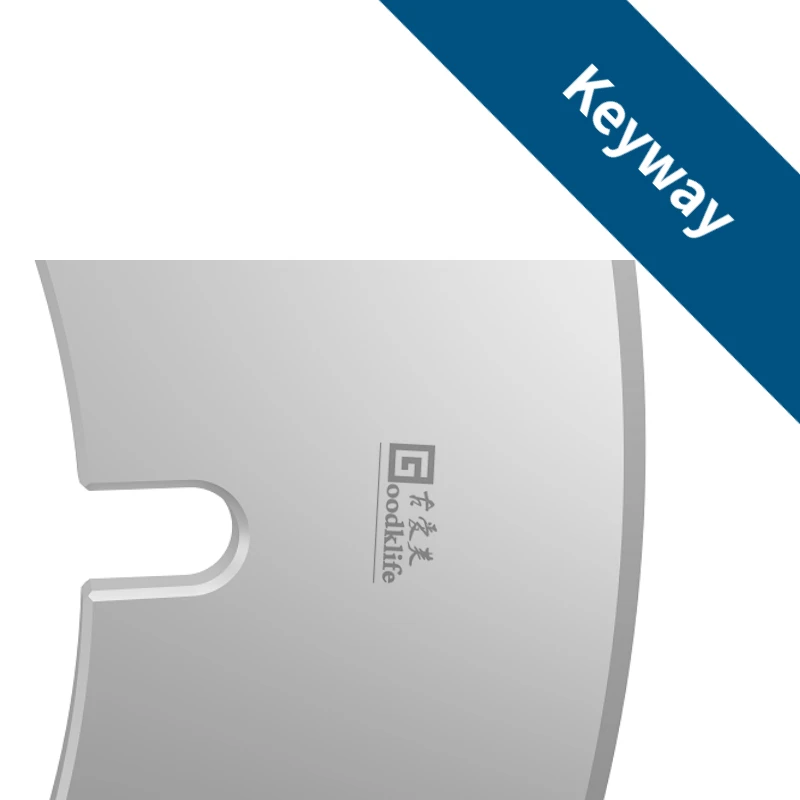

Keyway/I.D. Chamfered
Easier Installation
Operator Protection
Arbors Protection
Marks
Detailed Marking
Easy Tool Selection



We are the Experts in Manufacturing Custom Top Slitter Knives
One of the most prevalent problems in the printing/paper converting industry is dust. In fact, with the addition of alkaline substances in the papermaking process, dust has become a more significant problem. Studies have proven that poor surface finish on top knives and bottom belts can exacerbate dust problems. Goodklife helps manufacturers eliminate dust problems through dramatically improving cut quality.

Our slitter knives are made of high quality tool steel. These knives are made from a variety of metallurgical materials to provide our customers with the ideal balance between cost and tool life. Goodklife has over 30 years experience with the expertise in heat treating and grinding to produce the slitter knives in the market.

Our slitting experts can recommend various bevel configurations, single bevel, double bevel or double hollow bevel, to optimize cut quality. Polished, super-finished and proprietary coated knives are available to reduce adhesive build-up and reduce dust generation due to slitting operations. Slitter knives are available in a variety of configurations to fit a wide range of OEM slitters to meet your requirements.


PRODUCT PARAMETER
Brand
Goodklife
Product name
Rotary tissue perforating knife
Size
Customized
O.D.
between 28-610 mm (can be customized according to customer’s requirements)
Thickness
between 0.3-80 mm (can be customized according to customer requirements)

Material
High carbon steel, high speed steel, tool steel, alloy steel, stainless steel, 65Mn, 9CrSi, Cr12MoV, SKD-11, SKH-51, 3Cr13, 9Cr18, SUS440C, 420J2, W6Mo5Cr4V2 and other materials


Cutting edge
1. Small knife-edge single bevel: This is currently most commonly used. Mainly used for cutting hard or thick materials.Like adhesive sticker, paper, leather, plastic, etc.
2. Large knife-edge double bevel: This kind of knife-edge slope is relatively large, so the cutting resistance is smaller, the incision is smoother, and there are no burrs. It is necessary to cut relatively high-demand and relatively thin materials, such as: film, thin plastic, etc.
Features
Sharp, durable, high hardness, good toughness


Cutting material
1. Film: soft PVC, hard PVC, PP, PE, PS, PET, BOPP, adhesive tape, etc.
2. Paper: kraft paper, release paper, wallpaper, textured paper, adhesive paper, thick cardboard, etc.
3. Cloth: non-woven fabric, synthetic cloth, natural cotton cloth, medical adhesive cloth, trademark cloth, etc.


Application
Blades are widely used in paper-making, paper product processing, adhesive tape products, film, wire and cable, rubber, aluminum foil, non-manufacturing cloth, composite packaging materials, chemical fiber, telecommunication appliances, cigarettes, leather, printing, food and clothing and other industries
Parallelism
0.01 mm
Flatness
0.01 mm
Surface roughness
Ra 0.1um
Axial concentricity
0.01 mm
Radial concentricity
0.02 mm
Keyway
as request
Heat treatment
through-hardening
Surface Quality

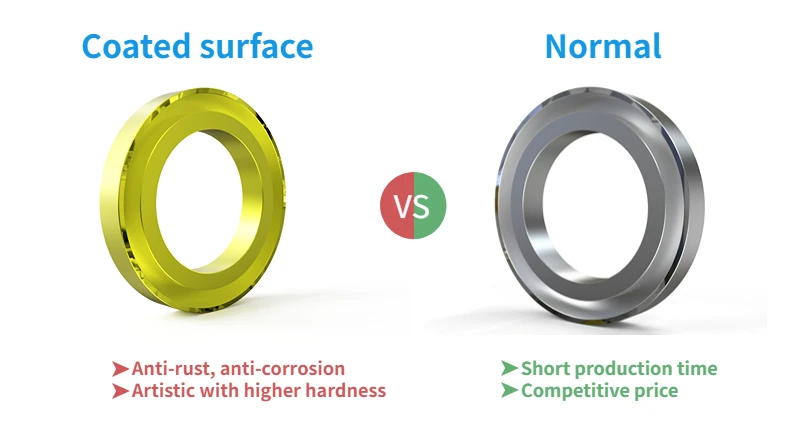

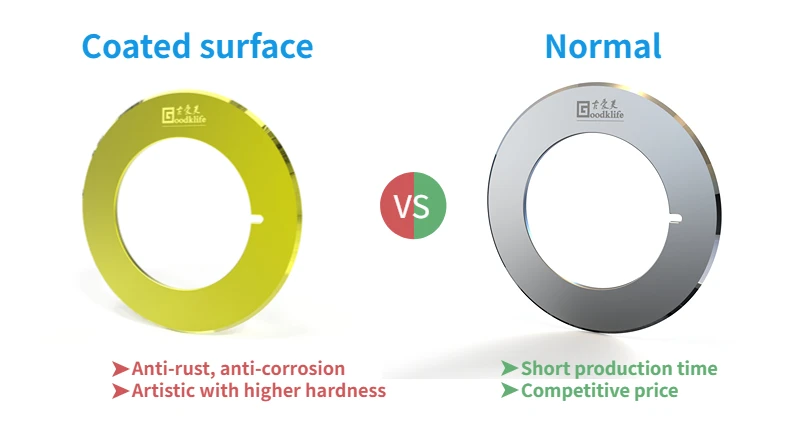

Precision Ground/Polished/Mirror Polished/Coated


STANDARD DIMENSION


Dimension(mm)
OD
ID
Thickness
Hardness(HRC)
Material
Φ61xΦ40x1
61
40
1
55-62








9CrSi
SKD-11
Cr12MoV
SKH-51
W18Cr4V
W6Mo5Cr4V2
Other optional materials
Φ68xΦ40x1
68
40
1
55-62
Φ68xΦ46x0.5
68
46
0.5
55-62
Φ70xΦ40x1
70
40
1
55-62
Φ75xΦ45x1
75
45
1
55-62
Φ90xΦ60x1.2
90
60
1.2
55-62
Φ100xΦ66x1
100
66
1
55-62
Φ100xΦ75x1
100
75
1
55-62
Φ105xΦ66x1.2
105
66
1.2
55-62
Φ105xΦ70x1.2
105
70
1.2
55-62
Φ130xΦ80x1.2
130
80
1.2
55-62
Φ130xΦ100x1.2
130
100
1.2
55-62
Φ140xΦ90x1.2
140
90
1.2
55-62
Φ150xΦ80x2
150
80
2
55-62

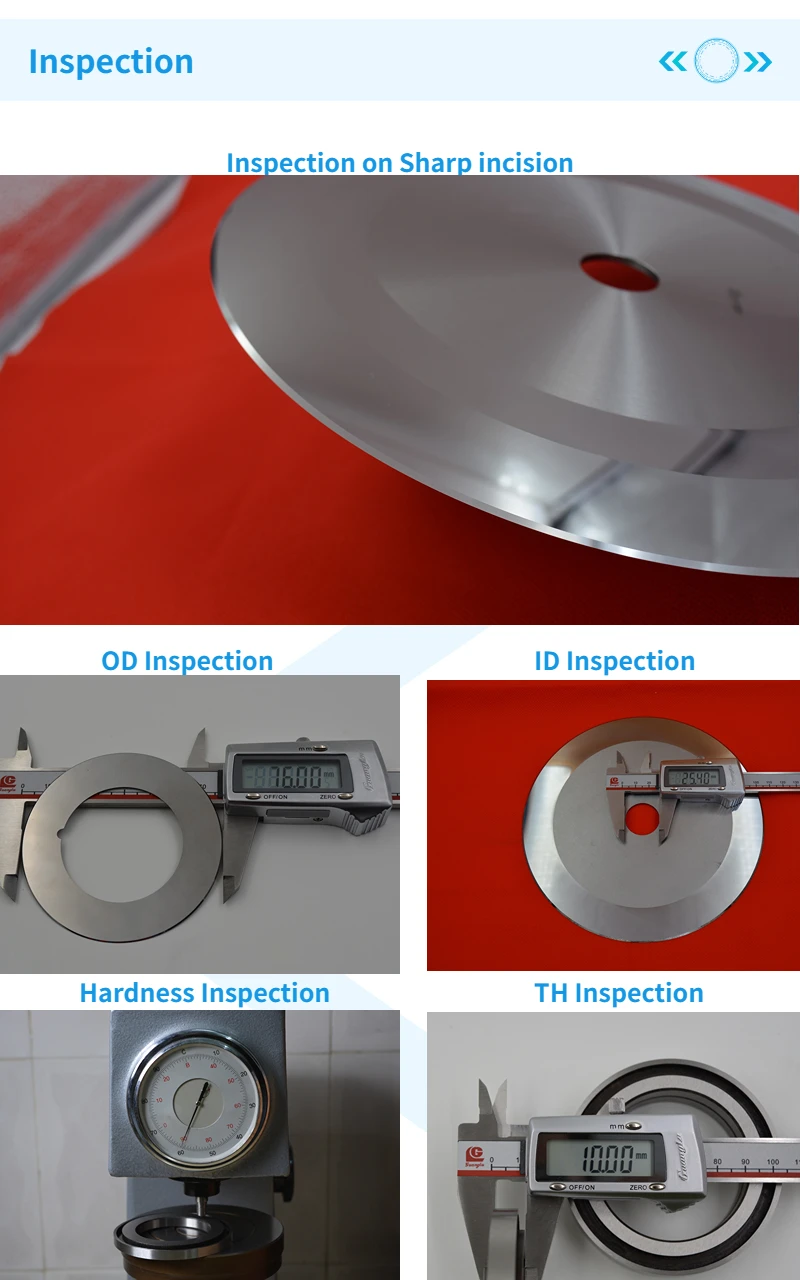

QUALITY ASSURANCE


SGS AUTHORITATIVE TESTING
Goodklife has always been committed to providing high-quality, ultra-high-precision cutting tools to customers around the world. In order to enhance mutual trust, for the first cooperation, we now provide free SGS testing services to invited customers to dispel all your doubts.




HEAT TREATMENT ASSURANCE
Goodklife's heat treatment workshop is fully equipped with various heating, annealing, quenching and tempering equipment, and is equipped with a number of experienced professional senior engineers. After years of experience summarization, the company's unique heat treatment process has been formed. Blades with a thickness of less than 100 mm can be fully hardened into the core, which can ensure that the performance of the blade is the same until it is ground to the minimum size. Not only the safety factor of the blade is high, but also the production efficiency can be significantly improved and the cutting cost can be reduced.




PRECISION TOLERANCE ASSURANCE

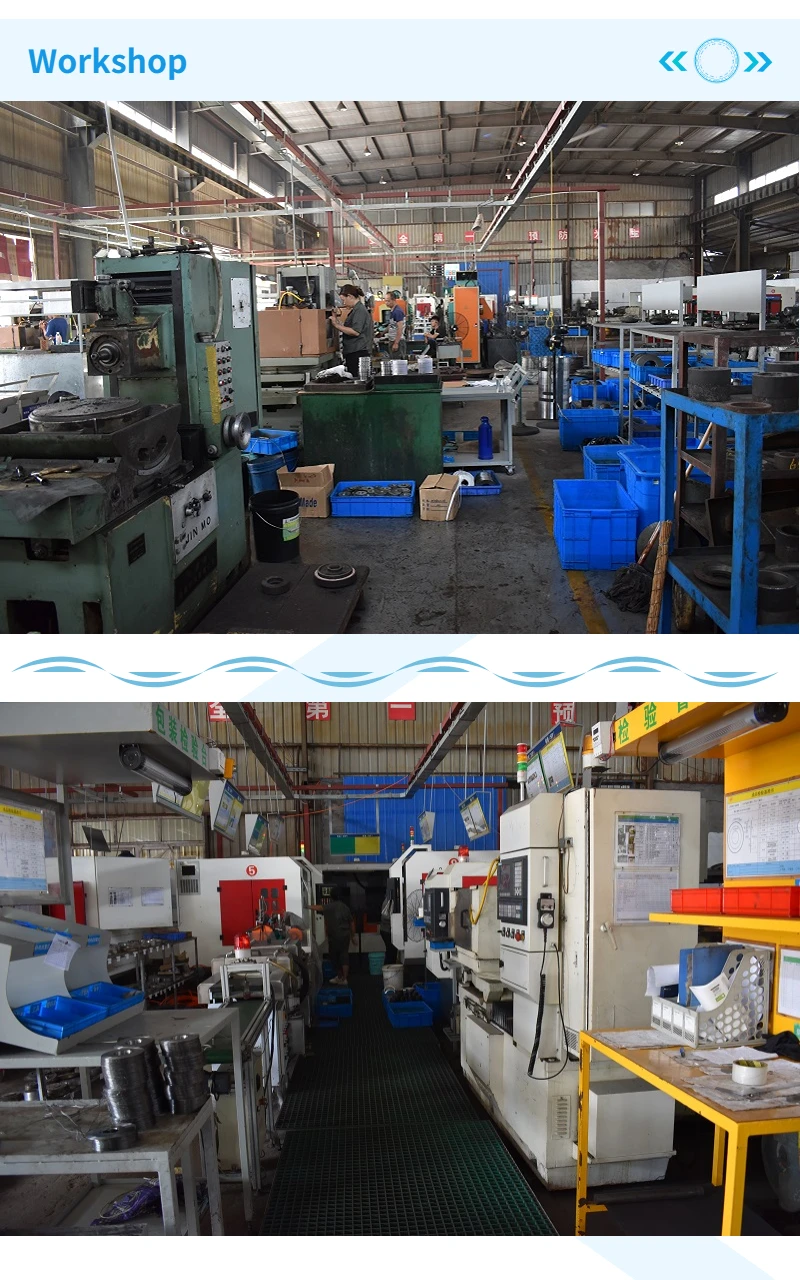

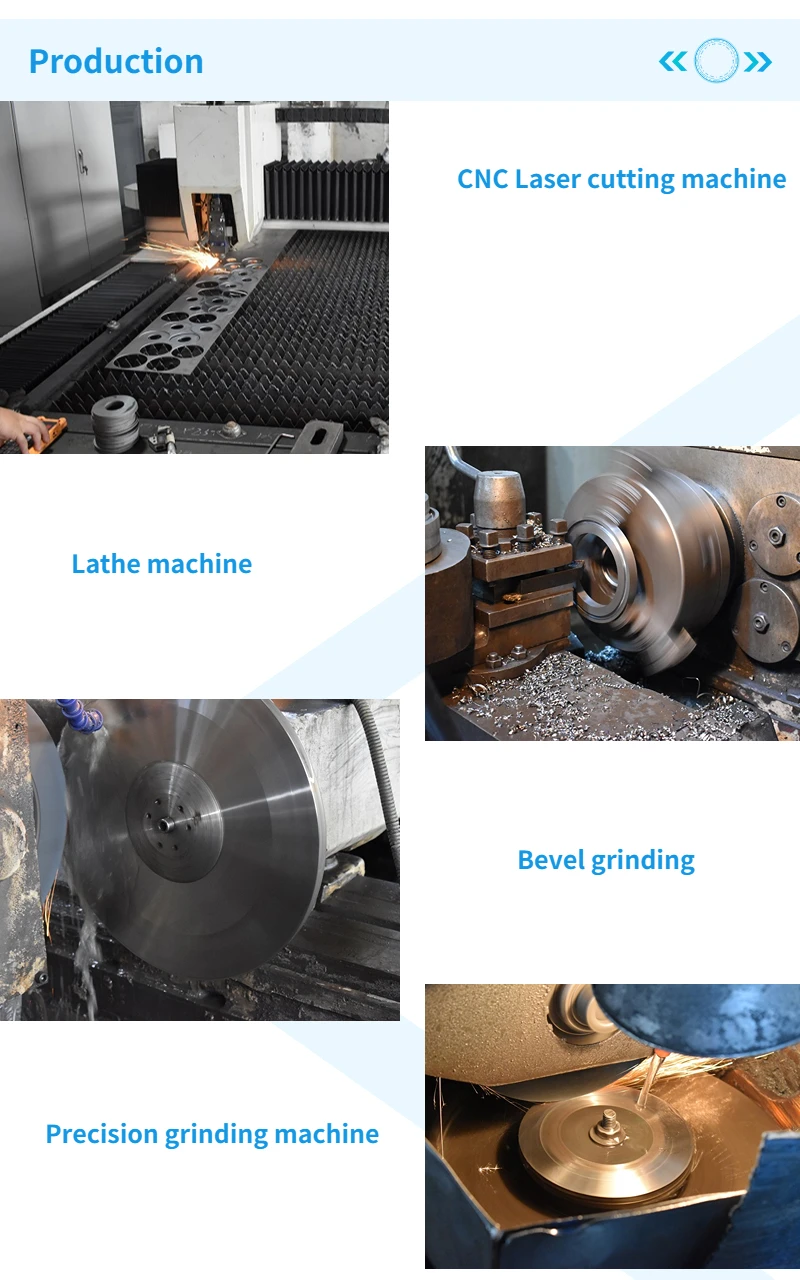

Goodklife ultra-high precision slitting knives are more like works of art. The company currently has a number of ultra fine grinding machines and lapping machines. Every employee in the finishing workshop is deeply rooted in the pursuit of high precision, and strictly abides by the operating system to ensure that every slitting tool is qualified.






GOODKLIFE BRAND STORY




COMPANY PROFILE



GOODKLIFE HISTORY
1988 As one of the first companies producing metal shear processing tools in China, we have been continuously exploring high quality products.
2006 Successfully developed a new tool high-strength steel G1, which greatly improved the service life of metalworking tools. The material was awarded the national new invention patent in 2008.
2011 We started to enter the international market, and now our products are selling well in many countries.
HIGH PRECISION TOLERANCE
1998 Started production of slitting tools with a thickness accuracy of +/-0.005 mm.
2000 Started mass production of slitting tools with a thickness accuracy of +/-0.005 mm.
2003 Started mass production of slitting tools with a thickness of +/-0.003 mm.
2016 We started mass production of slitting tools with thickness +/-0.001 mm and parallelism and flatness 0.002 mm accuracy.
