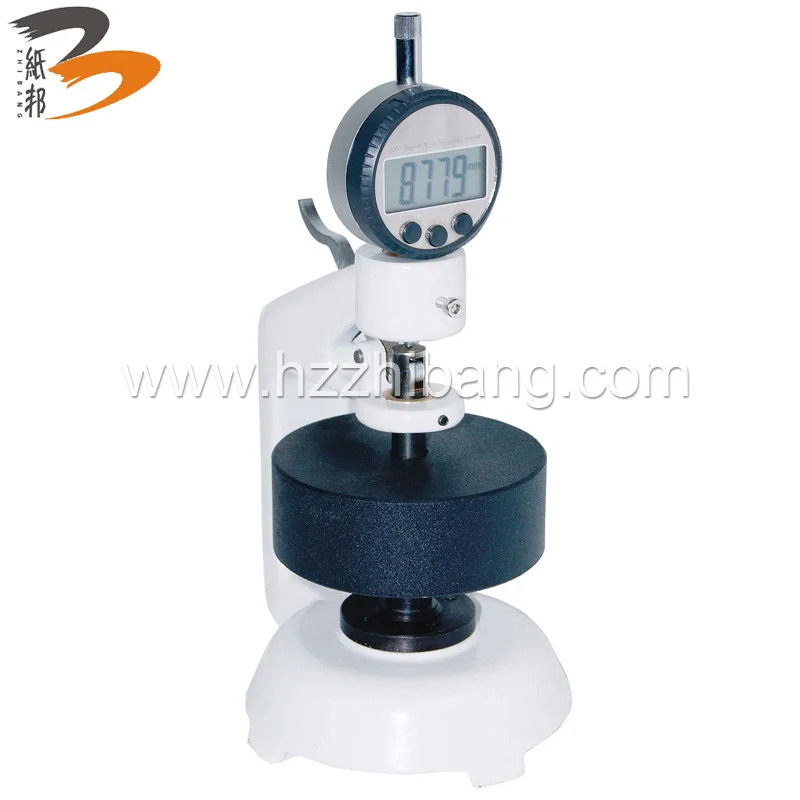

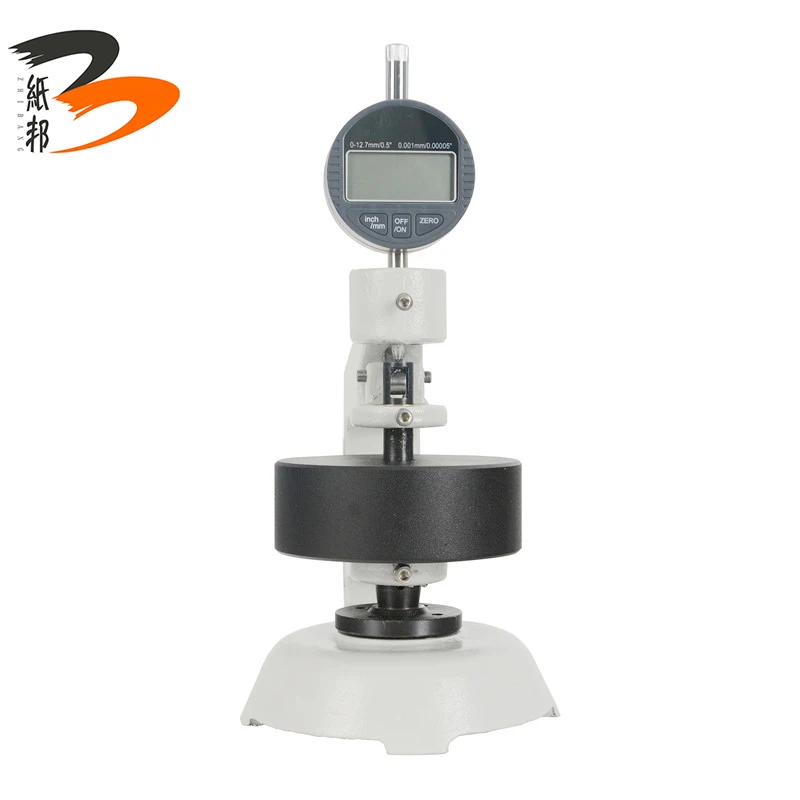

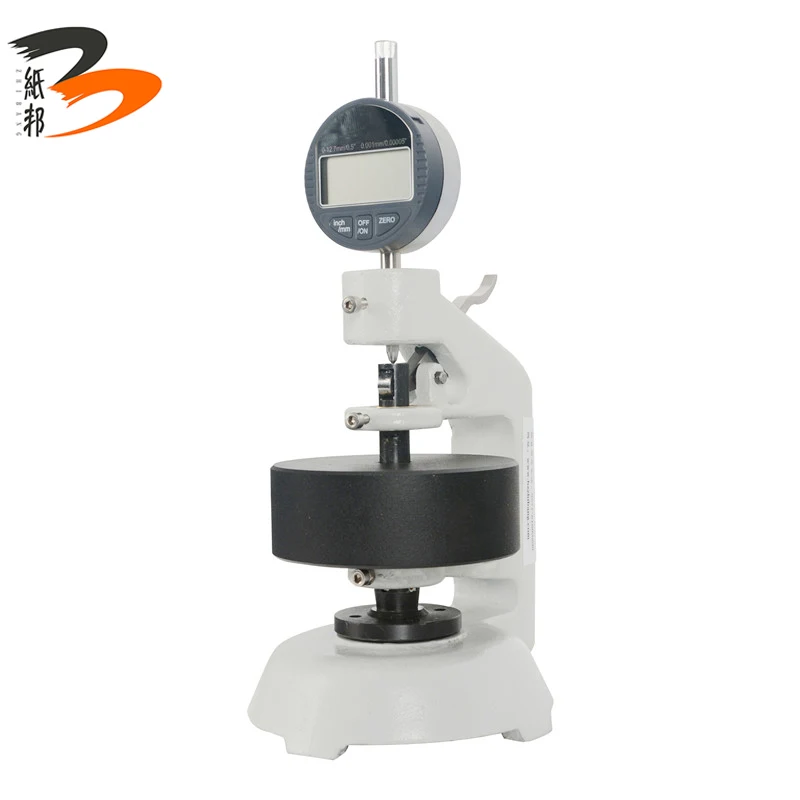

Paper and Cardboard Thickness meter thickness measurement testing device

Product Overview

Description

Introduction

Thickness meter is a special instrument to measure the thickness of paper and cardboard, widely used in paper, cardboard and other sheet materials.It's the essential equipment for the papermaking,packing industry, research and inspection department .

Standards

ISO 534   GB/T 451.3  GB/T6547

Main technical parameters

Mode	ZBH-4
Measuring range	0-4mm
Accuracy	0.001mm
Contact pressure	100±10 kPa
Contact diameter	16.0±0.5 mm
Error of depth of parallelism	0.005mm or 1%
.Indication error	±0.0025mm or±0.5%
Indication variability	≤0.0025mm or≤0.5%
Dimension	233*160*120 mm
Net Weight	About 5.5kg
