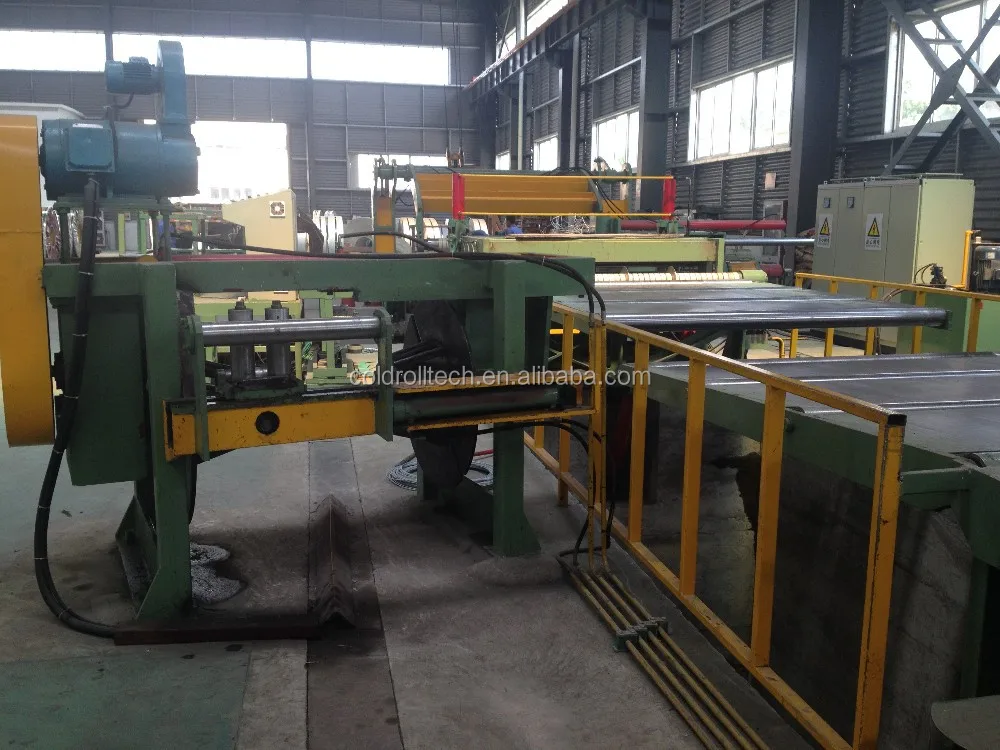

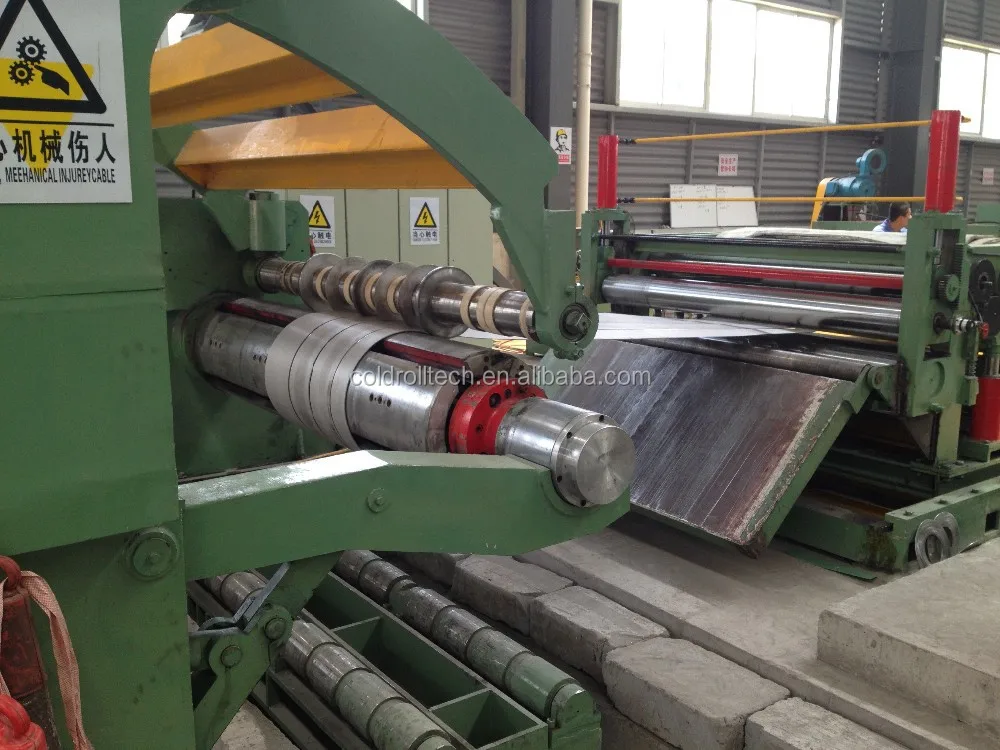

Uncoiler, slitter, tensioning and recoiler production line
Description This slitting line is used for slitting raw material coils into strips. This machine can slit raw material coils into specific width. Our company has series of slitting lines, with thickness of 0.1-25mm and width up to 2500mm. The slitting line normally includes loading trolley, decoiler,guiding device (including lead roll, peleer table), coil head shear, centering and calibrating device, slitting machine, scrap rewinder, pre-distribution and tensioning machine, recoiler, and unloading trolley. The machine adopts PLC VF controlling system, DC driving for the slitting and recoiling, Touch screen operating and digital display. The production line is widely used for steel coil servcing for cold rolled steel, hot rolled steel, galvanized steel, stainless steel, etc.
Feature of the Machine
1. Double cone heavy duty decoiler, capacity up to 40 tons
4. High speed design, speed can up to 200m/min(depends on material thickness)
5. China famous brand products, specialized in the manufacturing slitting line and cut to length line
Main Machine Components
Coil car..........................................................................................................1 set
Decoiler……..................................................................................................1 set
Feeding device..............……..…………….....................................................1 set
Center adjusting device………………………..…………………………….…..1 set

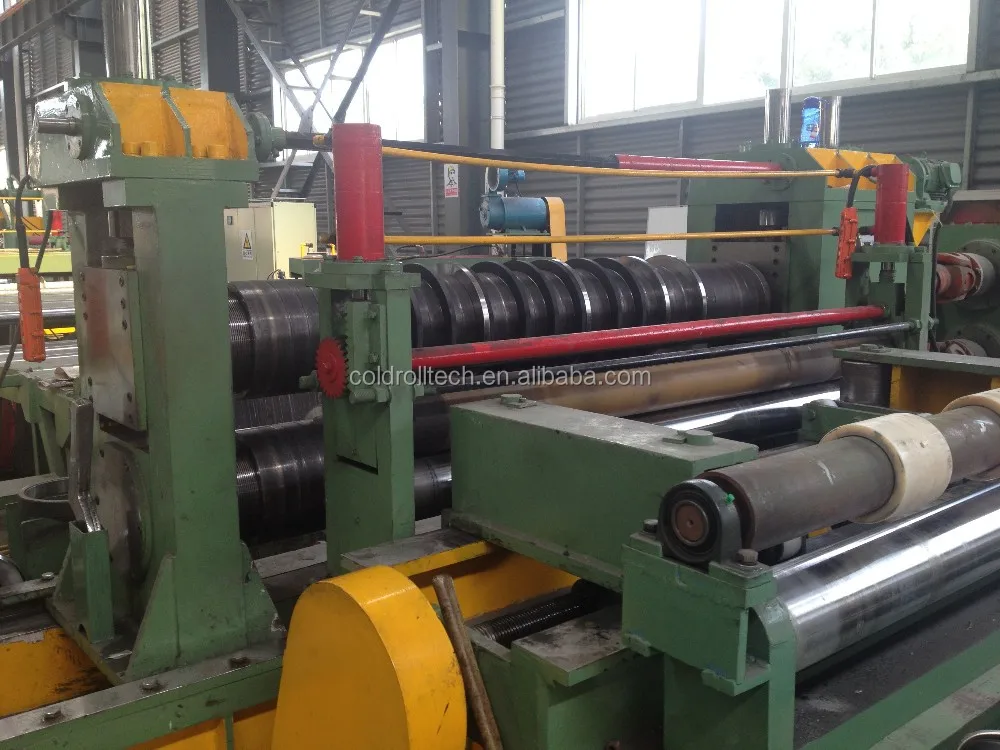

Slittingng machine…..…………….………………………………………….…..1 set
Tensioning and pre-separater………..…………………………………………1 set

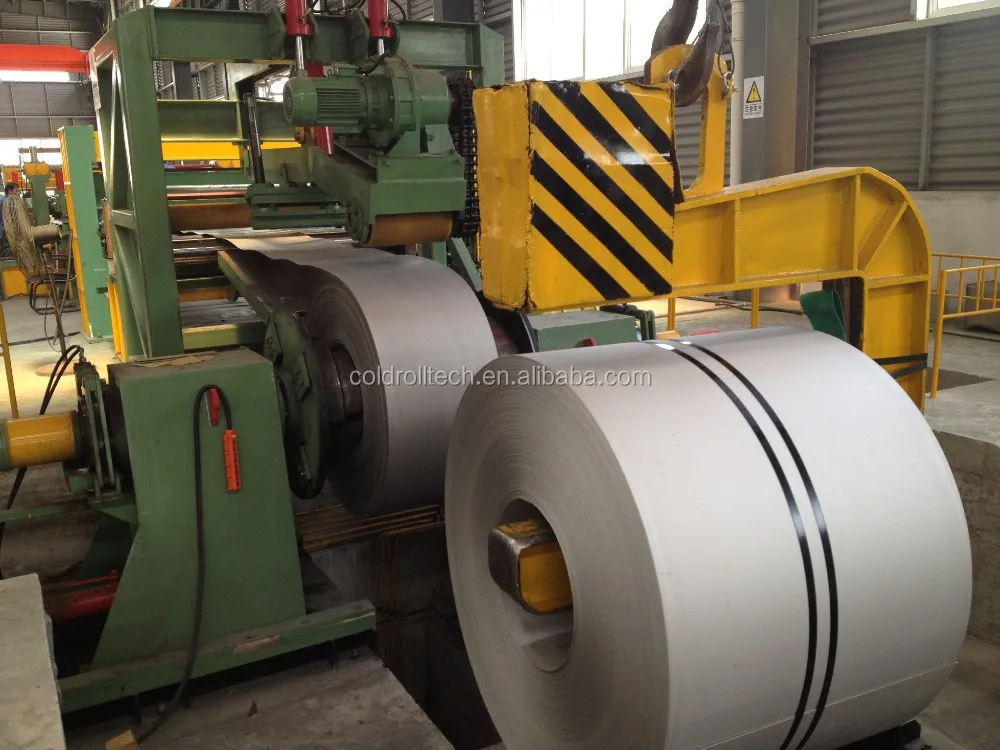

Recoiler.........................................................................................................1 set
Unloading coil car..........................................................................................1 set
Hydraulic station………………..………………………………………………....1 set
Pneumatic system………………………………………………………………...1 set
Electric control system………….……….........................................................1 set
Main Electric Elements
Motor controller: Eurotherm/ Siemens/Mitsubishi
PLC: Mitsubishi/Siemens
Encoder: Omron
Inverter: Mitsubishi/Yaskawa/Delta
Touch screen: Inovance/Delta
Parameters 1. Precision high speed slitting line:
series
material thickness/mm
Material width
speed/mpm
1
0.2-3
400-2000
0-250
2. Series of slitting lines:
series
material thickness/mm
Material width
speed/mpm
1
0.2-2
400-2000
0-50-150
2
0.3-3
400-2000
0-50-120
3
0.5-4
500-2500
0-50-120
4
0.8-6
500-2500
0-50-100
5
2.0-8
500-2500
0-50-80
6
2.0-10
500-2500
0-30-50
7
3.0-12
800-2500
0-30-50
8
3.0-14
800-2500
0-30-50
9
4.0-16
800-2500
0-30-50
10
5.0-20
800-2500
0-30
Packaging & Shipping
Seaworthy export standard packing for the machine. All machine parts are well fastened and fixed by blocks and wire ropes. The accessories will be packed together by steel box.
