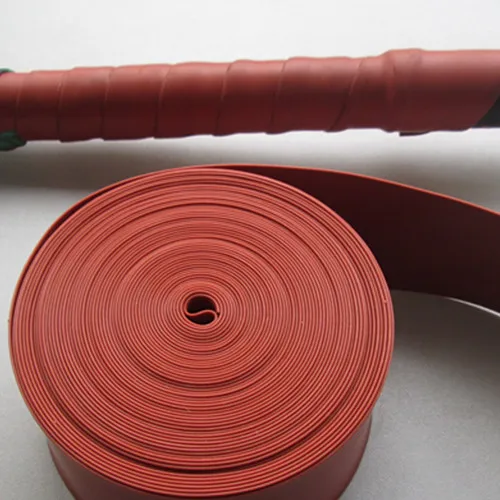

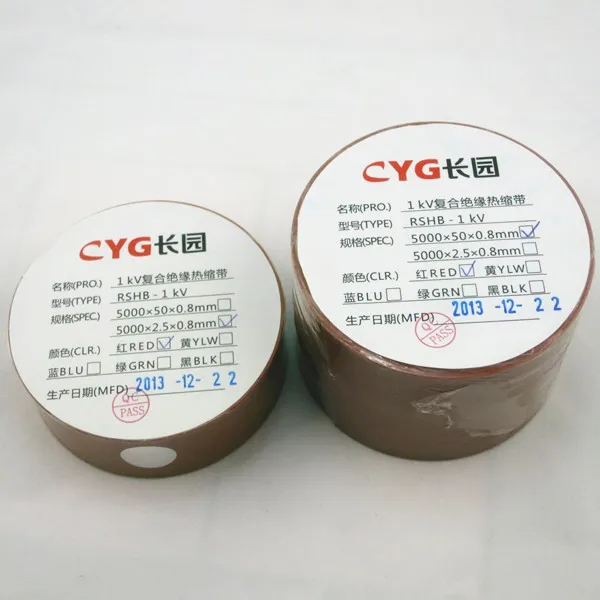

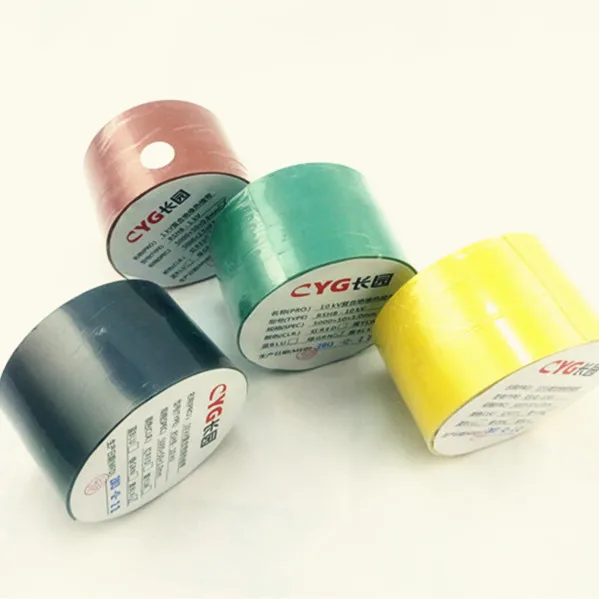

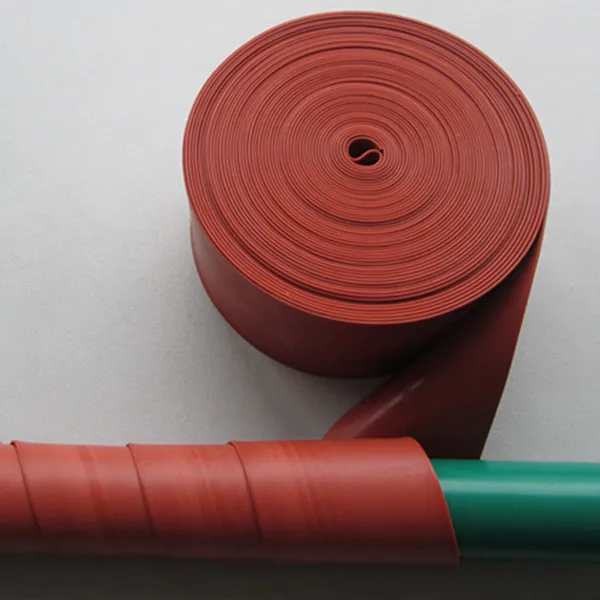

CYG Heat Shrink wraparound insulation tape

Product Overview

Description

          1KV Low Voltage Heat Shrink wraparound insulation tapes





Heat Shrink wraparound insulation tape with hot melt adhesive lined is insulation belt. when heating,  inner melt and outer contraction,adhesion between the layers into a whole.strength ,long-life material







Heat Shrink wraparound insulation tape Features:
Heat Shrink Insulation Tape with hot melt adhesive lining of the insulation of the belt
long-life material







Heat Shrink wraparound insulation tape Technical Data :





Index Performance	Item.No	Result
Physical property	Breakdown strength	27-30KV/mm
	Power frequency withstand voltage	42KV/mm
	Lightning shock	75KV±10times
	Thermal stability electricity	31.5KA
	Dynamic stability electricity	80.0KA.Peak
	Volume resistivity	10×1014Ω.cm
	Dielectric constant	2.5-3.5
Electrical property	Oxygen index	≥28
	Absorption rate	≤0.1percent
	Low temperature toughness	-55±2°C,4hrs(pass)
Chemical property	Corrosion test	23±2°Chumidity95percent,4hr(pass)
	Tensile strength	≥14.0Mpa
	Elongation at break	≥400percent
	Working temperature range	-55°C-105°C
	Accelerated aging test	168°C,7days(pass)











CYG Changtong New Material Co., Ltd is a subordinate high-tech enterprise of Changyuan Group Ltd, which is one of the most professional producing heat-shrinkable material in China(Stock Code: 600525).

CYG Changtong is specialized in R&D, manufacturing and sales of heat-shrinkable material for pipeline anticorrosion, heat-shrinkable wraparound sleeves for cables, connection accessories for fiber cables, environment friendly PET heat shrink tubing. We have a group of well-trained doctors and masters, who have engaged in the earliest R&D of all kinds of heat shrinkable products. We pursue technique development and innovation of products.

CYG Changtong has established modern system aimed to enterprise management. It has been assessed and registered as meeting the requirement of ISO09001 AND ISO14001. The properties of products meet the standard of all industries and international standard.

CYG customers: CNPC, Sinopec. Towngas, China Telecom, Panasonic, LG, Samsung, Sanyo, Lelon, Samxon, Teapo, Capxon, EPCOS, ect.



Main Overseas Market: Middle East, South Asia, Europe, Africa



Contact us for more information of Heat Shrink wraparound insulation tape.



For more information, pls. feel free to contact us.
