Displacement Linear Position Sensor Potentiometer Thoery

Share on:

Price:RUB 2,146.91 - RUB 3,833.77
Price in USD:Details


Product Overview

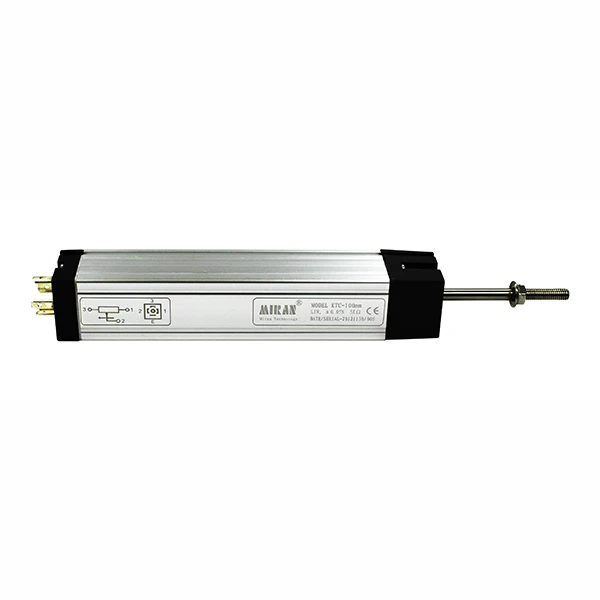

Displacement Linear Position Sensor Potentiometer Thoery


Product Description


KTC Potentiometer Thoery Sensor75~110mm125~175mm200~550mm600~1000mm1150~2000mmMeasuring Range
75 100 110
125 130 150
175 200 225
250 275 300
325 350 360
375 400 425
450 475 500
550 600 650
700 750 800
850 900 950
1000 1150 1250
Linear Precision (±%FS)±0.2%±0.1%±0.05%±0.05%±0.04%
Resistance (±10%)5ΚΩ10ΚΩ20ΚΩ
Effective Stroke   range+7mm
Resolution   Infinite
Repeatability Precision   0.01mm
Max Speed   10m/S
Recommended Current   1mA
Temperature Range   -60°C~+150°C
Content Type   0~100% × input voltage (change with the movement of the draw bar)
Sensitivity   1
Temperature Drift   infinitesimal

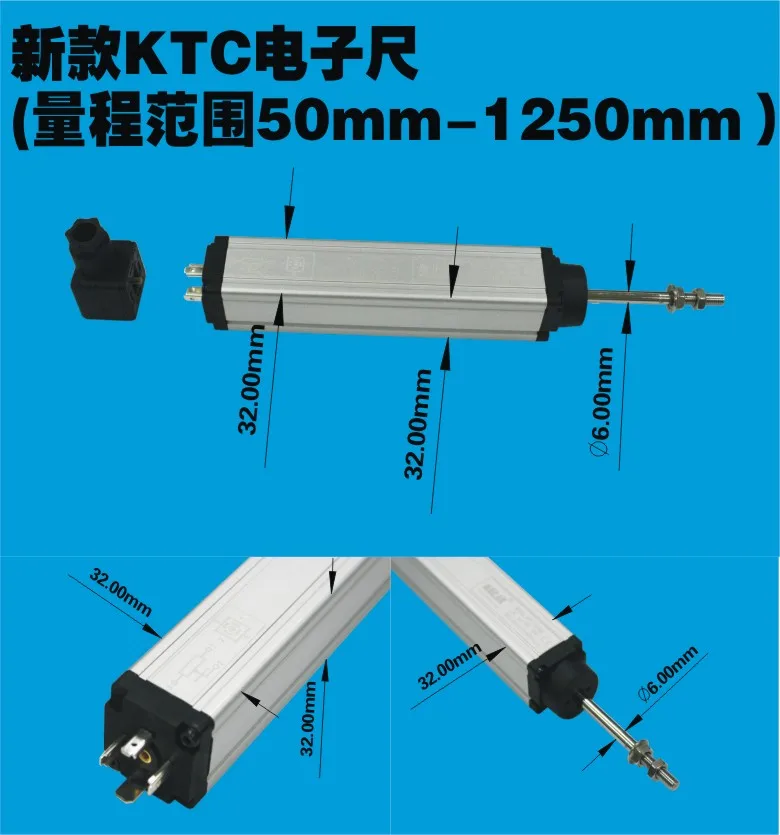

Displacement Linear Position Sensor Potentiometer Thoery Installation Size(mm):


Applications: KTC Potentiometer Thoery Sensor is a generic type, suitable for most kinds of machines, such like: injection molding machines, die casting machines, rubber machines, footwear machines, EVA injection machines, bottle blowing machines, woodworker machines, hydraulic machines and so on.
Packaging & Shipping


Below is our packed in-stock products in our ShenZhen warehouse.

Company Information

Shenzhen Miran Technology Co., Ltd.

ADD: West Side of Floor 5, Building A, Hongmanting Redwood Culture Town, Minsheng Road, Gongming Street, Guangming New District, Shenzhen, China
Factory: Miran Industrial Zone, No. 112, JianShe West Road, ZaoYang City, HuBei Province
Web: www.miransensor.com  |  miran-tech.en.alibaba.com





Our advantages:

  1. 12 years of business experiences, strong capability in R&D. We are the first company to use scraping technique on the board of electronic ruler, to make precision linear. After having mastered the “potentiometer” technology, our company developed magnetostrictive motion position sensor, linear wire potentiometer, and angle sensor. All our products have patent, and we are a leading company in China.
  2. Strict testing to assure high quality, every product will go through vibration test, Low and high temperature test, electromagnetic interference regulatory test, endurance test, and explosion proof test.
  3. Strong production capacity, we have two factories both in ShenZhen and HuBei Province, and also a lot in-stock products in warehouses. Can meet large demands from our customers, and always deliver the orders on time.
  4. Excellent sales & after-sales service, our headquarter is conveniently located in ShenZhen, and have branches all over China. We guarantee 3 years warranty for our products.


Our main products are:

potentiometer / resistor type linear sensor (electronic ruler), scale sensor(linear electronic ruler), Displacement Linear Position Sensor Potentiometer Thoery, motion position sensors (non-contact magnetic electronic ruler), slide ohm potentiometer (liquidmeter measurement and control system), angle transducer (angle ruler), and related accessories such as V/A converter, display controller.
