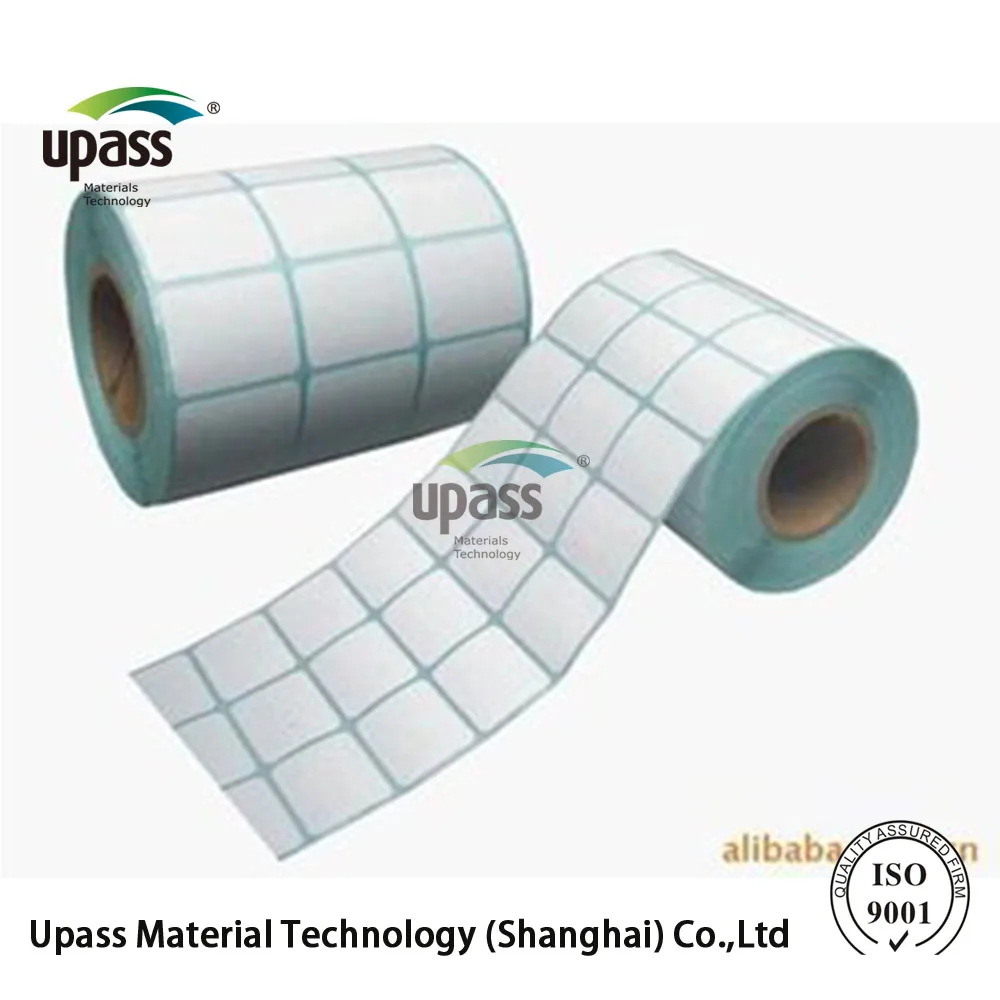

Valeron replacement Chinese PE film for label tag material

Product Overview

Description

PE film for label material



Invention Patent   (Patent No. ZL 2014 1 0048324.2)

Third prize of The 19th China International Industrial Exposition

First prize of technical Progress Award for Building Waterproofing Industry





Vice Chairman Unit of China Waterproof magazine

Vice Chairman Unit of Shanghai Society for Advanced Materials

Vice Chairman Unit of China Innovative benchmarking enterprise

Executive Member of the 7th Council of China Building Waterproofing Association





The strength film can be used to produce outside label,

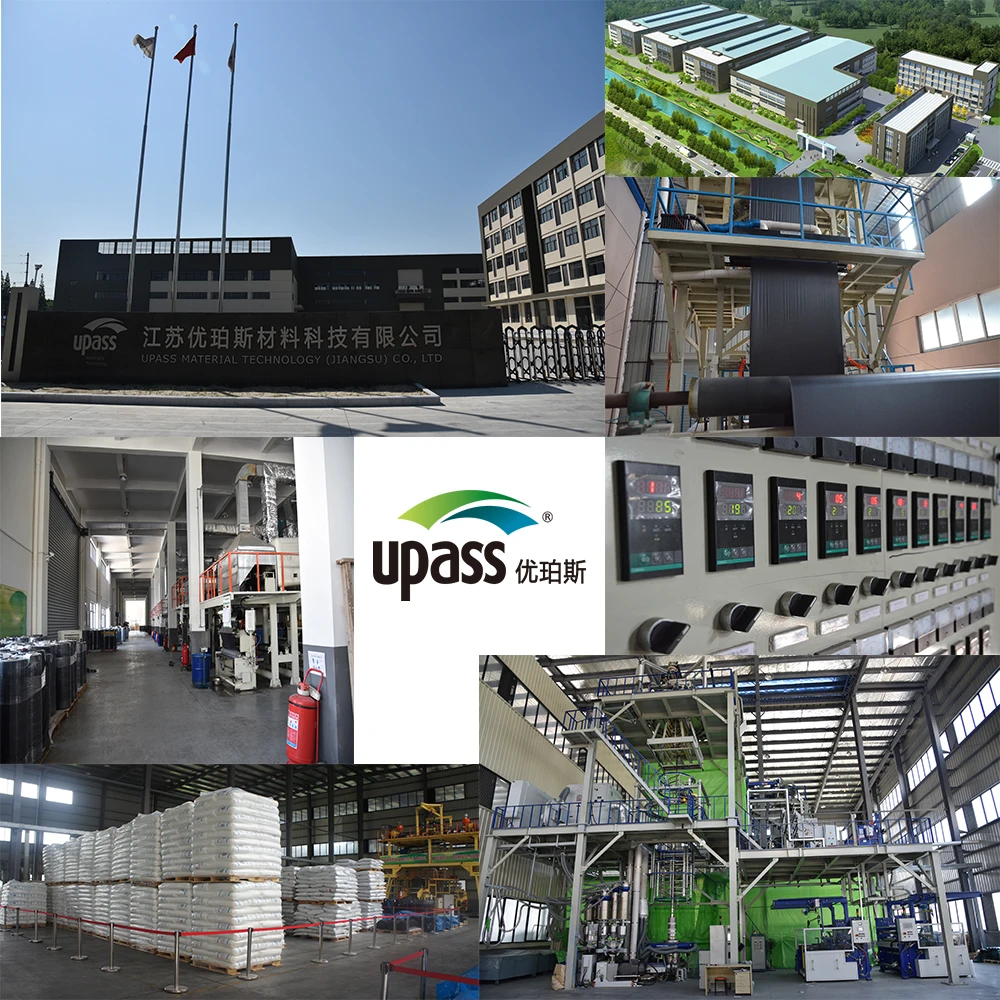

We are only professional factory which focus on manufacturing HDPE release film and high strength cross laminated film for waterproof membrane,outdoor label,self adhesive tape,special package etc.we focus on high class products.







HDPE Cross Laminated Strength Film



1,strong tensile strength,anti sun,no bubbles.
2,high strength roof composite material,creep resistance,Puncture resistance,anti aging
3,high strength, deformation resistant,weather resistance



Usage:Surface film for self adhesive  Bitumen waterproof membrane /label/special package



Datasheet:



	Thickness,Width,Unit Weight
	Item No.:		SDM30	SDM60
	Thickness		0.14	0.1
1	Thickness tolerance	Thickness limiting tolerance≤	±0.025
		Thickness average tolerance≤	±10%
2	Width tolerance/mm	≤	±3
3	Unit weight(g/m2)	≥	130	90
Physical and mechanical property
	Item		SDM30	SDM60
1	tensile properties	tensile strength/Mpa ≥	30	50
		pulling force(N/50mm) ≥	200	250
		The maximum tensile elongation ≥	200
		Elongation at break ≥	250
2	Number of not breaking test sample when dart drop dash		8
3	A nail rod tear strength /N		25
4	tear strength/N                                         ≥			25
5	heat resistance		120℃ 10minutes,no bubbles, Not laminating
6	low temperature flexibility		-35℃ no cracking, Not laminating
7	heating ageing	appearance	no bubbles, Not laminating
		Pull retaining rate ≥	80
		The maximum tensile elongation ≥	200
		Elongation at break ≥	200
8	artificial weathering accelerated aging	appearance	no bubbles, Not laminating
		Pull retaining rate ≥	70
		The maximum tensile elongation ≥	180
		Elongation at break ≥	180
SDM Strength film for Waterproofing membrane,then test 1,3,4,5,6,7,8,for other application,then test 1,2
