---API B Series Pumping Units is conventional walking beam pumping units, it's a common type of power equipment on the groud used in rod oil extraction. The products conform to API Spec. 11E"Specification for Pumping Units" and other relatice API standards, acquired the anthorization to use Official API Monogram.
---API C Series Pumping Units is a kind of conventional walking beam pumping units, it's the ground power equipment used in sucker rod oil extraction.
The products conform to API Spec.11E"Specification for Pumping Units", and the relative standards, acquired the anthorization to use Official API Monogram.
---API F Series Pumping Units is a new type of flexlift and non-beam energy-saving units.It is designed for installatioin in fields irrgated by traveling sprinkler system or in urban areas where the low profile feature may be desirable. It's a new type of sucker rod pumping surface unit. Theproducts conform to API Spec 11E and other concerned API standards.Factory has acquired the authorization to use Official API monogram.
---API RM Series Pumping Units is a new type energy- saving beam pumping unit. Similar in apprearance to conventional unit,it offers an improved geometry.It's a new type of sucker rod pumping surface unit. The products conform to API Spec 11E(Seventeeth Edition) and other concerned API standards.Factory has acquired the anthorization to use Official API momogram.
d
Technical Performances:
---API B Series
1. Hight reliability,simple operation,easy maintenance,long service life.
2. Gear reducer is involute herring-bone gearing,work smoothy and reliably.
3. The complete machine with light weight, it's convenient for installation and transportation.
---API C Series
1. Strength of critical parts is calculated with the finite element analysis, high reliability,simple operation, easy maintenance,long servicing life.
2. Grear reducer is involute herring-bone fering, working smoothly and reliably.
3.Modularized design,it has high degree of standardization, commonality and seriation with the spare parts.
---API F Series
1. Use roller and belt to form flexible drive,improve impulsive load, prolong service life of gear reducer.
2.Phased design of crank arm make it balanced better.
3.Gear reducer is involute herring-bone gearing,running smoothly and reliably.
4.Low profile,light weight,compact unit and canbe folded totally,It can be shipped from the factory completely assembled.
---API RM Series Pumping Unit
1.High reliability, simple operation,easy maintenance,long service life.
2.Phase angles is designed in crank arm to reduce the peak torque in gear reducer.
3. To improve power performance by increasing the extreme location angle.
4.It can reduce motive power,save energy obviously.
5.Gear reducer is involute herring-bone gearing,running smoothly and reliably.
API B Master Plan
API C Master Plan
Main Technical Parameter:
--API B Series
No.
Type
Polished Rod Capacity(lb)
Stroke Length(in)
Rated Torque(in.lb)
1
B-80D-119-82
11,900
82 , 66
80,000
2
B-80D-119-64
11,900
64 , 54
80,000
3
B-80D-133-54
13,300
54,41
80,000
4
B-80D-76-64
7,600
64 , 54
80,000
5
B-80D-76-54
7,600
54 , 41
80,000
6
B-80D-109-48
10,900
48 , 35
80,000
7
B-57D-109-54
10,900
54 , 41
57,000
8
B-57D-89-54
8,900
54 , 41
57,000
9
B-57D-76-54
7,600
54 , 41
57,000
10
B-57D-109-48
10,900
48 , 35
57,000
11
B-40D-89-48
8,900
48,35
40,000
12
B-40D-76-42
7,600
42 , 29
40,000
13
B-40D-67-30
6,700
30 , 27
25,000
14
B-25D-67-36
6,700
36 , 27
25,000
15
B-16D-53-30
5,300
30 , 23
16,000
16
LB-40D-67-30
6,700
30 , 24
40,000
17
LB-40D-67-24
6,700
24 , 20
40,000
--API C Series
No.
Type
Polished Rod Capacity (Ib)
Stroke Length (in)
Rated Torque (in.Ibs)
1
C-1280D-365-240
36,500
240,211,181
1280,000
2
C-1280D-427-192
42,700
192,165,138
1280,000
3
C-912D-470-240
47,000
240,211,181
912,000
4
C-912D-427-216
42,700
216,185,155
912,000
5
C-912D-427-192
42,700
192,165,138
912,000
6
C-912D-305-192
30,500
192,165,138
912,000
7
C-912D-365-168
36,500
168,144,121
912,000
8
C-912D-305-168
30,500
168,144,121
912,000
9
C-912D-427-144
42,700
144,123,102
912,000
10
C-640D-305-192
30,500
192,165,138
640,000
11
C-640D-365-168
36,500
168,144,121
640,000
12
C-640D-365-144
36,500
144,123,102
640,000
13
C-640D-305-144
30,500
144,123,102
640,000
14
C-640D-256-144
25,600
144,123,102
640,000
15
C-640D-305-120
30,500
120,102,84
640,000
16
C-456D-305-168
30,500
168,144,121
456,000
17
C-456D-305-144
30,500
144,123,102
456,000
18
C-456D-256-144
25,600
144,123,102
456,000
19
C-456D-365-120
36,500
120,102,84
456,000
20
C-456D-305-120
30,500
120,102,84
456,000
21
C-456D-256-120
25,600
120,102,84
456,000
22
C-320D-256-144
25,600
144,123,102
320,000
23
C-320D-256-120
25,600
120,102,84
320,000
24
C-320D-213-120
21,300
120,102,84
320,000
25
C-320D-305-100
30,500
100,85,70
320,000
26
C-320D-256-100
25,600
100,85,70
320,000
27
C-320D-213-86
21,300
86,71,56
320,000
28
C-228D-246-86
24,600
86,71,56
228,000
29
C-228D-213-120
21,300
120,102,84
228,000
30
C-228D-200-74
20,000
74,64,54
228,000
31
C-228D-173-100
17,300
100,86,72
228,000
32
C-228D-173-74
17,300
74,64,54
228,000
33
C-160D-200-74
20,000
74,64,54
160,000
34
C-160D-173-86
17,300
86,74,62
160,000
35
C-160D-173-74
17,300
74,64,54
160,000
36
C-160D-143-74
14,300
74,64,54
160,000
37
C-160D-173-64
17,300
64,54,44
160,000
38
C-114D-119-86
11,900
86,72,59
114,000
39
C-114D-143-74
14,300
74,62,51
114,000
40
C-114D-173-64
17,300
64,54,44
114,000
41
C-114D-143-64
14,300
64,52,40
114,000
42
C-114D-133-54
13,300
54,45,36
114,000
43
C-80D-119-64
11,900
64,53,42
80,000
44
C-80D-133-54
13,300
54,45,36
80,000
45
C-80D-119-54
11,900
54,45,36
80,000
46
C-80D-133-48
13,300
48,40,32
80,000
47
C-80D-109-48
10,900
48,37,25
80,000
48
C-57D-76-54
7,600
54,41,28
57,000
49
C-57D-109-48
10,900
48,37,25
57,000
50
C-57D-95-48
9,500
48,37,25
57,000
51
C-57D-89-42
8,900
42,33,23
57,000
52
C-57D-76-42
7,600
42,33,23
57,000
53
C-40D-76-48
7,600
48,37,27
40,000
54
C-40D-89-42
8,900
42,33,23
40,000
55
C-40D-76-42
7,600
42,33,23
40,000
56
C-40D-89-36
8,900
36,28,20
40,000
57
C-25D-67-36
6,700
36,28,20
25,000
58
C-25D-56-36
5,600
36,28,20
25,000
59
C-25D-53-30
5,300
30,20
25,000
---API F Series
--API RM Series
Packaging & Shipping

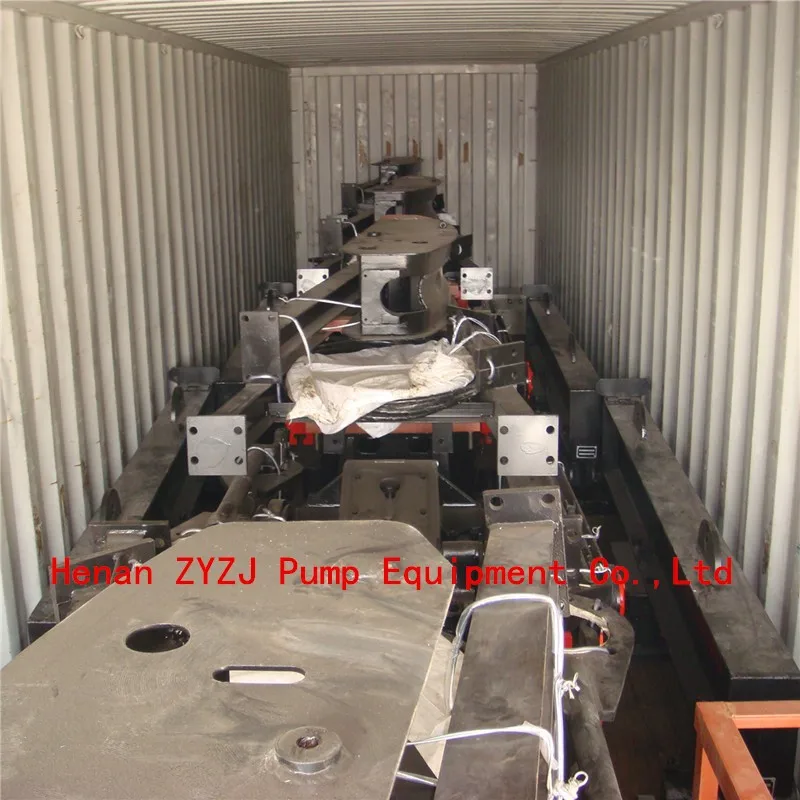

Packaging and shipping detail:
1.The spare parts in iron box, 2.The big part will naked packing in the container
3.According the order.
Accompanying Documents:
1.Owner's Manual 2.Parts Catalog 3.Packing And Dispatching List
Our Services
Overseas Service:
We can supply professional to guide for installation and use.
Oversea Service

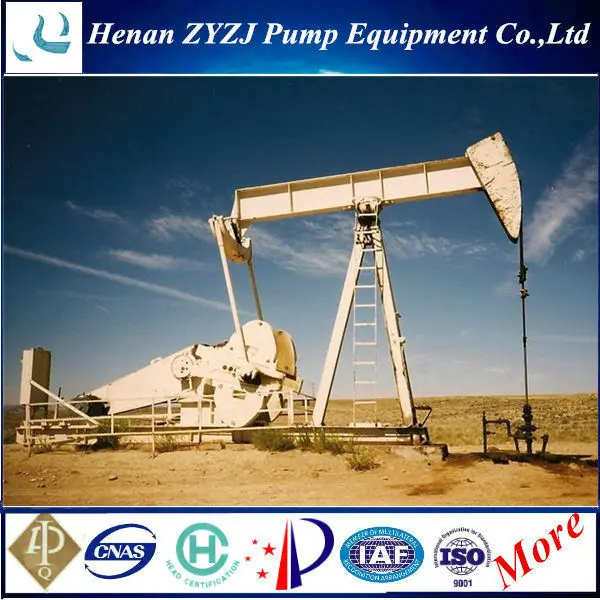

Services and certificate:
We are a special factory in produce petroleum equipment,we are worth your trust:
Company Information
Company Introduction:
Henan ZYZJ Pump Equipment Co., Ltd established in 2006, HENAN ZYZJ PUMP EQUIPMENT CO., LTD. is a professional company specialized in research and development, manufacturing and sales of special petroleum equipment such as Pumping unit, oil well pump and wellhead device and petroleum machinery products such as underground and ground tools.
Located in Puyang, Henan province, a famous historical and cultural city and the hometown of 'The First Dragon in China' with beautiful scene, HENAN ZYZJ PUMP EQUIPMENT CO., LTD. welcomes all the clients home and abroad to establish cooperation relationship, enhance friendship and create a better future together!
Main Products:
Following are our main products:
1. Pumping Unit.
2.Sucker Rod Pump.
3.Sucker Rod and Joint.
4. Tubing Pump.
5.Centralizer
6.Hydraulic Anchor.
7.Polish Rod.
8.Tubing and Joint.
9.X-over.
10.Oil Storage Tank.
11.Oil-Water Separator.
12.Wellhead.
13.Downhole Tools.
FAQ
Lillian is here:
Remark:
Please sent the detail following information to me,that I can sent the quotation list to you soon:
1.Polished Rod Capacity,Stroke Lengthand Rate Torque, Or a complete type.
2.If need motor and control box,please advice me and give me the type,regular or explosion protection.
3.CIF OR FOB,If CIF,please advice the port.
Sincerely hope to provide you with quality products and satisfactory service.
