Type U Type H 12 Way 2 Row Terminal strip connector 16mm 30A 25mm 60A 35mm 80A 40mm 100A 60mm 150A screw barrier Terminal Block
- Category: >>>
- Supplier: Shanghai Newtrend Electric Co. Ltd.
Share on (60043242656):
Product Overview
Description
Type U Type H 12 Way 2 Row Terminal strip connector 16mm 30A 25mm 60A 35mm 80A 40mm 100A 60mm 150A screw barrier Terminal Block
| RECEIVE CUSTOM | |||||||

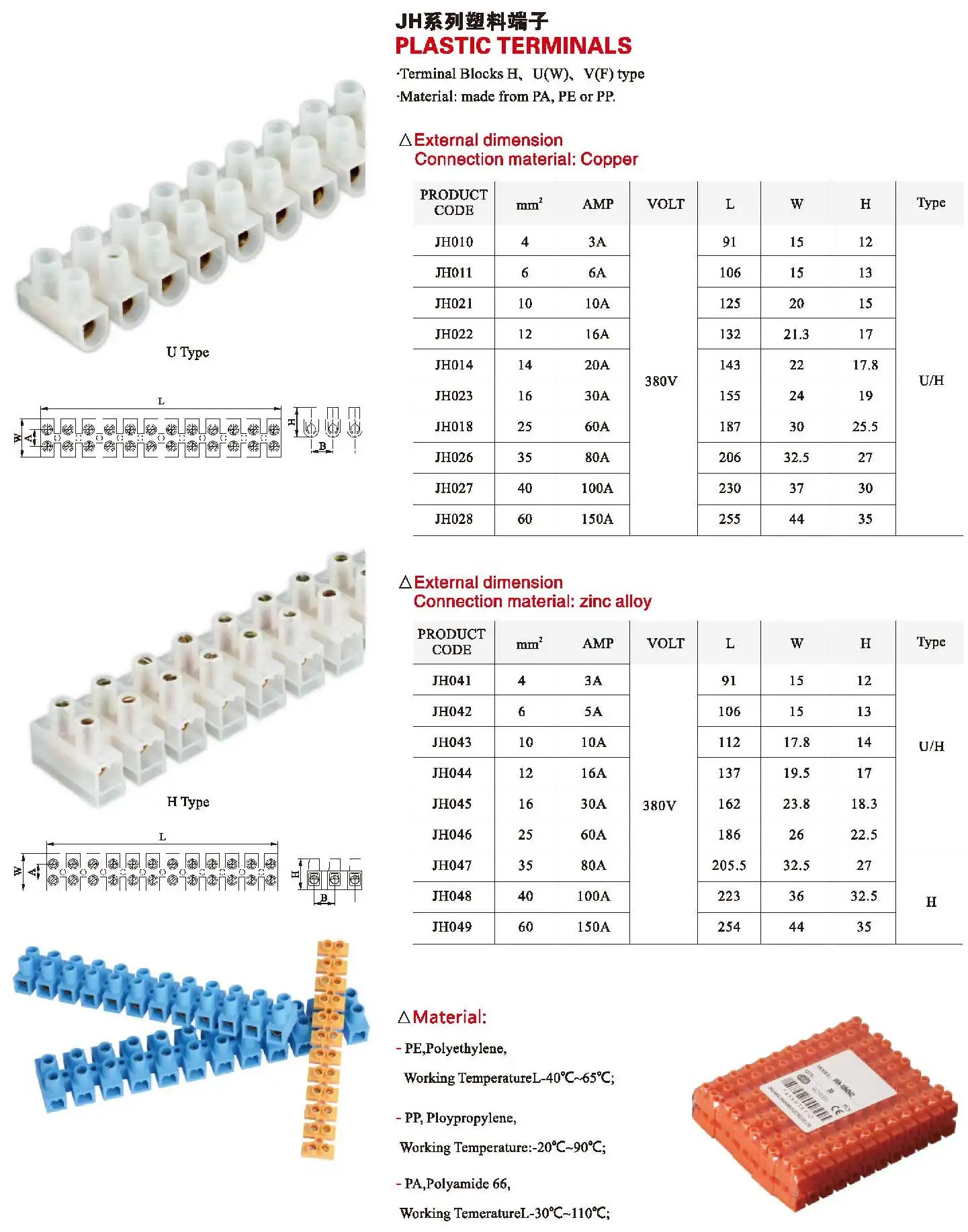

| ITEM NO. | mm² | AMP | VOLT | L | W | H | Type |
| JH010 | 4 | 3A | 380V | 91 | 15 | 12 | U/H |
| JH011 | 6 | 6A | 380V | 106 | 15 | 13 | U/H |
| JH021 | 10 | 10A | 380V | 125 | 20 | 15 | U/H |
| JH022 | 12 | 16A | 380V | 132 | 21.3 | 17 | U/H |
| JH014 | 14 | 20A | 380V | 143 | 22 | 17.8 | U/H |
| JH023 | 16 | 30A | 380V | 155 | 24 | 19 | U/H |
| JH018 | 25 | 60A | 380V | 187 | 30 | 25.5 | U/H |
| JH026 | 35 | 80A | 380V | 206 | 32.5 | 27 | U/H |
| JH027 | 40 | 100A | 380V | 230 | 37 | 30 | U/H |
| JH028 | 60 | 150A | 380V | 255 | 44 | 35 | U/H |
