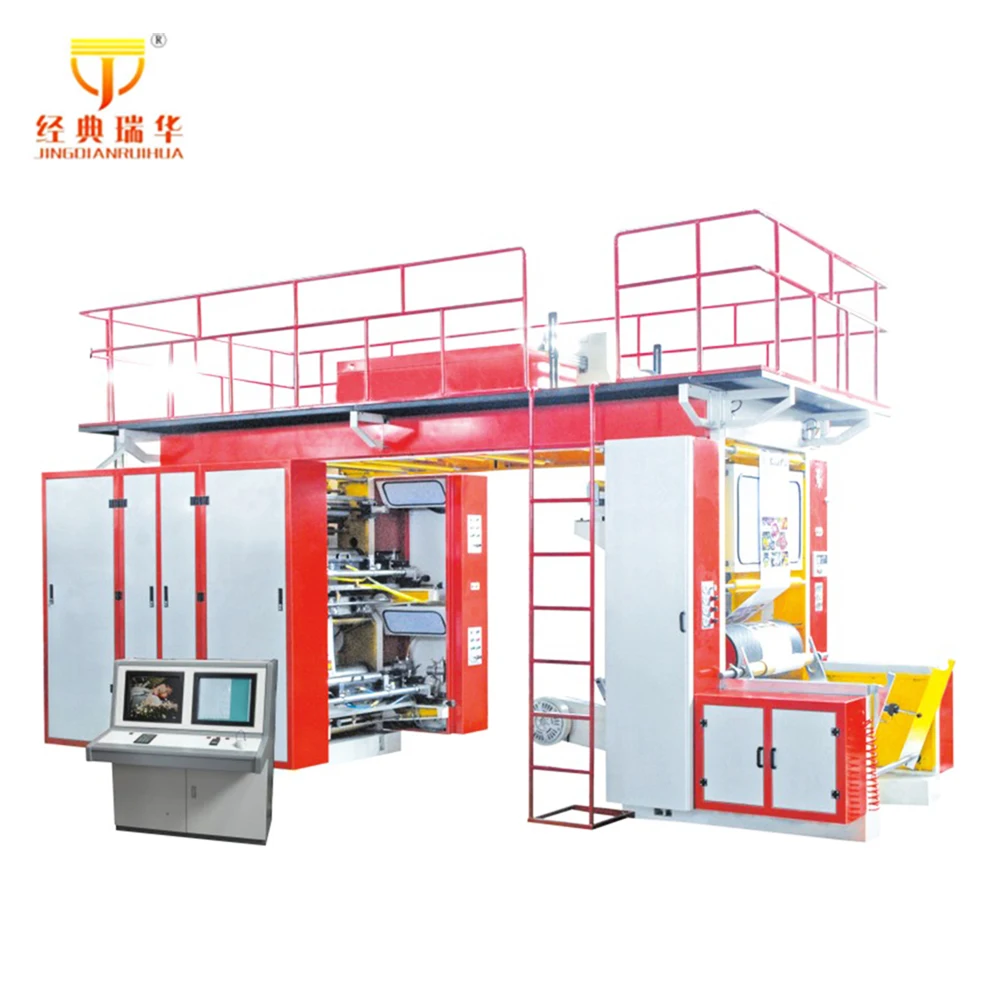

8 Color Flexographic Printing Press

Product Overview

Description



 8 Color Flexographic Printing Press

USE:

8 Color Flexographic Printing Press is suitable for various materials roll printing, like plastic PE,PP,OPP,BOPP,PET, laminated material,paper,non woven fabric, pp woven sack, self-adhesive label,foil, etc.



Detailed Product Description

 -Main Technical Parameter:

1. Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased

2. High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering

3. Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation, static and dynamic balancing treatments are conducted; low resistance and small flop.

4. The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)

5. With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices

6. Printing rolls should keep moving while machine halted

7. Material holder use air shaft

8. Auto tension control

9. Unwind with auto deviation correction system (EPC)

10. EDGE position control

11. Reversible printing 6 color press for 6+0,1+5,2+4,3+3

12.1 set of printing cylinder, size 15 inches



printing width Item	600mm	800mm	1000mm	1200mm	1400mm	1600mm	1800mm	2000mm
Printing color	8(PC:8+0,7+1,6+2,5+3,4+4)
Printing length	7.5”-40”/7.5”-50
Printing plate lifting system	Hydraulic press control
Menchanical speed	120m/min
Printing speed	70-100m/min
Anilox cylinder	Ceramic anilox roller
Register precision	±0.15mm
Rewinder/UnwinderDIA	φ600mm
Master motor	3.7kw	3.7kw	5.5kw	5.5kw	7.5kw	7.5kw	11kw	11kw
Unwinder motor	1.1kw		1.5kw		2.2kw		3.0kw
Rewinder motor	1.5kw		2.2kw		3.0kw		3.7kw
Electrical heater	14kw	16kw	20kw	22kw	24kw	26kw	28kw	30kkw
Blower of heater	1.5kw*2	1.1kw*3	1.1kw*3	1.1kw*3	1.5kw*3	1.5kw*3	2.2kw*3	2.2kw*3
Blower of nature wind	0.75kw	0.75kw	1.1kw	1.1kw	1.1kw	1.5kw	1.5kw	1.5kw
Inking motor	370w	750w	750w	750w	750w	750w	750w	750w
