High speed Drinking straw applicator, straw applicator machine

Product Overview

Description

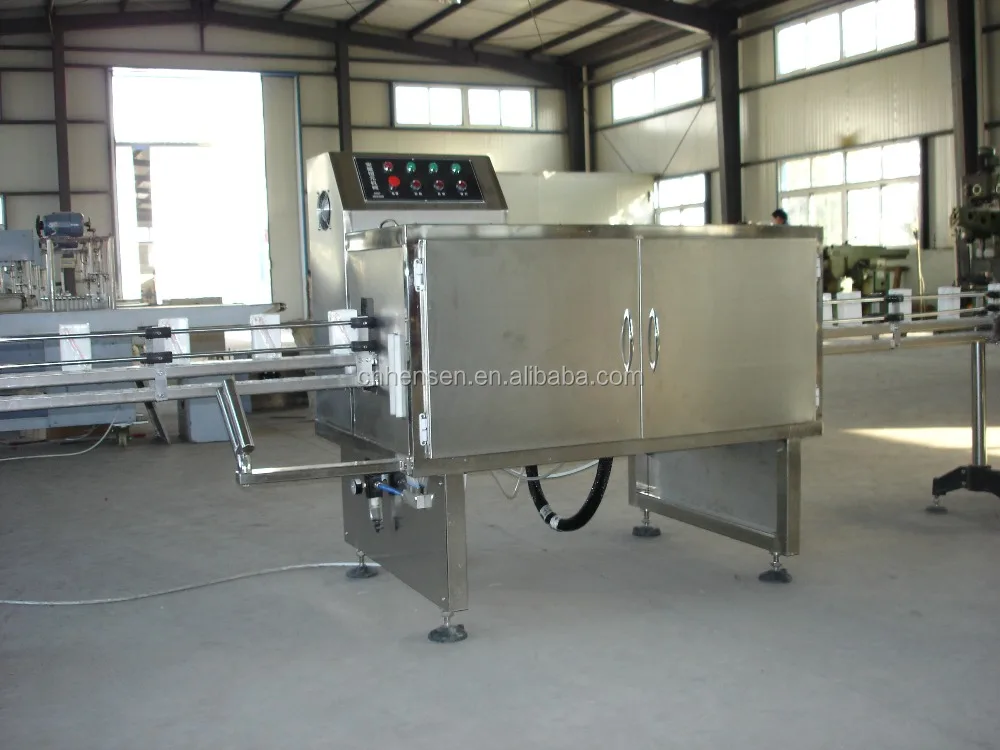

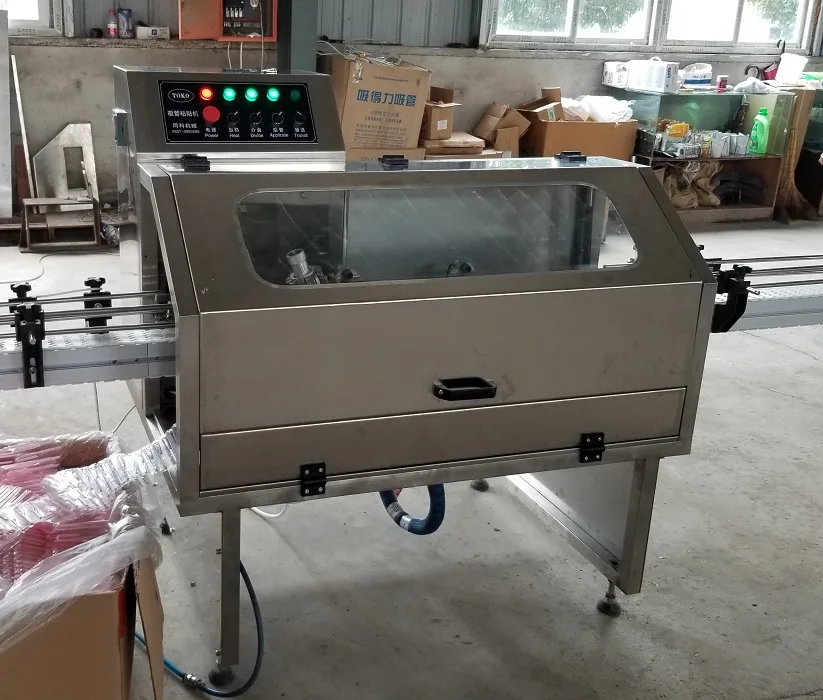

Drink straw applicator machine



1> Description

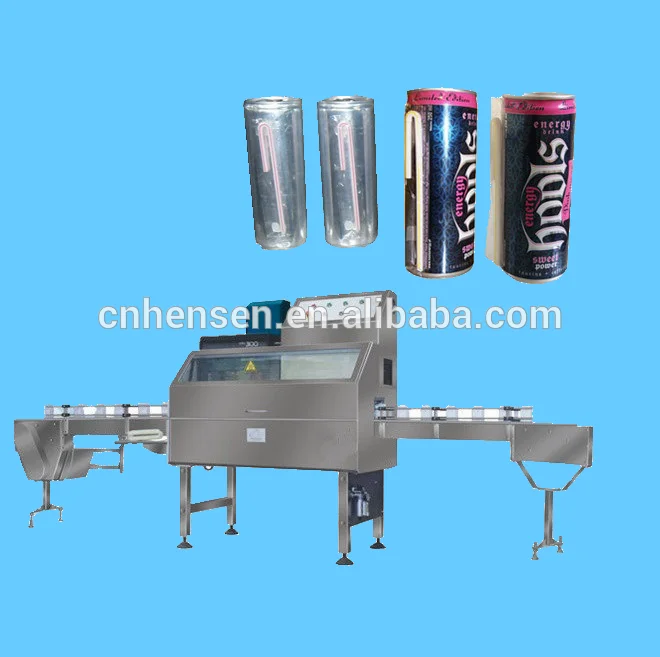

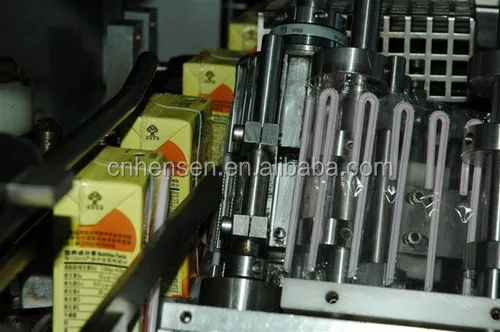

The drink straw applicator HENS-TB, it can stick the drink straw in a variety of drinks outer surface, to improve the packaging of beverage grade, and will be easy to use, it is particularly applicable to the surface of Tetra pak, brick cartons, plastic cups, plastic bottle and so on, adaptable to handle straight, U-type, or telescope straws. This machine adopts PLC control system can automatically transfer the finished product, straw transmission, straw cutting, products gluing, straws sticking and other processes. Operation more reliable and to meet international technical level of similar products. Suitable for aseptic paper box packaging with surface-bonded straw



2>Main technical parameters
Dimension 1600 × 850× 1150mm
Weight 370 kg
Voltage 380/220V
Frequency 50Hz
Power 4.5KW (maximum power)
Production:5000~7000 boxes / hour
Single line feeding method
Conveyor Belt Width 55mm
Working pressure 0.4-0.6Mpa
Maximum air consumption 100 liters / min
