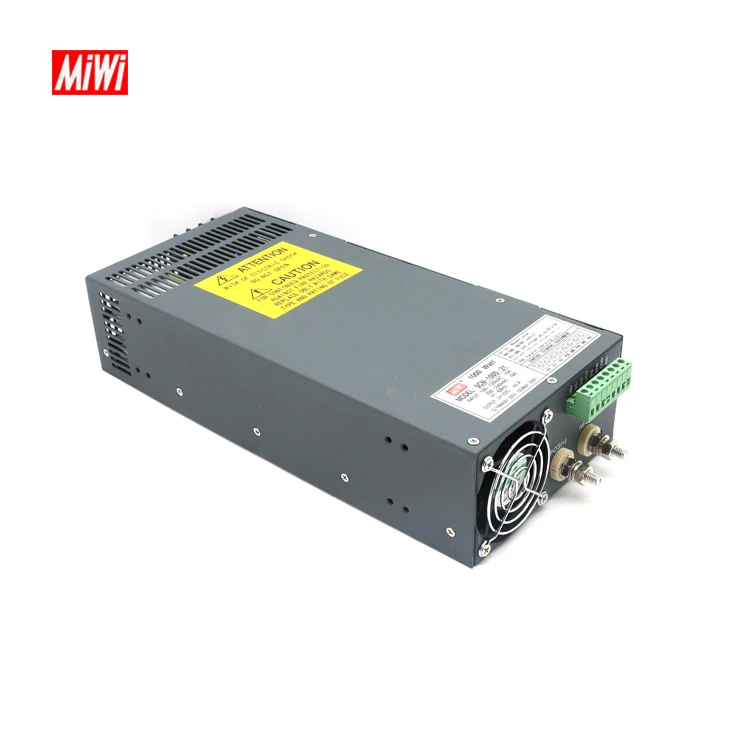

SCN 1000 12V 13.5V 15V 24V 27V 48V 1000w industrial switching power supply
- Category: >>>
- Supplier: Wenzhou Qianxiang Electric Technology Co. Ltd
Share on (60044446710):
Product Overview
Description
You are here:Home>>Single Output Series>>SCN Series
Product Description
SCN-1000 12V 13.5V 15V 24V 27V 48V 1000w industrial switching power supply
- AC input range selected by switch
- Protections: Short circuit / Overload / Over voltage / Over temp.
- High reliability/ Low ripple noise
- Built-in remote sense function
- Built-in remote ON-OFF control
- Built-in parallel operation function
- Can adjust from 20~100% output voltage by external control 1-5V
- Forced air cooling by built-in DC fan
- Case coating with paint
- 2 years warranty
| Model | SCN-1000-12 | SCN-1000-13.5 | SCN-1000-15 | SCN-1000-24 | SCN-1000-27 | SCN-1000-48 |
| DC Output Voltage | 12V | 13.5V | 15V | 24V | 27V | 48V |
| Iutput Voltage Error | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| Rated Output Current | 80A | 74A | 66A | 40A | 37A | 20A |
| Output Current Range | 0-80A | 0-74A | 0-66A | 0-40A | 0-37A | 0-20A |
| Tripple and Noise | 240mVp-p | 240mVp-p | 240mVp-p | 240mVp-p | 300mVp-p | 300mVp-p |
| Voltage Adj range | ±5.0% typical adjustment by potentiometer 20~100% adjustment by 1~5VDC external control | |||||
| Iniet Stability | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% | ± 0.5% |
| Tolerance Voltage | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% | ± 1% |
| DC Output Power | 960W | 999W | 990W | 960W | 999W | 960W |
| Efficiency | 84% | 84% | 83% | 85.5% | 86.5% | 87% |
| AC Input Voltage Range | 90 ~ 130VAC / 180 ~ 260VAC selected by switch, 260 ~ 370VDC | |||||
| Input Current | 14A/115VAC 8.0A/230VAC | |||||
| AC Inrush Current | Cold-Start Current: 60A / 230VAC | |||||
| Leakage Current | 3.5mA/240VAC | |||||
| Overload Protection | 110 ~ 135% rated output power,Current limiting, delay shut down o/p voltage, re-power on to recover | |||||
| Over Voltage Protection | 110 ~ 135% follow to output set up point, Shut down o/p voltage, re-power on to recover | |||||
| High Temperature Protection | >100℃ / measure by heat sink, near transformer,Shut down o/p voltage, re-power on to recover | |||||
| Temperature Coefficient | ± 0.04% /℃ (0~50℃) | |||||
| Start, Rise, Hold time | 800ms, 50ms, 16ms at full load | |||||
| Vibration | 10 ~ 200Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |||||
| Withstand Voltage | I/P-O/P, I/P-FG:1500VAC | |||||
| Isolation Resistance | I/P-O/P, I/P-FG, 100M Ohms / 500VDC / 25 ℃/ 70% RH | |||||
| Working Temp,Humidity | `-10℃~+60℃ (Refer to Output Derating Cutve), 20%~90%RH | |||||
| Storage Temp,Humidity | `20℃~+85℃, 10%~95%RH | |||||
| MTBF | 120Khrs min. MIL-HDBK-217F (25℃ ) | |||||
| Overall Dimension | 291*132*68 mm | |||||
| Weight | 2.65 kgs | |||||

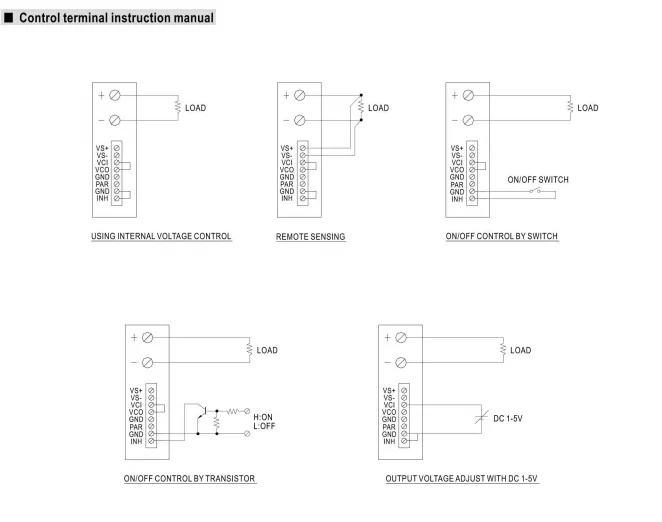

| Special function | DC voltage adj., Remote sensing, remote control, parallel operation (refer to terminal instruction manual) | |||||
| Safety Standards | CE | |||||
| EMC Standards | Meet FCC Part 15J Conduction class A | |||||
| Note | 1. 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient. 2. Tolerence: includes set up tolerance, line regulation, load regulation 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||
