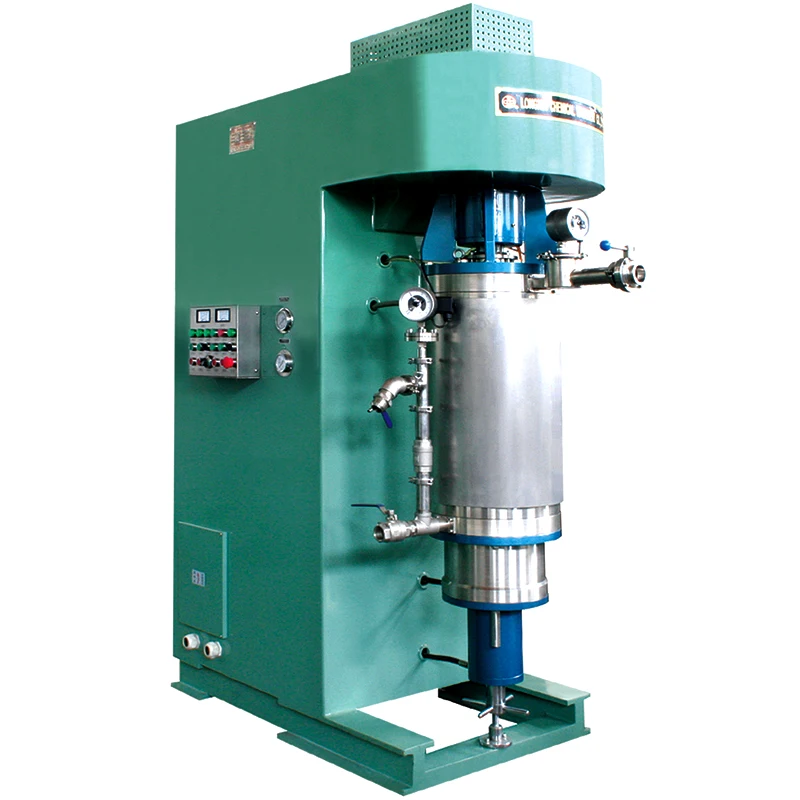

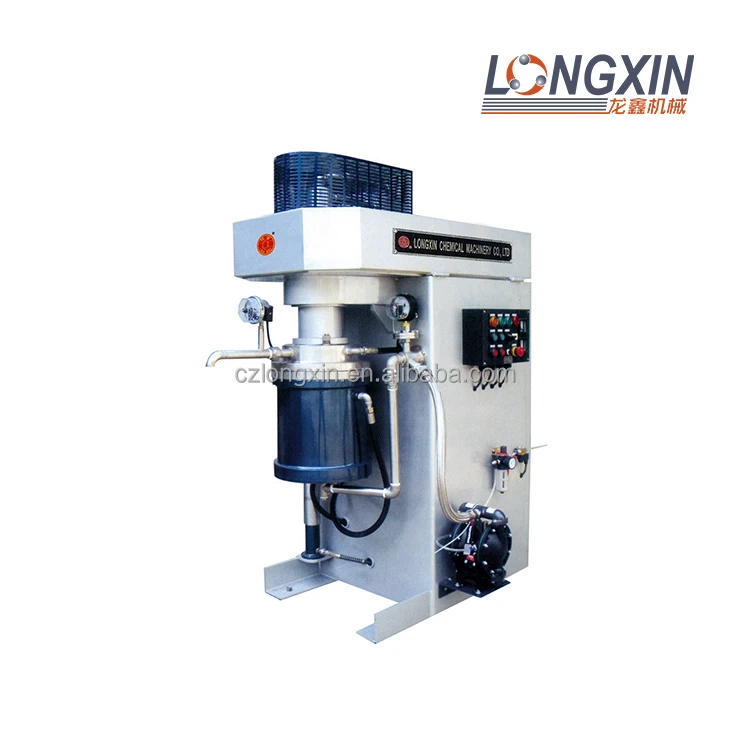

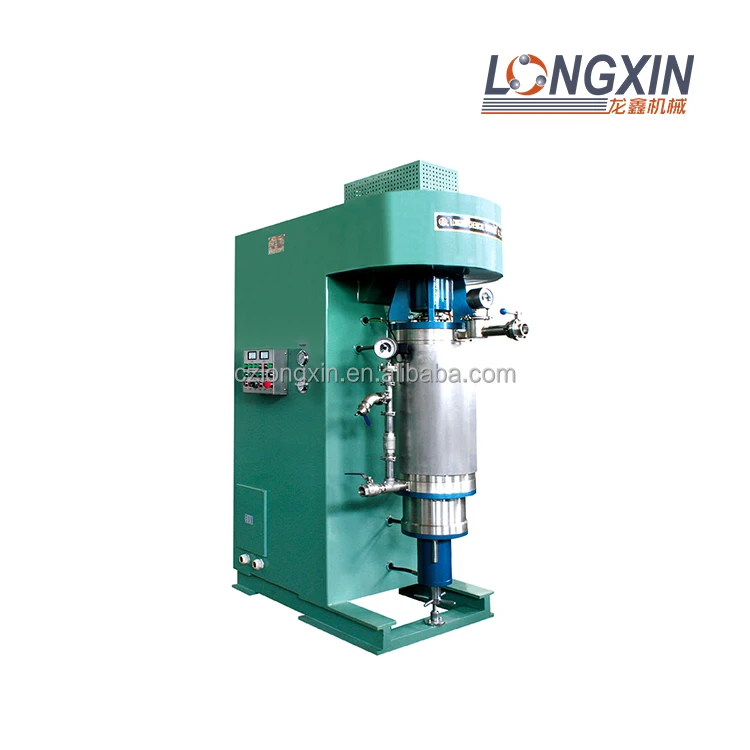

Sander Small Making Machine mini grinder vertical sand mill machine
- Category: >>>
- Supplier: Longxin(Changzhou) Smart Equipments Co. Ltd.
Share on (60045079865):
Product Overview
Description
Introduction：
This machine is designed specially for predispersion and fine dispersion of high viscosity material (offset oil ink).It can beused
singly and also together with three roller grinder through connection as well as full automatic production line.It is an idea equipment for producing offect oil ink and high viscosity material.
singly and also together with three roller grinder through connection as well as full automatic production line.It is an idea equipment for producing offect oil ink and high viscosity material.
Features：
PLC is used for control, analogous drawing and touch screen are available (optional).
The pressure in the milling chamber is auto-controlled, to choose the optimum milling result.
The mechanical sealing and bearing connected by open mode to solve the problem of clash between main s haft and coupler in the high-viscosity state, so the operation of equipment can be much reliable and safety.
The double-spiral internal cooling channel can disperse the heat during the operation in high-viscosity.
The brand "BURGMANN" of German is adopted for mechanical sealing "NSK" of Japan for bearing, the dynamic separator made of powder metallurgy.
The material can reach at the ideal fineness only by once milling, matched with three roll machine, the production can be finished in one time, to increase the efficiency extremely.
The pressure in the milling chamber is auto-controlled, to choose the optimum milling result.
The mechanical sealing and bearing connected by open mode to solve the problem of clash between main s haft and coupler in the high-viscosity state, so the operation of equipment can be much reliable and safety.
The double-spiral internal cooling channel can disperse the heat during the operation in high-viscosity.
The brand "BURGMANN" of German is adopted for mechanical sealing "NSK" of Japan for bearing, the dynamic separator made of powder metallurgy.
The material can reach at the ideal fineness only by once milling, matched with three roll machine, the production can be finished in one time, to increase the efficiency extremely.
Technical Paraweters
Model | WSH-14 | WSH-30 |
Capacity(L) | 14 | 30 |
Adjustable sandbox volume(L) | 5 | 80 |
Main motor power(KW) | 30~37 | 45~55 |
Power of the material pump timing motor(KW) | 2.2 | 2.2 |
Cooling motor power(KW) | 0.37 | 0.37 |
Output(kg/h) | 80~150 | 100~180 |
Outlet height(mm) | 1200 | 1400 |
Weight(kg) | 2700 | 3000 |
Overall dimension L*W*H(mm) | 1370*722*1830 | 1600*860*2260 |
Packing dimension L*W*H(mm) | 1600*1000*1900 | 1800*1000*2400 |
