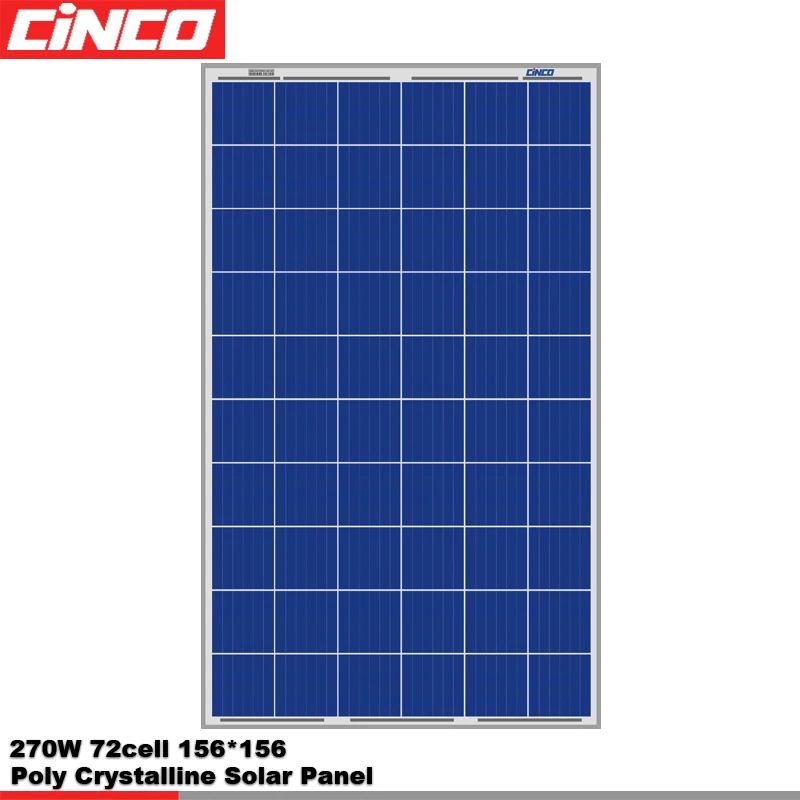

270w stock solar panels plycrystalline silicon bulk solar plate from China,hot sell placa solar products
- Category: >>>
- Supplier: Cinco Electronics Tech Co. Ltd.
Share on (60045128898):
Product Overview
Description
Products Description
Mono crystalline
Poly crystalline
1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon
3. Aesthetic appearance with
excellent efficiency based on innovative photovoltalic technologies
excellent efficiency based on innovative photovoltalic technologies
4. High quality,strong aluminium frame,passing mechanical load
testing 5400 Pa and wind pressure 2400Pa
testing 5400 Pa and wind pressure 2400Pa
PERC Solar Panel
25 Year Warranty
5BB/12BB Mono/Poly Solar Cell
PV Junction Box
Aluminum frame
High transmission glass
Details Images
Product Paramenters
Electrical Characteristics | ||||||||
Model | CNCC270W | |||||||
Maximum Power at STC (Pmax) | 270W | |||||||
Optimum Operating Voltage (Vmp) | 31.0V | |||||||
Optimum Operating Current (Imp) | 8.71A | |||||||
Open-Circuit Voltage (Voc) | 38.2V | |||||||
Short-Circuit Current (Isc) | 9.13A | |||||||
Solar Module Efficiency (%) | 16.6 | |||||||
Operating Temperature | -40 to 85℃ | |||||||
Maximum System Voltage | DC1000 | |||||||
Maximum Series Fuse Rating | 15A | |||||||
Power Tolerance | +/-3% | |||||||
Mechanical Characteristics | ||||||||
Solar cell | Mono-Crystalline156*156mm | |||||||
No.of cells | 60(6×10) | |||||||
Front glass | 3.2mm tempered glass | |||||||
Frame | Anodized aluminium alloy | |||||||
Dimensions | 1640mm*992mm*40mm | |||||||
Weight | 18kg | |||||||
Temperature Coefficient | ||||||||
Nominal Operating Cell Temperature (NOCT) | 45℃+/-2℃ | |||||||
Temperature Coefficient of Pmax | -0.39%/℃ | |||||||
Temperature Coefficient of VOC | -0.29%/℃ | |||||||
Temperature Coefficient of ISC | +0.049%/℃ | |||||||
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5 | ||||||||

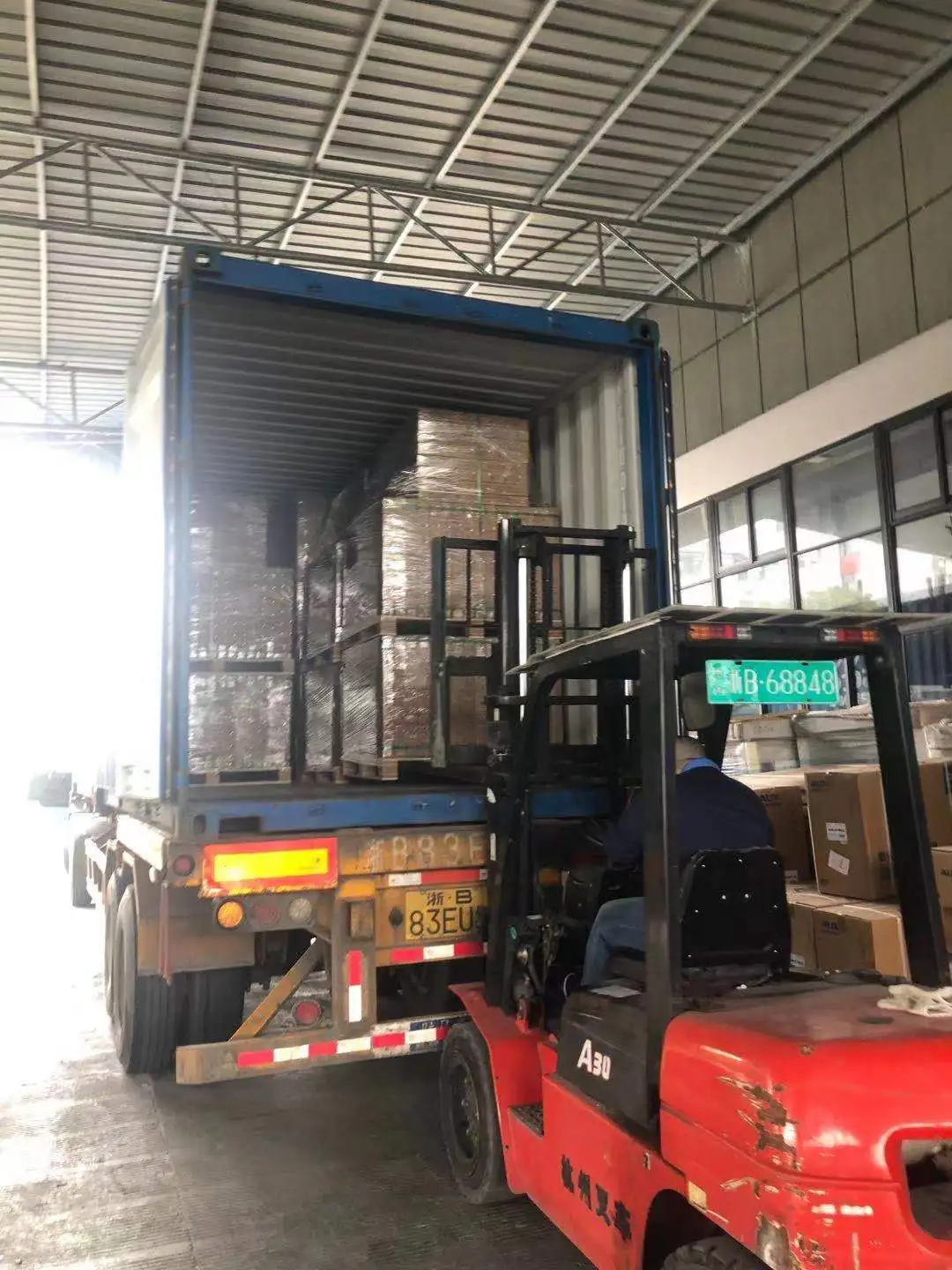

Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
