Product Overview

Description

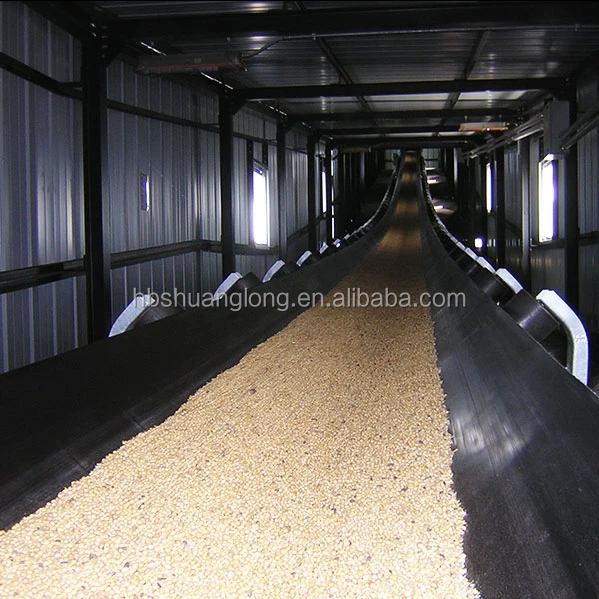

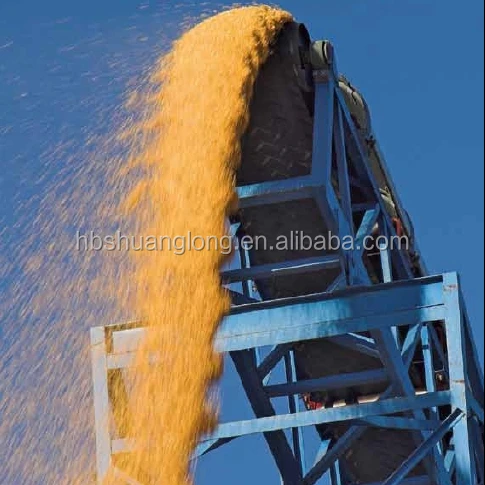

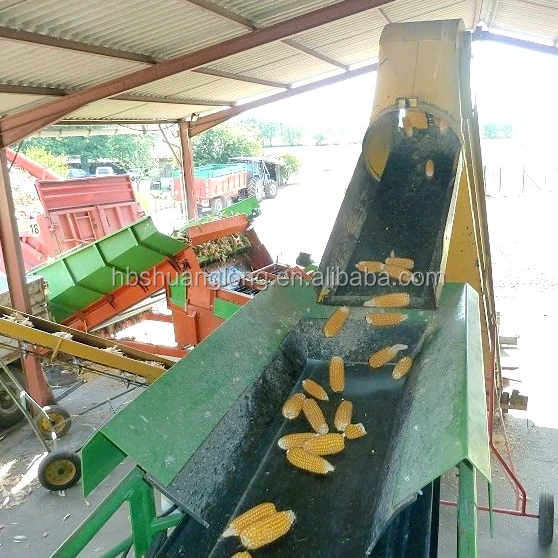

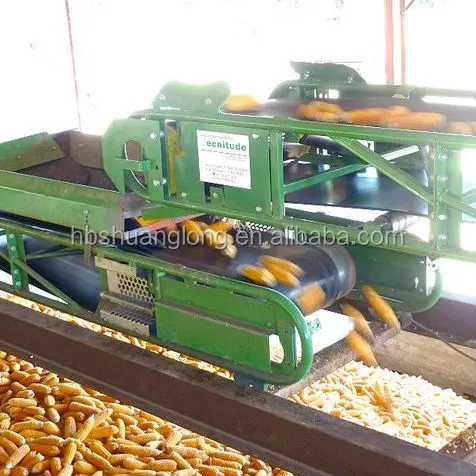

Agriculture corn conveyor belt transport grain,corn,wheat,oilseed,beans,cereal for storage



Established in 2003, Hebei Ssangyong Rubber Co.,Ltd is a professional manufacturer specialized in research, development and production of rubber conveyor belt for 10 years.



With strong technology strength, advanced production technique and complete inspection equipments, our company manufactures qualified products up to national and international standards,such as DIN,AS,BS,JIS,SANS,RMA,etc.



Depending on the strict management system and consummate After-sales service system,we provide our customers with high quality and low price conveyor belts,also a warm service.

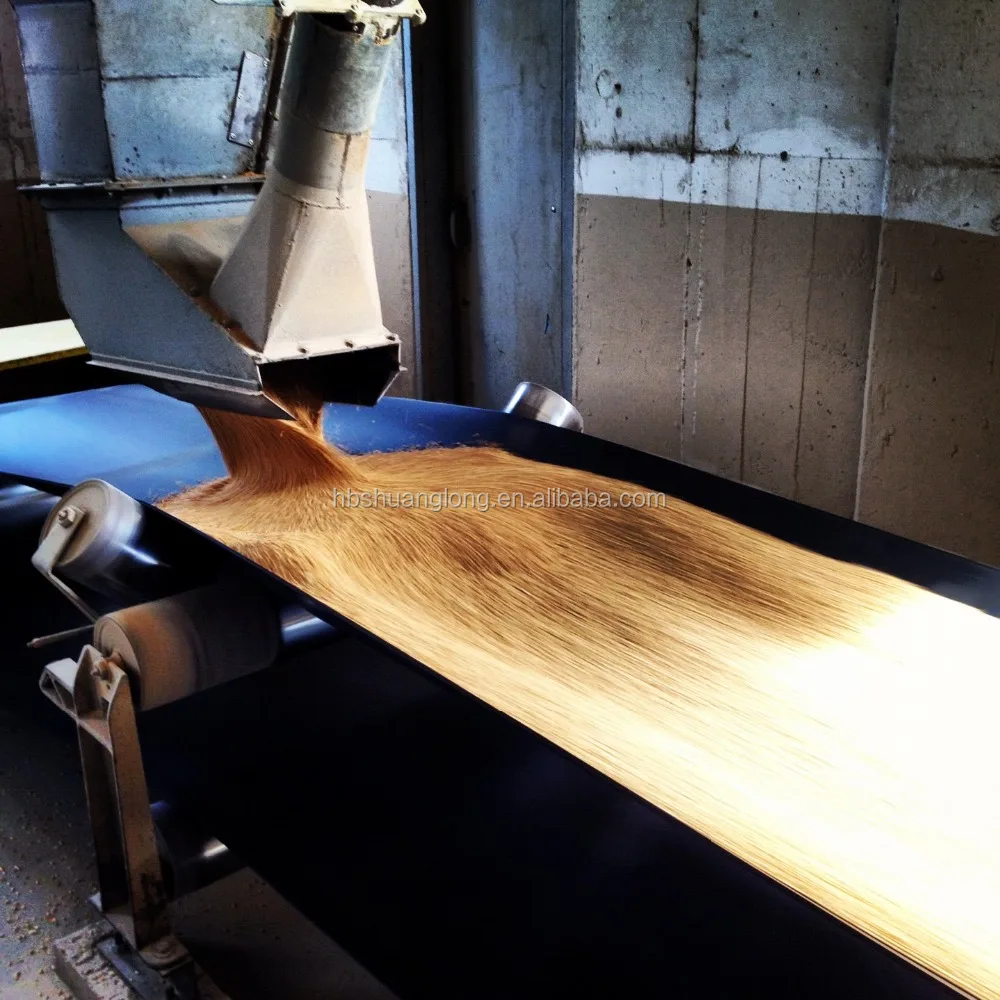

Agricultural material handling

conveyor belts for grain, corn, flour ...

Our bulk handling systems by means of conveyor belts are suitable for all farming applications, such as:



- sugar beets (clean, dirty or as pulp),

- sugar (refined or unrefined),

- potatoes,

- grain (in bulk or in sacks),

- wheat (in bulk or in sacks),

- flour (in bulk or in sacks),

- soy (as seeds, crushed or processed),

- manure, liquid manure, fertilizer

- etc...



Features of Nylon conveyor belt:



1.thin belt body,high strength
2.good impact resistance
3.strong interlayer bonding strength
4.good flexing property,easier to form trough
5.abrasion resistance,long service life



Applications of Nylon rubber conveyor belt:



NN nylon fabric reinforced rubber conveyor belt is suitable for conveying a variety of non-corrosive,no spikes massive,granular,powder bulk materials in the following industries,such as coal,gravel,cement,ironstone,carbon coke,sinter,grain,wood chip and other bulk materials or packaged items.



including following industries:



• agriculturer

• mining,coal mine

• chemical industry

• quarry & stone factory

• cement & concrete plants

• cogeneration power plant

• metallurgical & foundry industry

• port & wharf loading and unloading

• hydroelectric station construction site

• steel mill & metal processing industry

• building/architectural material industry



Technical standards:National standard GB/T7984-2001



(1)material of conveyor belt core:NN100,NN150,NN200,NN250,NN300,NN350,NN400,NN450,NN500                                                       EP100,EP125,EP150,EP200,EP250,EP300,EP350,EP400,EP500                                                      CC-56,TC-70

(2)Width of belt:300mm-1600mm

(3)number of fabric layer:2-10 ply

(4)Thickness of cover rubber:top working side:1.5-8.0mm,bottom non-working side:1.5-4.5mm

(5)Cover rubber:Tensile strength: not less than 15Mpa,                            elongation at break: not less than 350%,                            the abrasion loss:not more than 200mm3



The cover rubber layer's physical properties:

grade of covering rubber		Tensile strength, Mpa,≥	Elongation at break,% ≥	abrasion loss, mm3≤	Change rate of tensile strength and elongation at break after 70°Cx168h aging
laceration resistant type(H)		24	450	120	-25 ~ +25
abrasion resistant type(D)		18	400	100	-25 ~ +25
ordinary type(L)		15	350	200	-25 ~ +25



Interlaminar bonding strength:

Item		between the fabric layers	between cover and belt carcass
			cover thickness 0.8-1.5mm		cover thickness>1.5mm
average value of all samples,N/mm≥		4.5	3.2		3.5
lowest peak value of all samples,N/mm≥		3.9	2.4		2.9
Remark:highest peak value of all samples shall not exceed 20N/mm



We can also produce international standard Nylon NN rubber conveyor belt as below specification:

Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
DIN 22102	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.5mm)	(>1.5mm)
DIN 22102-Z	15	350	250	3.5	4.5	5
DIN 22102-W	18	400	90	3.5	4.5	5
DIN 22102-Y	20	400	150	3.5	4.5	5
DIN 22102-X	25	450	120	3.5	4.5	5
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
AS 1332	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.9mm)	(>1.9mm)
AS 1332-N17	17	400	200	4	4.8	6
AS 1332-M24	24	450	125	4	4.8	6
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
RMA	Mpa	%	mm3	N/mm	N/mm	N/mm
				(≤1.6mm)	(>1.6mm)
RMA-I	17	400		3	4.4	4
RMA-II	14	400		3	4.4	4
Standards	Cover Rubber			Adhesion
	Tensile Strength	Elongation at break	Abrasion	Cover to Ply	Cover to Ply	Ply to Ply
SANS 1173	Mpa	%	mm3	N/mm		N/mm
A	18	400	70	5		7
C	20	400	150	5		7
M	25	450	120	5		7
N	17	400	150	5		7



Nylon fabric reinforced rubber conveyor belt's structure:

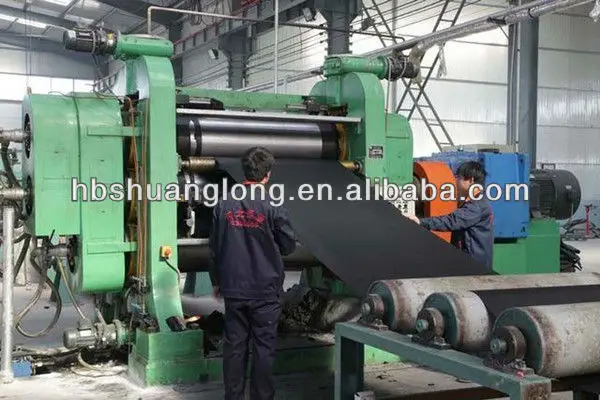

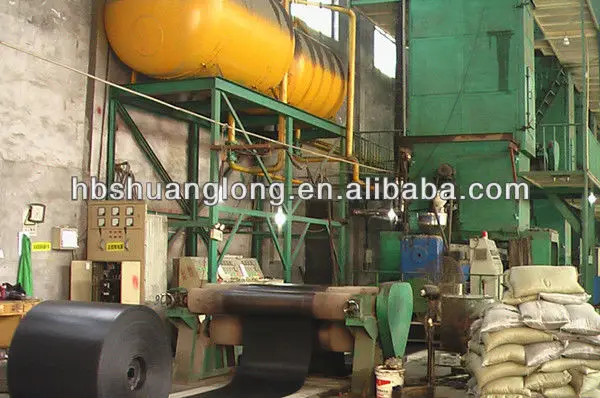

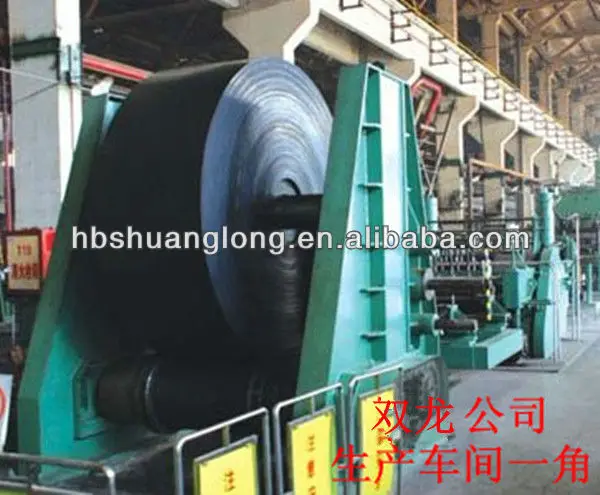

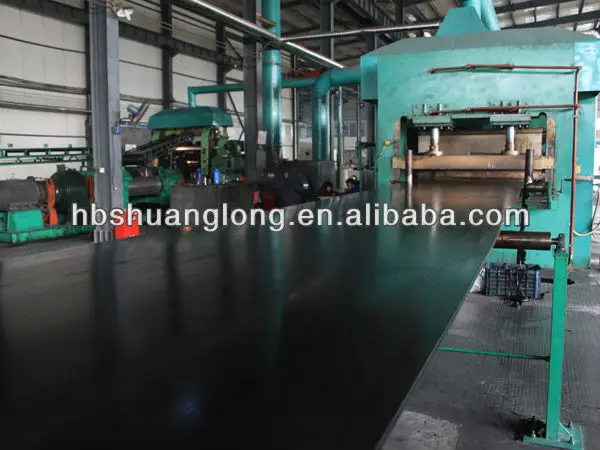

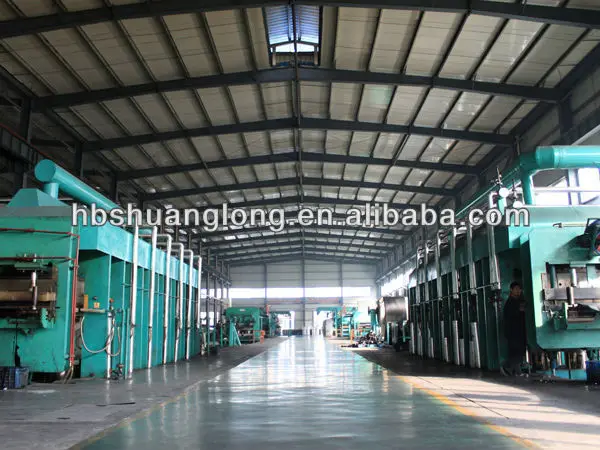

Hebei Ssangyong Rubber Co.,Ltd.-- Professional conveyor belts manufacturer














  Safety certificate of approval for mining products and Certificate of ISO9001:2008 Standard:
