CRQ2BS15 180 Rotary Cylinder Driver

Product Overview

Description

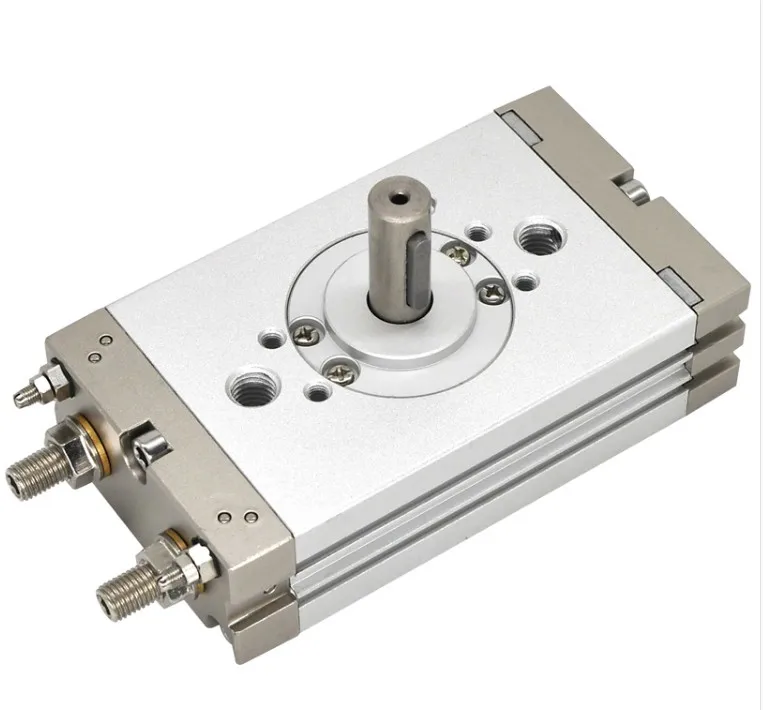

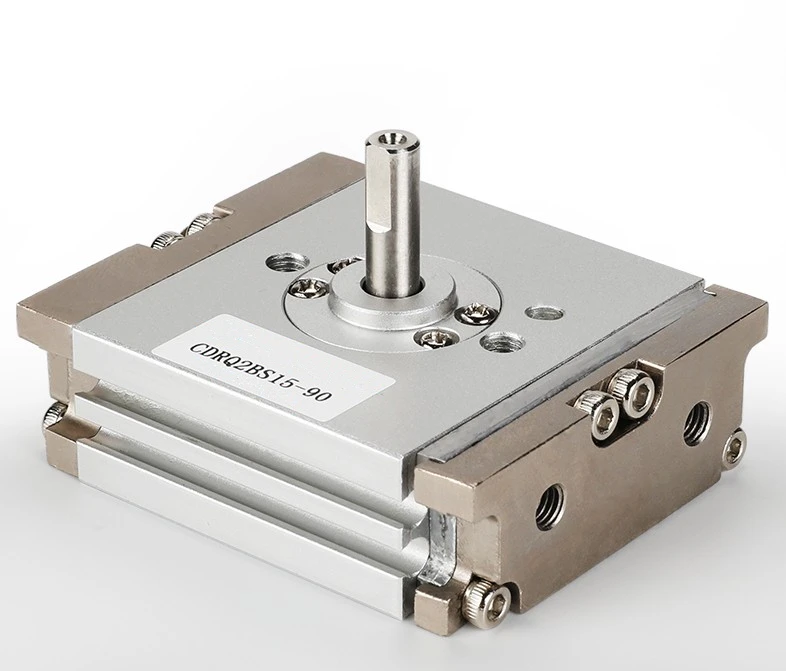

CRQ2BS15-180 Rotary Cylinder Driver

Features:

1.Bore:15mm, rotating angle:180 degree.

2.Equivalent to SMC CRQ2 series Rotary Actuators , with the same appearance.

3.Bore size(mm): 10, 15, 20, 30, 40.

4.Double piston, Compact, Rack & Pinion style rotary actuator.

5.Rotating angle: 80° to 100°, 170° to 190°, 350° to 370°.

6.Angle adjustment is possible.

7.A wide variety of types and broad size variations.

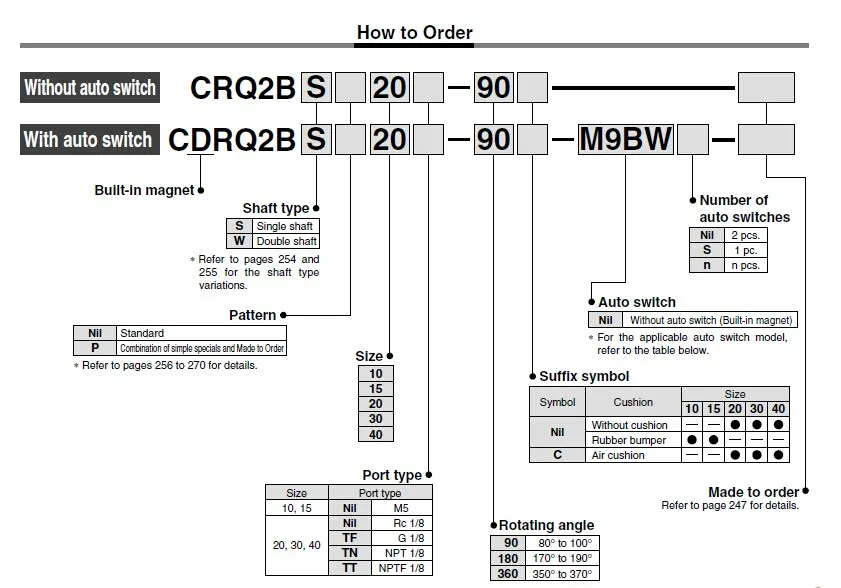

How to Order:



Specification:

Bore size (mm)	10	15	20	30	40
Fluid	Air
Action	Double acting
Minimum operating pressure	0.15 MPa		0.1 MPa
Maximum operating pressure	0.7 MPa		1.0 Mpa
Ambient and fluid temperature	0 to 60°C (No freezing)
Cushion	Rubber bumper		None/Adjustable air cushion at both ends
Lubrication	Non-lube
Output (N·m)	0.3	0.75	1.8	3.1	5.3
Auto Swith(Option)	Solide state switch(3-wire, 2-wire)
Port Size	M5x0.8		G1/8
Note 1: Output under the operating pressure at 0.5 MPa.



Main Material



No.	Description	Material	Note
1	Body	Aluminum alloy	Hard anodized
2	Cover	Aluminum alloy	Hard anodized
3	Piston	Stainless steel	-
4	Shaft	Stainless steel	Size: 10, 15
		Chrome molybdenum steel	Size: 20, 30, 40
5	Rack	Carbon steel	-
6	Piston seal	NBR
