Distribution box floor standing enclosure IP55 single door/ double door

Product Overview

Description

                       Distribution box-floor stand enclosure IP55  Single door/ Double door





Standard  Configuration

Color:	RAL7032    RAL7035
Profile:	9-fold profile
Material:	cold rolling steel
Thickness:	Front door:2.0mm, rear panel:1.5mm
paint finish:	epoxy paint finish:polyester  powder coating textured finish
Mounting plate:	zinc coated 2.5mm
Protection degree:	IP55
Impact resistance:	IK10









floor stand enclosure- Single door

NO.	W H D(mm)	Model
1	600X1400X400	AR9 146/4
2	600X1400X600	AR9 146/6
3	600X1400X800	AR9 146/8
4	800X1400X400	AR9 148/4
5	800X1400X600	AR9 148/6
6	800X1400X800	AR9 148/8
7	600X1600X600	AR9 166/6
8	600X1600X6800	AR9 166/8
9	800X1600X600	AR9 168/6
10	800X1600X800	AR9 168/8
11	600X1800X400	AR9 186/4
12	600X1800X500	AR9 186/5
13	600X1800X600	AR9 186/6
14	600X1800X800	AR9 186/8
15	800X1800X400	AR9 188/4

more size to be request to the clients......

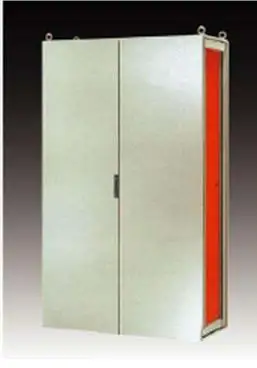

floor stand enclosure- double door

NO.	W H D(mm)	Model
1	1000X1800X400	AR9 1810/4D
2	1000X1800X500	AR9 1810/5D
3	1000X1800X600	AR9 1810/6D
4	1200X1800X400	AR9 1812/4D
5	1200X1800X500	AR9 1812/5D
6	1200X1800X600	AR9 1812/6D
7	1000X2000X400	AR9 2010/4D
8	1000X2000X500	AR9 2010/5D
9	1000X2000X600	AR9 2010/6D
10	1000X2000X800	AR9 2010/8D
11	1200X2000X400	AR9 2012/4D
12	1200X2000X500	AR9 2012/5D
13	1200X2000X600	AR9 2012/6D
14	1200X2000X800	AR9 2012/8D
15	1000X2200X600	AR9 2210/6D





Available in various colors and sizes according to customer's requirements



Supply Include:

• Front door with Reinforcing frame
• Hinges and MS821 lock systerm
• 9 folded profiles 4 pcs/set
• Rear panel, mounting plate & 4 mounting plate supports
• 4 lifting eyebolts
• tope cover, removable cable gland plate
