400 кг/ч новый дизайн pini kay машина для изготовления брикетов древесного угля

Product Overview

Description

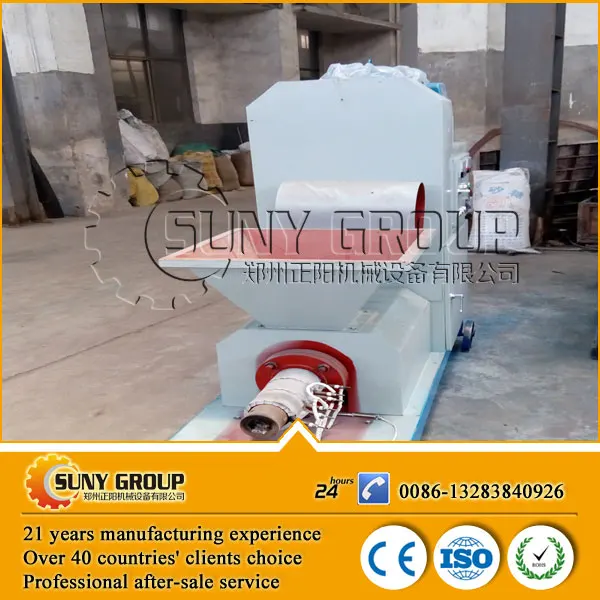

  400kg/h New design pini kay charcoal briquette making machine



Material Request:

All kinds of agriculture and forestry waste. Such as Sawdust, Coffee Husk, Paddy Straw, Sunflower Stalk, Cotton Stalks, Tobacco waste, Mustard Stalk,Jute waste, Bamboo Dust, Tea waste, Wheat Straw, Palm husk,Soybeans husk, Rice Husks Forestry wastes, Wood Chips\u007Fect.



Grain Size: <5mm, or need a crusher Moisture

Content: <8%-12%, or need Sun drying or need a dryer

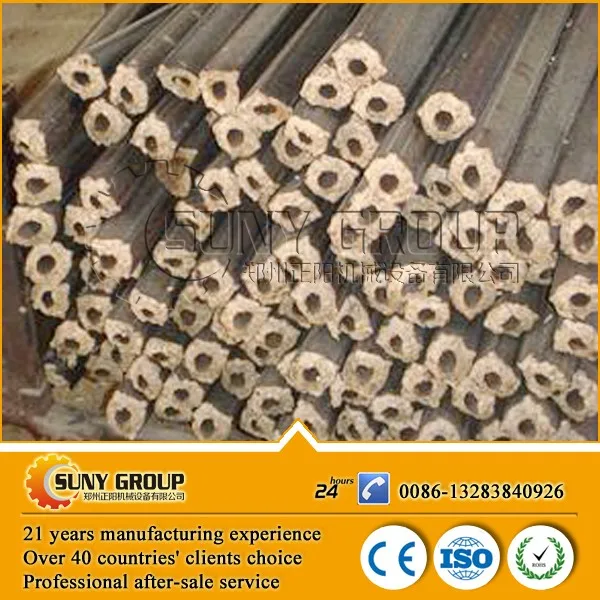

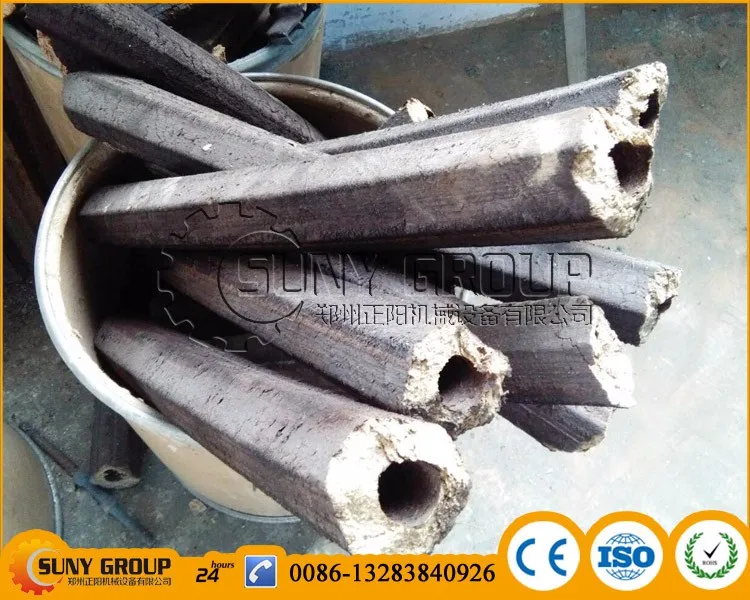

Final Briquette:

Shape: hexagonal or square

Outside Diameter: 40-80mm

Hole diameter: 15-20mm

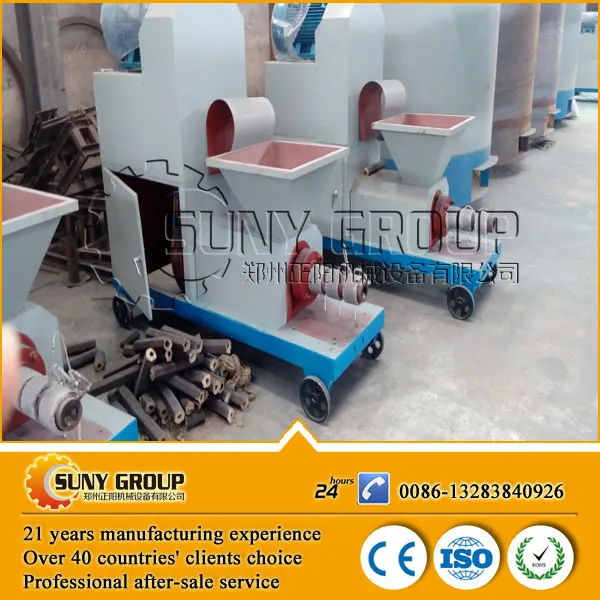

ZBJ Series Pini Kay Briquette Machine Advantages:

1) It uses four bearings instead of three ones of old-type movement to add its stability and

    durability

2) It uses oil immersed type lubrication instead of old oiled lubrication. It could be used for

    many years as long as it isn't lack of oil.

3) Its screwpitch is increased to add input quantiy in order to improve the capacity substantially.

4) The shape of molding tube is improved to reduce the frication between machine and raw

    material and increase the density of briquettes.

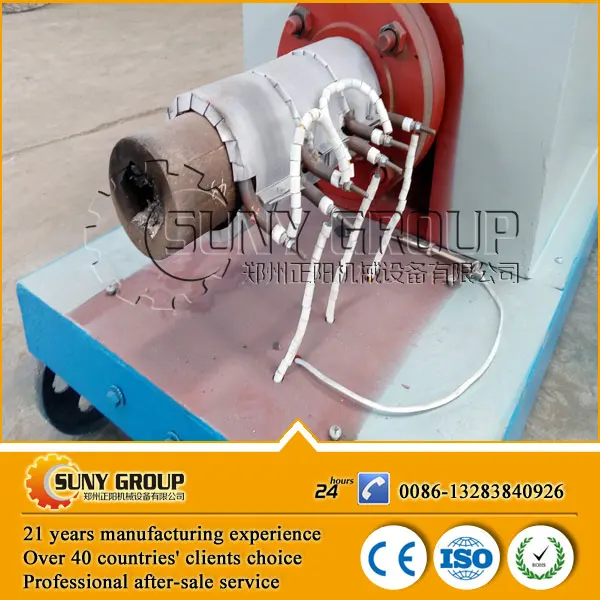

Pini Kay Briquette Machine Working Principle

After heating at first, when the sawdust of other materials at diameter of 0-5mm be send into the briquette machine, the materials will be hesting in the mold ,then it be mold into briquette:sawdust stick with a hole in the middle.

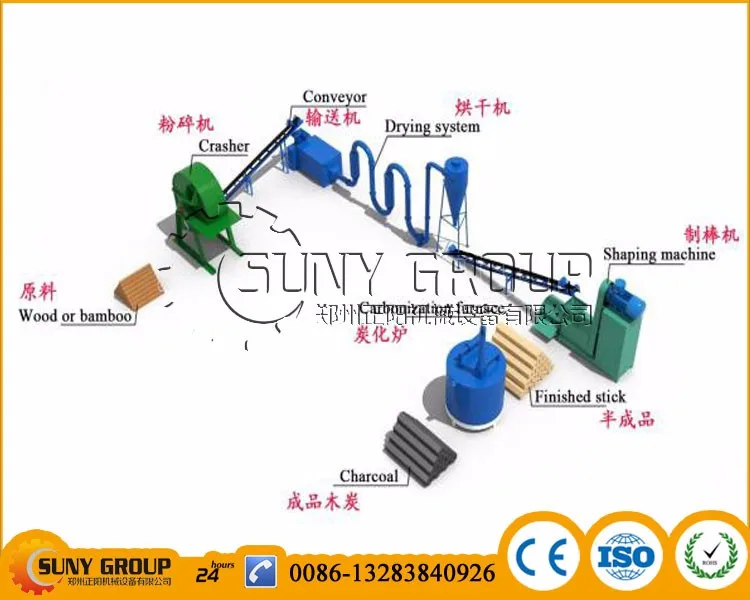

The process for producing charcoal

Raw Material →Crusher Machine → Dryer Machine → Briquette Machine→ Carbonize Stove →

Charcoal



1.Crush the raw material into small pieces (diameter is about 3-5mm)

2.Dry the material by machine or dried it in the sun , till the moisture is less than 12%

3.Put the material into feed let of briquette machine

4.Produce the briquette stick from biomass material without any additive

5.Carbonized the briquette stick



We has different models of Wood Sawdust Briquette Machine Wood Sawdust , pls kindly suggest the info below:

1.The raw material sizes?

2.The raw material moisture?

3.The capacity you need?

4.The finished product diameter you need? We can supply 40mm, 50mm, 60mm, 70mm, 80mm.



we would like to suggest the most suitable machine model and design the whole line for you.

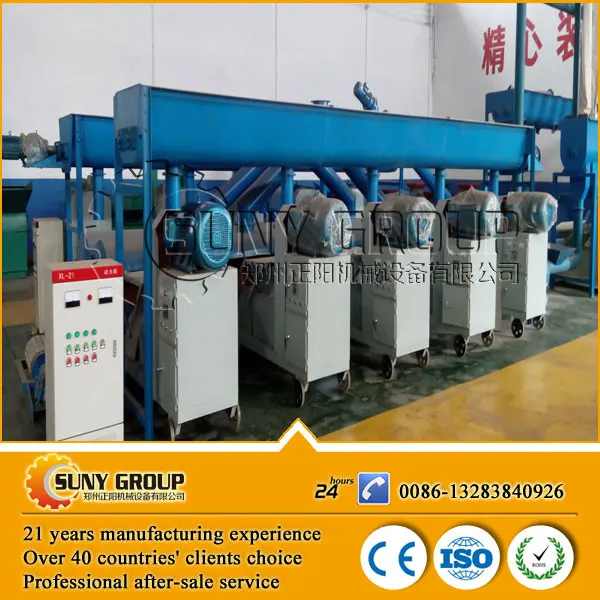

The Customer Case:















If you are interesting in our machine, please contact me without any hesitation!
