Equivalent raychem shrink sleeves
- Category: >>>
- Supplier: CYG Changtong New Material Co. Ltd.
Share on (60046264769):
Product Overview
Description

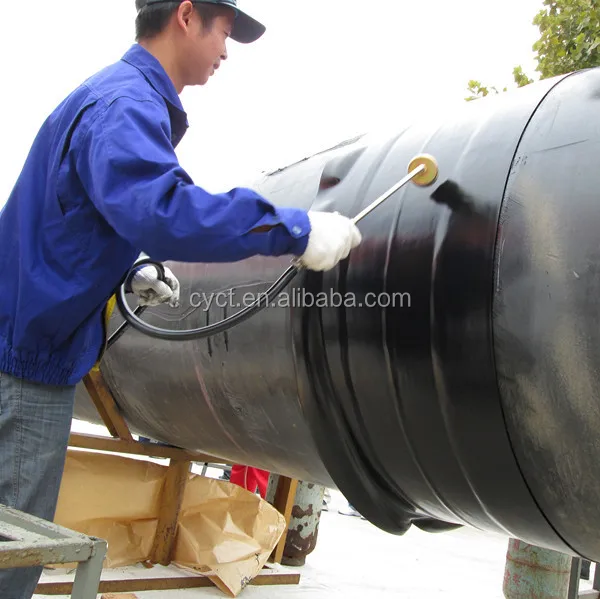

CYG Heat shrink sleeve for ms pipes Equivalent to raychem heat shrink sleeves
Product Description
Equivalent raychem heat shrink sleeves Description :
CYG Heat shrink sleeve is made from Union Carbide Carbid LDPE with high anti-corrosion performance. CYG heat shrink sleeve for ms pipes is mainly used in coating the weld joint of buried steel pipeline and insulated pipeline .
CYG Heat shrink sleeve Features:
Heat shrink sleeve enjoys good performance of sealing, wide application, easy to operate and preheating temperature, long term protection against corrosion as Raychem heat shrink sleeves.
Most important of all, CYG enjoys the technology of producing 80 °C high temperature heat shrink sleeve for ms pipes.
CYG heat shrink sleeve DVGW standard, which is a very authoritative pipeline anti-corrosion certificated.
Cross-linked backing of heat shrink sleeve provides superior abrasion, mechanical and chemical attack resistance.
High performance adhesive provides excellent resistance to Cathodic Disbondment to ensure long-term corrosion protection.
Open sleeve allows it to be applied after the pipes been welded and cleaned.
Structure of the Heat shrink sleeve :
The inner layer is two-components epoxy primer,solvent free epoxy primer and curing agent , which coated on steel pipes;
Intermediate level of the heat shrink sleeve for ms pipes is special hot melt adhesive;
Outer layer is modified radiation crossing linking polyethylene backing.
CYG Heat shrink sleeve technical data:
No. | Item | Unit | Test results | Test Method | ||
1 | Tensile strength | MPa | 24.6 | GB/T 1040.2/ASTM D638 | ||
2 | Ultimate Elongation | % | 640 | GB/T 1040.2/ASTM D638 | ||
3 | Electric strength | MV/m | 32.3 | GB/T 1408.1/ASTM D149 | ||
4 | Volume Resistivity | Ω·m | 6.05×1013 | GB/T 1410/ASTM D257 | ||
5 | chemical corrosion resistance 10% HCl (7d) 10% NaOH (7d) 10% NaCl (7d) |
% % % |
98 98 98 | GB/T23257-2009 Appendix H | ||
6 | Heat Aging(150° 21d) (%Elongation) | % | 554 | GB/T 1040.2/ASTM D638 | ||
7 | Heat Shocking (225°,4h) | - | No cracking, flow, or dripping | GB/T23257-2009 Appendix L/ASTM D2671 Appendix L/ASTM D2671 | ||
8 | Impact Resistance | J | >15 | GB/T23257 Appendix k/ ASTM G14 | ||
9 | Softening point of adhesive | ° | 115 | GB/T 4507 | ||
10 | Lap Shear Strength | KPa | 2053(23°) | GB/T 7124/ASTM D1693 | ||
320(70°) | ||||||
11 | Peel strength | PE/FBE | N/cm | 191(23°) | Pass | |
24(70°) | ||||||
PE/PE | 185(23°) | |||||
23(70°) | ||||||
PE/Steel | 166(23°) | |||||
22(70°) | ||||||
12 | Cathodic Disbondment | mm | 16.5 31.2 | ASTM G42 ASTM G8 | ||
Company Information

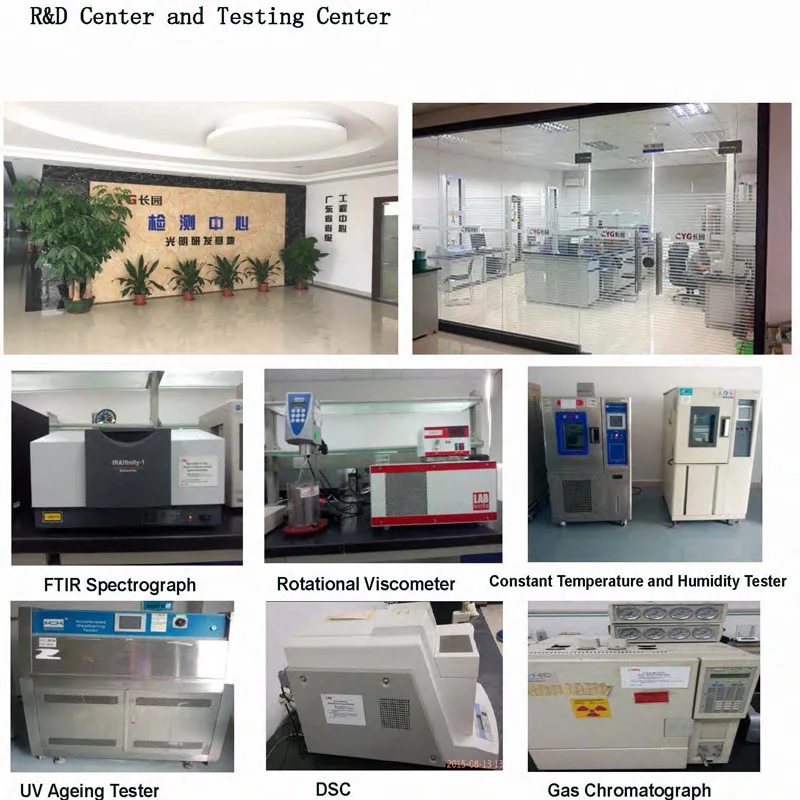

CYG Changtong New Materials Company Limited (for short, CYG Changtong) is located at Guangming New District of Shenzhen City. Under Changyuan Group Joint Stock Company (for short, CYG with Stock Code 600525), CYG Changtong is a state-level high-tech enterprise integrating R&D, production and sales of heat shrink Insulation material, pipeline corrosion protection materials as well as buried ms pipe detection service and pipeline coating field application service into one.
CYG anti-corrosion materials, heat shrink sleeve for ms pipes:
Our Services

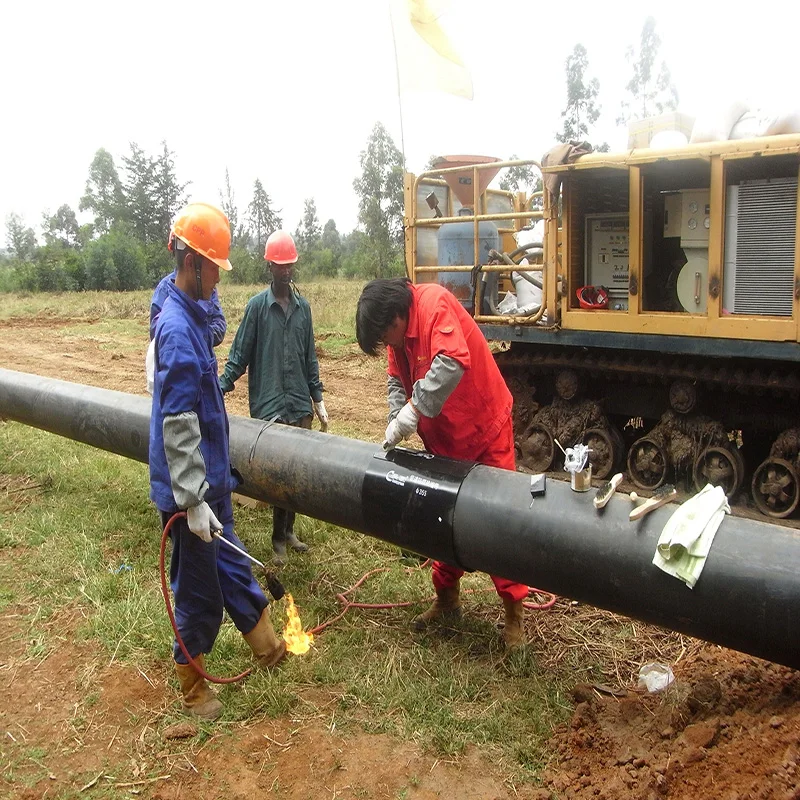

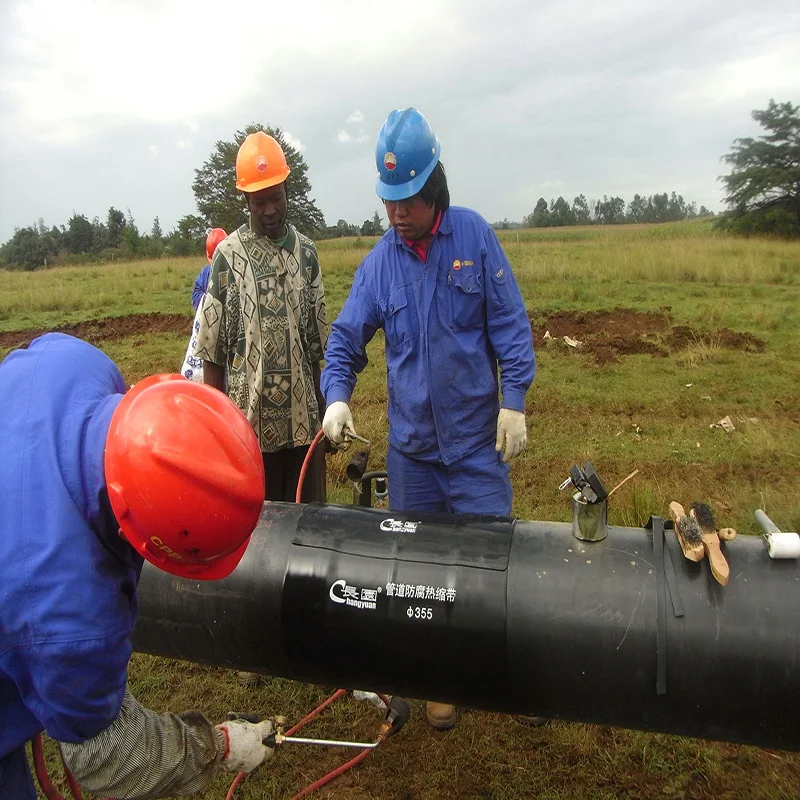

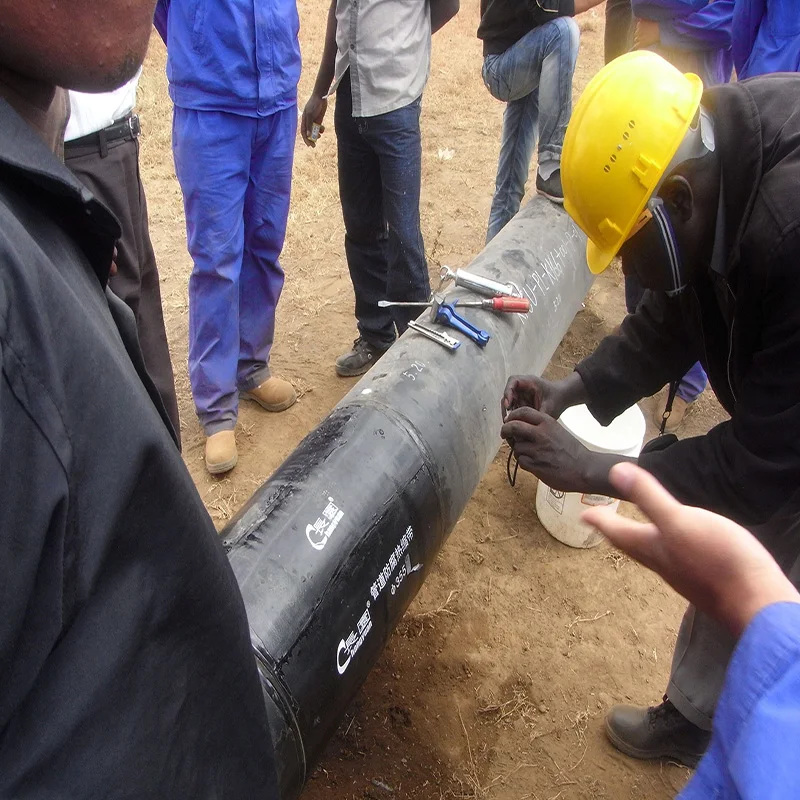

CYG Service for Heat Shrink Sleeve ms Pipes :
FAQ
It seems that you have long time experience in the field of pipeline anti-corrosion and protection, is there any projects that you have done can be showed here ?
Yeah, We have more than 15 years' experience, below is some projects that we have done and our DVGW certification :
Besides, for special requirements, we can produce sample according to your requirements for your evaluation.
CYG Corrosion prevention material List:
Germany DVGW certification for heat shrink sleeve for ms pipes :
Pls. feel free to contact us for high quality heat shrink sleeve same as Rachem heat shrink sleeves.
