CNC Metal fabrication machine water jet cutting machine

Product Overview

Description

5-axis 3D waterjet cutting machine adopts AC-axis structure, which effectively realizes CNC five-axis linkage cutting.

Equipped with Yaskawa/Weihong servo motors, effectively improves the accuracy of cutting and control.

It adopts an integrated dust-proof sealing structure, and the waterproof level reaches IP68, which improves the service life of the equipment.

It adopts imported reduction gear, with less components, simple design and beautiful structure, simple operation, easy to understand, easy to learn, very convenient for maintenance, and lower maintenance cost.

Equipped with original imported linear guide and ball screw  components, making the whole cutting head more stable and reliable.

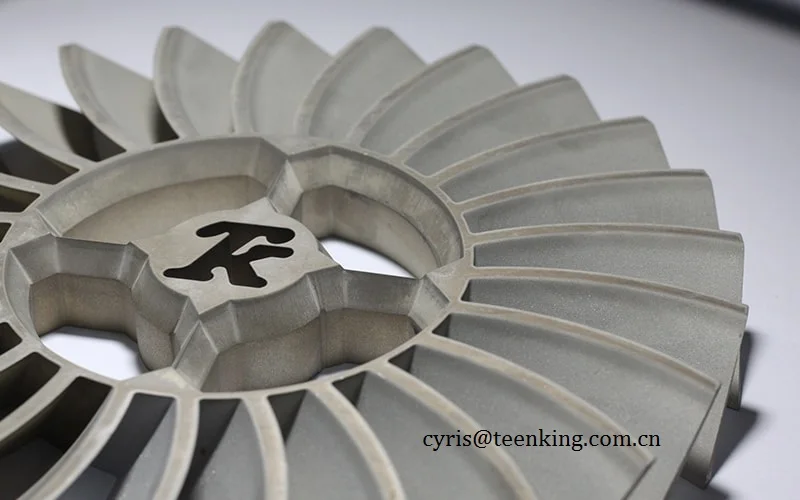

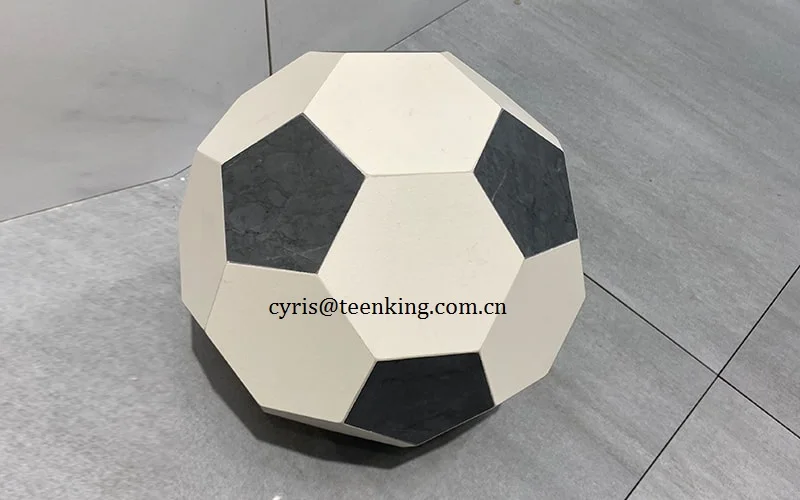

The 3D cutting, that is, the 5-axis linkage cutting, the head can cut the workpiece surface at different angles, and can cut the cutting cross section of the vertical, the inclined, and the gradual angle. In most basic form, the 5-axis head can be easily programmed from a 2-D cad file to create a variety of bevels on the plate edge.

Such features are commonly required to provide weld preparations. Full 5-axis articulation allows these bevels to follow contours on the profile without the need for solid models or any dedicated 5-axis programming techniques.





Adopting with a highly reliable absolute encoder servo motor, saves the time of returning to the origin, and reducing the mechanical failure of the whole machine;

adopting a high-precision and reliable deceleration mechanism with a positioning accuracy of 1.5arcmin to achieve precision cutting result.



Maximum cutting angle of +/-10 degrees can be compensated, it is a kind of chamfering machine, it is able to compensate the cutting angle to ensure the accuracy

of vertical cutting part without reducing the cutting speed.

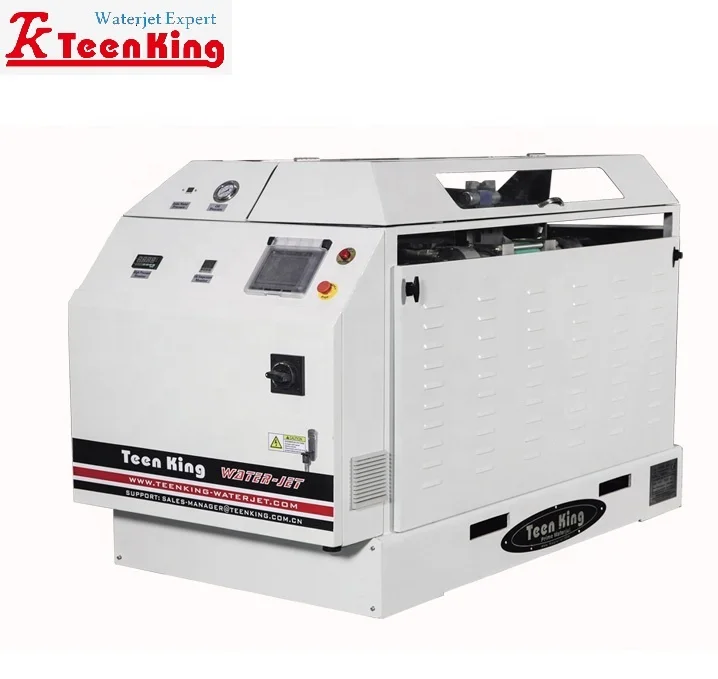

Technical specifications for High pressure pump:
Max generated pressure	420MPa (60,000psi)
Operating pressure	360MPa (50,000psi)
Pressure fluctuation	5MPa.(50bar) @ 3800bar with dia0.33mm orifice
Nominal power	37KW/80A
Power consumption	21kW/50 A @380V/50Hz 3800bar with dia0.33mm orifice
Max Flow:	3.6L/min
Pressure mode	High/Low level auto shift





























Characters

Equipped with ERTI-USA assembled intensifier.

Multiple safety protection attenuator (free maintenance).

Built-in oil-fan cooling system.

High pressure dump valve.

Rexroth oil pump and oil circulating pump.

Siemens motor/soft starter system.



Other Optional pumps for upgrade/replacement



CNC CONTROLLER:

 Technical specifications for standard software:

Control System Software  (NC Studio):

>Friendly control interface

>Reliable and durable operation.

>compatible with IGEMS CAD/CAM/NESTING software, extendable by module: tile parquet, tube cutting, camera sheet positioning, 3D toolpath generator.

>Dynamic cutting speed/abrasive volume control

>Z Axis piercing height Control

>Follow cutting height by detector.

>Follow cutting height by laser scanning system

>Break Point Resume, Any point continue.

>Cutting Time & Cost Evaluation.

>Consumable lifetime Reminder

>Multi-Origins

>Revolve Program

>Simu-mode On Office Computer

>Auto-Error Diagnose

>Backup-Restore software

>Remote Assistant



Integrated CAD/CAM Software (NC Editor):

>Draw/design your job with simple tool, such as square, circle, polygon, straight line, and curve.

>import designed part from other software with format: dxf, plt, g-code

>Edit lead-in/lead-out, kerf compensation, direction, cut order, set origin, change size, position.

>Select object(s), or start point, end point to machining from program.

>specify different speed or beveling angle on each contour of part.

>Output nce format, compatible with g-code format from IGEMS
