AES, BES, AET, BET, Floating type Air Heat Exchanger with High Quality
- Category: >>>
- Supplier: Shenyang Yongye Industry Co. Ltd.
Share on (60046764641):
Product Overview
Description

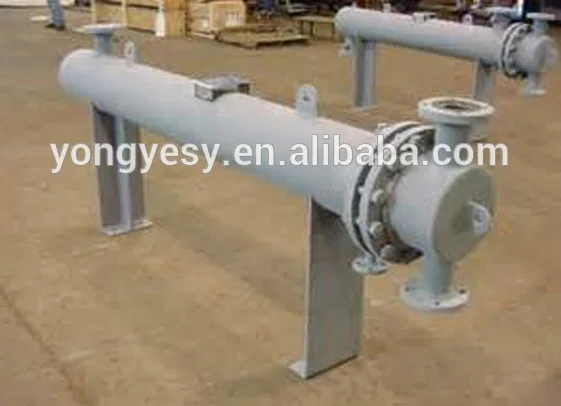

AES, BES, AET, BET, Floating type steel Shell and Tube Heat Exchanger
Description:

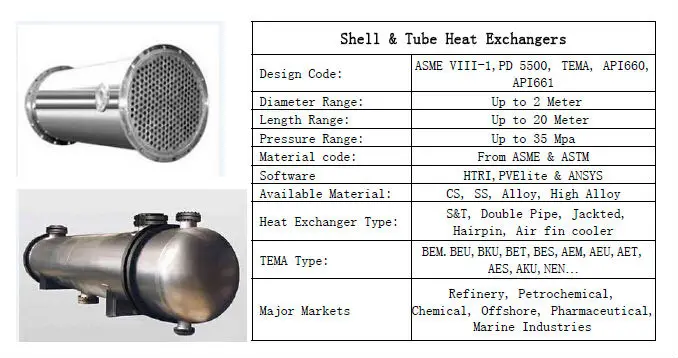

Design code: ASME VIII-1, PD5500, JIS,API660,TEMA
Quality Rule: DNV, NORSKE, ISO 9001:2008
Thermal Calculation: HTRI software
Mechanical Calculation: PVElite software
Special Material: Ti, Copper Nickle, Monel, Hastelloy
Normal Material:
| Material | Mild Steel | Carbon Steel | Low temperature CS | SS304/L | SS316/L |
| Plate | SA36 | SA516 Gr.70N | SA516 Gr.70N | SA240 304/L | SA240 316/L |
| Pipe | - | SA106 Gr.B/SA53-B | SA333 Gr.1 / 6 | SA312 TP304/L | SA312 TP316/L |
| Tube | - | SA179 | SA179 | SA213 TP304/L | SA213 TP316/L |
| Tubesheet | - | SA266 Gr.2N | SA350 LF2 CL.1 | SA182 F304/L | SA182 F316/L |
| Forging | - | SA105N | SA350 LF2 CL.1 | SA182 F304/L | SA182 F316/L |
| Fitting | - | SA234 WPB | SA234 WPB | SA403 WP304/L | SA403 WP316/L |
| Bolt | - | SA193 B7 | SA193 B7 | SA193 B8 | SA193 B8 |
| Nut | - | SA194 2H | SA194 2H | SA194 G8 | SA194 G8 |
Products information
Shenyang Yongye Industry Co., Ltd is a company specialized in research and development of pipes and tubes cleaning, interior coating, detection and positioning, pipe cleaning work and pipeline rescue for variety of long-distance conveying pipelines in oil field, petrochemical and natural gas industries.
The company has dedicated to “Quality First, Clicent Superior, Continuously Promotion of Satisfaction Engineering Work and Offering Quality Products and Satisfactory Service to Customer” business principles, and utilize the company’s self technical advantages and broad-ranging market space for future development of new products and provides the clients with completely new technologies, good quality products, reliable commitment and outstanding services.
We promise that:
We answer and solve your questions and consult within 24 hours.
We arrive to the domestic job site within 48 hours from the time you asked.
Overseas job site service available.
Service telephone: +86-24-88266563
