Price of High Temperature crucible Furnace laboratory Electric resistance vacuum sintering crucible furnace for melting
- Category: >>>
- Supplier: Nanyang Dadi Electric Equipment Co. Ltd.
Share on (60047832176):
Product Overview
Description
Price of High Temperature crucible Furnace laboratory Electric resistance vacuum sintering crucible furnace for melting
Our Services
Product Description
| Vacuum crucible furnace: |
SG2V-1-12TP Vacuum crucible furnace is composed by quartz crucible or alumina crucible and stainless steel flange ,which is mainly use in sintering of high pure compound under vacuum or insert atmoephere ;anneal or spread of semiconductor wafer:roast or sinter of ceramic material.It is mainly used for sintering, melting and analysis of metal, non-metal and compound materials Main use: colleges and universities, research institutes, industrial and mining enterprises do roasting, ceramic sintering, high temperature test, quality test. |
| Specification: |
| Product model | SG2V-1-12TP | Working temperature | 1100℃ |
Working voltage and frequency | 220V 50/60HZ | Maximum temperature | 1200℃ |
| Chamber Size | O.D.205×I.D.190 ×H340mm | Temperature control type | 30 period of intelligent process control |
| Rated power(kW) | 3kW | Temperature accuracy | ±1℃ |
| Outside dimensions(mm) | 450X350X600 mm | Temperature control table | 708P intelligent temperature controller |
| Weight(Kg) | 70Kg | The furnace shell | Double air cooling structure |
| Heating rate | 20 Degree | Furnace chamber | alumina fiber furnace |
| Heating element | Resistance wire | Thermocouple | K Type |
| Max.Vacuum | -0.1MPa | Main assembly | Asbestos gloves, the crucible tongs, thermocouple, corundum crucible, brick block |
Product features:Cool can rise quickly, furnace temperature field is balanced. Stable temperature control, simple operation, low energy consumption More crucible furnace Sizes: Dia.190xH340mm,Dia.240xH500mm optional: | |||
Detailed Images

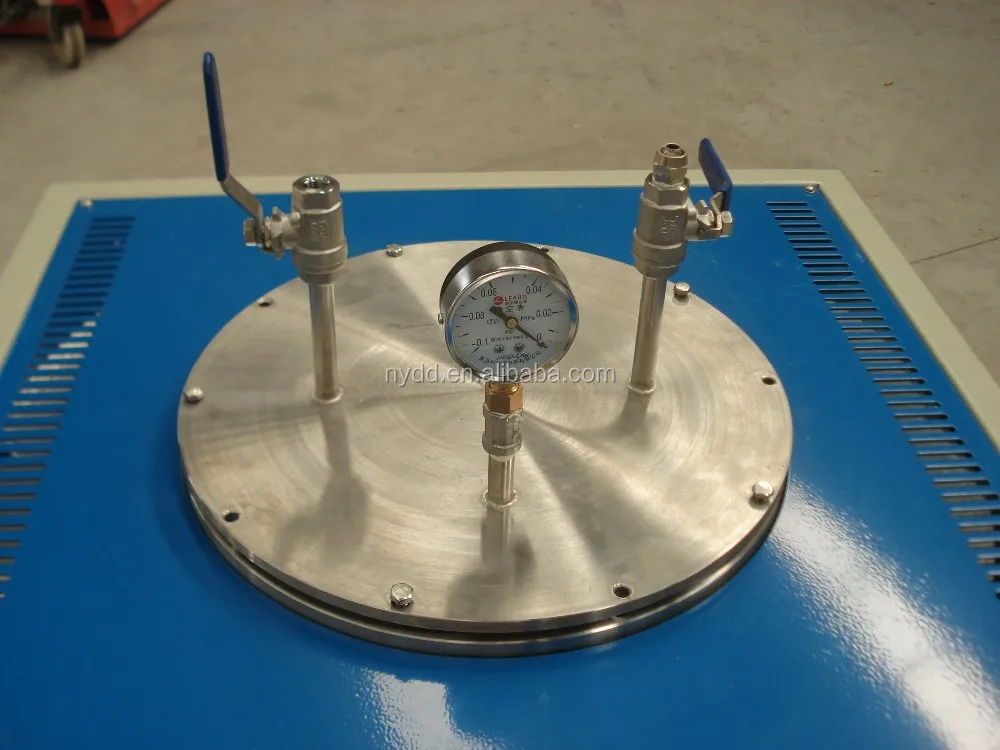

High temperature furnace test area
Related products
Certifications
Our products have passed CE certification, SGS,UL,ISO9001 and other certificates.
Company Information
Nanyang Dadi Electric Equipment Co., Ltd is a professional Heat treatment furnace manufacture which with more than 15 years experiences.
We have Professional technical engineers team, complete scientific management system, standard workshop and strict quality-monitoring framework.
The most important thing is that we have our own furnace shell processing factory, which has a great advantage for delivery time and price.
Our furnaces have been exported to more than 30 countries and with good feedback from our customers.
Our quality policy is "first-class Quality, first-class technology and sincere service to make customers satisfy".Our eternal faith is "living on quality, reputation on honesty, development on mutual benefit". We are looking forward to offering our best services to our friends from at home and abroad.
Mainly products:
Car bottom furnace | High vacuum furnace | Tube furnace |
Muffle furnace | Atmosphere furnace | Crucible furnace |
Bottom loading furnace | Dental sintering furnace | Etc. |
How to make an order
FAQ
1. Q:Are you muffle furnace manufacturer?
A: Yes, we are professional muffle furnace manufacturer of China.
2. Q:What kind terms of payment can be accepted?
A: L/C, T/T, Western Union, Paypal, Trade Assurance, etc.
3. Q: Can I ask for customized furnace?
A: Yes, customized furnace is accepted.
4. Q: What about the delivery time?
A: Normally within 15 days after receiving your payment or based on order quantity and production schedule.
5. Q: What about the guarantee period?
A: The guarantee period is 12 months.
6. Q: What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
Price of High Temperature crucible Furnace laboratory Electric resistance vacuum sintering crucible furnace for melting
Price of High Temperature crucible Furnace laboratory Electric resistance vacuum sintering crucible furnace for melting
Price of High Temperature crucible Furnace laboratory Electric resistance vacuum sintering crucible furnace for melting
