(CN28~70) vibrator poker concrete vibrator concrete poker vibration poker
- Category: >>>
- Supplier: Wuxi Chuangneng Machinery Manufacturing Co. Ltd.
Share on (60047886050):
Product Overview
Description

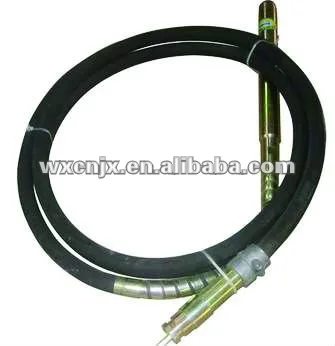

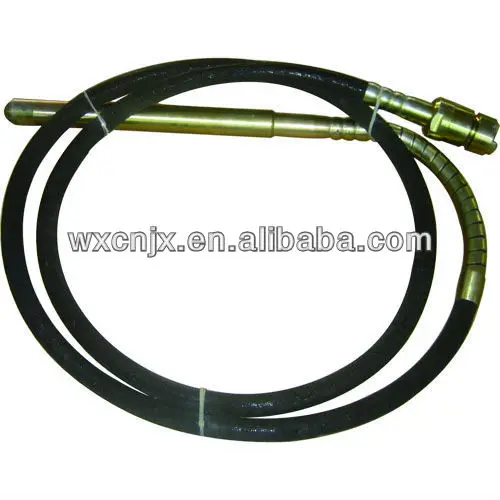

VIBRATOR POKERS
Product Detail
| Model | CN-28 | CN-32 | CN-38 | CN-45 | CN-50 | CN-60 | CN-70 |
|---|---|---|---|---|---|---|---|
| Vibrating Frequency VPM | 12000-14000 | ||||||
| Rotational Speed rpm | 2800-3600 | ||||||
| Vibrating Amplitude mm | 0.8 | 0.85 | 0.9 | 1.0 | 1.0 | 1.1 | 1.2 |
| Dia of Flexible Hose mm | 26 | 30 | 30 | 30 | 36 | 36 | 36 |
| Dia of Flexible Shaft mm | 8 | 10 | 10 | 10 | 13 | 13 | 13 |
| Vibrating Poker Dia mm | 28 | 32 | 38 | 45 | 50 | 60 | 70 |
| Vibrating Poker Length m | 6(4-10m as optional) | ||||||
| N.W (Japan Type) kg | 10 | 12.5 | 13.3 | 14.4 | 17.4 | 20.4 | 23.9 |
| N.W (Dynapac Type) kg | 11.6 | 14.1 | 14.9 | 16 | 19 | 22 | 25.5 |

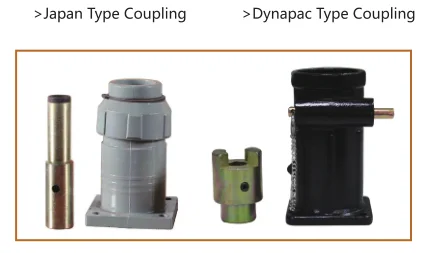

| Package (Japan Type) cm | 75*67*4.5 | 80*67*6 | 80*80*7 | ||||
| Package (Dynapac Type) cm | 75*67*6 | 80*67*6 | 80*80*7 | ||||
