2.54 pitch pcb board to board connector straight pin header
- Category: Connector >>>
- Supplier: Shenzhen Scondar Electronic Co. Ltd. [Guangdong China]Shenzhen
Share on (60047924913):
Product Overview
Description
Product Description
Different kinds Different pitch
2.54 pitch pcb board to board connector straight pin header
Product Descriptiion
Specifications:
| Pitch: 1.0 1.27 2.0 to 2.54mm | Poles:2~40P or 2*2~2*40P |
| Current Rating: | 3.0A AC,DC |
| Votage Rating: | 50V AC,DC |
| Temperature Range | -40deg. C ~+105deg. C |
| Contact Resistance: | 20M Omega Max |
| Insulation Resistance: | 1,000M Omega Max |
| Withstanding Voltage: | 1,000V AC/minute |
| Terminal Material: | Phosphor bronze |
| Housing Material: | Polyester(UL94-O)/PBT/Glass Fiber UL 94-0 |
|
Main photo about pin header/header connector Special type? welcome to ask for ODM/OEM
2.54mm 0.1'' inch different type header

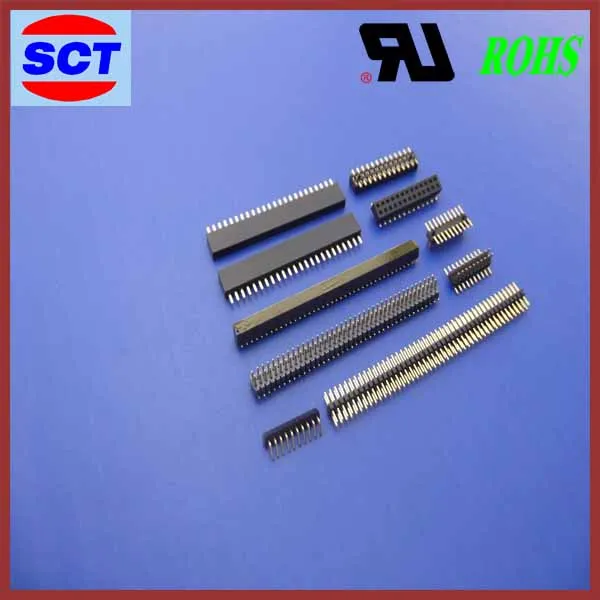

1.0mm pitch type: Dip or SMT

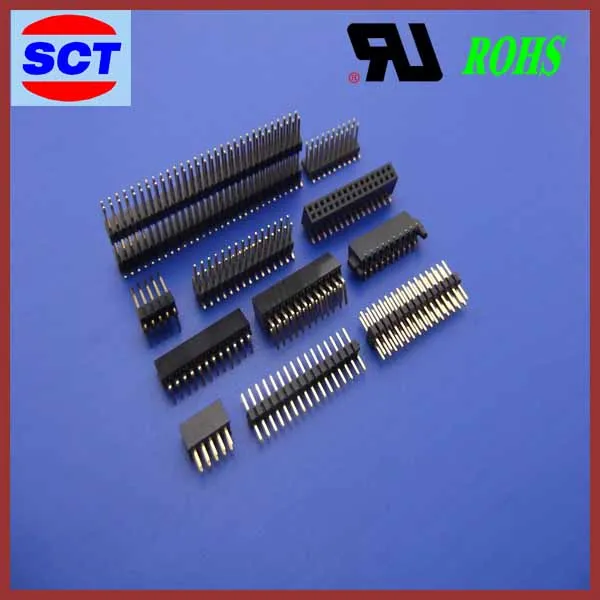

1.27mm pitch through hole pin header, header receptacle.
2.0mm pitch connector

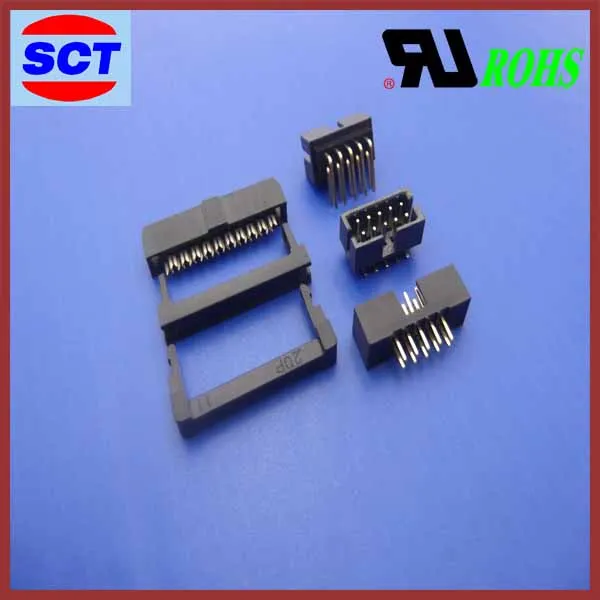

IDC with cable fit with BOX header type with different space
Round pin Original round 2 pin board to board for LED

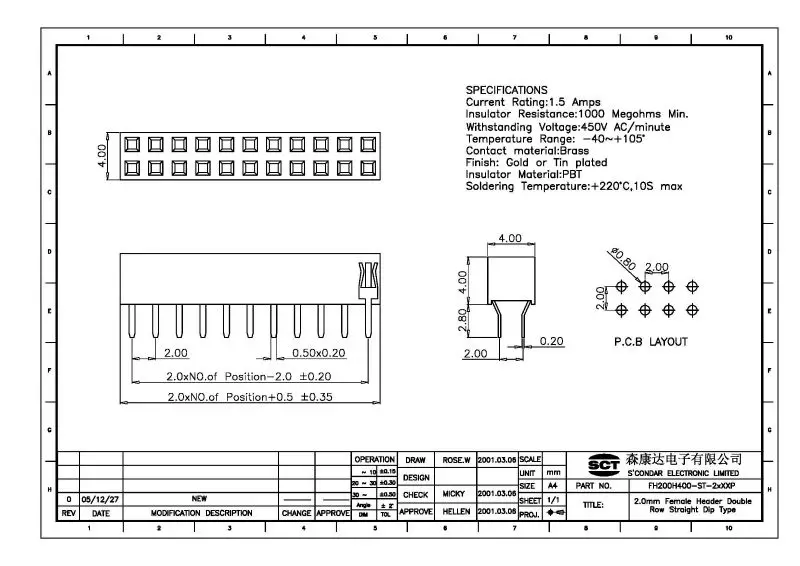

Ask for drawing with specification!
|
