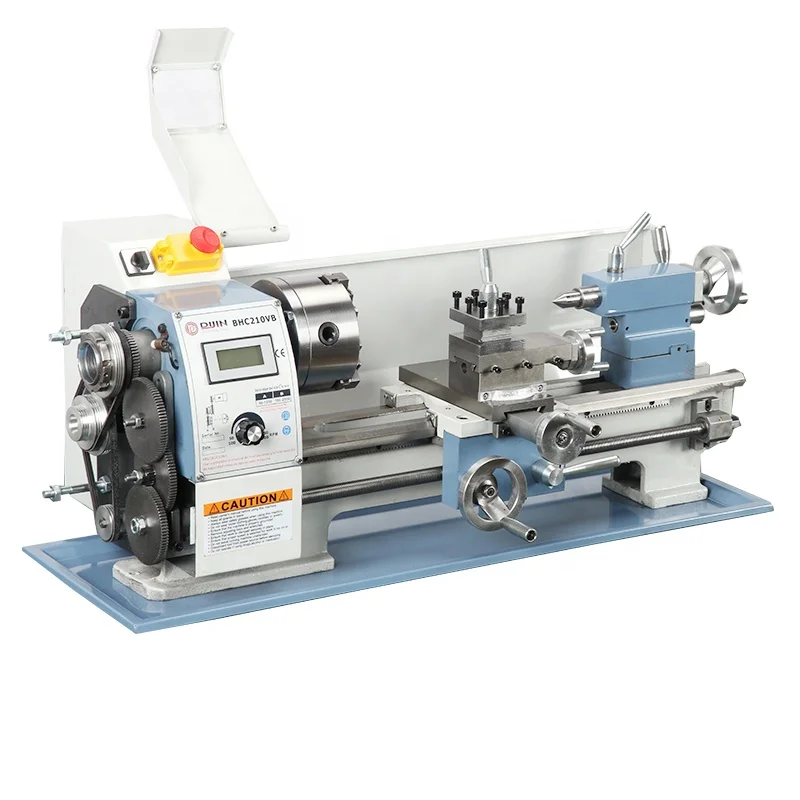

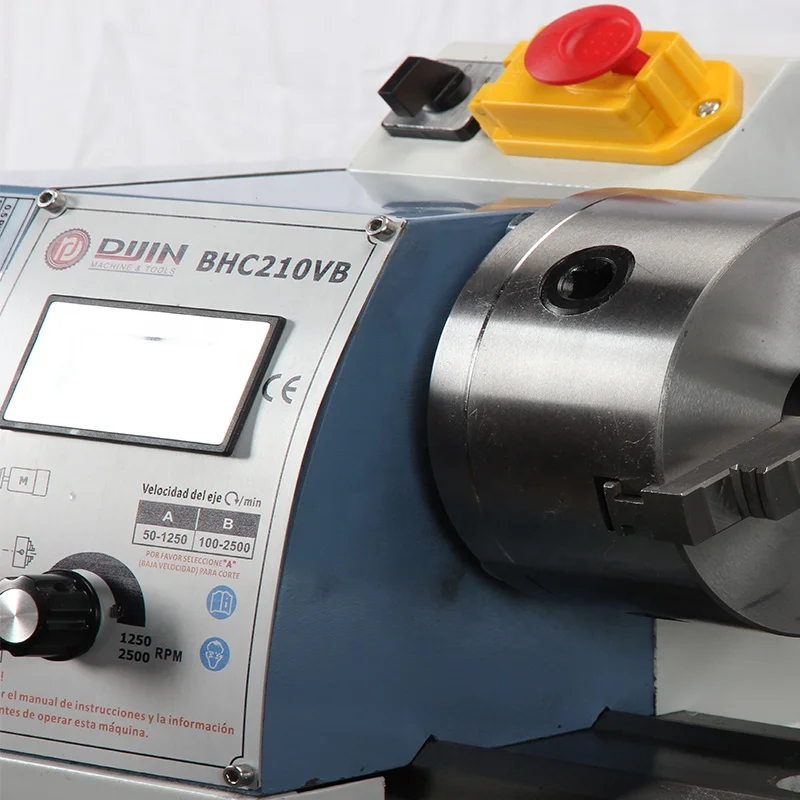

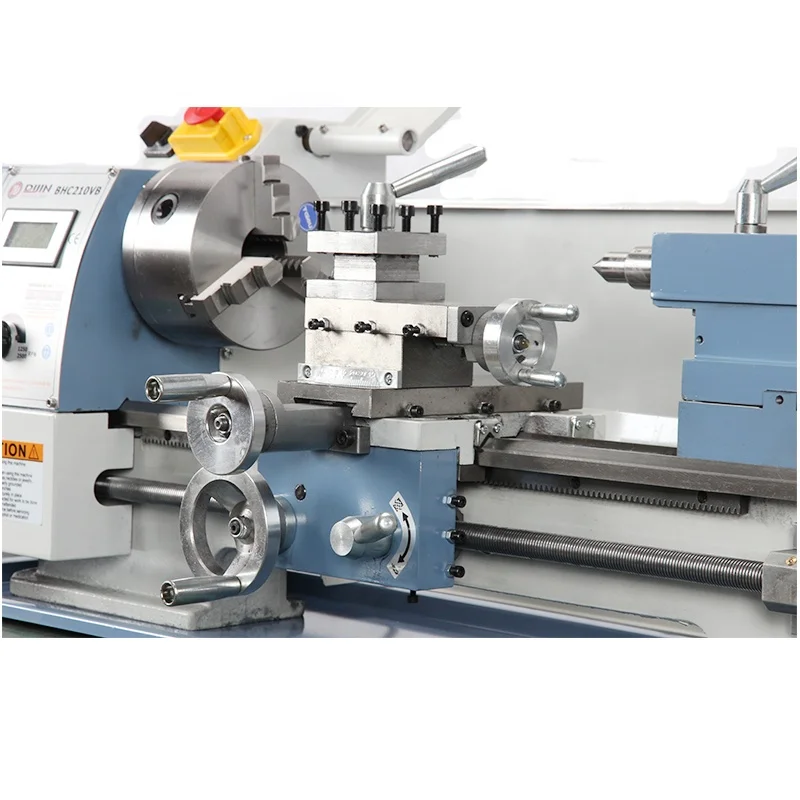

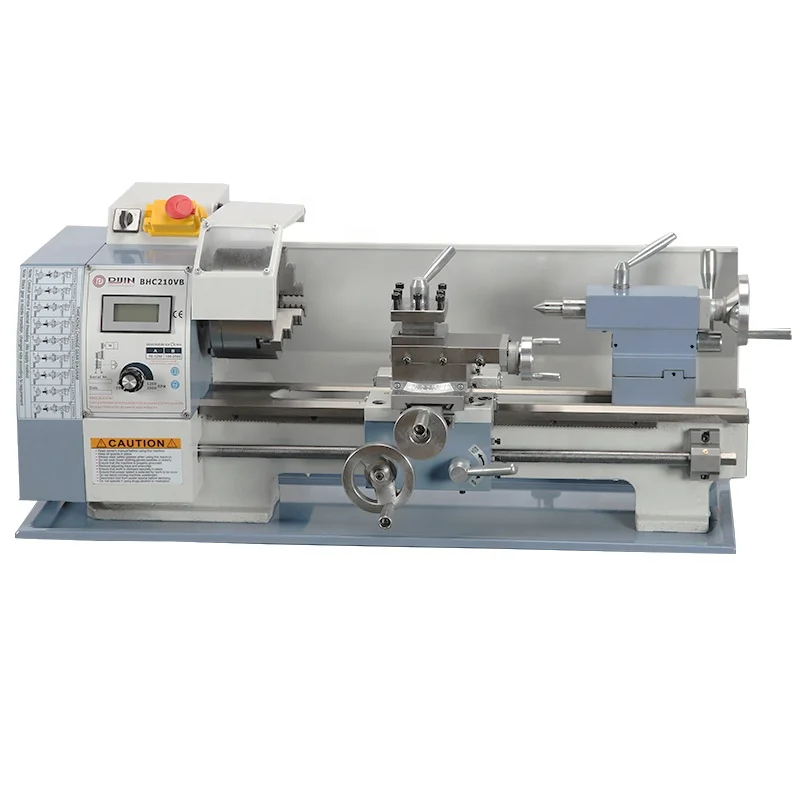

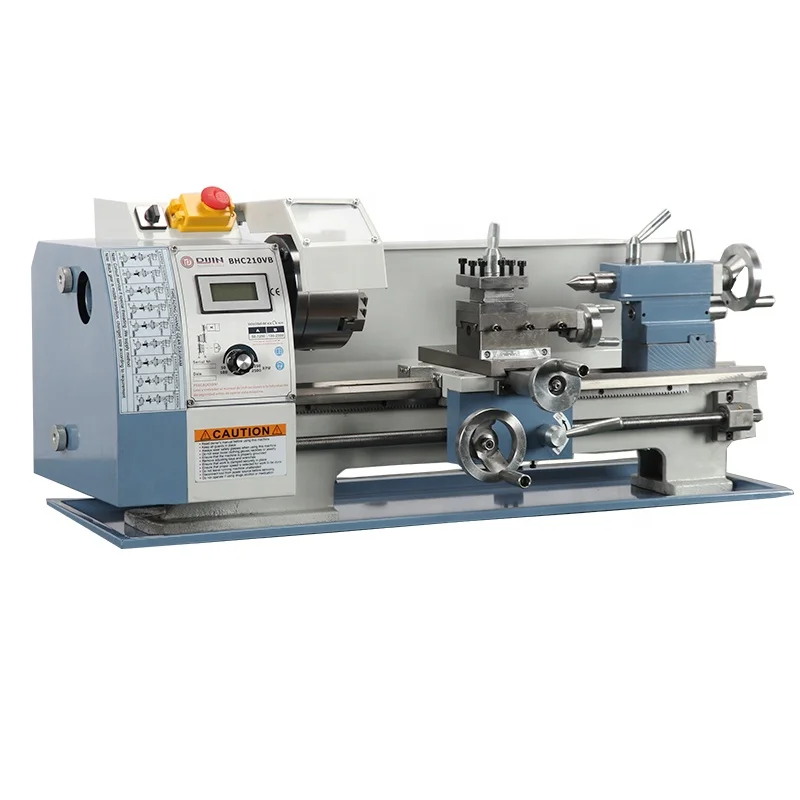

mini cnc torno DIJIN brand 850W brushless motor household lathe bore 38mm
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (60048047387):
Product Overview
Description

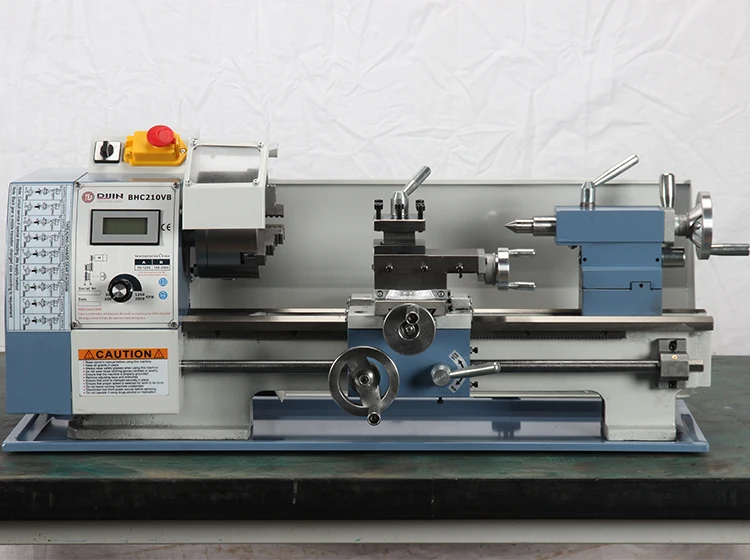

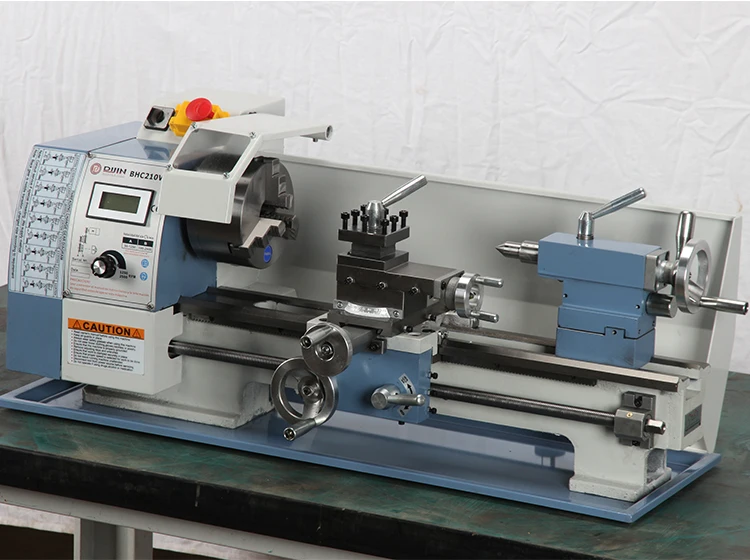

Mini variable speed lathe BHC210VB
Feature :
1. widely used, simple operation, and a wide range of processing
2.From 50-1250rpm spindle speed 50-2500rpm
3.European standard safety magnetic switch 9 cost, accurate and stable value .
Imperial thread change gears is optional extras and must be ordered separately
Specification:
Model | BHC210VB |
Max. swing over bed | 210mm |
Distance between centers | 400mm |
Spindle bore | 38mm |
Taper of Spindle bore | MT3 |
Range of Spindle speeds | 50-2500rpm |
Taper of tailstock quill | MT2 |
Metric threads can be cut | 0.5-3mm |
Inch threads can be cut | 10-44TPI |
Max travel of cross slide | 75mm |
Bed of width | 100mm |
Travel of Tailstock sleeve | 60mm |
Motor power | 850W |
GW/NW | 70/60KG |
Package size( L*W*H ) | 840*390*470mm |
Standard accessory :
Spindle speed DRO--------------------1pc

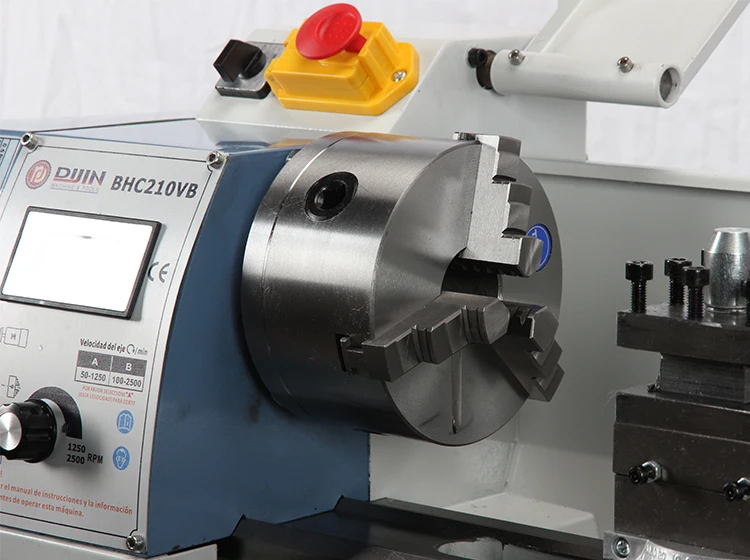

Three-jaw chuck-------------------------1pc
Oil tray--------------------------------------1pc
chuck guard-------------------------------1pc
metal gear change------------------------1 set
Splash guard-------------------------------1pc
Tool box--------------------------------------1 set
Optional accessory :
Steady rest
follow rest
Four-jaw chuck
back plate
face plate
drill chuck with arbor(1-13mm)
live center
lathe tool (11pcs)
Imperial trhead change gear
