No load<1.5% Non-Distorting balanced linear load<5%
Telephone Interference(TIF)
<50
Telephone Interference(THF)
<2%
Exhaust System
Exhaust air flow
1489 L/S
Exhaust Temperature
532°C
Max Back Pressure
10kPa
Air Intake System
Max Intake Restriction
6.23 kPa
Burning Capacity
533 L/S
Air Flow
9800 L/S
Lubricant System
Total Lubricant Capacity
50L
Lubricant Consumption
≤4g/kwh
Engine Oil Tank Capacity
38L
Oil Pressure at Rated Speed
345-483 kPa
Three phase voltage regulator generator:Our standard generator set match with LEADTECH alternator, also can match it by customer request. Brushless self-exciting synchronous AC alternatorThree phase, 12 reconnect able leads

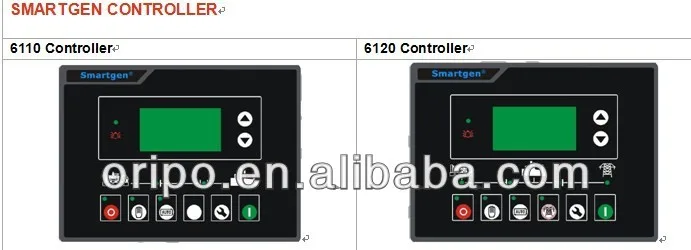

Control panel:Smartgen 6110 & 6120 control system also can use other brand according to customer requirement. Such as, HGM6310, HGM6320, DSE3110, DSE5110, DSE7110 and DSE7210 and etc.
Our Services
Transportation:

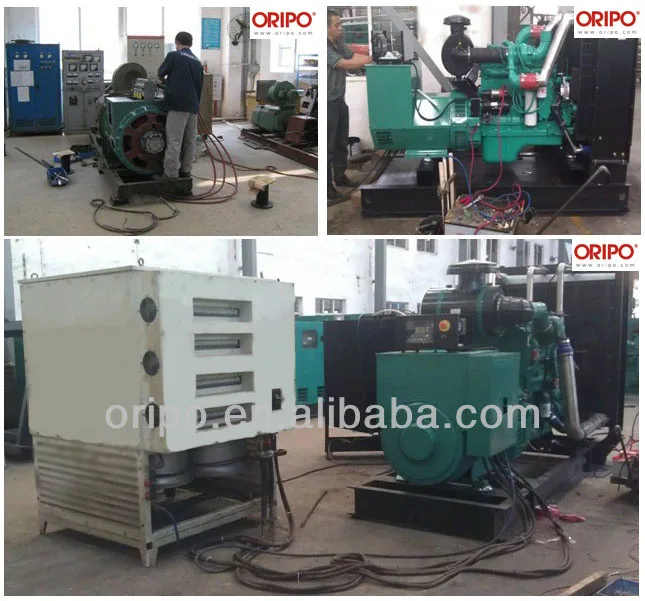

Oripo Diesel Generator Testing:
Strict Test Program which includes 50% load, 75% load, 110% load and all protection function (overspeed stop. high water temperature, low oil pressure, battery charging fail, emergency stop)
