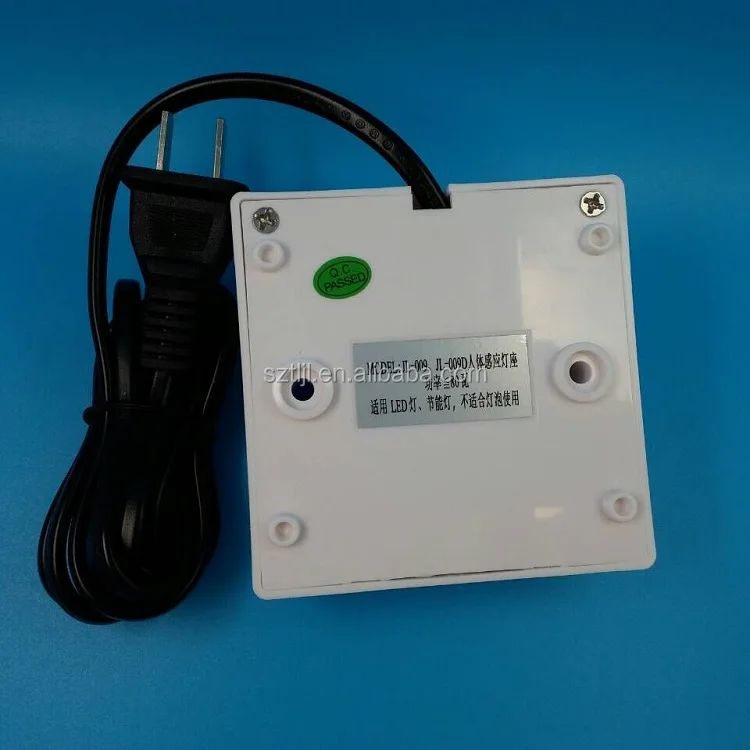

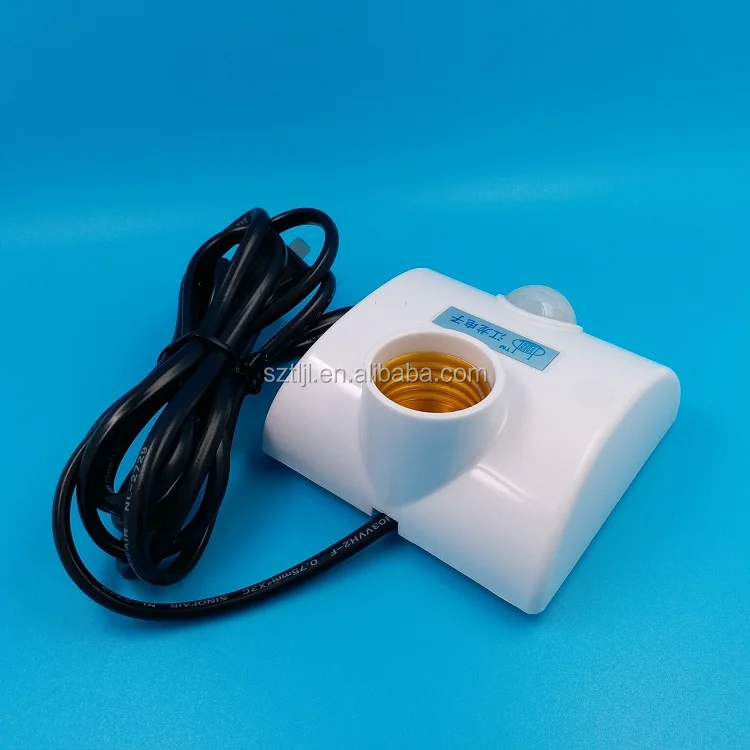

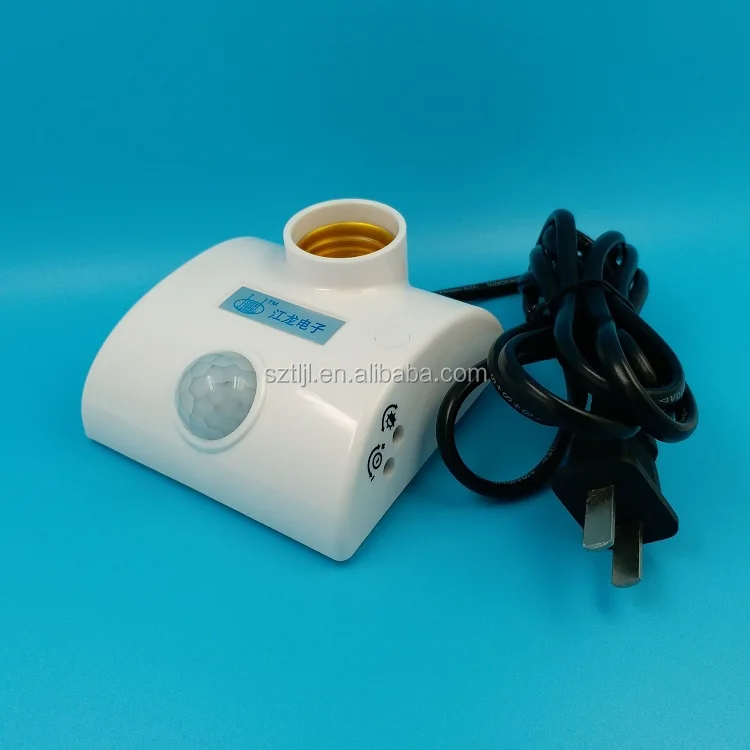

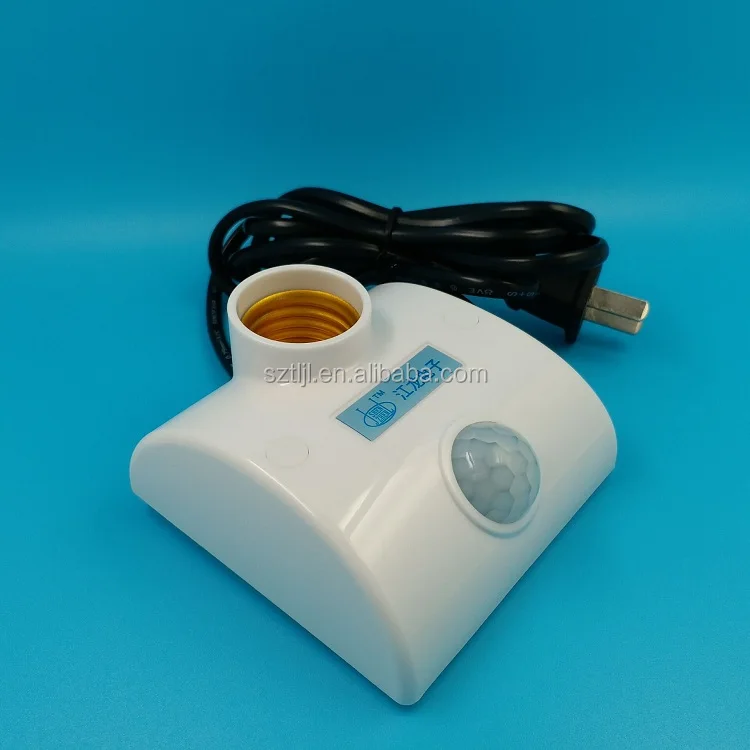

power supply cord with plug pir sensor motion switch lamp holder adjustable delay

Product Overview

Description

The company for customers to design various types products of electronic, provide solutions, the price is cheap, first-class service.

Hello! We also have alibaba China  store, please click link for  details: //jianglongdianzi2011.1688.com

We also take OEM, ODM orders upon request, if you any questions, please feel free to contact us.



The human body induction lamp holder operation instruction



JL-009(JL-009C power supply cord with plug)JL-009B,JL-009D Adjustable sensitivity and time)

1. Suitable for places

Corridor,toilet,basement,garage ,and other places of automatic lighting.

2. Features:

Our products adopt the most advanced imported internal sensor and circuit, when pedestrians into the sensing range light will start automatically, when they leave light will delay and shut down automatically. It has:

1,Working voltage: (JL-009,JL-009C,JL-009D is AC170-250V) ,(JL-009B is AC90V~150V) 50/60HZ

2,Large power, impedance biggest load can reach60W

3,Delay time adjustable

4,Sensitivity adjustable

5,Strong anti-jamming capacity, more safe and reliable

3.Specification:

1,Working power:(JL-009,JL-009C,JL-009D is AC170-250V) ,(JL-009B is AC90V~150V) 50/60HZ

2,Load power:≤60W

3,Power consumption Idling:≤0.1W

4,load characteristic:energy saving lamp,LED

5,Delay time:15~300second(default 30S)

6,Illumination:5LUX~5000LUX(default 5LUX)

7,Induction distance:110°,5~8m

4. Attention:

1,To turn off power when installation, must be installed by professional

2,Do not overload to use

3,This product should not be used for the incandescent light bulb

4,This switch can work normally after 45 seconds when electricity, it is infrared sensor preheat time
