4S car parts auto spare shelving

Product Overview

Description

 auto spare toy storage rack



♣Medium duty rack is also called medium duty shelf.

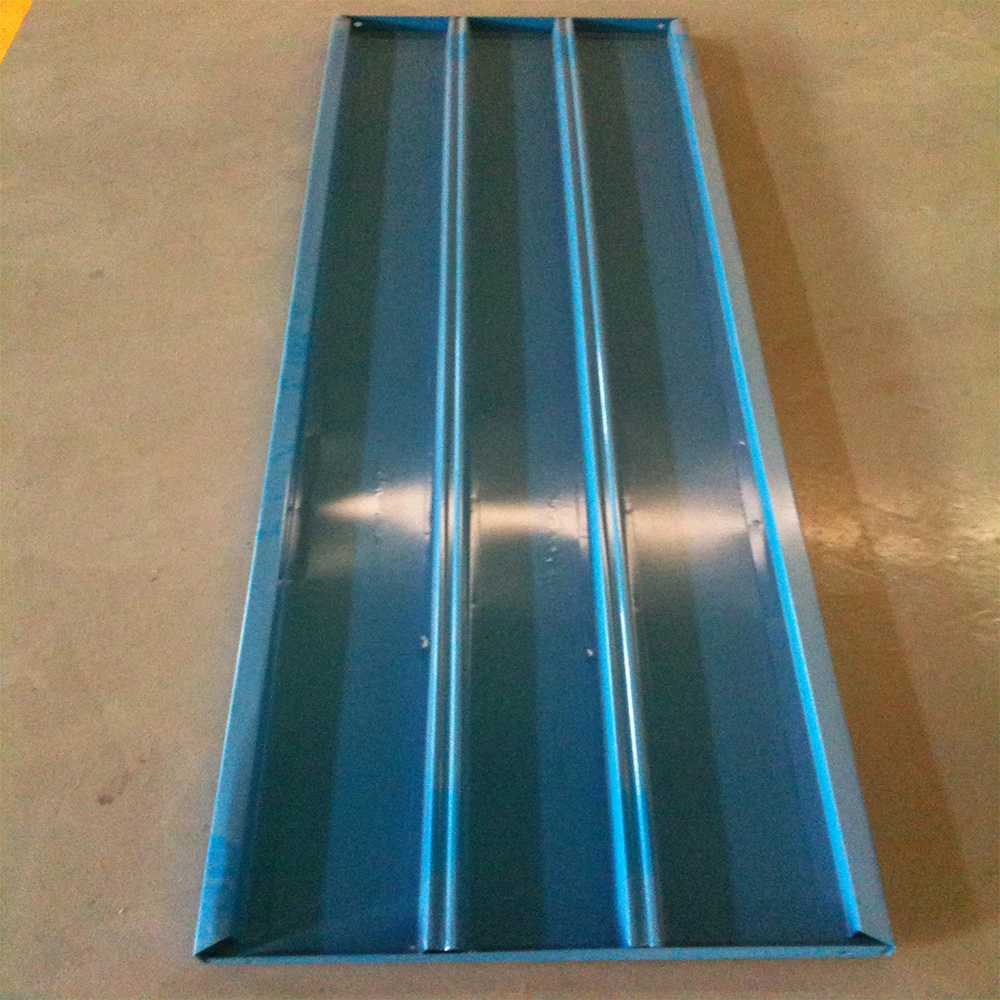

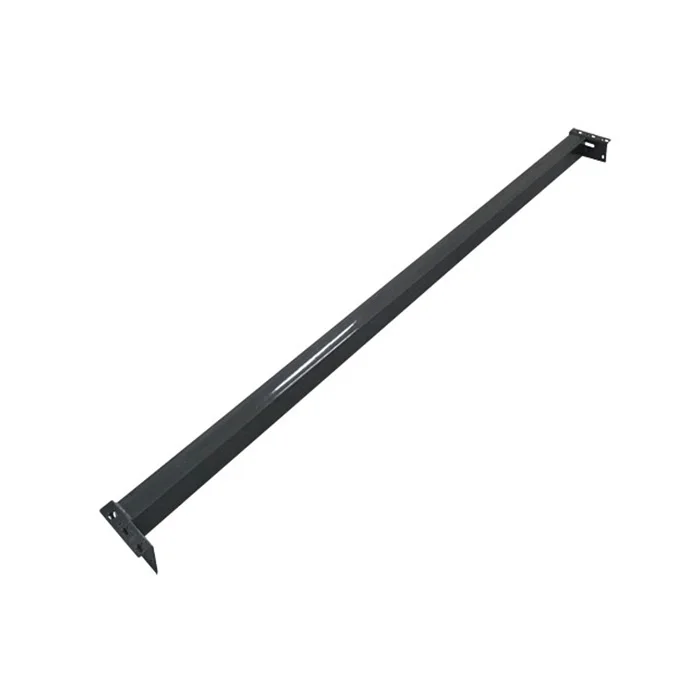

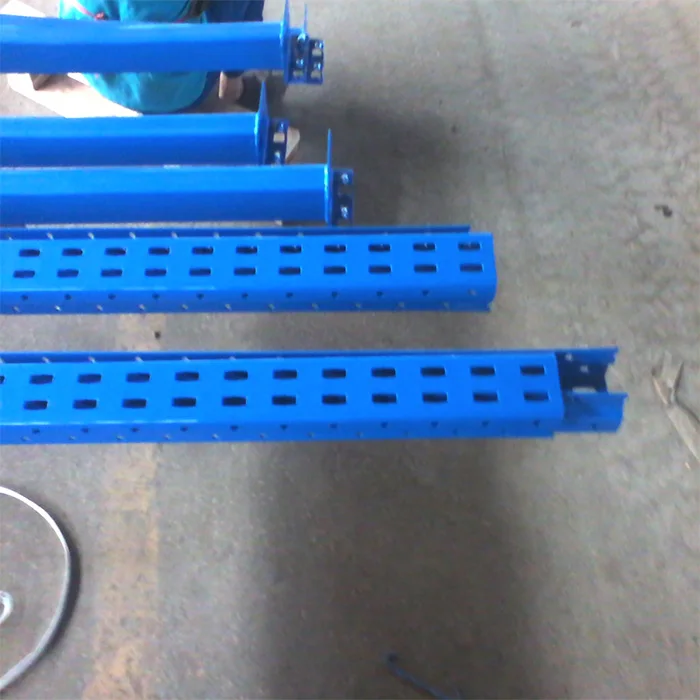

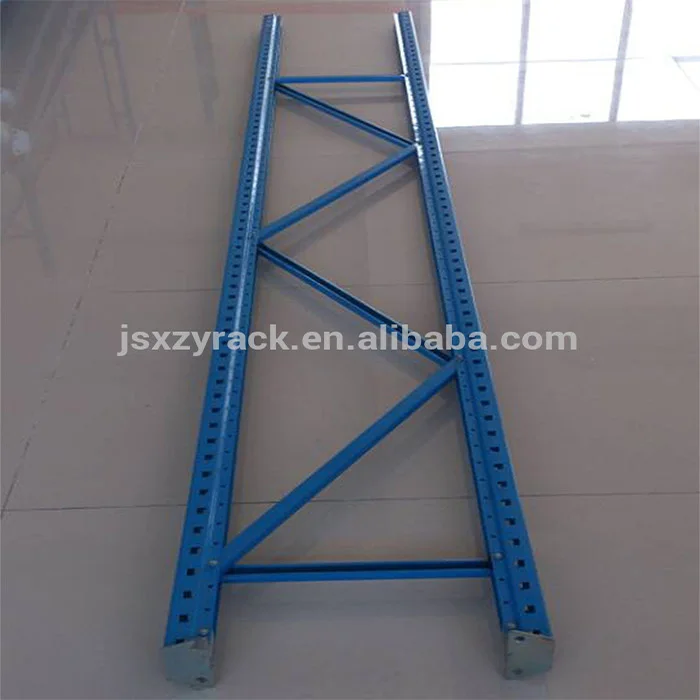

Medium duty rack consists of assembly frame, step beam or angle iron welded beam, steel panel or wire decking panel or wooden panel.

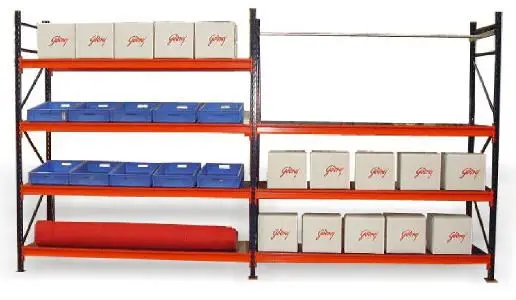

Medium duty rack is suitable for storing of boxes or loosen goods. Its sizes are customized. Each level can load as much as 800kg. Long span shelving is also often chosen to make medium duty mezzanine to enlarge store space or split space into different fuctions.

Long span shelving is easy to be installed. A ruler, a wrench, a hammer are necessary. Make sure the groud you will put the shelving on is even. Make sure the upright will be stand uprightly.

Medium duty rack including Medium A style and Medium B style.

♣ Medium duty A style

Standard Specifications of bolted type rack
Depth of Frame(mm)	Height of Frame(mm)	Length of Beam(mm)
400	1800	800
450	2000	1000
500	2500	1200
600	3000	1500
700	3500	1800
800	4000	2000
900	4500	2300
1000	5000	2500



  ♣ Medium duty B style

Standard Specifications of B Style boltless type rack
Length*Width(mm)	Height (mm)	Load Capacity             kg/level
1200*470	1500   1800 2100 2400	300
1200*600		350
1200*720		350
1200*920(2 plates)		450
1200*1180(2 plates)		450
1500*470		200
1500*600		300
1500*720		300
1500*920		400
1500*1180		450
1800*470		250
1800*600		250
1800*720		250
1800*920(2 plates)		400
1800*1180		400

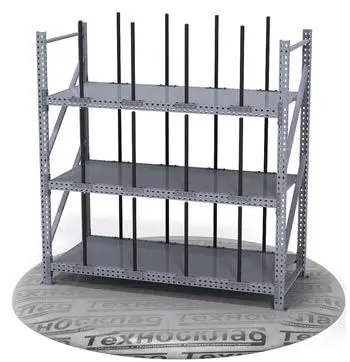

♣The storage example for different goods.

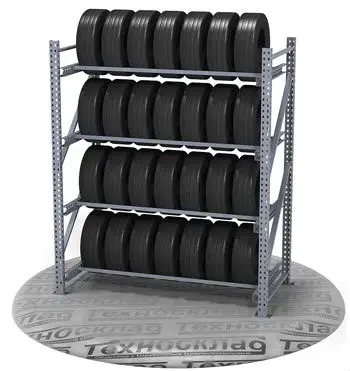

Tire storage rack/windshield rack/auto spare parts rack



Tire storage rack/windshield rack/auto spare parts rack

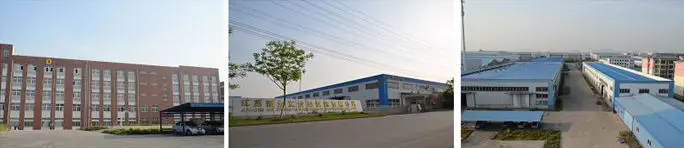

♣ visiting and shipping with customers.
