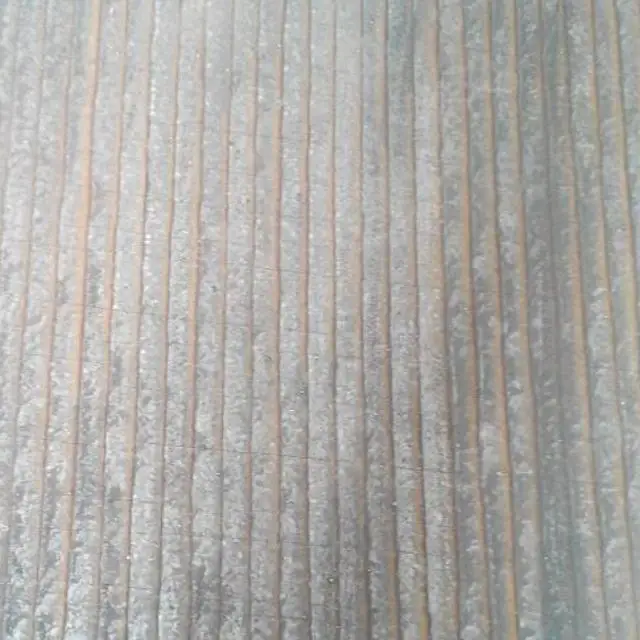

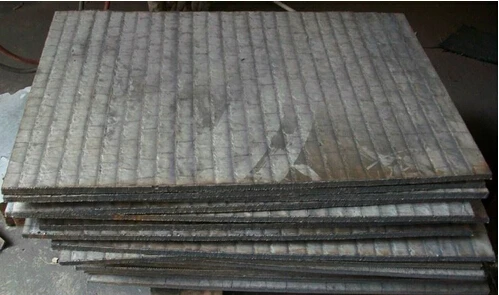

Good chromium carbide alloy wear resistance steel plate

Product Overview

Description

Good C-Cr alloy overlay 8+5 wear resistance steel plate







Wear resistance plates  information



Model	Wear size/mm	Supply size	Wear layer thickness	Kg/m2	Area(m2)/ton
WRP-B303	3+3	1.4m×3m	3mm	46.8	21.37
WRP-B503	5+3	1.4m×3m	3mm	62.4	16.03
WRP-B604	6+4	1.4m×3m	4mm	78.0	12.82
WRP-B606	6+6	1.4m×3m	6mm	93.6	10.68
WRP-B804	8+4	1.4m×3m	4mm	93.6	10.68
WRP-B806	8+6	1.4m×3m	6mm	109.2	9.16
WRP-B1010	10+10	1.4m×3m	10mm	156.0	6.41



 Base plate of our wear resistance plates , can be customized



Grade	Mechanical Property					Chemical Composition
	Yield Strength		Tensile Strength		Elongation %	C	Si	Mn	S	P
	MPa	Kg/mm2	MPa	Kg/mm2	≤
Q235A	235	24	375-460	38-47	26	0.14-0.22	≤0.3	0.3-0.65	≤0.05	≤0.045
Q235B						0.12-0.20		0.3-0.7	≤0.045	≤0.045
Q235C						≤0.18		0.35-0.8	≤0.04	≤0.04
Q235D						≤0.18		0.35-0.8	≤0.035	≤0.035



 Flux-cored wires on the Overlay of our wear resistance plates , can be customized.



Composition	C	Mn	Si	Cr	Fe	Other
HD161	3-5	0.5-2.5	0.5-2.5	22-27	Bal.	2





 Application of our wear resistance plates:



1. Power Industry: Frozen Coal Cracker, Cyclone Burner Door, Square to Round Transition, Segmented Classifier Cone, Coal Handling Flop Gate, Journal Liner, Turbo Fired Burner, T-Fired Burner Barrel, Split Flame Burner Pant Leg, Raw Coal Mill Feed Pipe, Pressure Frame Wear Plate, Crusher Screen Plate.



2. Mining Industry: Dragline Bucket Liners, Truck Bed Liner Systems, Dozer Blade Liner Systems, Shovel Bucket Liners, Front End Loader Liner Systems, Raw Material Chute, Grader Blade Liner Systems, Rock Crusher Housing, Raw Material Funnel, Square to Round Transition, Classifier Blades, Wheel Loader Liner Systems.



3. Cement Industry: Stationary Classifier Blades, Raw Mill Nozzle, Raw Mill Roller Sweeps, Raw Mill Paddle, Raw Mill Feed Pipe, Raw Mill Classifier Cone, Raw Mill Wall Liners, ID Fan Blade Liners, Replaceable Bucket Liners, Augers, Slurry Transport Pipes, Elevator Bucket Liners.



4. Steel Industry: Coke Injection Line Elbows, Alloy Hopper, Reverse Fan Box, Dust Handling System, High Blast Furnace Coke Screens, Replaceable ID Fan Housing Liners, Wood Pulp Transfer Line, Log Stacker Fork Liners, Auger Flighting, 1/2’’ on 1’’ Mill Feed Chute Liner, Flat Back Elbows, Blow Tank Digester Target Plate









Arc surfacing method











1)      High wear performance: the property of wear resistance is much higher than the heat resistant steel and casting wear-resistant cast iron, abrasion resistance is also significantly higher than the wearing layer that relying on spray welding or thermal spraying to produce.

2)      Strong Shock Resistance: strong shock resistance and crack resistance, that suitable for vibration, hard shock working conditions.

3)      Easy Processing: made in standard sizes, which had light weight, convenient and flexible processing.

4)      Better Cost Performance: a better cost performance 2-3 times than ordinary materials, the per unit area cost only the a half of using the same kind of ingredients by hand electrode surfacing.

5)   Strict Quality Control: No matter what thickness of the wear plates, the wear resistant layers are uniformly straight. Could be processed the wear resistant composite plates with thinness of 4mm (2mm +2 mm)
