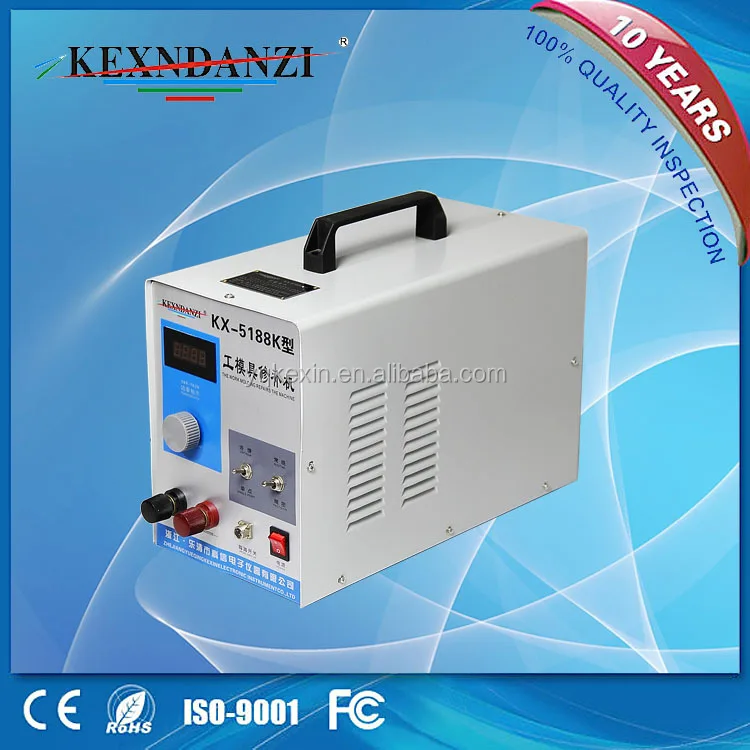

KX 5188K Tools and dies repair machine
- Category: >>>
- Supplier: Yueqing Kexin Electronic Instrument Co. Ltd.
Share on (60048895980):
Product Overview
Description
Packaging & Shipping
Packing Details: Plywood Case( in accordance with our customers requests. )
Delivery Details:In 1 day if no any special adjustment requirest from clients
Brief description
Repair materials: In addition to the very low resistivity of copper, aluminum and other materials, all kinds of metal materials can be patched.
Repair project: a processing defect in the manufacturing process, such as excessive cutting and ultra-poor, size, angular damage, lack of TIG.
Tool & Die is generated in the process and local wear.
The cavity corrosion depression.
Power supply: single phase AC 220 ± 10% 50Hz.
Power cut consumption: 50 ~ 650W.
Instantaneous maximum power: ≥ 16KW.
Operating modes: single-point and continuous.
Continuous pulse frequency: 3 ~ 80Hz, automatic frequency conversion.
Power mode: Precision and practices.
The host size: 460 × 230 × 310mm
Product Description
Technology Parameters
Model | KX-5188K |
Power | 220V±20% /50HZ |
Output Pulse Frequency | 3-30HZ Switchable |
Power consumption | 50-550W |
Instantaneous maximum power | Over 15KW |
Volume(mm 3) | 460mmx230mmx310mm |
Net Weight | 26KG |
Gross weight | 40KG |
The main features
1.The features a high weld strength: Patch Department can milling, filing and other processing.
2. Repair precision: flakes fill material to repair will not lose their original datum, less the excess solder, post-orthopedic easy.
3.The smallest patch of 0.03mm, the largest patch is greater than 0.35mm.
4.Scope of application: In addition to the low resistivity material such as copper, aluminum, all kinds of metal material workpiece can be patched.
5.Substrate damage: small hot spots, will not cause the substrate annealing deformation.
6.Welding power stability: fluctuations within the range of supply voltage change of ± 10%, the machine can still guarantee the stability of the repair quality.
7.Output power: single-wire welding when welding 1mm.
8.Simplicity of operation: can be applied to general workers to operate.
9.Electrical connections and convenient: with magnetic connectors, any size workpiece can be easily connected to the power.
10.Easy to carry: the whole small size, light weight, the host only 30kg.
Main Accessories Photos
