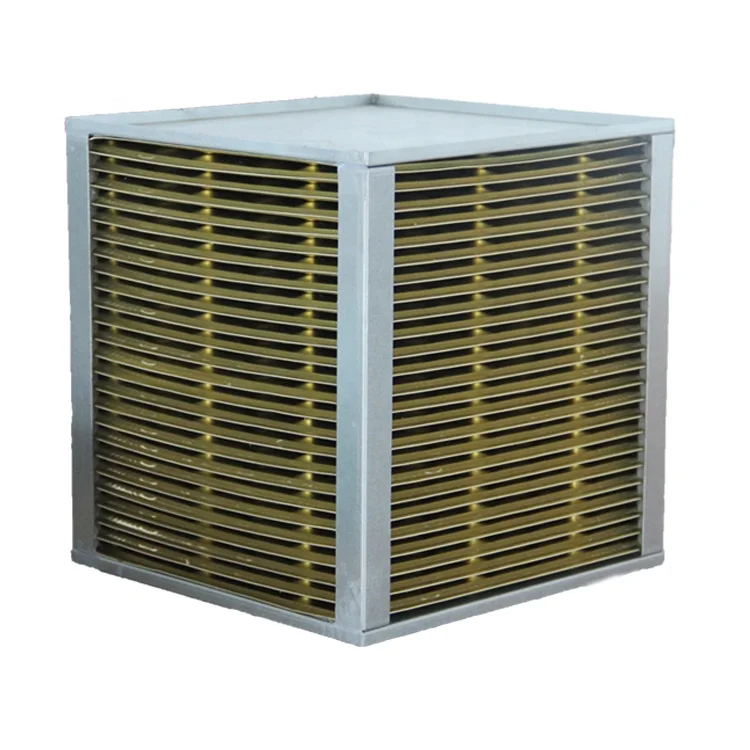

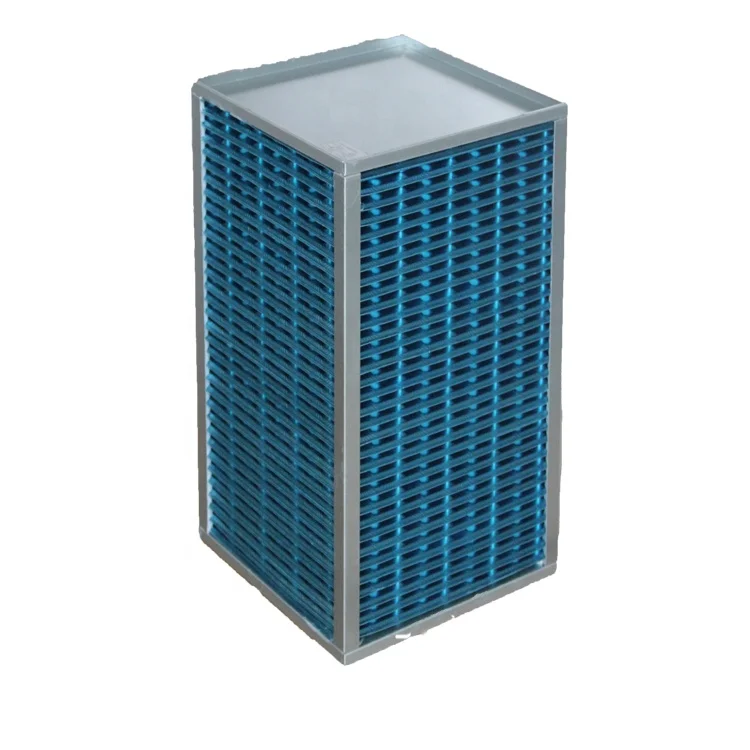

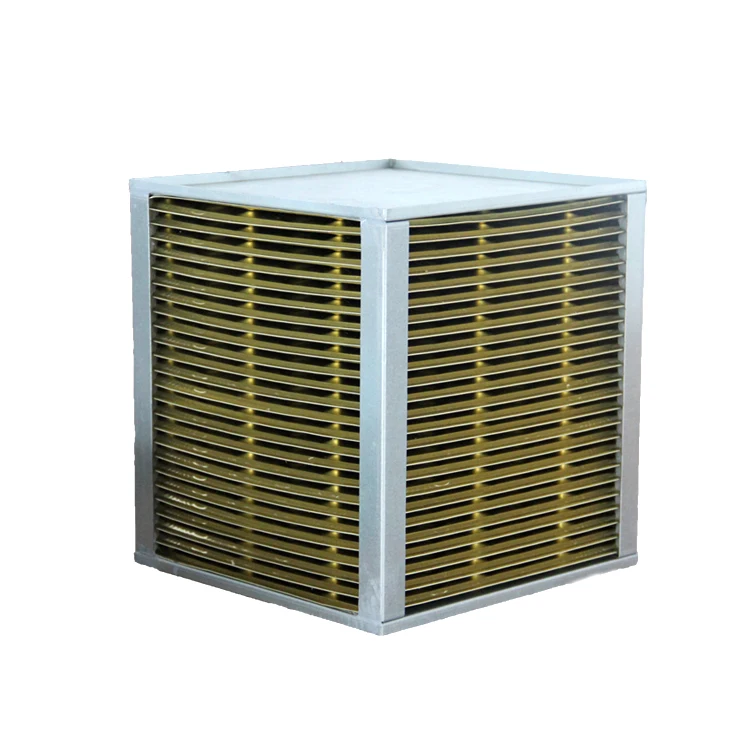

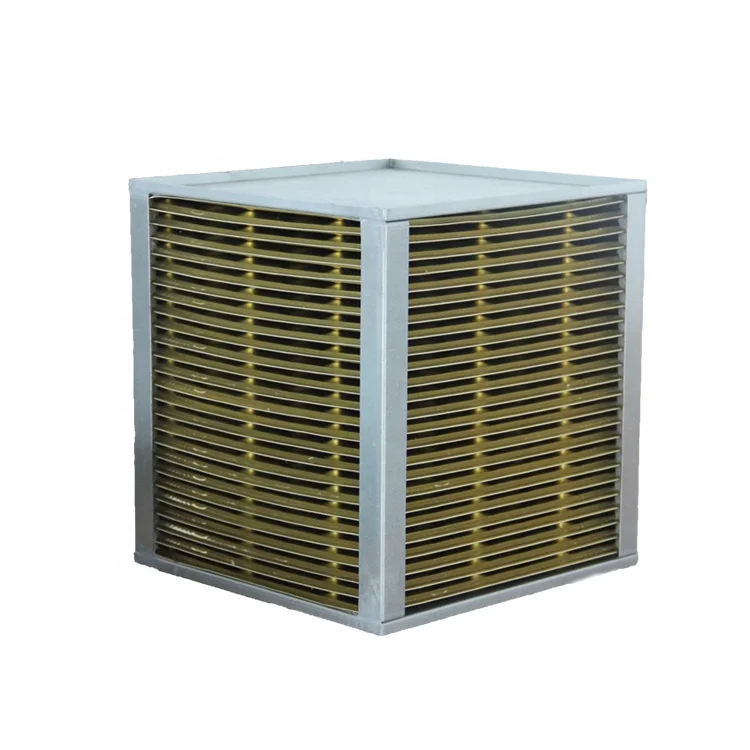

ERA 01 plate heat exchangers core air recuperator with air ventilation system

The aluminum foil with high quality hydrophilic coating is used as the heat transfer conductor, which is processed by special process. It is characterized by high heat exchange efficiency, easy maintenance and long service life.

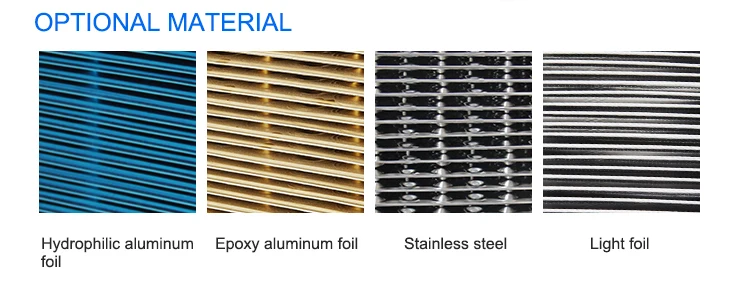

Epoxy aluminum foil, corrosion resistance. suitable for special occasions;

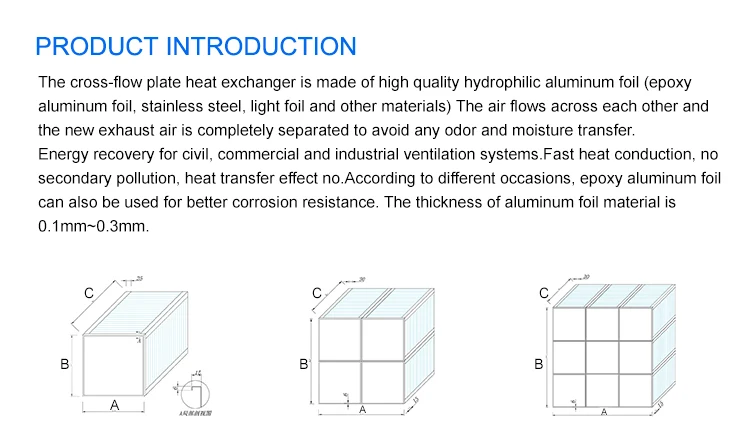

A great number of specifications and sizes and plate spacinq (2.5-12mm) to choose: Modular structure, can provide any size of the section and the combination of plate stack thick ness, no moving parts, equipment maintenance costs;
Compact structure, small size, suitable for various occasions.

The surface of the heat exchanger has been rammed with heat transfer enhancement, and the heat transfer area has been increased by about 10%.
The air passage is supported by a stamping convex circle to ensure the high strength and tightness of the passage and strong ability to withstand new exhaust.

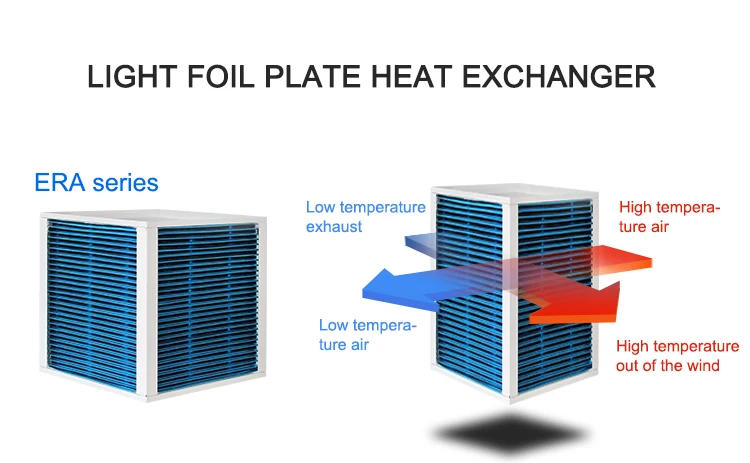

The channels of fresh air and exhaust air cross each other and are separated by aluminum foil.

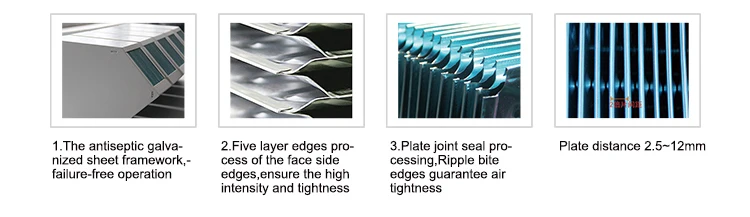

The inlet edge and outlet edge adopt the five-layer coil edge and ripple bite technology which makes the edge stronger and the seal more reliable.
All joints are sealed with sealant and treated with bite-edge flow adhesive to ensure the air tightness of the heat exchanger.
